Rectangle High Power Density Rectangle Far Infrared Ceramic Heater 220V

Name: Rectangle High Power Density Rectangle Far Infrared Ceramic Heater 220V
Brand: thisfurniture.com
SKU: 690436861
Availability: InStock
Rating: 4.8 (112 reviews)

Price:	US $ 2-30/Piece
Min Order:	10/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Air Heater

Product Description

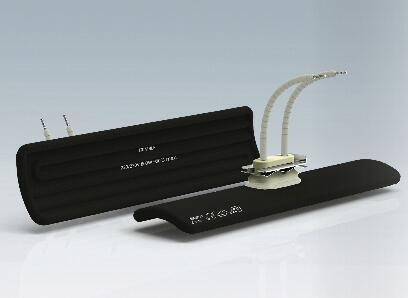

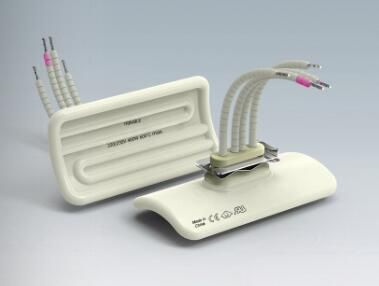

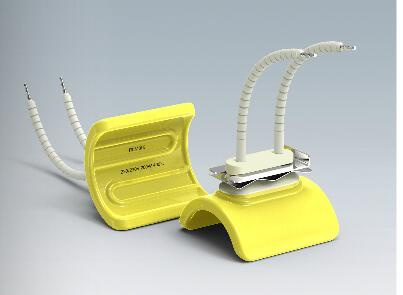

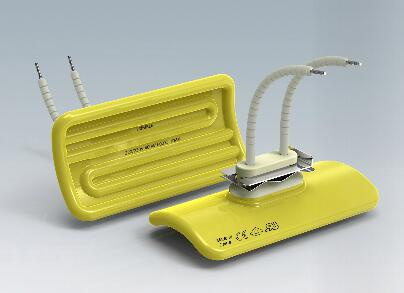

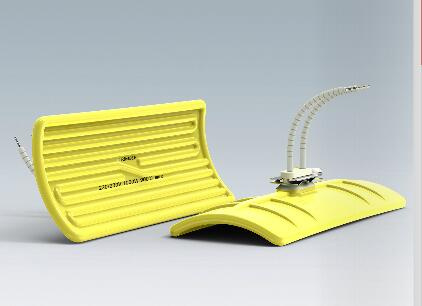

High power density rectangle far infrared ceramic heater 220v

Detailed power specification:

Size(mm)	Type	Power
60*60	Curved/flat/Hollow	Available in 125w and 250w
12260/12060	Curved/flat/Hollow	Available from 125w to 500w
122122/120120	Curved/flat/Hollow	Available from 150w to 750w
245*60	Curved/flat/Hollow	Available from 150W to 1000w
245*80	Curved/flat/Hollow	Available from 150w to 1000W

specification:

1,Nickel chrome resistance wire(NiCr20/80)

2,Color: White/Black

3, Type K thermocouple mounted internally in center heater. Optional type J thermocouple is also available.

Brief Introduction of Heating Ceramic Plate

Infrared Ceramic Heat Lamp is efficient, robust heaters which provide long wave infrared radiation. They are used in a diverse range of industrial processes such as heaters for thermoforming, and as heaters for paint curing, printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas.

It has many kinds of shapes, contains lamp heater, flat heater, arc heater and square heater.

Features For Heating Ceramic Plate

<1>.Power wireburied-cast, antioxidation, resistant to impact, long service time

<2>.Heating alone or together.

<3>.It can obtain better uniform temperature to keep up and down about consistent when compact

<4>.In the hollow state off heat can also preserve heat, and heating speedup (adiabatic insulation cotton inside, so the temperature directional radiate to achieve rapid warming effect).

<5>.Uniform temperature,will not fade.

Application For Heating Ceramic Plate

<1>.Heating in PH environment (for example: Footwear processi
ng, tape, plywood heating).

<2>.Stove machine with major vibration or impact (for example: Vacuum forming machine , Compression Molding Machine).

<3>. Short distance heating (for example: Printing ink dryer, PCB repair station, Electric heating tables).

<4>.Heating in vertical or half round array (for example: Angle iron,Aluminum windows paint stove) .

Technique Data of Heating Ceramic Plate

Specification for Reptile Ceramic Plate:

Model	Dimension of tube	Voltage	Wattage
	(mm)	(v)	(w)
1-400	60X245	230/240	400w
1-500	60X245	230/240	500w
1-650	60X245	230/240	650w
1-800	60X245	230/240	800w
