Product Description
ceramic heater supplier Specification:1,Nickel chrome resistance wire(NiCr20/80)
2,Color: White/Black
3, Type K thermocouple mounted internally in center heater. Optional type J thermocouple is also available.
4,Heater Voltage: 120V 220V 230V 240V 480V standard (other voltages available on request)
5,Useful wavelength range: 2-10 microns
6,Operating temperature is 300°C to 700°C (572°F - 1292°F)
7,Average Operating Life-Up to 20,000 hrs depending on conditions.
8. Recommended radiation distance from heater is 100 mm to 250 mm.
9,Supplied with 100mm ceramic beaded power leads
Detailed Power Specifications of 245*60MM ceramic heater supplierSize(mm) | Type | Power |
60*60 | Curved/flat/Hollow | Available in 125w and 250w |
122*60/120*60 | Curved/flat/Hollow | Available from 125w to 500w |
122*122/120*120 | Curved/flat/Hollow | Available from 150w to 750w |
245*60 | Curved/flat/Hollow | Available from 150W to 1000w |
245*80 | Curved/flat/Hollow | Available from 150w to 1000W |
ceramic heater supplier Applications:Ceramic heater can be widely used in vacuum forming, dry food, medical treatment sanitation etc kinds of places of infrared dry firing, solidify etc. It has perfect saving energy effect in electron, textile , light industry, chemical , medicine ,food industry etc, has obvious social profit and economy profit.

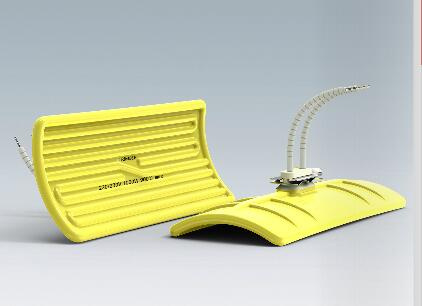

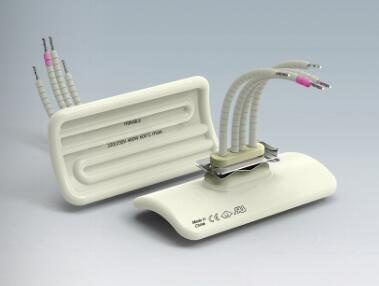

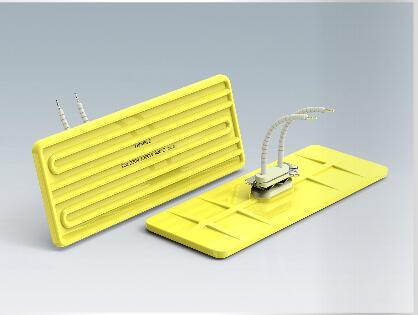

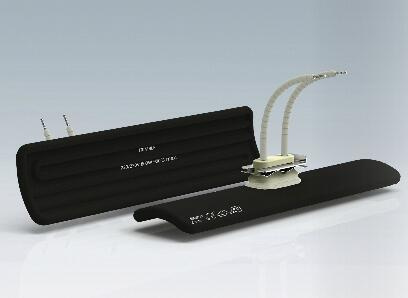

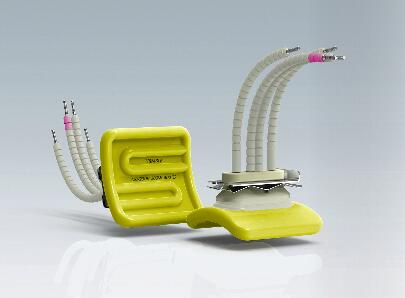

General Introduction of ceramic heater supplierCeramic Infrared Lamp is efficient, robust heaters which provide long wave infrared radiation. They are used in a diverse range of industrial processes such as heaters for thermoforming, and as heaters for paint curing, printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas.
It has many kinds of shapes, contains flat elements, trough elements, hollow elements, ceramic bulbs.
Specifications of ceramic heater supplierPower(W) | 60-1000 |
Heater Voltage(V) | 230 Volts standard (other volts available on request) |
1 | High Quality Nichrome Resistance Heating Wire |
2 | Average Operating Life-Up to 20,000 hrs depending on conditions |
3 | Useful wavelength range: 2-10 microns |
4 | Recommended radiation distance from heater is 100 mm to 200 mm |
5 | Supplied with 100mm ceramic beaded power leads |
Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.
Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.
We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers
After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
