| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | T/T,Western Union,Paypal |
| Prod Model: | Infrared Panel Heater |
|---|---|
| Voltage: | 24V/75V/110/220V/240V/Customize |
| Wave Length: | 2.2-3.5 Um |
| Color: | Milky White or Red or Golden |
| Reflection: | Gold Planted or White Coated |
| Warranty: | 1 Year |
| Power(W): | 10-8000W |
Introduction

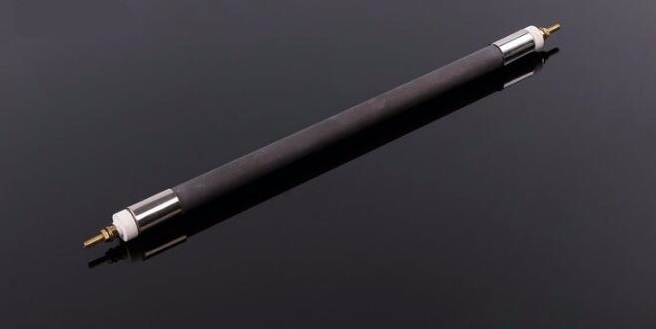

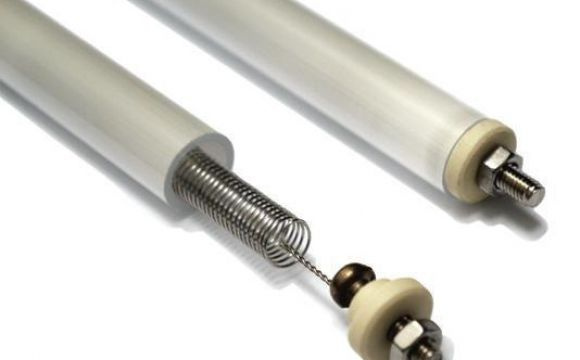

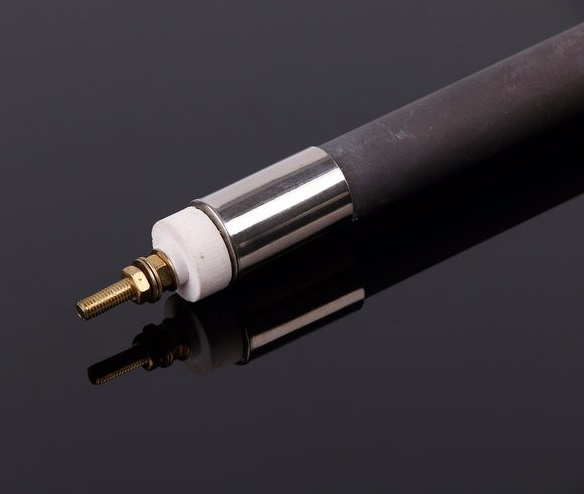

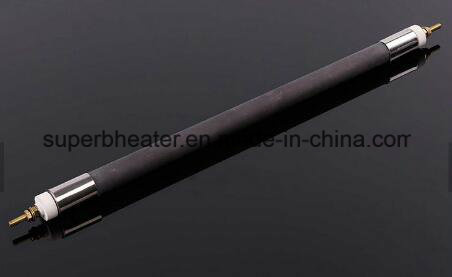

Ceramic far-infrared electric heating tube is a kind of high-tech product, which are highly applicate in sauna room and health efficacy:

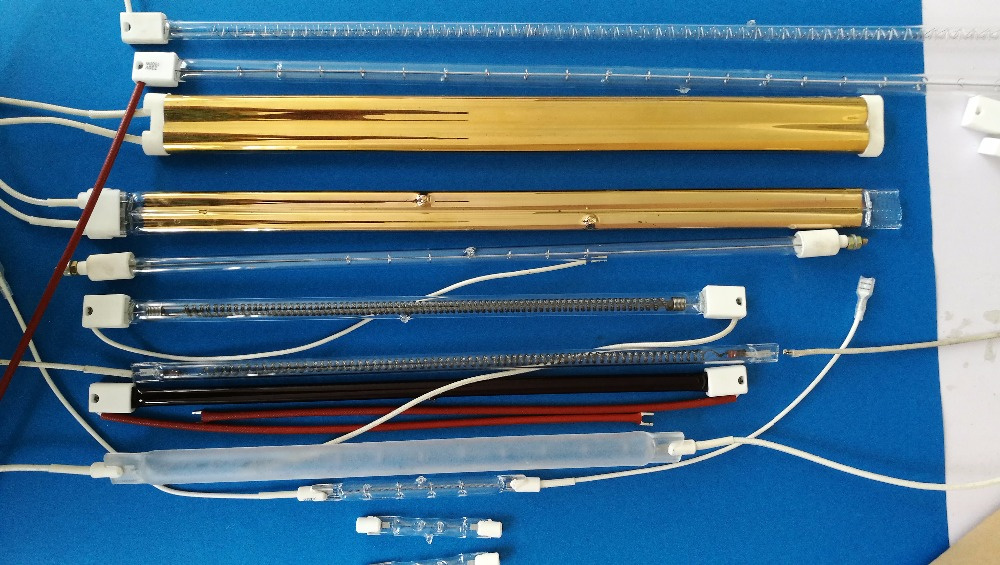

type of glod coating far infrared quartz heater tubes:
Product Name
quartz tube infrared heater
Outside Diameter
8~50mm, also can be customized
Length
100~3000mm, also can be customized
Power
100~10000KW, also can be customized
Voltage
24V/75V/110/220V/240V/380V/415V etc.
Surface Temperature Range
400~1000 °C

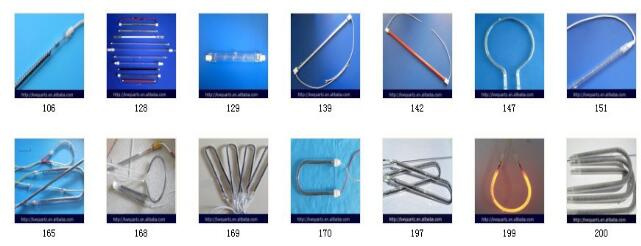

The product range
| The IR Heater Range | Format (mm) | Heated Length from-to (mm) | Total Length from-to (mm) | Max. Output (Watt) | |
| Short Wave IR | Halogen NIR | 8 dia. | 50-1000 | 110-1100 | 9000 |
| Single-tube IR | 10 /11.5dia. | 50-1000 | 110-1100 | 6000 | |
| Twin-tube IR | 23x11 | 50-3000 | 200-3150 | 14,000 | |
| CarbonIR | Round tube | 19 dia. | 100-1600 | 130-1730 | 6,400 |
| Twin tube | 33 x 15 | 100-3000 | 130-3130 | 10,500 | |
| Fast Mediumwave IR | Twin-tube IR | 33x15 | 500-3000 | 600-3150 | 12,000 |
| Medium Wave IR | Twin-tube IR | 18x8 | 60-1500 | 100-1600 | 2500 |
| Twin-tube IR | 23x11 | 80-2000 | 120-2200 | 4500 | |
| Twin-tube IR | 33x15 | 300-4400 | 350-4500 | 12,0 | |
Watt Voltage Total Length Heating length Reflector Lampbase
2000w 220V 200mm 140mm gold TC02
Applications:
1. Home heating and warming: heater, cooking, oven, stove, baker
2. Industrial drying: painting, drying apparatus, dyeing, print, products processing
3. Electrical machine drying: copy machine, projector, printer;
4. Other heating area.
When you inquiry, please inform us the following details:
1. Outside diameter and length of the quartz heating tube you need;
2. Power and Voltage of the tube you need;
3. The surface temperature you need;
4. Special requirements if you have.
OUR ADVANTAGES:
1.Minimum order: 3pcs
2.Delivery time : in stock 1-2days ,out stock 3-7days
3.More than 50 different sizes stock
Superb Heater Technology has been focused on the production of Multi-functional Reliable Quartz Tube Heating Element Finned Tubular Infrared Panel Heater lamp since 1985, which is well-known as one of the leading manufacturers and suppliers of high temperature quartz radiant heating tubereplacement tubes heating element. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.
