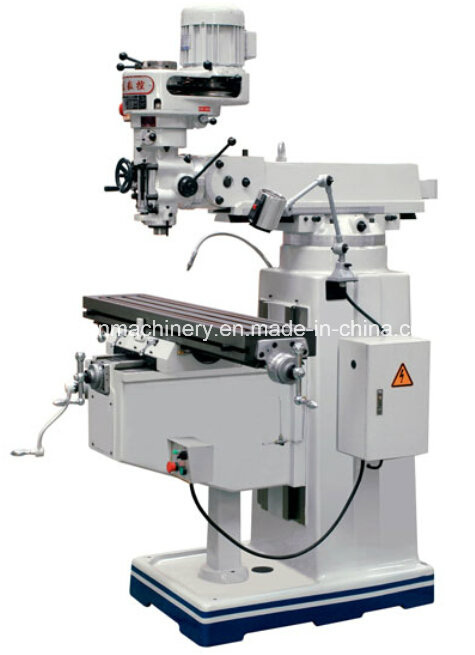

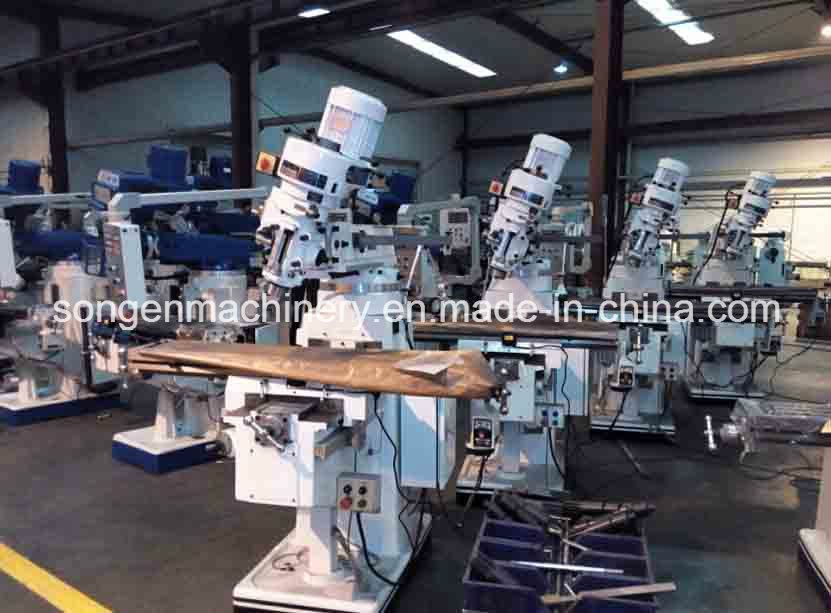

Radial Universal Turret Milling Machine, Table 230X1067/1246mm (9"X42"/49")

Prod Model:	RTM230A, RTM230B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Table:	230X1067/1246mm (9"X42"/49")
Spindle Speeds (Standard):	16 Steps, 65-4500rpm (50Hz), 80-5440rpm(60Hz)
Spindle Speeds (Optional):	Variable, 65-4500rpm
Motor:	2.25kw
Type:	Knee-and-Column Milling Machine
Structure:	Ram
Automatic Grade:	Semiautomatic
Precision:	High Precision
Controlling Mode:	Artificial
Object:	Tool

Product Description

Applications:

RTM230A, RTM230Bram type turret milling machines have the reasonable construction and the superior machining functions to perform drilling, boring, milling of surfaces and slots. Equipped with various accessories such as the rotary tables and the dividing heads, these turret milling machines can cut helix slots, round surfaces, racks, gears and splines.

Features:

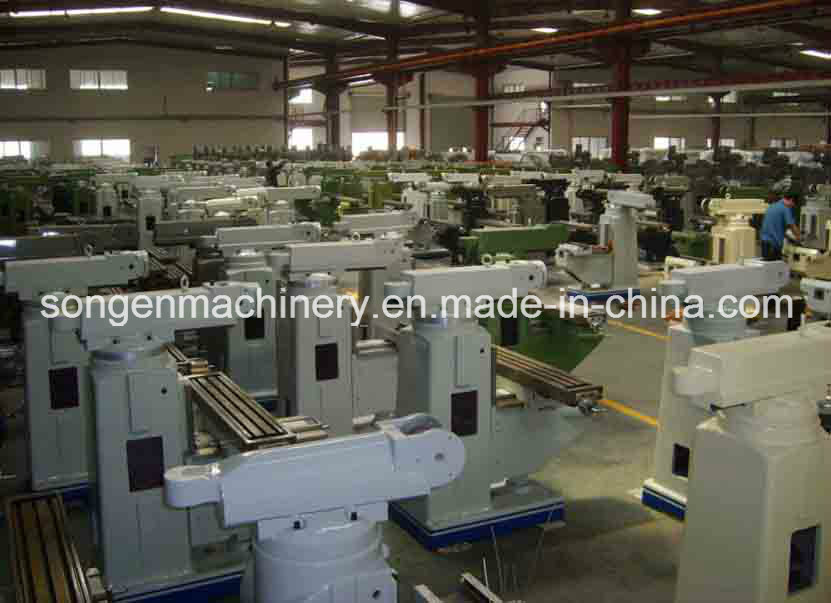

1. The machine base and the machine column on these turret milling machine are integrated into an one-piece construction. They are made of high-density and high-strength close-grained grey cast iron. With the column being designed with internal reinforcement ribs, the machine has the high rigidity and the shock absorption capacity;

2. The vertical turret milling head on these machines swivel left / right within 90 degrees and tilts front / rear within 45 degrees. The ram swivels around the column for 360 degrees. All of these motion capacities greatly enlarge the machine's machining scope;

3. Turret milling heads with 16-step speeps or variable speeds are available. These turret milling heads are made in Taiwan, having high quality;

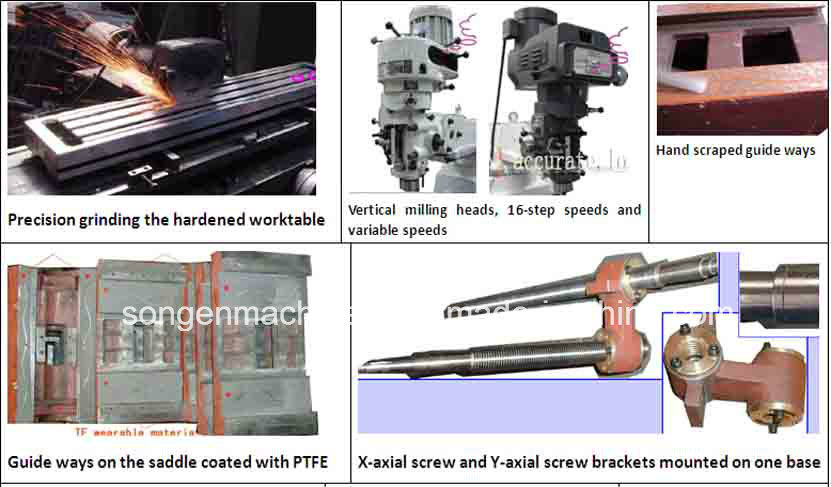

4. All guideways on these turret milling machines are hardened, precision ground and coated with PTFE to achieve very high rigidity and wear-resistance. The guideways thus can sustain the high moving accuracy for a very long time. The 55-degree dovetail guideways only or the combination of the 55-degree dovetail guideways and the rectangular guideways are adopted on these turret milling machines. For RTM230A turret milling machine, double 55-degree dovetail guideways are on both the Y-axis and the Z-axis, making the clearance between guideways easy to adjust and repair. For RTM230B turret milling machine, the 55-degree dovetail guideways are on the Z-axis and the rectangular guideways are on the Y-axis. The above mentioned guideway types are the unique difference between RTM230A and RTM230B turret milling machines;

5. Table size on both these two models of turret mills can be optional as 9"x42" or 9"x49". Table surfaces are hardened and precision ground to offer the good wear-resistance and positioning accuracy;

6. Vertical turret milling heads, the screws on X/Y/Z axes are made in Taiwan, having very good quality;

7. The electrical systems on these turret mills are designed as per CE standards. Components are uder world famous brands such as Siemens, Schneider, Delixi, Juche, etc.;

8. Various machine accessories are available to fit on these turret mills to enlarge their machining scope or imporve their machining accuracy. These accessories or components are power feeds, gearbox feeders, plastic splash guard, digital readout (2-axis or 3-axis), machine vise, ball screws and so on.

Specifications		Unit	RUHM230A	RUHM230B
Table size		mm	230x1067 (9"x42") or 230x1246 (9"x49")
Longitudinal travel		mm	650 for 1067mm long table;  840 for 1246mm long table
Cross travel		mm	305
Vertical travel		mm	400
T-slot No.and wdth		mm	3x16
Ram travel		mm	312
Distance from spindel nose to table surface		mm	15 - 415
Spindle bore taper			Standard: R8;  Optional: ISO30, ISO40
Spindle travel		mm	127
Spindle speed		rpm	Standard: 16 steps,  50HZ: 65-4500, 60HZ: 80-5440
			Optional: variable 65-4500
Auto.quill feed		mm/rev	Three steps, 0.04(0.0015")/ 0.08(0.003")/0.15(0.006")mm/revolution
Spindle motor		kw/hp	2.25kw / 3hp
Head swivel			90°
Head tilting			45°	45°
Dimension of package		mm	1400x1476x2030
Weight		Kg	1100	1160

 Note: If power feed is fitted on X axis, the table’s longitudinal travel will be shortened by about 100mm.

Optional accessories

X-axis APF500 power feed	2-axis DRO/ SINO  X/Y-axis
X-axis APF750 power feed	3-axis DRO/ SINO X/Y/Z-axis
Y-axis APF500 power feed	6 inch machine vise
Y-axis APF750 power feed	52PCS clamping kits
Z-axis APF750 power feed	8PCS R8 collets
X-axis Gear box feeder	15PCS R8 collets
Y-axis Gear box feeder	8PCS R8/NT30/NT40 collets
Z-axis lifting motor	15PCS R8/NT30/NT40 collets
Coolant system	Air-power draw bar
Plastic splash guard	Spindle guard
Oil tray	Table guard
Hanging button box	Ball screw for RUHM230B/ RUHM230A
Variable speed milling head-	Ball screw for X6325
spindle of X6323~X6325 change to NT40	Ball screw for X6330/6333
Automatic lubrication pump
