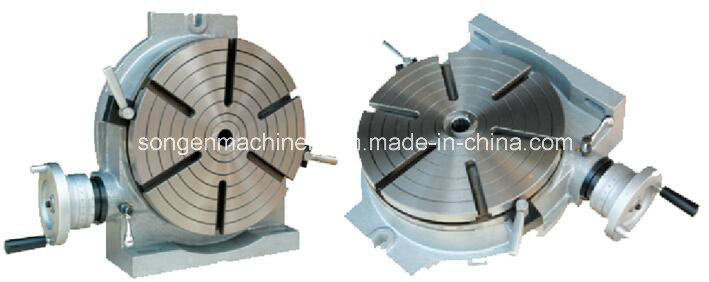

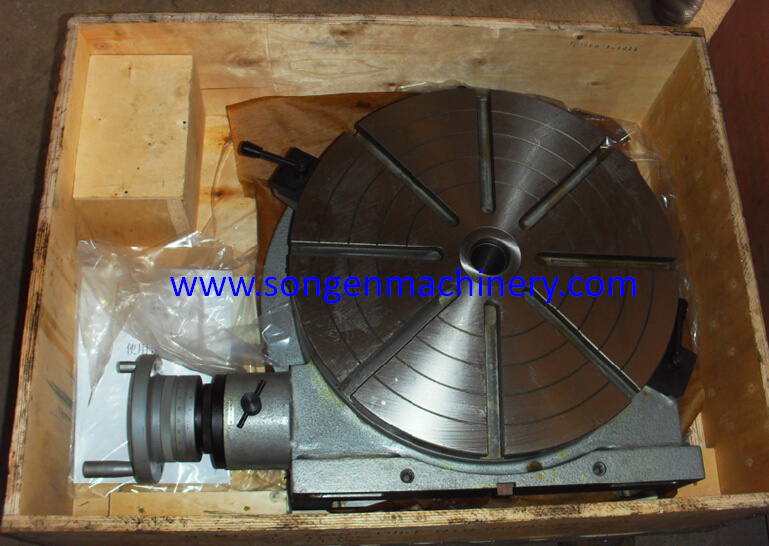

Horizontal and Vertical Manual Rotary Tables
Price: |
US $ 1/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
RT200HV...500HV |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Table Diameter: |
200, 250, 300, 400, 500mm |
Mounting Type: |
Horizontal and Vertical |
Indexing Accuracy: |
60 Seconds |
Logo Printing: |
with Logo Printing |
Size: |
Middle |
Customized: |
Non-Customized |
Product Description
1. These horizontal and vertical rotary tables are used for indexing, circular cutting, angular setting, boring, spot facing operations and similar work in conjunction with milling machines, boring machines, drilling machines;
2. A flange for connecting a chuck to the rotary table is specially supplied on request and packed independently;
3. For special orders, the dividing plate accessory allows the operator to accurately divide the 360 deg rotation of the clamping surface into divisions of 2 through 66 and all divisible of 2, 3 and 5 from 67-132.Specifications | RT200HV | RT250HV | RT300HV | RT400HV | RT500HV |
Diameter of table, mm | 200 | 250 | 300 | 400 | 500 |
Morse taper of center hole | 3# | 4# |
Diameter and depth of positioning hole, mm | 30X6 | 40X10 | 50X15 |
Height of center for vertical mounting, mm | 135 | 165 | 195 | 260 | 286 |
Width of T-slot, mm | 12 | 14 | 20 |
Adjacent angle of table T-slot, Deg | 90 | 60 | 45 |
Width of positioning key, mm | 16 | 18 | 22 |
Modules of worm gear | 1.5 | 2 | 2.5 | 3.5 |
Ratio of worm gear | 1:90 |
Graduation of table, Deg | 360 |
Rotating angle of table responding to one revolution of the worm, Deg | 4 (1' per graduation) |
Min. graduation of vernier , Sec | 10 |
Indexing accuracy, Sec | 80 | 60 |
Max. loading capacity, horizontal mount, Kg | 150 | 200 | 250 | 300 | 550 |
Max. loading capacity, vertical mount, Kg | 75 | 100 | 125 | 150 | 275 |
Net weight, Kgs | 27 | 43 | 67 | 130 | 225 |
Gross weight, Kgs | 33 | 51 | 77 | 150 | 260 |
Packing size(LXWXH), cm | 49X33X23 | 53X40X24 | 60X46X27 | 73X58X29 | 96X69X34 |

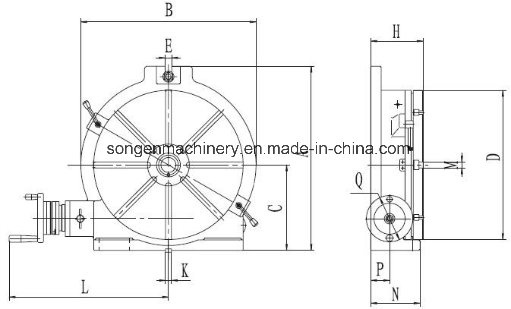

Dimensions of series of RT200HV...500HV rotary tables:
| RT200HV | RT250HV | RT300HV | RT400HV | RT500HV |
A | 265 | 325 | 388 | 520 | 617 |
B | 220 | 280 | 330 | 450 | 586 |
C | 135 | 165 | 195 | 260 | 286 |
D | Φ200 | Φ350 | Φ300 | Φ400 | Φ500 |
E | 17 | 17 | 18 | 18 | 22 |
H | 100 | 115 | 135 | 160 | 175 |
L | 262 | 282 | 315 | 398 | 519 |
M | MT #3 | MT #4 | MT#4 | MT #4 | MT #5 |
M | 98 | 113 | 133 | 155 | 165 |
K | 16 | 16 | 16 | 18 | 22 |
P | 35 | 38 | 46 | 55 | 63 |
Q | 125 | 125 | 140 | 165 | 165 |
