| Prod Model: |
SHRV460x1235, 500x1600, 500x2000 |
| Tables: |
460X1235, 500X1600, 500X2000mm |
| Table Weight Loading: |
up to 1800kg |
| Drives On Three Axes: |
Servo motors + ball screws |
| Main Motor: |
7.5KW |
| Certificates: |
CE, ISO, etc. |
| Type: |
Knee-and-Column Milling Machine |
| Controlling Mode: |
Program Control |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Object: |
Metal |
| Structure: |
Swivel head RAM type vertical milling machine |
Product Description

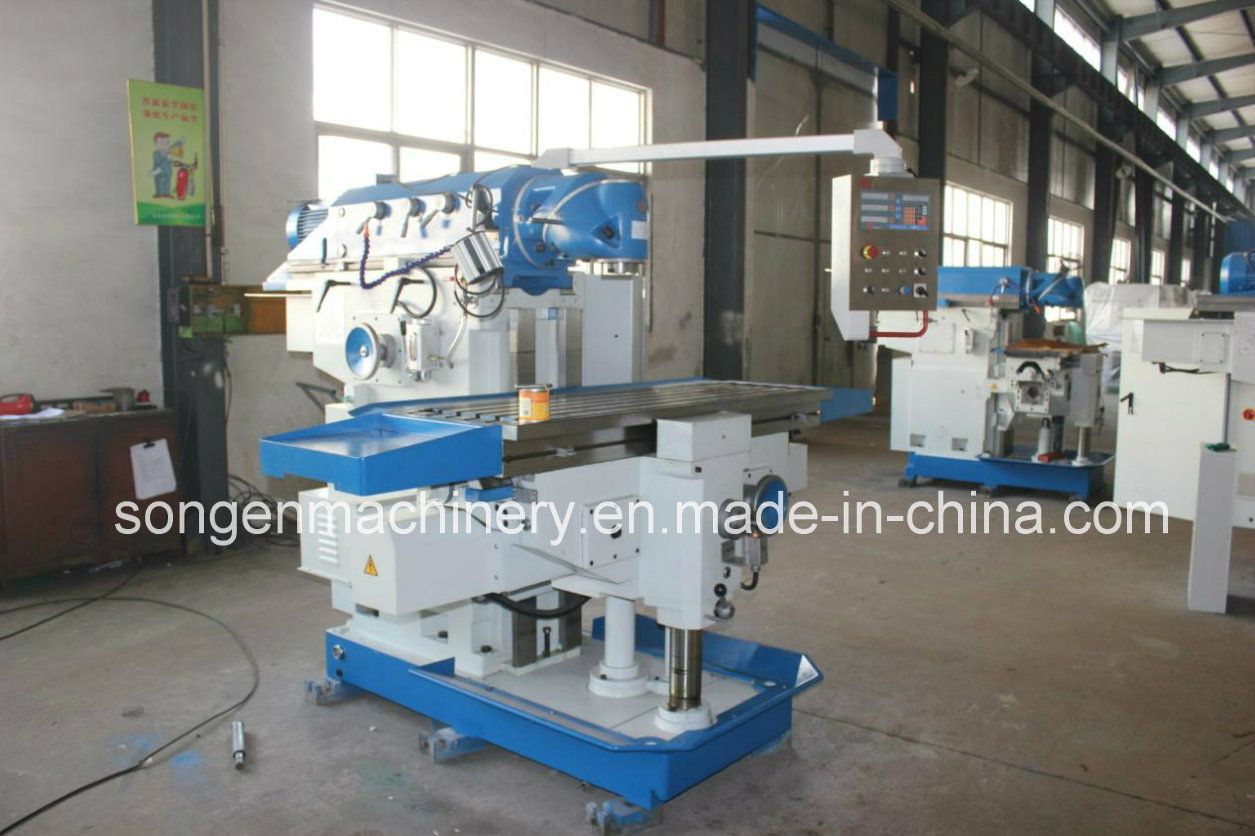

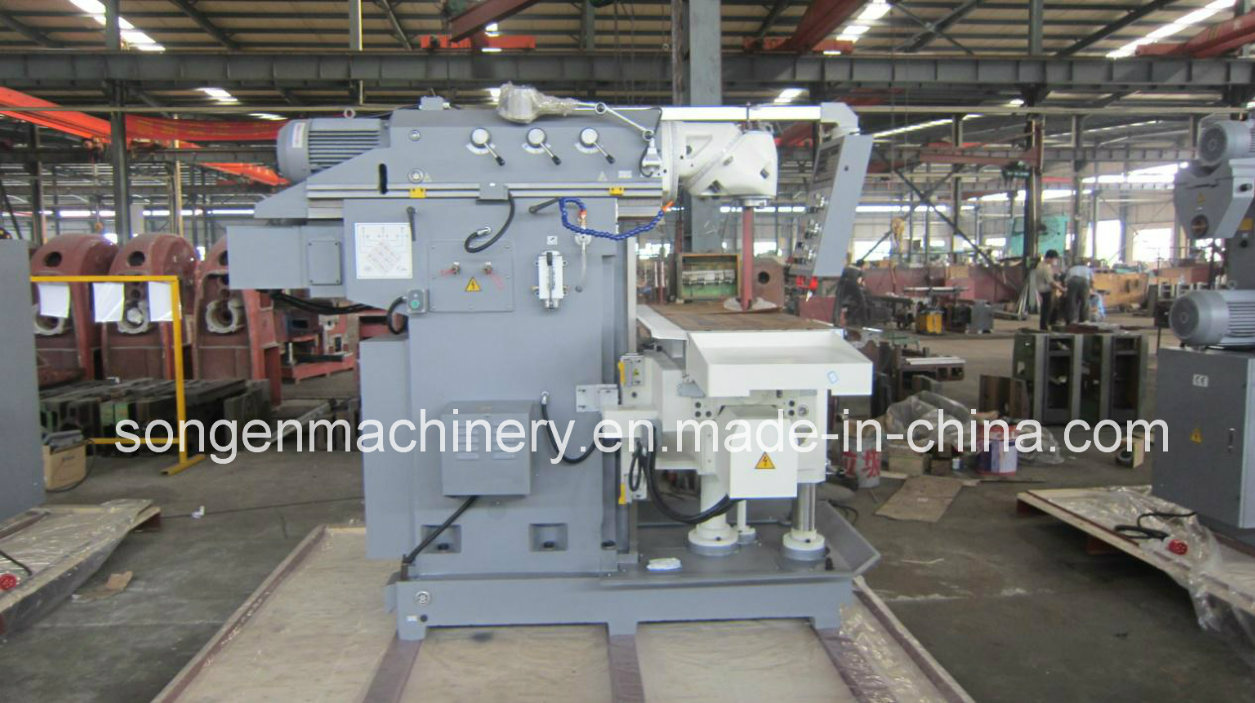

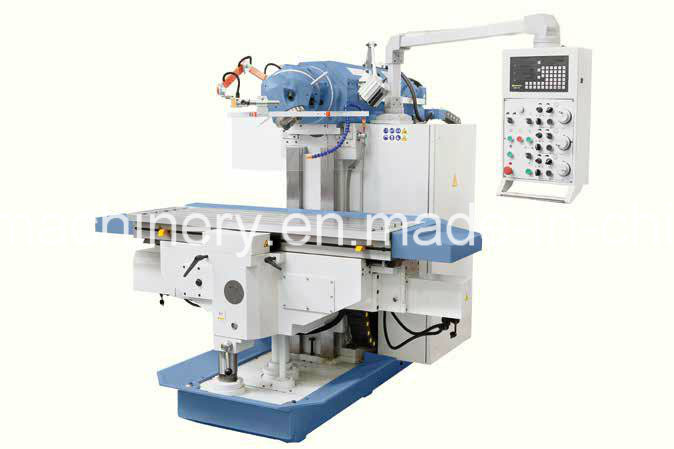

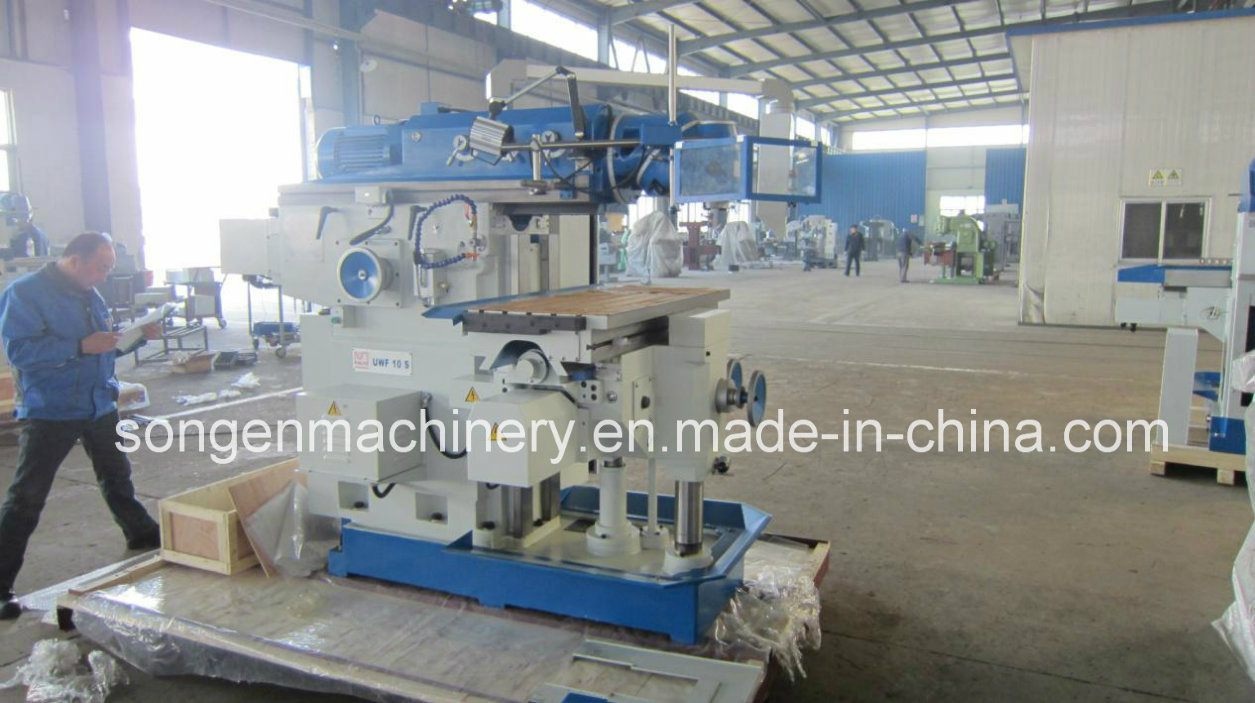

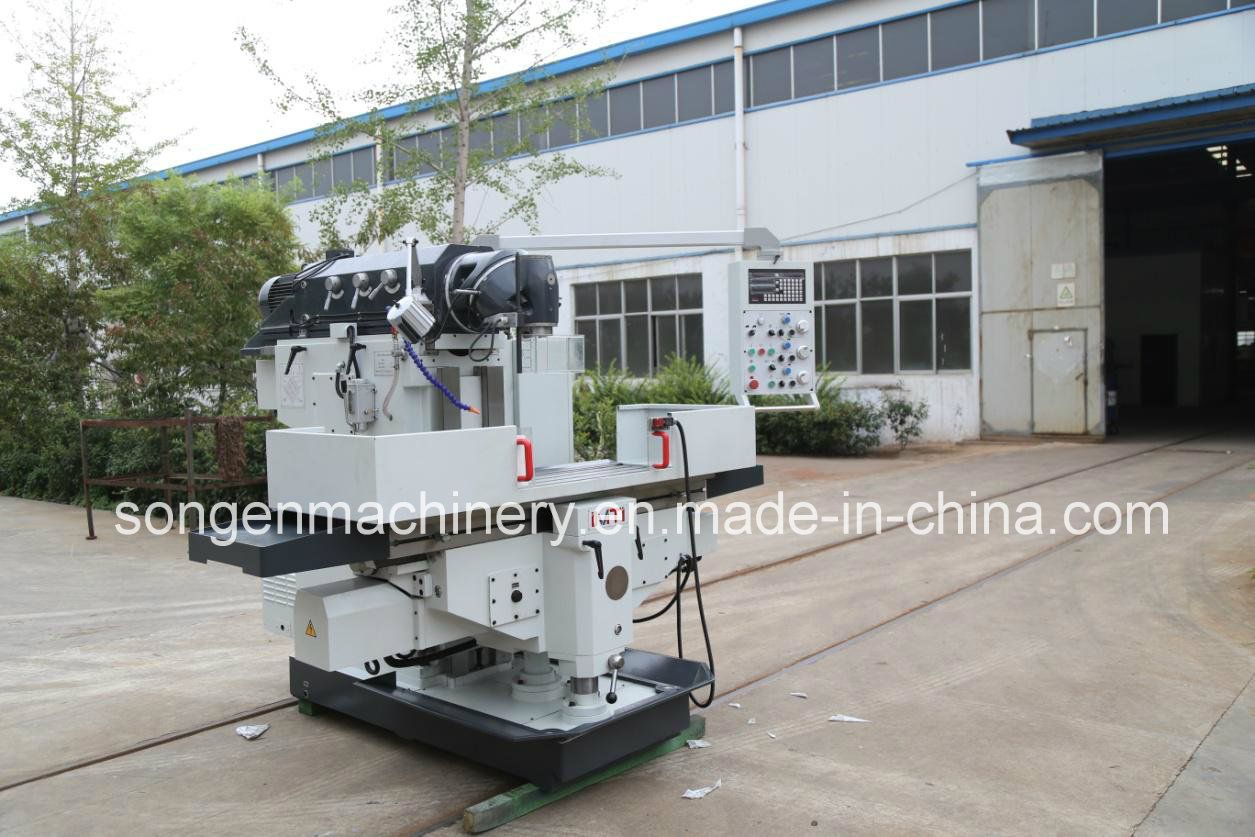

1. Heavy duty swivel head ram type vertical milling machine, with very rigid structures such as the double supporting columns underneath the worktable. This series of milling machines have three models separately with tables as 460x1235mm, 500x1600mm, 500x2000mm as options. They can perform heavy cutting;
2. Supported by double supporting columns, the worktable on this series of milling machines has very high weight loading capacity up to 1800kg, especially suitable for machining on huge works;
3. Rectangular guideways high-frequency quenched and precision ground to feature high precision for a long-term operation;
4. Universal swivel milling head mounted on ram type head stock. The milling spindle is driven by an independent powerful motor mounted on the end of the head stock. The swivel milling head can have its front half-sphere angularly positioned infinitely to mill surfaces at any angles. This advantage is especially favourable for machining on surfaces of mould cavities;
5. Independent servo motor and high-precision ball screw pair are furnished on each axis of all the X, Y, Z axes to assure high precision and very stable feeding movements for the worktable;
6. Ram type head stock with spindle speeds mechanically adjustable. It travels long to enlarge the working scope of this milling machine;
7. Electronic hand-wheel and DRO system can be equipped on these milling machines to improve its controls on machining operations and precision monitoring, ensuring the very high precision machining processes to be achieved;
8. Rotary tables, dividing heads, multiple-station machine vises, etc. as the optional accessories for these machines;
9. CE Certificates, ISO Certificate.
| Specifications | Unit | SHRV460x1235 | SHRV500x1600 | SHRV500x2000 |
| Table size, L x W | mm | 460x1235 | 500x1600 | 500x2000 |
| T-slots on table (No./width/pitch) | mm | 5x18x80 | 5x18x80 | 5x18x80 |
| Table travels, X/Y/Z | mm | 900x650x450 | 1200x700x500 | 1400x700x500 |
| Swivel angle of milling head | Degrees | 360 | 360 | 360 |
| Spindle taper | - | ISO 40 | ISO 50 | ISO 50 |
| Spindle speeds | RPM | 27 Steps, 30-2050 |
| Table feeds, X/Y/Z | mm/Minute | 10-1000/10-1000/6-640 | 10-1000/10-1000/5-500 |
| Table rapid traverses, X/Y/Z | mm/Minute | 2200/2200/1100 |
| Distance between spindle nose to table top surface | mm | 50-500 | 50-550 |
| Distance from spindle centerline to column | mm | 36-686 | 45-745 |
| Main motor power | KW | 5.5 | 7.5 |
| Feeding servo motors output torque | N.M | AC servo motors, X/Y: 18; Z: 27 |
| Maximum weight load on worktable | KG | 800 | 1800 |
| Machine overall size, L x W x H | mm | 1835x2362x2090 | 2625x2460x2080 | 2625x2860x2080 |
| Machine net weight, approx. | KG | 4000 | 4700 | 5000 |
