| Prod Model: |
MP215 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Type: |
12inch, 2-Way Speaker |
| Frequency Response: |
83Hz -- 18kHz |
| Dispersion(Hxv): |
90 X 50 |
| Handing Power: |
700W(RMS) / 1400W(Peak) |
| Application: |
Commercial |
| Speaker Material: |
Wood |
| THD: |
<0.03% |
| Noise: |
<95dB |
| Certification: |
RoHS |
Product Description
Product Description

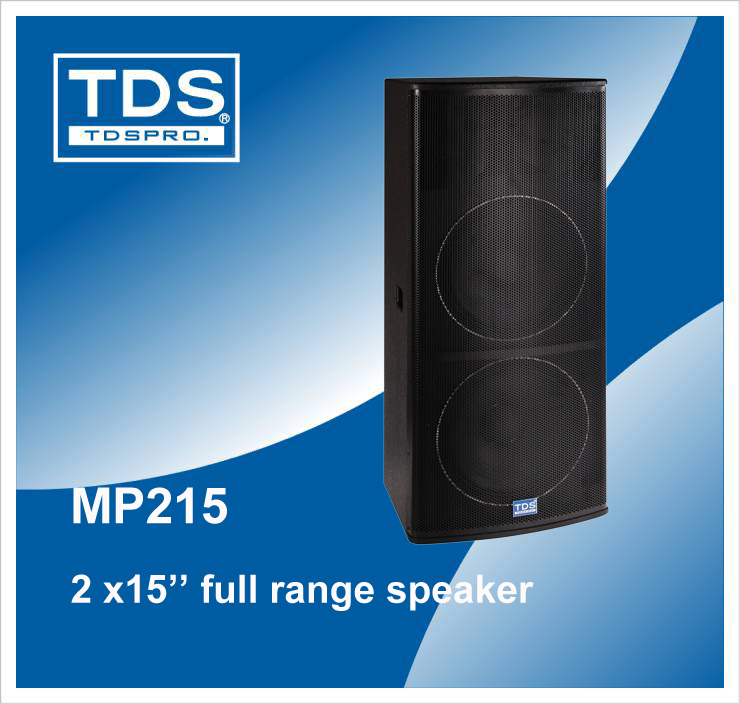

PA Speaker Cabinet MP215
Dual 15'' loudspeaker system have become one of the most popular configurations with DJs and musicians who are looking for more low-frequency performance while maintaining the simplicity of a single-box system. The MP215 is actually this kind design. The bottom woofer used a lower crossover frequency and covers only lows, acting as a built-in subwoofer. So you get the extra low-end of a dual 15'' rig while maintaining the superior MID-frequency performance of a single driver system.
Features
15'' lightweight and high-power speaker.
80° X 50° Coverage for smooth response on and off axis.
High efficiency compression driver with 75mm voice coil.
Tough black enclosure finish.
Dual 15inch high power professional loudspeaker.
Applications
Music and speech reinforcement.
Liver performance stage monitoring.
High-performance satellite speaker for use with subwoofers.
| System Type | Dual 15inch, 2-way speaker |
| Frequency Response | 43Hz -- 20 KHz ± 3dB |
| Sensitivity (1W/1M) | 102dB. |
| Impedance | 4 ohm |
| Rated Power | 700W (AES), 1400W (PEAK). |
| Dispersion | 90° (H) X 50° (V) |
| Drivers | LF driver 15' ' transducer (75mm) voice coil |
| HF driver 1.5' ' exit (75mm) voice coil. |
| Maximum SPL | 132dB |
| Connectors | 2 x Neutrik NL4. |
| Dimensions | (W) 471mm x (H) 1125mm x (D) 485mm |
| Weight | 48kg |
