| Prod Model: |
PS 15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Type: |
15inch, 2-Way Speaker |
| Frequency Response: |
50Hz -- 18kHz ± 3db |
| Dispersion (Hxv): |
(W) 434mm X (H) 675mm X (D) 368mm |
| Handling Power: |
500W (AES), 1000W (Peak). |
| Noise: |
<95dB |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| THD: |
<0.03% |
Product Description
Product Description

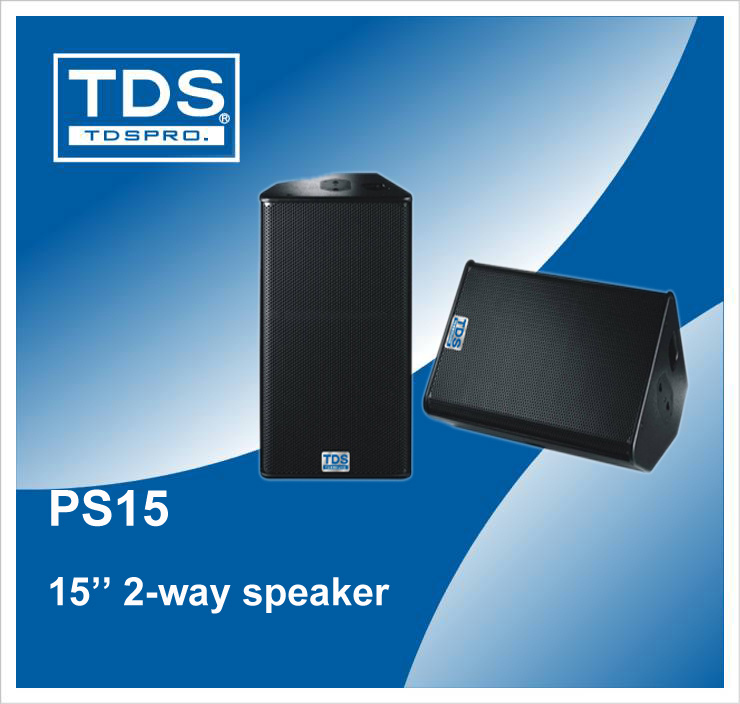

TDS ps 15 concert sound equippment for stage monitor. The PS15 is a high power, 2-way loudspeaker system, designed for sound reinforcement applications. The system is comprised of a 15'' low frequency driver and a large-format, high frequency compression driver, coupled to a constant-directivity 100° X 55° Horn. Combining 102dB sensitivity with 500 watts power handling, the PS15 delivers sound pressure levels well beyond those typical of systems its size.
Features
Wide-bandwidth system.
Top hat fitting for speaker stand mounting.
User rotatable 100° X 55° Horn
Applications
High-end club live performance.
High powered stage monitoring.
Full-in system in conjunction with larger TDS system.
| System Type | 15inch, 2-way speaker |
| Frequency Response | 50Hz -- 18kHz ± 3dB |
| Sensitivity (1W/1M) | 102dB. |
| Impedance | 8ohm |
| Rated Power | 500W (AES), 1000W (PEAK). |
| Dispersion | 100° (H) X 55° (V) |
| Drivers | LF driver 15' ' transducer (75mm) voice coil |
| HF driver 1.5' ' exit (75mm) voice coil. |
| Maximum SPL | 138 dB. |
| Connectors | 2 x Neutrik NL4. |
| Dimensions | (W) 434mm x (H) 675mm x (D) 368mm |
| Weight | 27kg |
Guangzhou TDS PRO Audio Factory specialize in developing & manufacture PRO audio products.
From the establishment of our factory we always focus our attention on developing PRO audio products.We trust a good product must need very careful process in developing and manufacture.Thanks to our senior engineers and the sophisticated staff, we can offer the products which customers need.At the same time, we use the technical way to guarantee the products quality.We use CAD for cabinet design work, CNC machine to make the speaker cabinet, DASS & LMS for testing of loudspeaker, crossover checking and phase checking equipment etc.All those work help us to keep the same product quality.
In all business, product is important.But the related service is more important.In order to offer ideal service, we have professional staff for products checking, transportation arranging and also we have engineers who can go abroad to do technical support and after sales service.Our philosophy is customer to be first.And we also trust better service will help both customer and us.Through good service we can keep long and steady relation with our customers.
Meet right sound, Meet right OEM partner, Meet right us!
