| Prod Model: |
F+12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Type: |
12inch, 2-Way Speaker |
| Frequency Response: |
65Hz -- 18kHz |
| Dispersion(Hxv): |
80 X 50 |
| Handling Power: |
300watts (RMS) / 600watts (Peak) |
| Max.Spl: |
129 Db |
| Noise: |
<95dB |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| THD: |
<0.03% |
Product Description
Product Description

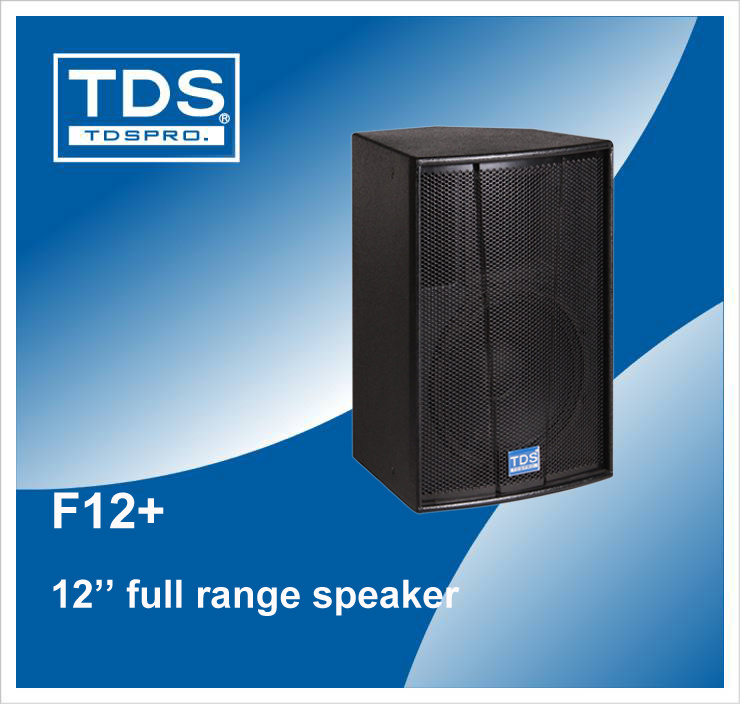

Professional passive speaker box for stage(F+12)
Features
1. 12'' differential woofer for high-power capacity.
2. High quality comression driver with 44mm SUZUKI voice coil.
3. 12inch LF transducer with original UKM paper cone.
4. 80° X 50° Coverage for smooth response on and off axis.
5. Flexible mounting options.
6. Tough black enclosure finish.
7. Compact designed birch plywood cabinet.
Applications
1. Speech reinforcement.
2. Liver performance stage monitoring.
3. High-performance satellite speaker for use with subwoofers
4. Dance club.
| System Type: | 12inch, 2-way speaker. |
| Frequency Response: | 65Hz -- 18kHz ± 3dB |
| Sensitivity (1W/1M): | 97 dB. |
| Impedance: | 8 ohm |
| Rated Power: | 300W (AES), 600W (PEAK). |
| Dispersion: | 80° (H) X 50° (V) |
| Drivers: | LF driver 12' ' transducer (65mm) voice coil |
| HF driver 1' ' exit (44mm) voice coil. |
| Maximum SPL: | 129dB |
| Connectors: | 2 x Neutrik NL4. |
| Dimensions: | (W) 385mm x (H) 570mm x (D) 360mm |
| Weight: | 25kg |
Guangzhou TDS PRO Audio Factory specialize in developing & manufacture PRO audio products.
From the establishment of our factory we always focus our attention on developing PRO audio products.We trust a good product must need very careful process in developing and manufacture.Thanks to our senior engineers and the sophisticated staff, we can offer the products which customers need.At the same time, we use the technical way to guarantee the products quality.We use CAD for cabinet design work, CNC machine to make the speaker cabinet, DASS & LMS for testing of loudspeaker, crossover checking and phase checking equipment etc.All those work help us to keep the same product quality.
In all business, product is important.But the related service is more important.In order to offer ideal service, we have professional staff for products checking, transportation arranging and also we have engineers who can go abroad to do technical support and after sales service.Our philosophy is customer to be first.And we also trust better service will help both customer and us.Through good service we can keep long and steady relation with our customers.
Meet right sound, Meet right OEM partner, Meet right us!
