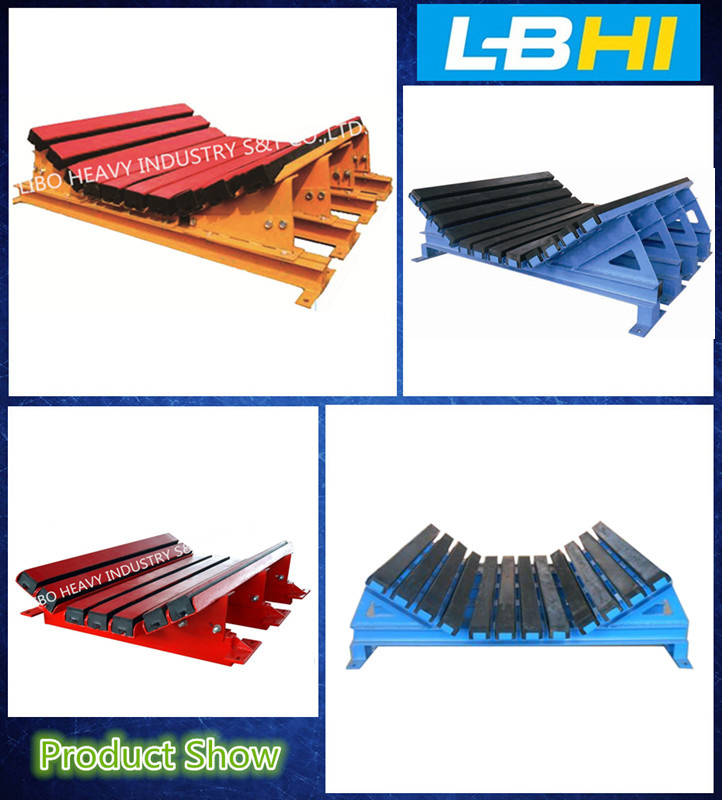

New-Typed Impact Bed with UHMWPE Impact Bar for Belt Conveyor

Prod Model:	GHCC-50
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Belt Width:	500mm
Usage:	to Reduce Material Shock to Belt
Application Scope:	Coal Mine, Cement Plant, Power Plant, Steel Plant
Material Of Impact Bar:	Made of UHMWPE and Rubber by Heat Vulcanization
Elongation Of Impact Bar:	>400%
Hardness Of Impact Bar:	45-55shore a
Material Of Frame:	High Strenghth Metal Frame
Color:	Blue, Orange or as Your Requirements
Certification:	ISO, CE, SGS, Ohsas
Applied Standard:	ISO, CE, DIN, JIS, GB

Product Description

One,Product introduction

New-typed impact bed is used for the loading section of belt conveyor, has better buffering effect than traditional impact rollers.The product can support and protect the belt, preventing the falling material damage the belt.


Two,Technical advantage


1,With impact bed, material overflow and belt off-track can be avoided effectively;

2,Impact beds can provide all-sided support and excellent impact effect for loading section;

3,Smooth UHMWPE surface minimize the friction between belt and impact bar;

4,The front end and back end of impact bars are cambered, which guarantee that the belt passes the impact bars smoothly;

5, The impact bars are made of UHMWPE and rubber by heat vulcanization, which can absorb the impact of falling material;

6,High-strength metal frame is stable and easy to install;

7,Do-it-yourself replacement of individual impact bar, which only takes a few minutes.

Three,Technical parameter

Type	Belt width (mm)	L1 (mm)	L2 (mm)	Q (mm)	H (mm)	θ	L=1500mm		L=1200mm		d(mm)
							M(mm)	n	M(mm)	n
GHCC-50	500	740	800	130	220	35°/45°	375	3	350	3	14
GHCC-65	650	890	950	130	235	35°/45°	375	3	350	3	14
GHCC-80	800	1090	1150	170	245/270	35°/45°	375	3	350	3	14
GHCC-100	1000	1290	1350	200	300/325	35°/45°	375	3	350	3	18
GHCC-120	1200	1540	1600	220	335/360/390	35°/45°	375	3	350	3	18
GHCC-140	1400	1740	1800	240	350/380/410	35°/45°	375	3	350	3	18
GHCC-160	1600	1990	2060	240	405/450	35°/45°	375	3	350	3	18
GHCC-180	1800	2210	2280	240	435/480/520	35°/45°	375	3	350	3	18
GHCC-200	2000	2400	2470	240	455/495/540	35°/45°	375	3	350	3	18
GHCC-220	2200	2720	2800	240	520/560	35°/45°	375	3	350	3	18

Four,Package,Freight &Payments



Package	We all take standard export packing cases made of exemption plates that thickness of the composite plates are about the 9mm to 15mm according with the export requirements.Of course,We also can take the wooden cases made of solid wood with fumigation and supply the Inspection Certificate of Fumigation.
Freight	(1)Shipping:We cooperate with good international ship agency to ensure the interests of the buyer that the buyer can receive the goods in time.We usually accept liner shipping so that we should contact duly and co-operate on the freight peak to solve those problems of transportation.If you have any other requirements,Please tell us and consult with it.  (2)Express and Air transport:We also move goods by express and air transport if you really have emergency demand for these goods .But we can't take the resulting costs and the scale of the goods must be small.  (3)International multimodal transport:The qualified MTO takes the transportation of the goods to make sure to arrive in terminal on time.We use container transport in general with the exception of special circumstances.
Payments	1.30%T/T deposit +70% sight, confirmed and irrevocable L/C 2.100% sight, confirmed and irrevocable letter of credit 3.30%T/T +70% after seeing Ocean copy or fax of Bill of Lading 4.Other trusted platform for third-party to pay 5.Other circumstances

Five,FAQ

1.I have some question about the insurance of goods.
  Usually CIF to be effected by the sellers at 110% of invoice value covering Free from Particular Average(F.P.A.) as per China Insurance Clauses(C.I.C) dated 1/1/1981.OF course,if you need other service we also can cover with particular average(w.p.a.) or All Risks with War Risks.

2.Can I take the goods by express or airlift if the need is urgent?
  We can move goods by express and air transport if you really have emergency demand for these goods .But we can't take the resulting costs and the scale of the goods must be small.

3.Can I know more Information about the packing and Freight of the product?
  Of course you can,you can get the detailed the information in our "Packing and Freight" module of Product Details.You also can contact with us by phone, fax and e-mail.


4.Can I take the goods by express or airlift if the need is urgent?
  We can move goods by express and air transport if you really have emergency demand for these goods .But we can't take the resulting costs and the scale of the goods must be small.

5.Can I know more Information about the packing and Freight of the product?
  Of course you can,you can get the detailed the information in our "Packing and Freight" module of Product Details.You also can contact with us by phone, fax and e-mail.
