| Prod Model: |
GHCC-220 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Belt Width: |
2200mm (86in) |
| Usage: |
to Reduce Material Shock to Belt |
| Application: |
Coal Ming, Cement Plant, Power Plant, Harbor |
| Mateiral Of Impact Bar: |
Made of UHMWPE and Rubber by Heat Vulcanization |
| Elongation Of Impact Bar: |
>400% |
| Hardness Of Impact Bar: |
45-55shore a |
| Material Of Frame: |
High-Strength Metal Frame |
| Color: |
Blue, Orange or as Your Requiement |
| Certification: |
ISO, CE, SGS, Ohsas |
| Applied Standard: |
ISO, DIN, JIS, ASTM, GB |
Product Description
One,Product introduction

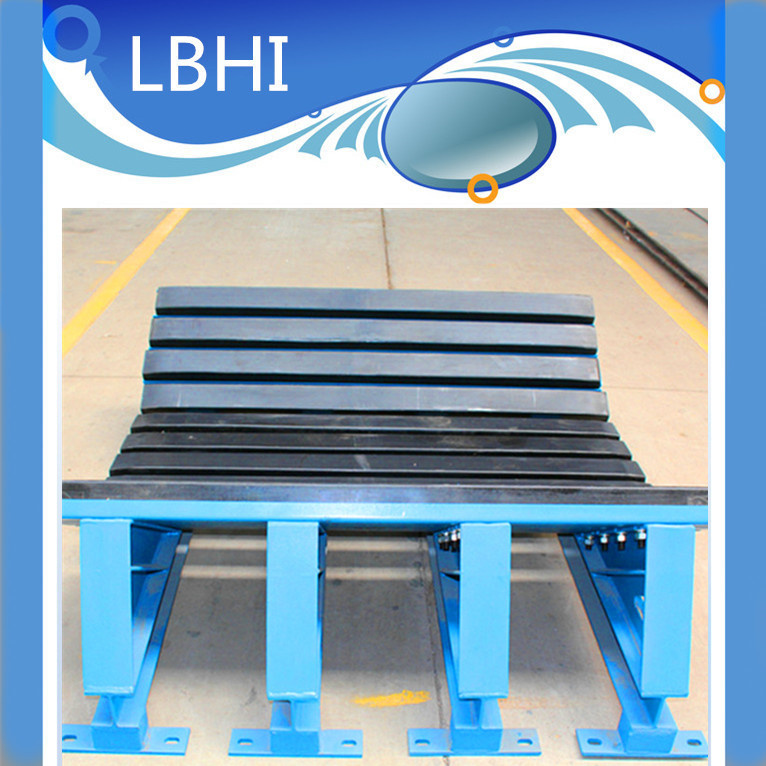

Conveyor impact bed is used for the loading section of belt conveyor, has better buffering effect than traditional impact rollers.The product can support and protect the belt, preventing the falling material damage the belt.
Two,Technical advantage
1,The impact bars are made of UHMWPE and rubber by heat vulcanization, flame-retardant and anti-static,low friction factor and good wear resistance, which can be applied for working condition with flammable gas;
2,As to the impact bars, the excellent high-elastic rubber layer can absorb the impact of the falling materials on the belt and frame effectively;
3,High-strength metal frame can sustain the impact of large-block material;
4,Compact structure, easy installation and maintenance, long service life, without damage belt and mechanical joints.
Three,Technical parameter
| Type | Belt width
(mm) | L1
(mm) | L2
(mm) | Q
(mm) | H
(mm) | θ | L=1500mm | L=1200mm |
d(mm) |
| M(mm) | n | M(mm) | n |
| GHCC-50 | 500 | 740 | 800 | 130 | 220 | 35°/45° | 375 | 3 | 350 | 3 | 14 |
| GHCC-65 | 650 | 890 | 950 | 130 | 235 | 35°/45° | 375 | 3 | 350 | 3 | 14 |
| GHCC-80 | 800 | 1090 | 1150 | 170 | 245/270 | 35°/45° | 375 | 3 | 350 | 3 | 14 |
| GHCC-100 | 1000 | 1290 | 1350 | 200 | 300/325 | 35°/45° | 375 | 3 | 350 | 3 | 18 |
| GHCC-120 | 1200 | 1540 | 1600 | 220 | 335/360/390 | 35°/45° | 375 | 3 | 350 | 3 | 18 |
| GHCC-140 | 1400 | 1740 | 1800 | 240 | 350/380/410 | 35°/45° | 375 | 3 | 350 | 3 | 18 |
| GHCC-160 | 1600 | 1990 | 2060 | 240 | 405/450 | 35°/45° | 375 | 3 | 350 | 3 | 18 |
| GHCC-180 | 1800 | 2210 | 2280 | 240 | 435/480/520 | 35°/45° | 375 | 3 | 350 | 3 | 18 |
| GHCC-200 | 2000 | 2400 | 2470 | 240 | 455/495/540 | 35°/45° | 375 | 3 | 350 | 3 | 18 |
| GHCC-220 | 2200 | 2720 | 2800 | 240 | 520/560 | 35°/45° | 375 | 3 | 350 | 3 | 18 |
Four,Package,Freight &Payments
Package | We all take standard export packing cases made of exemption plates that thickness of the composite plates are about the 9mm to 15mm according with the export requirements.Of course,We also can take the wooden cases made of solid wood with fumigation and supply the Inspection Certificate of Fumigation.
|
Freight | (1)Shipping:We cooperate with good international ship agency to ensure the interests of the buyer that the buyer can receive the goods in time.We usually accept liner shipping so that we should contact duly and co-operate on the freight peak to solve those problems of transportation.If you have any other requirements,Please tell us and consult with it.
(2)Express and Air transport:We also move goods by express and air transport if you really have emergency demand for these goods .But we can't take the resulting costs and the scale of the goods must be small.
(3)International multimodal transport:The qualified MTO takes the transportation of the goods to make sure to arrive in terminal on time.We use container transport in general with the exception of special circumstances.
|
Payments | 1.30%T/T deposit +70% sight, confirmed and irrevocable L/C
2.100% sight, confirmed and irrevocable letter of credit
3.30%T/T +70% after seeing Ocean copy or fax of Bill of Lading
4.Other trusted platform for third-party to pay
5.Other circumstances |
Five, About Us
LIBO HEAVY INDUSTRY SCIENCE&TECHNOLOGY CO.,Ltd. is specialized in design and manufacture of belt conveyor and key components, such as rollers, pulleys,disc brake, transmission drive, take-UPS, belt cleaner, impact bed, coupling and so on. our products have been widely applied in coal mine, power station, cement plant, iron mine and wharf.
1,Advanced Manufacture line
We own complete manufacture lines, including the cutting of all parts, rough and elaborate processing, fitting-up and whole-set assembly.
2,Technical strength
There are more than 800 employees in total, including 244 engineers. Among these technical staff, 109 R&D personnel for engineering departments, 66 sales engineers for sales department and 69 welding engineers, Equipment engineers,Process engineers and QC engineers for producing department.
