| Prod Model: |
QL-1218 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
CNC Engraving Machine |
| Condition: |
New |
| Spindle Power: |
1.5kw |
| Control System: |
Ncstudio System/DSP Hand-Held |
| Working Speed: |
4.500mm/Min |
| Idling Speed: |
6.000mm/Min |
| Machine Structure: |
Steel Structure Lathe Bed and T-Slot of Sectional |
| Precision: |
0.07mm |
| Positioning Accuracy: |
0.02mm |
| Working Voltage: |
AC220V/50Hz |
Product Description

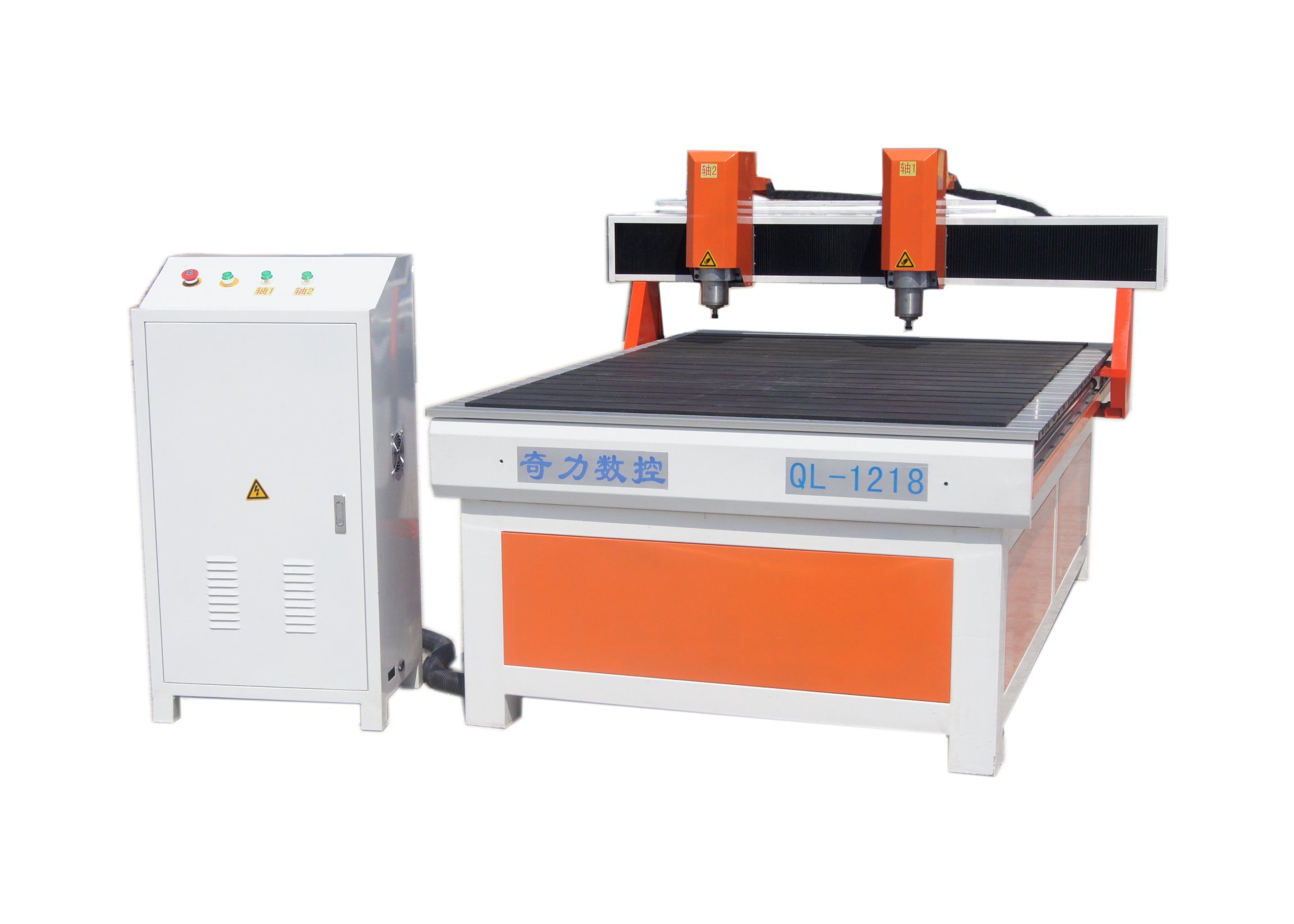

Multi Spindle CNC Router Machine (QL-1218)
Product Features:1. German ball screw nuts; Imported guide;
2. Linear guide ensures a longer life of the machine;
3. High-speed driver;
4. Axle X with dust-proof system, and this ensures the good performance of the machine;
5. The Antique Furniture CNC Router continues to work after the point-break and blade-brake, holding as many as 9 points;
6. Strong compatibility: CAD/CAM softwares, including type3, artcarm, castmate, proe, corelerow...
7. Wide Range of Use: Advertising, mould, stone, architecture model...
Standard ConfigurationsSteel Lathe Bed with aluminum
Three axis with imported round guides and double ball screw nuts
NCSTUDIO system
1.5W water-cooling transducer motor
Leadshine driver
Optional: 2.2KW Dust Collector.
| Technical Data |
| X Y Working Area | 1200mm*1800mm |
| Z Working Area | > 100mm |
| Table Size | 1340mm*2020mm |
| Max. Speed | 6m-7m/min |
| Max. Working Speed | 3m-3.5m/min |
| Working Delicacy | 0.005mm |
| Repositioning Accuracy | 0.05mm |
| Feeding Height | 110mm |
| Command Code | G Code*. u00*. mmg*. plt |
| Working Software | Windows98/2000/xp |
| Power (not including spindle) | 450w |
| Working Voltage | AC220V/50HZ |
| Spindle Power | 1.5kw |
| Spindle Running Speed | 0-24000rpm |
| Motor | Stepper |
Samples:

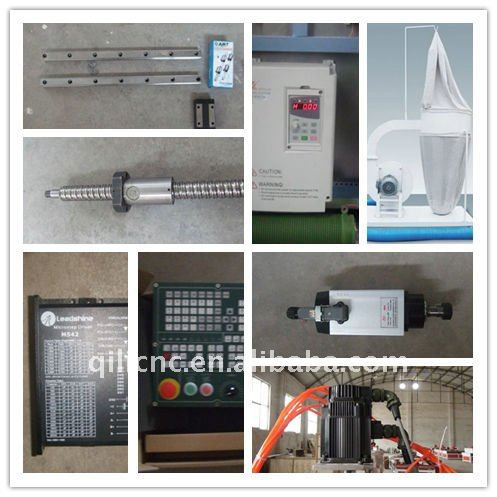

Details:
Jinan Hongye CNC Machine Co., Ltd., is a professional manufacturer for CNC Routers, Laser Engraving Cutting Machines and Vinyl Cutting Plotters. Since the company has been founded, devotes in carves the CAD/CAM technology, the CNC numerical control technology research and development, makes the considerable progress in the precision engraving machine design theory and the processing technology aspect, the success has realized the automation control technology the process which transforms to the industrial production. The wonderful strength product selection fine fitting, vigorously promotes the packaging technique, caused the product to move toward stably, in the advertisement profession, the carpentry profession, in the metal mold profession held the small space.
The wonderful devoting for in the national relatively well-known product brand, by it especially superior performance-to-price ratio, high quality perfect and the post-sale service, the market share expands unceasingly, has determined Qi Li in same profession status gradually. The wonderful strength person presently unceasingly develops the innovation by the full enthusiasm, carries forward ours brand, realizes the product multiplication, will be better, a more superior product to offer to the user community.
