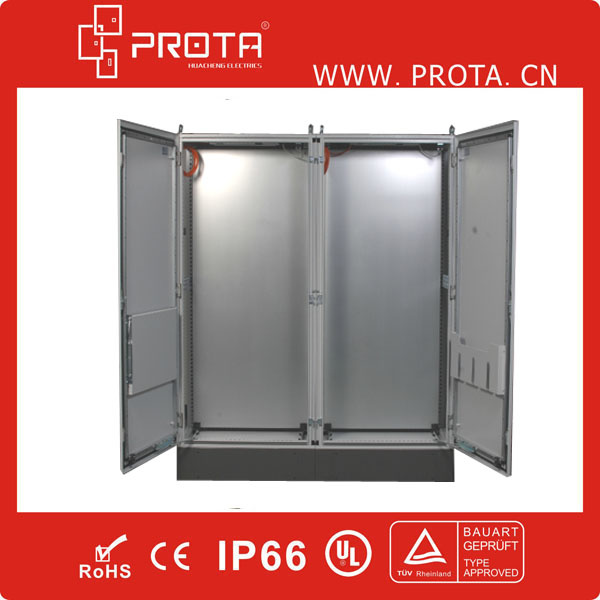

Metal Floor Stand Power Distribution Cabinet for Electrical Industry
| Price: |
US $ 200-700/Piece |
| Trade Terms: |
FOB |
| Min Order: |
20/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
PR9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Ral7032& Ral 7035 |
| Thickness: |
1.5mm&2.0mm |
| Surface Finish: |
Epoxy Thermosetting Powder Coating |
| Type: |
Electrical Distribution |
| Certification: |
ISO9001:2008,RoHS |
| Application Range: |
Electrical Distribution |
| Brand: |
Prota,OEM |
Product Description
The Standard Configuration Of The Cabinet1,Surface:the whole cabinet is phosphate coated and the exterior is expoxy thermosetting textured power-coated.
2,Material and thickness:cold-rolled sheet steel
Body: 1.5mm
Galvanized mounting plate: 2.5mm
Back panel and side panels: 1.5mm
Front door: 2.0mm

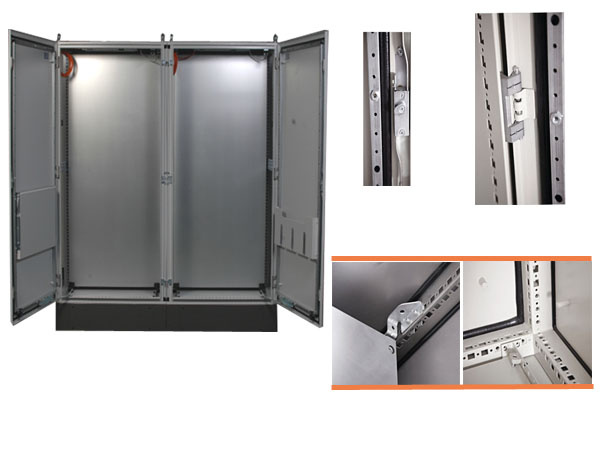

Craftsmanship Feature:
1,Combined power supply unit.It works better in form of paralleled cabinet by combining together.
2,The top cover can be removed easily. The side panel can be dissembled,which is convenient for electricities assembling inside.
3,The door is 25mm higher abrove the floor , makes sure to be opened freely.
4,Special tube of the door strengthening system can be fixed to the door with screws.
5,The main structure is weleded with overall section bars,which ensures not only the high intensity,but also the protection level of IP55.
6,The galvanized mounting plate can be pushed directly into the cabinet by the front. Moreover, it would be more durable and easily delivered with the U type folding design of both 2 sides.
7,The modular kits of the distance of 25mm, makes sure the flexibility and the generality of the installation.
Selection Table| Model No. | H(mm) | W(mm) | D(mm) |
| PR9C 128/4 | 1200 | 800 | 400 |
| PR9C 128/8 | 1200 | 800 | 800 |
| PR9C 168/4 | 1600 | 800 | 400 |
| PR9C 168/5 | 1600 | 800 | 500 |
| PR9C 168/6 | 1600 | 800 | 500 |
| PR9C 168/8 | 1600 | 800 | 800 |
| PR9C 188/4 | 1800 | 800 | 400 |
| PR9C 188/6 | 1800 | 800 | 600 |
| PR9C 1810/4 | 1800 | 1000 | 400 |
| PR9C 1810/5 | 1800 | 1000 | 500 |
| PR9C 1810/6 | 1800 | 1000 | 600 |
| PR9C 1810/8 | 1800 | 1000 | 800 |
| PR9C 1812/4 | 1800 | 1200 | 400 |
| PR9C 1812/5 | 1800 | 1200 | 500 |
| PR9C 1812/6 | 1800 | 1200 | 600 |
| PR9C 1812/8 | 1800 | 1200 | 800 |
| PR9C 208/4 | 2000 | 800 | 400 |
| PR9C 208/5 | 2000 | 800 | 500 |
| PR9C 208/6 | 2000 | 800 | 600 |
| PR9C 208/8 | 2000 | 800 | 800 |
| PR9C 2010/4 | 2000 | 1000 | 400 |
| PR9C 2010/5 | 2000 | 1000 | 500 |
| PR9C 2010/6 | 2000 | 1000 | 600 |
| PR9C 2010/8 | 2000 | 1000 | 800 |

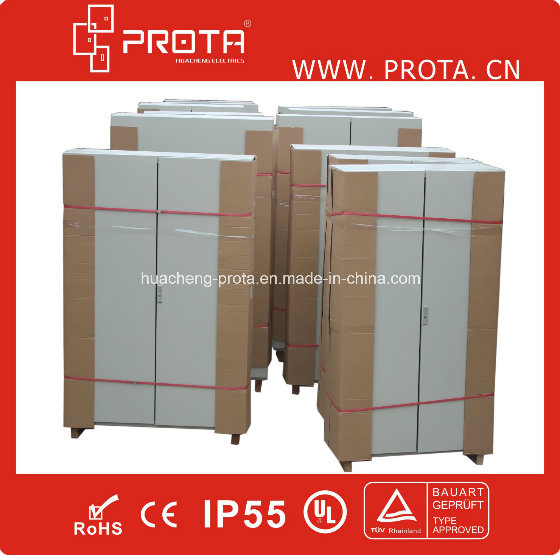

Packing: Individual packing as picture or on your request.Shipping: By sea
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: Metal wall mounting enclosures, top stainless steel enclosures, floor standing cabinets, knock-down cabinets, network cabinets, terminal boxes, MCB boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed RoHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & RoHS certificates were issued by TUV lab in Shanghai China.
We have always insisted on follow the clients' needs, complied with the convenient, practical, safe and beautiful perspective of development and production since the establishment, so far we've well received favorable comments at home and abroad. We also undertake OEM, ODM production, welcome letter Call Advisory.
