| Prod Model: |
XTL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Chair, Sofa, Cabinet, Table, Massage Chairs, Dental |
| Name: |
Linear Actuator |
| Input Voltage: |
12V or 24V DC |
| Limit Switches: |
Inner |
| Type Of Duty: |
S2-10min |
| Max Speed: |
6mm-36mm /S |
Product Description

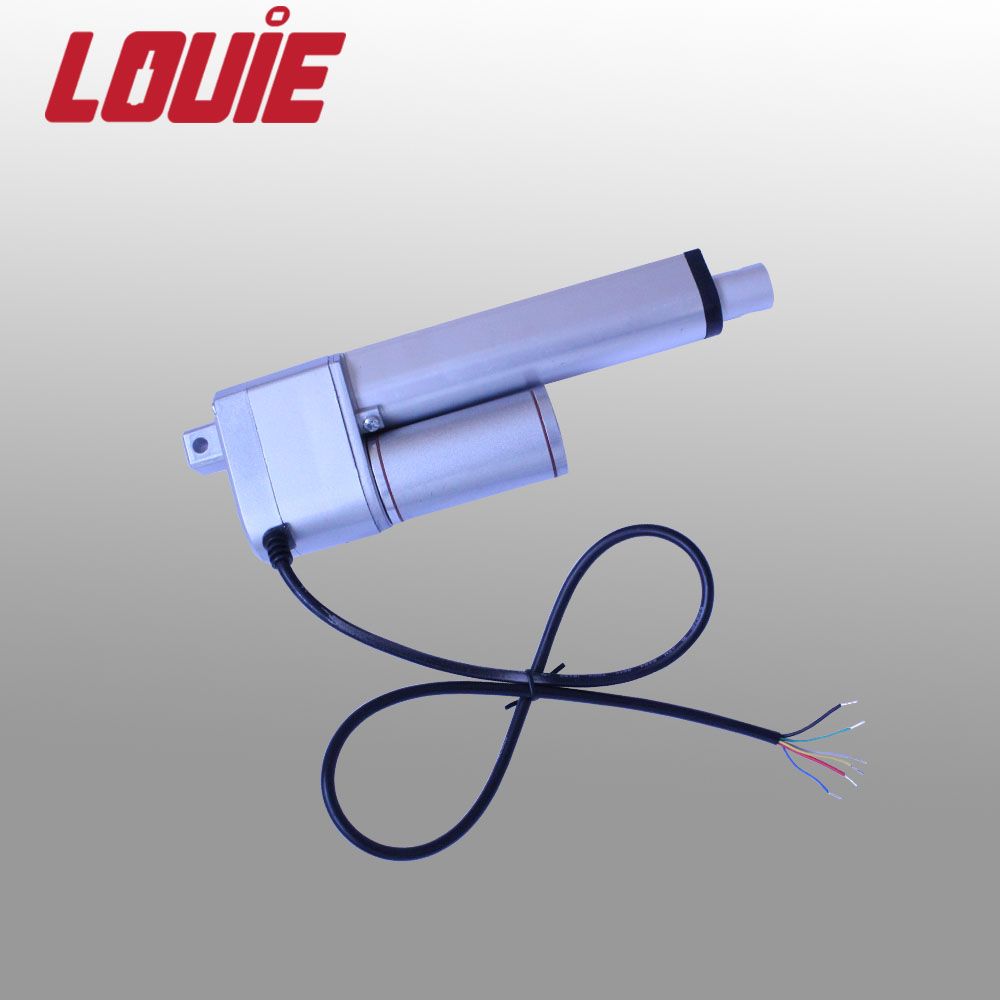

Name: Linear Actuator
Website: www.Louieactuator.com
Working Principle
The Linear actuator is a device that converts the rotational motion of a low voltage DC motor into linear motion that is push and pull movements. The electric linear actuator consists of a motor, a gear and a spindle including a nut. A special version of the linear actuator is the built-in actuator meant for integration in a customer guidance. A complete actuator system solution includes one or more linear actuators, a control box and a control device to operate the actuator
Advantage
The linear actuator are finding their way into a wide range of applications. When something needs to be raised, lowered, pushed, pulled, rotated, positioned, lifted, shifted or moved, the linear actuators are making an irrefutable case for electrification. These actuators operate more simply, efficiently, cleanly and quietly. And with fewer components to act up or wear out, the linear actuators offer exceptional durability. Despite being perceived as costing more, the actuator actually nets out to be more cost-efficient because of savings on several fronts.
Application
The linear actuator are used in many different industries, making both work and private life easier for a lot of people. The actuators are ideal for hospital beds, patient lifts, dental chairs, bath lifts and wheelchairs, industrial workstations, kitchens, construction and machinery, ventilation and farming solutions, marine applicationssolar tracking systems.
1. Input 12|24V
2. Load capacity 500n -1000n
3. Speed 5~33mm/s|0.2~1.32inch
4. Current 0.5~4.2A
5. Strokelength 0~1000mm|0~40inch
6. Standard protection class IP65
7. Working temperature -45centigrade ~ 65 Centigrade
8. Housing material plastic
9. Inner tube material Aluminum Alloy
10. Min installation dimension 105mm+stroke
11. With limited switch With
12. Color Grey/black
Packaging Detail: Standard Exporting Box
Delivery Detail: 20 DAYS
Our advantage:
1. Professional R&D team, advanced design concept
2. Modern production equipment and reliable production process
3. Full set of testing equipment to ensure product's performance
4. Strict quality control process
5. Considerate after service
| Model NO. | Stroke | Min.Install Dimension | Max Thrust | Max Pull | Max Speed | Duty cycle | Limit Switch |
| XTL50 | 50mm | S+105MM | 100N----1800N | 80N-1700N | 6mm-30mm/S | 10% | Built-in |
| XTL100 | 100mm | S+105MM | 100N----1800N | 80N-1700N | 6mm-30mm/S |
| XTL150 | 150mm | S+105MM | 100N----1800N | 80N-1700N | 6mm-30mm/S |
| XTL200 | 200mm | S+105MM | 100N----1800N | 80N-1700N | 6mm-30mm/S |
| XTL250 | 250mm | S+105MM | 100N----1800N | 80N-1700N | 6mm-30mm/S |
| XTL300 | 300mm | S+105MM | 100N----1800N | 80N-1700N | 6mm-30mm/S |
| XTL350 | 350mm | S+105MM | 100N----1800N | 80N-1700N | 6mm-30mm/S |
| XTL400 | 400mm | S+105MM | 100N----1800N | 80N-1700N | 6mm-30mm/S |
| XTL450 | 450mm | S+105MM | 100N----1800N | 80N-1700N | 6mm-30mm/S |
| XTL500 | 500mm | S+105MM | 100N----1800N | 80N-1700N | 6mm-30mm/S |
| The specifications as above is for you reference,we an do custmized just according to the customer's request |
CHANGZHOU LOUIE LINEAR ACTUATOR Co., Ltd. Supplies a full range of high quality Linear Actuators. Our factory is located in Wujin District, Changzhou City, Jiang Su Province, China, Nearby Shanghai.
Our factory adopt the full set of advanced production process, high levels technical management which coordinates with the advanced facilities.
The capacity of our production is 5 million with more than 1000 specifications. We had supplied to many research institute also. Our factory are specialized in production of high quality gas spring and linear Actuators, there 80% of sales is for exporting.
Our promise is for each piece of product must be with strictly testing, be sure of the quality and on time delivery. We are trying for customers with good quality and service. To make sure the customers will be satisfied and reassurance during using our product.
Our target is to make better quality product and grow company up as world class, of course with competitive price.
Our Linear Actuator are widely be used for medical bed, massage chair, robot, electrical sofa and so on. The quality and service will being assured at the same time for the customer. If you have any requests on our product, please contact with us, We also can design your request.
