| Prod Model: |
XTL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Chair, Sofa, Cabinet, Table, Massage Chairs, Dental |
| Name: |
Linear Actuator |
| Input Voltage: |
12V or 24V DC |
| Limit Switches: |
Inner |
| Type Of Duty: |
S2-10min |
| Max Speed: |
5mm-60mm /S |
Product Description

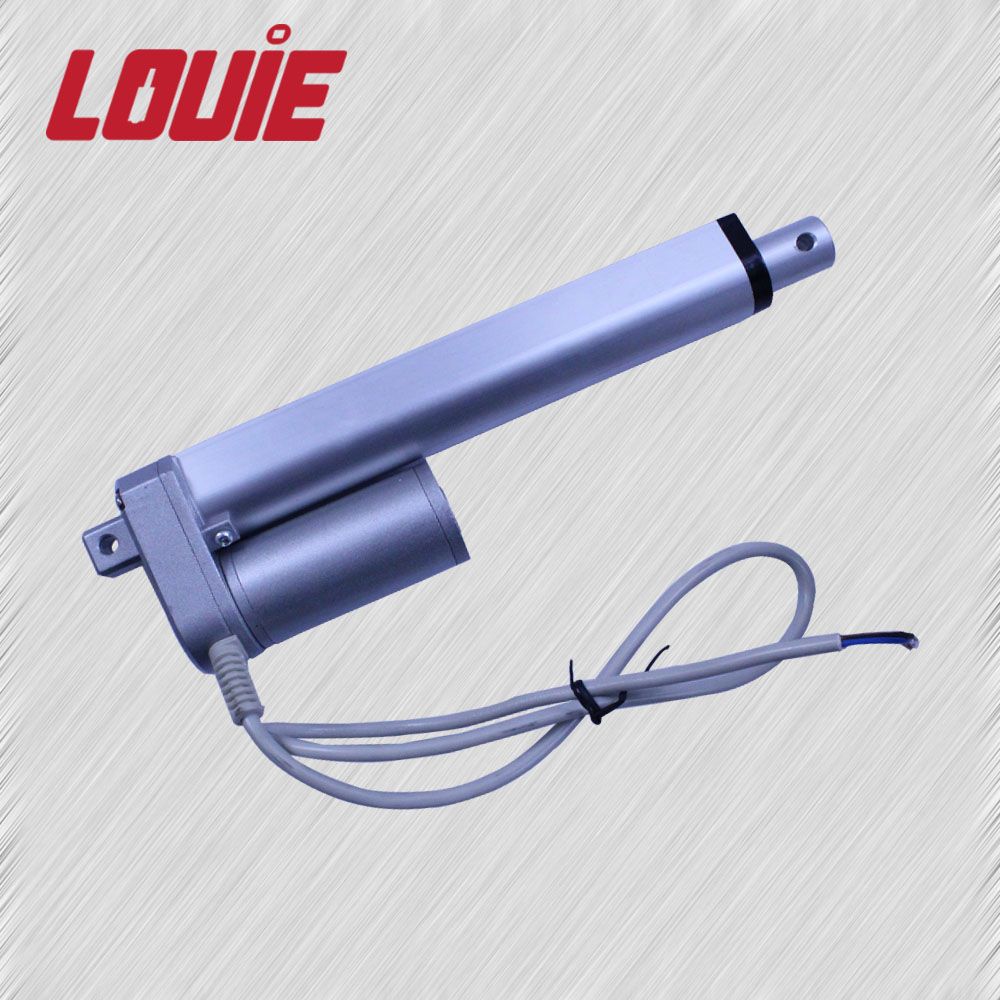

Linear Actuators
Louie offers a full line of standard electric actuators, each specifically designed to meet the customer's needs.
All are engineered for maintenance-free, long life service,
Providing maximum value for our customers. Our electric actuators are engineered and produced using quality components from ISO registered key suppliers.
Technical Parameters
Input: 12V/24V
Load Capacity: <1000N
Speed: 5mm/s ----60mm/s
Stroke: 50~1000mm(option)
Min installation Dimension: SL=105mm+S
Limited Switches: Inner
Operation temperature: -40° C to +65° C
Protection class: IP 65
Type of duty: 10% S2-18min
Control mode: Wired, wireless
Covering color: Silvery white
Application: Furniture, Industry
Mini linear actuator dc motor
1. Small motor linear actuator with ACME screws, built-in Micro switch and an internal diode,
2. Can automatically stop and enables the change of direction by simply reversing the applied voltage polarity.
3. Stroke length can be customized. Switches are not made to be adjustable.
4. Inversely proportional to the speed and power.
Size formula
Installation size = stroke S +105 (± 3)
{installation of the potentiometer mounting dimensions = the stroke S +125(± 3)}
Installation Dimension Calculating Description:
Standard XTL:
For example: Stroke 200mm,
Installation size = 200mm +105 mm = 305mm (± 3)
Extending maximum size 505MM (± 3)
Notice for the ordering
We need more details to make sure your required models: Load, input voltage, stroke.
Transportation
1. All available shipping ways could be applied, by courier, air or sea.
2. Appointed shipping company or our own forwarders all could be used in shipment.
3. Full-way tracking the cargos for you before the goods arrive.
Custom questions
Q: How much the linear actuator?
A: We need the specific specification, please tell me the stroke, input voltage, load, ip level.
Within 12 hours I will sent to you the best price via email.
Q: How much does shipping cost and what shipping methods do you support?
A: Shipping is calculated based on the weight of the order and the distance it is travelling;
For FedEx, DHL, UPS, TNT, EMS pricing please contact us for specific pricing.
Q: When will my order be shipped?
A: All regular, orders ship within 7-10 days of receipt.
Custom Orders have their own timeline depending on exactly what you need changed.
Please tell me the order quatity, I will offer you the time.
| Model NO. | Stroke | Min.Install Dimension | Max Thrust | Max Pull | Max Speed | Duty cycle | Limit Switch |
| XTL50 | 50mm | S+105MM | 100N----1800N | 80N-1700N | 6mm-30mm/S | 10% | Built-in |
| XTL100 | 100mm | S+105MM | 100N----1800N | 80N-1700N | 6mm-30mm/S |
| XTL150 | 150mm | S+105MM | 100N----1800N | 80N-1700N | 6mm-30mm/S |
| XTL200 | 200mm | S+105MM | 100N----1800N | 80N-1700N | 6mm-30mm/S |
| XTL250 | 250mm | S+105MM | 100N----1800N | 80N-1700N | 6mm-30mm/S |
| XTL300 | 300mm | S+105MM | 100N----1800N | 80N-1700N | 6mm-30mm/S |
| XTL350 | 350mm | S+105MM | 100N----1800N | 80N-1700N | 6mm-30mm/S |
| XTL400 | 400mm | S+105MM | 100N----1800N | 80N-1700N | 6mm-30mm/S |
| XTL450 | 450mm | S+105MM | 100N----1800N | 80N-1700N | 6mm-30mm/S |
| XTL500 | 500mm | S+105MM | 100N----1800N | 80N-1700N | 6mm-30mm/S |
| The specifications as above is for you reference,we an do custmized just according to the customer's request |
| Payment terms |
| 1)EXW, FOB, CIF. |
| 2) We accept T/T. Paypal, , L/C. |
| 3)Sample order pay through Paypal or West union. |
| 4)Bulk order T/T 70% deposit, 30% balance before shipment or L/C at sight |
|
| Delivery time & Transport |
| Lead Time: 7-15 days after deposit received. |
| Shipping Method: by courier, air or sea |
| Appointed shipping company or our own forwarders all could be used in shipment. |
|
| After sale service & promise |
| 1. Warranty Term: 12 Months |
| 2. 100% percent of pass before shipping. |
| 3. CE certifications. |
CHANGZHOU LOUIE LINEAR ACTUATOR Co., Ltd. Supplies a full range of high quality Linear Actuators. Our factory is located in Wujin District, Changzhou City, Jiang Su Province, China, Nearby Shanghai.
Our factory adopt the full set of advanced production process, high levels technical management which coordinates with the advanced facilities.
The capacity of our production is 5 million with more than 1000 specifications. We had supplied to many research institute also. Our factory are specialized in production of high quality gas spring and linear Actuators, there 80% of sales is for exporting.
Our promise is for each piece of product must be with strictly testing, be sure of the quality and on time delivery. We are trying for customers with good quality and service. To make sure the customers will be satisfied and reassurance during using our product.
Our target is to make better quality product and grow company up as world class, of course with competitive price.
Our Linear Actuator are widely be used for medical bed, massage chair, robot, electrical sofa and so on. The quality and service will being assured at the same time for the customer. If you have any requests on our product, please contact with us, We also can design your request.
