| Prod Model: |
XTL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Chair, Sofa, Cabinet, Table, Massage Chairs, Dental |
| Name: |
Linear Actuator |
| Input Voltage: |
24V DC |
| Limit Switches: |
Inner |
| Type Of Duty: |
S2-10min |
| Max Speed: |
6mm-36mm /S |
Product Description

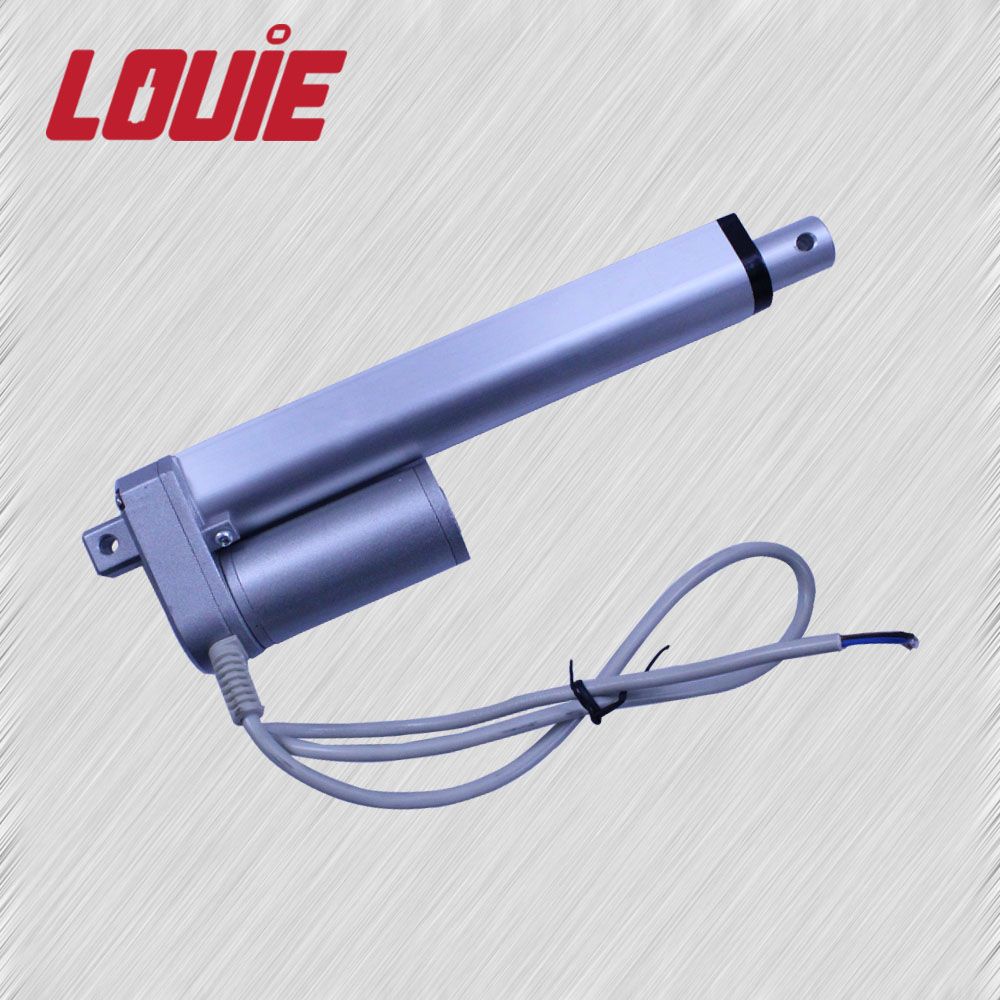

Mini linear actuator dc motor
1. Small motor linear actuator with ACME screws, built-in Micro switch and an internal diode,
2. Can automatically stop and enables the change of direction by simply reversing the applied voltage polarity.
3. Stroke length can be customized. Switches are not made to be adjustable.
4. Inversely proportional to the speed and power.
Technical Parameters
Input: 12V/24V/36V/48VDC
Load Capacity: <1000N
Speed: 5mm/s or 10mm/s
Stroke: 50~1000mm(option)
Min installation Dimension: SL=105mm+S
Limited Switches: inner
Operation temperature: -40°C to +65°C
Protection class: IP 65
Type of duty: 10% S2-18min
Control mode: wired,wireless
Covering color: Silvery white
Application : Furniture, Industry
Size formula
Installation size = stroke S +105 (± 3)
{installation of the potentiometer mounting dimensions = the stroke S +125(± 3)}
Installation Dimension Calculating Description:
Standard XTL:
For example: stroke 200mm,
Installation size = 200mm +105 mm = 305mm (± 3)
Extending maximum size 505MM (± 3)
Micro Linear Actuator 12V
specification | stroke(mm) | mini install dimensions(mm) | thrust(N) | pulling(N) | speed(mm/s) |
| DTL50 | 50mm | S+160MM | 3000N--6000N | 2400N-4800N | 5mm/10mm |
| DTL100 | 100mm | S+160MM | 3000N--6000N | 2400N-4800N | 5mm/10mm |
| DTL150 | 150mm | S+160MM | 3000N--6000N | 2400N-4800N | 5mm/10mm |
| DTL200 | 200mm | S+160MM | 3000N--6000N | 2400N-4800N | 5mm/10mm |
| DTL250 | 250mm | S+160MM | 3000N--6000N | 2400N-4800N | 5mm/10mm |
| DTL300 | 300mm | S+210MM | 3000N--6000N | 2400N-4800N | 5mm/10mm |
| DTL350 | 350mm | S+210MM | 3000N--6000N | 2400N-4800N | 5mm/10mm |
| DTL400 | 400mm | S+210MM | 3000N--6000N | 2400N-4800N | 5mm/10mm |
| DTL450 | 450mm | S+210MM | 3000N--6000N | 2400N-4800N | 5mm/10mm |
| DTL500 | 500mm | S+210MM | 3000N--6000N | 2400N-4800N | 5mm/10mm |
| We can make different specifications according to your requirement. |
CHANGZHOU LOUIE LINEAR ACTUATOR Co., Ltd. Supplies a full range of high quality Linear Actuators. Our factory is located in Wujin District, Changzhou City, Jiang Su Province, China, Nearby Shanghai.
Our factory adopt the full set of advanced production process, high levels technical management which coordinates with the advanced facilities.
The capacity of our production is 5 million with more than 1000 specifications. We had supplied to many research institute also. Our factory are specialized in production of high quality gas spring and linear Actuators, there 80% of sales is for exporting.
Our promise is for each piece of product must be with strictly testing, be sure of the quality and on time delivery. We are trying for customers with good quality and service. To make sure the customers will be satisfied and reassurance during using our product.
Our target is to make better quality product and grow company up as world class, of course with competitive price.
Our Linear Actuator are widely be used for medical bed, massage chair, robot, electrical sofa and so on. The quality and service will being assured at the same time for the customer. If you have any requests on our product, please contact with us, We also can design your request.
