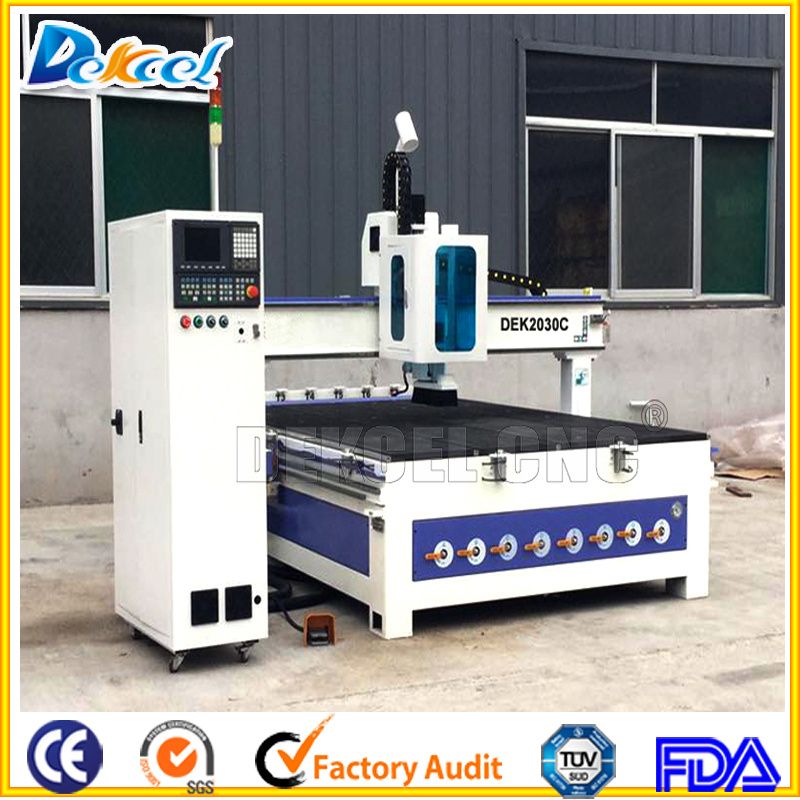

Linear Atc CNC 3D Wood Engraving CNC Router for Cabinet Door

Linear Atc CNC 3D Wood Engraving CNC Router for Cabinet Door
Price: US $ 9000-15000set
Min Order: 1set
Pay Type: L/C,T/T,Western Union
Prod Model: DEK-2030
Working Area: 2000*3000mm
Control System: Weihong Nk105 DSP Control System
Z Axis Transmission: Taiwan Tbi Transmission
Spindle Power: 4.5 Kw Air Cooling Spindle
X Y Axis Transmission: Gear and Rack Transmission
Motor And Driver: Leadshine Stepper Motor and Drivers
Inverter: Fuling Inverter
Dimension(L*W*H): 3110X1800X1550mm
Weight: 1500kg
Voltage: 380V/50Hz
Spindle Layout: Vertical
Spindle Number: Single-Spindle
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: ISO

Product Description

Features of 3d wood cnc router for cabinet door:
1.4.5kw air cooling spindle with high power and high accuracy make the efficiency of engraving higher.
2.Taiwan SYNTEC control system it's easy to operate and humanied.
3.Japan YASKAWA servo motor with high speed ,high precision and high working efficiency
4.Auto oiling system is extreamly convenient.
5.With 30 diameter Taiwan HIWIN square guide rail it's very smooth enhance working speed and longtime use.
6.Fuling inverter can control the frequnce of spindle stable.
7.Has the function of re-carving after break point and power failure.
8.Vacuum adsorption with T-shape thick steel in order to enhance engraving accuracy and stability when it's working.
9.New type welded steel bed structure makes the machine more stability and longtime life

Application & samples of woodworking cnc router for sale:
1.Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,
craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,
crystal word making, blaster molding, and other advertising materials derivatives making.

3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as
artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

4.Relief sculpture and 3D engraving

 Parameter of  atc linear cnc wood engraving machine for door cabinet
NumberDescriptionParameter
1X,Y,Z Working Area2000mmx3000mmx200mm
2Table Size1450mmx2940mm
3X,Y,Z Traveling Positioning Accuracy±0.03/300
4X,Y,Z Repositioning Accuracy±0.03mm
5Table SurfaceVacuum and T-slot Combined (Option: T-slot Table)
6FrameWelded Structure
7X, Y StructureRack and Pinion Drive, Hiwin Rail Linear Bearings
8Z StructureHiwin Rail Linear Bearings and Ball Screw
9Max. Power Consumption3.0Kw (Without spindle)
10Max. Rapid Travel Rate40000mm/min
11Max. Working Speed30000mm/min
12Spindle Power4.5 KW
13Spindle Speed0-18000RPM
14Drive MotorsServo motor System
15Working VoltageAC380V/50/60Hz,3PH (Option: 220V))
16Command LanguageG Code
17Operating SystemNcstudio System (options: DSP/Mach3 PC Software)
18Computer InterfaceUSB
19Flash Memory128M(U Disk)
20ColletER32
21X,Y Resolution<0.03mm
22Software CompatibilityType3 Software (Option: Artcam software)
23Running Environment Temperature0 - 45 Centigrade
24Relative Humidity30% - 75%
25Packing Size3750mmX2250mmX2100mm
26N.W.1750KG
27G.W.2190KG
28Optional PartsColumbo Air Cooling Spindle
Syntec Control System
Dust Collector
Vacuum Pump
Rotary System
Mist-cooling System
Delta / Panasonic Servo Motors


FAQ:
 Q1.how to get the most suitable machine and best price?
 please tell the  material you want to working on ?
 How to working on it ? Engraving ? Cutting ? Or other ?
 What's the MAX size of these material ?( length ? Width ? Thickness ?)

 Q2.If we donot know how to use the machine,can you teach us?
 Yes,we will ,if you come to China,we will offer you free training until you can use machine
freely.And if you are busy ,we will have the special engineer to your country,but you need to bear
some fee,like tickets and hotel and meal.

 Q3.How about your after-sales service?
 We offer you 24 hours service phone,skype or MSN.

 Q4.How about your guarantee period?
 One year and during the time,if you have  any questions ,we will solve it for free.

Q5.How to maintenance the CNC Router?
  1. First cut the power when maintain the machine. When check work must open the power, need the professional electrician to do this check work.
 2. Repair and replacement the parts, please first confirm the specifications of the technical.
 3. Regular clean the cooling system.
 4. Should always monitor the voltage and electricity grid of the CNC Router.
 5. Prevent the dust into the machine.

 Q6 How can i confirm machine?
 Dear, in order to recommend the best suitable machine with the best quality and price for you, please kindly contact me with below questions, our professional services will satisfy you!
 1. what is you product?
 2. what is the material of you product, and the size( length/width/thickness)?
 3. what do you want to do on your product, cutting, drilling, milling, evgraving etc.?
 4.what is the working area do you want?
 5. do you have any other technical requirements? the more the better.

 If you can provide some pictures of your products,that would be great!

 If you have any questions,please contact me,thanks.

 Warranty & Service
 1,12 months for the whole machine. We offer life-long technical support by call, email
2, Our technicians & Me can give you remote guide online (Skype or MSN) if you have any  question
3, We can record videos of operating the machine
4, Free training course in our factory
5, Engineer available to service machinery overseas 12 months for the whole machine.
