| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | PR9 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: | Cold-Rolled Sheet Steel |
| Color: | Ral7032/Ral7035/Customize |
| Surface Finish: | Epoxy Thermosetting Powder Coating |
| Thickness: | 1.5mm |
| Usage: | Electrical Control |
| Type: | Distribution Metering Box |
| Structure: | Protection |
| Certification: | ISO9001:2008,RoHS |
| Application Range: | Electrical Industry |
| Brand: | Prota |

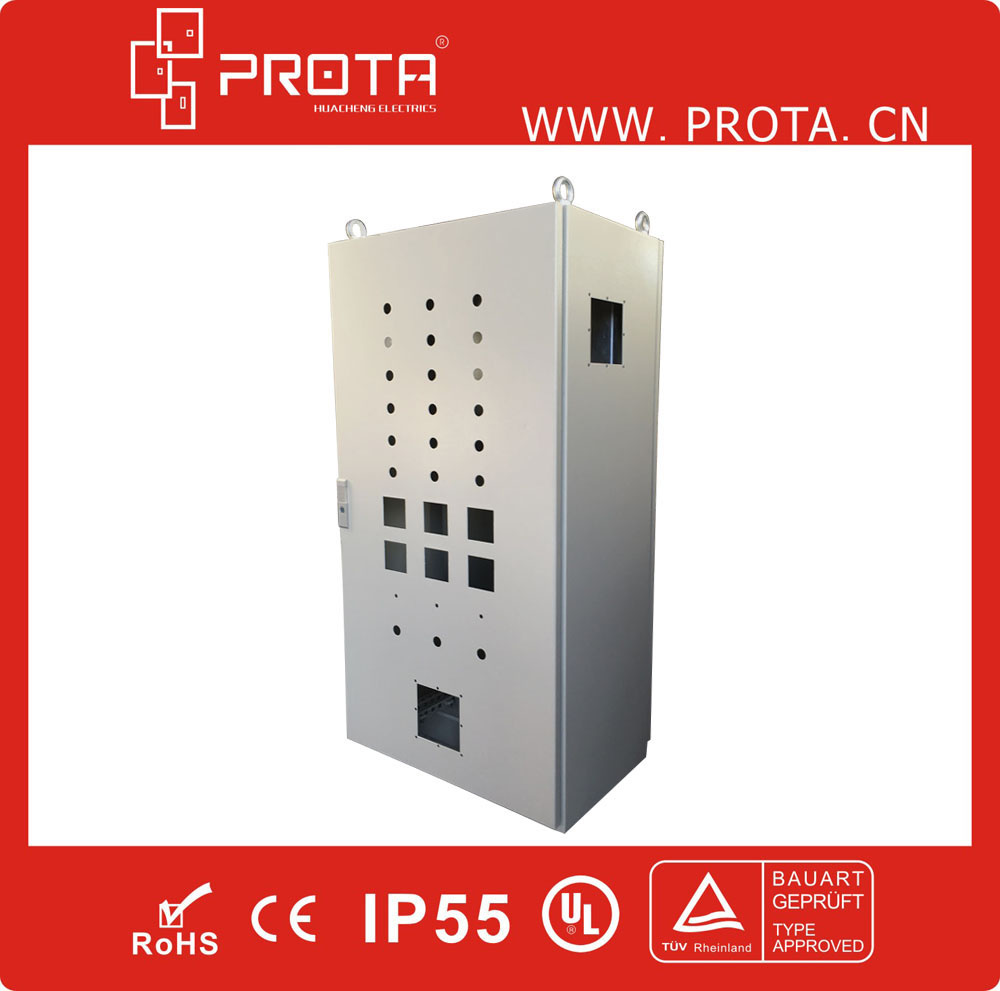

IP55 Outdoor Floor Standing Eectrical Cabinet
1.Material:Cold rolled sheet steel(metal)
2.Surface finish: epoxy thermosetting textured powder coated
3.Thickness:
body: 1.5mm
galvanized mounting plate: 2.5mm
back panel and side panels: 1.5mm
4.Front door: 2.0mm
5.Protection degree:IP66
Craftsmanship Feature:

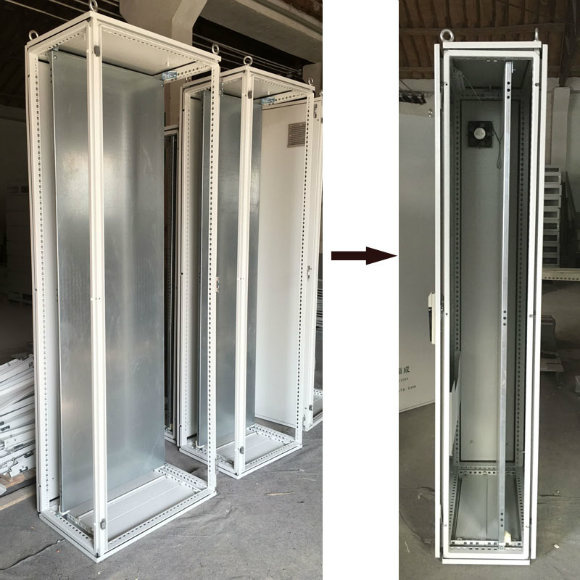

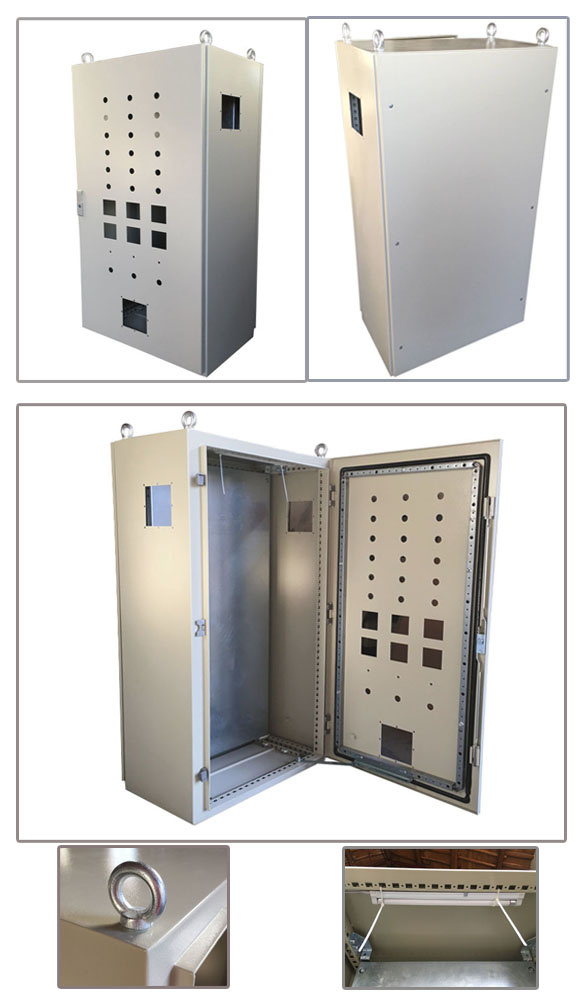

1.Welded framework, side panel and back panel be fixed on the structure with screws, the back panel is easily removed and it can be switched with the front door.
2.The crossing-lock locks the front door with three points by up, middle and down.
3.The PU foam sealing gasket in the panel and door ensure the protection level.
4.At the bottom of the chest, there's a cable plane with leads to the cover plate, and helps the cables to be guided into the line pores.
5.The galvanized mounting plate can be pushed into the cabinet by the front. Moreover, it would be more durable and easily delivered with the U type folding design of both 2
side.
Different sizes are avaliable on request .Cut-outs and drilled holes to your specifications.
| Model No. | Dimension(HXWXD mm) | Model No. | Dimension(HXWXD mm) | |
| PR9 126/4 | 1200X600X400 | PR9 1810/8 | 1800X1000X800 | |
| PR9 126/8 | 1200X600X800 | PR9 1812/4 | 1800X1200X400 | |
| PR9 128/4 | 1200X800X400 | PR9 1812/5 | 1800X1200X500 | |
| PR9 128/8 | 1200X800X800 | PR9 1812/6 | 1800X1200X600 | |
| PR9 146/4 | 1400X600X400 | PR9 1812/8 | 1800X1200X800 | |
| PR9 146/8 | 1400X600X800 | PR9 203/4 | 2000X300X400 | |
| PR9 148/4 | 1400X800X400 | PR9 203/5 | 2000X300X500 | |
| PR9 148/8 | 1400X800X800 | PR9 203/6 | 2000X300X600 | |
| PR9 166/4 | 1600X600X400 | PR9 203/8 | 2000X300X800 | |
| PR9 166/8 | 1600X600X800 | PR9 204/4 | 2000X400X400 | |
| PR9 168/4 | 1600X800X400 | PR9 204/5 | 2000X400X500 | |
| PR9 168/5 | 1600X800X500 | PR9 204/6 | 2000X400X600 | |
| PR9 168/6 | 1600X800X600 | PR9 206/4 | 2000X600X400 | |
| PR9 168/8 | 1600X800X800 | PR9 206/5 | 2000X600X500 | |
| PR9 186/4 | 1800X600X400 | PR9 206/6 | 2000X600X600 | |
| PR9 186/5 | 1800X600X500 | PR9 206/8 | 2000X600X800 | |
| PR9 186/6 | 1800X600X600 | PR9 208/4 | 2000X800X400 | |
| PR9 186/8 | 1800X600X800 | PR9 208/5 | 2000X800X500 | |
| PR9 188/4 | 1800X800X400 | PR9 208/6 | 2000X800X600 | |
| PR9 188/5 | 1800X800X500 | PR9 226/4 | 2200X600X400 | |
| PR9 188/6 | 1800X800X600 | PR9 226/6 | 2200X600X600 | |
| PR9 188/8 | 1800X800X800 | PR9 228/4 | 2200X800X400 | |
| PR9 1810/4 | 1800X1000X400 | PR9 228/5 | 2200X800X500 | |
| PR9 1810/5 | 1800X1000X500 | PR9 228/6 | 2200X800X600 | |
| PR9 1810/6 | 1800X1000X600 | PR9 228/8 | 2200X800X800 |
-- Ordinary paper carton for electric enclosure.
-- Paper cover , PP strap, protective film is avaliable for big electric cabinet
-- Plastic bag is avaliable for stainless steel electric box
-- Bubble bag or protective film for inner protection to avoid scratches.
-- Plywood pallet is available when sheet metal products are in large amount.
--Shipping mark according to customer's request.
-- Samples can be send by courier(UPS, FEDEX, EMS,TNT, DHL),bulk production will be deliveried by sea and air.
-- We have own factory, we can do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change

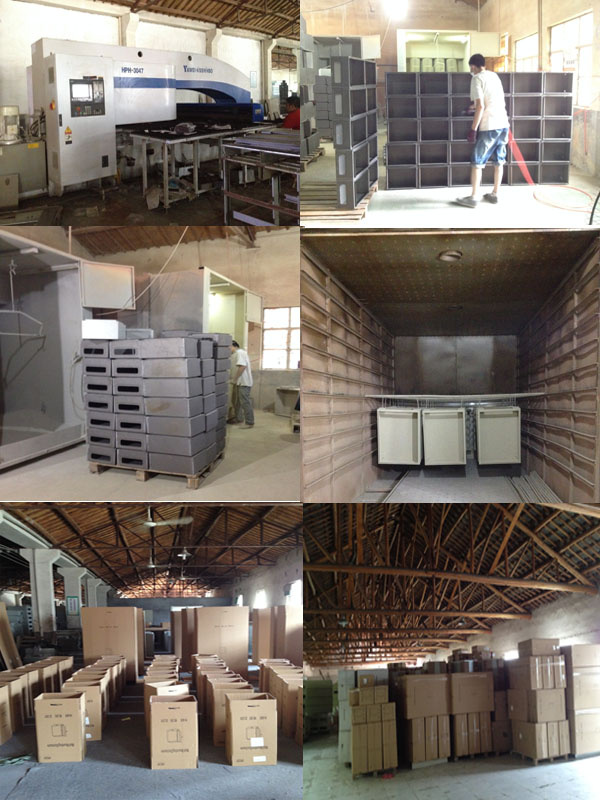

Welcome to visit our factory. Welcome customer or your agent to inspect before order and before loading.
Company Information:
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: metal wall mounting enclosures, stainless steel enclosures, floor standing electric cabinets, knock-down cabinets, terminal boxes, junction boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed ROHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & ROHS certificates were issued by TUV lab in Shanghai China.
Our products sell well in international markets such as the U.S., Canada, South America, Southeast Asia, the Mid East, India, Africa, etc.
we are devoting ourselves to achieve high quality products, competitive prices and on time delivery, We are working hard to give more to our customers.
FAQ:
1. What you payment term ?
-- We accept T/T 30% deposit and balance 70% against copy of B/L
-- L/C At sight
-- West-Union (Small Order)
2.How's your delivery time ?
-- Actually , it's up to your order QTY , Usually our turnover time is 20-30 days.
3.Would you offer FROM A or C/O ?
--No problem , we would apply for this certificate to government .
4.Can you customize the electrical cabinet?
Yes, we can customize according to customer's requirements or design drawing.
If you are interested in our products, please contact with us.
