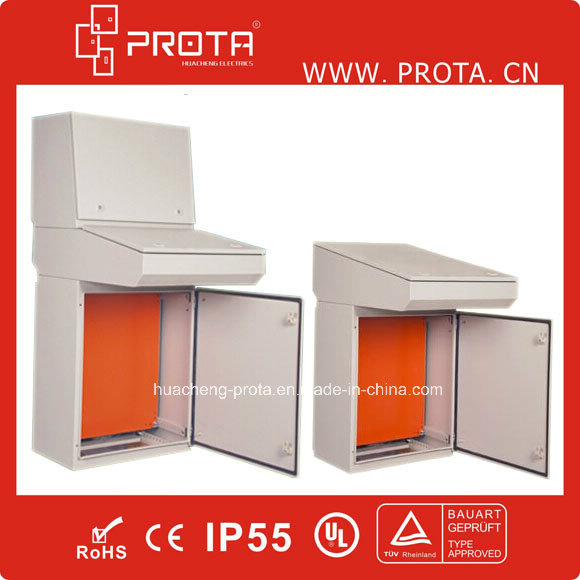

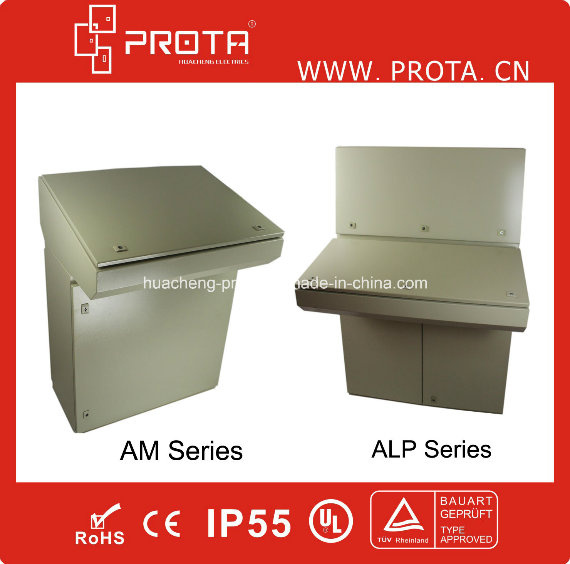

Alp / Am Series Steel Industrial Control Desk

Name: Alp / Am Series Steel Industrial Control Desk
Brand: thisfurniture.com
SKU: 769735255
Availability: InStock
Rating: 4.3 (130 reviews)

Price:	US $ 260-600/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ALP/AM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Ral 7032/Ral 7035/Customize
Material:	Cold-Rolled Sheet Steel
Thickness:	1.5mm&2.0mm
Type:	Power
Structure:	Protection
Certification:	ISO9001:2008,RoHS
Application Range:	Electrical Distribution
Brand:	Porta

Product Description

Standard Configuration
1. One galvanized mounting plate.
2. The front and the back doors, the operation board can be opened, with hydraulic support door stays.
3. Color: RAL 7032 or RAL 7035
Material: cold-rolled sheet steel
Door: 2.0mm
Body: 1.5mm
Mounting Plate: 2.5mm
4. Surface: the whole cabinet is phosphate coated and the exterior is epoxy thermosetting textured powder-coated.
5. Protection degree: IP54

Features of craftsmanship
1. The doors of the front and back as well as the operation panels can be opened, which are very convenient for installation;
2. The mounting plate can be moved forward and backward, which is more flexible for the internal installation
3. The door is installed with panel strips with pilot holes, which is welded to both sides inside the front door and the upper and the down position of the operation cover board. Moreover, it makes the installation of door and cover board more flexible, convenient for cables, via the installation strips
4. The PU foam sealing gasket inside the door ensures the protection degree of the cabinet.
5. The door can be switched by left and right.
6. The original operation panel has the hydraulic support door stays, which greatly improves the class of the cabinets, and embodies the humanized design.

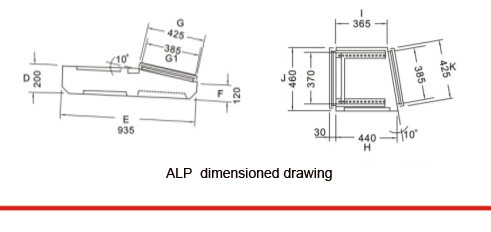

Selection table

ALP series control desk(include:AE,LE,PE)
	AE(1.5mm)			LE(2.0mm)				PE(1.5mm)
MODEL	A	B	C	D	E	F	G	H	I	J	K
ALP41	600	770	400	200	835	120	425	370	295	460	425
ALP42	800	770	400	200	835	120	425	370	295	460	425
ALP43	1000	770	400	200	835	120	425	370	295	460	425
ALP44	1200	770	400	200	835	120	425	370	295	460	425
ALP45	1600	770	400	200	835	120	425	370	295	460	425
ALP51	600	770	500	200	935	120	425	440	365	460	425
ALP52	800	770	500	200	935	120	425	440	365	460	425
ALP53	1000	770	500	200	935	120	425	440	365	460	425
ALP54	1200	770	500	200	935	120	425	440	365	460	425
ALP55	1600	770	500	200	935	120	425	440	365	460	425

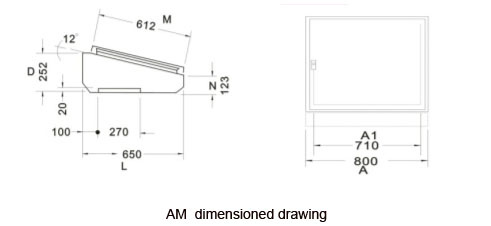

AM series control desk(include:AE,ME)
MODEL	AE(1.5mm)			ME(2.0mm)
MODEL	A	B	C	O	L	N	M
AM41	600	770	400	252	650	123	612
AM42	800	770	400	252	650	123	612
AM43	1000	770	400	252	650	123	612
AM44	1200	770	400	252	650	123	612
AM45	1600	770	400	252	650	123	612
AM51	600	770	500	275	750	123	712
AM52	800	770	500	275	750	123	712
AM53	1000	770	500	275	750	123	712
AM54	1200	770	500	275	750	123	712
AM55	1600	770	500	275	750	123	712
