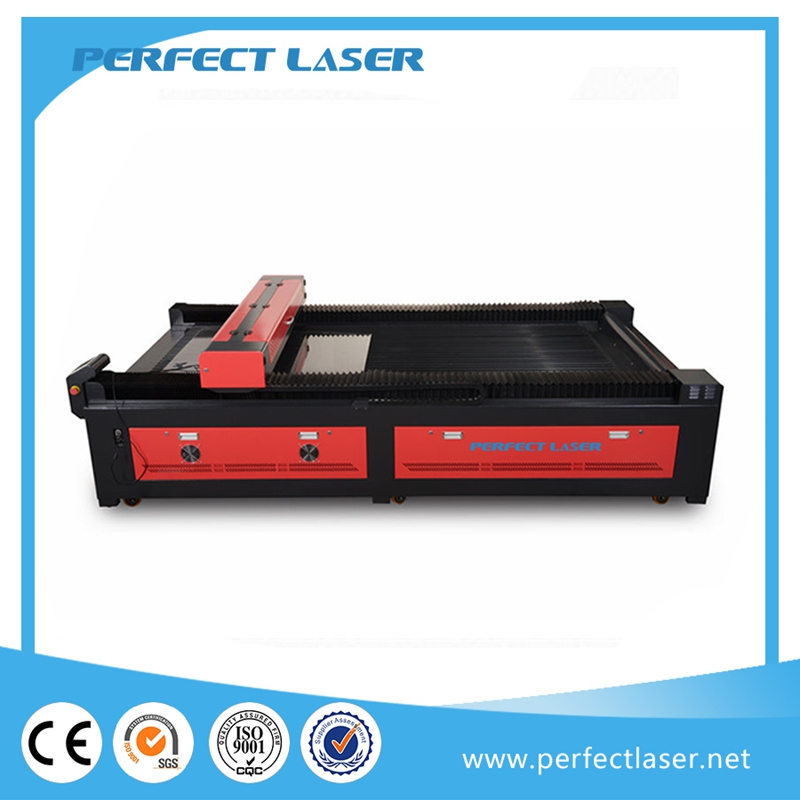

Hot Sale Pedk-130180 Leather CO2 Laser Engraving Cutting Machinery
| Price: |
US $ 1900/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
PEDK-130180 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Usage: |
Woodworking |
| Power: |
High Power |
| Drive Type: |
Stepper Drive |
| Certification: |
SGS, CE, ISO 9001 |
| Laser Type: |
CO2 |
| Control: |
CNC |
| Current: |
AC |
Product Description

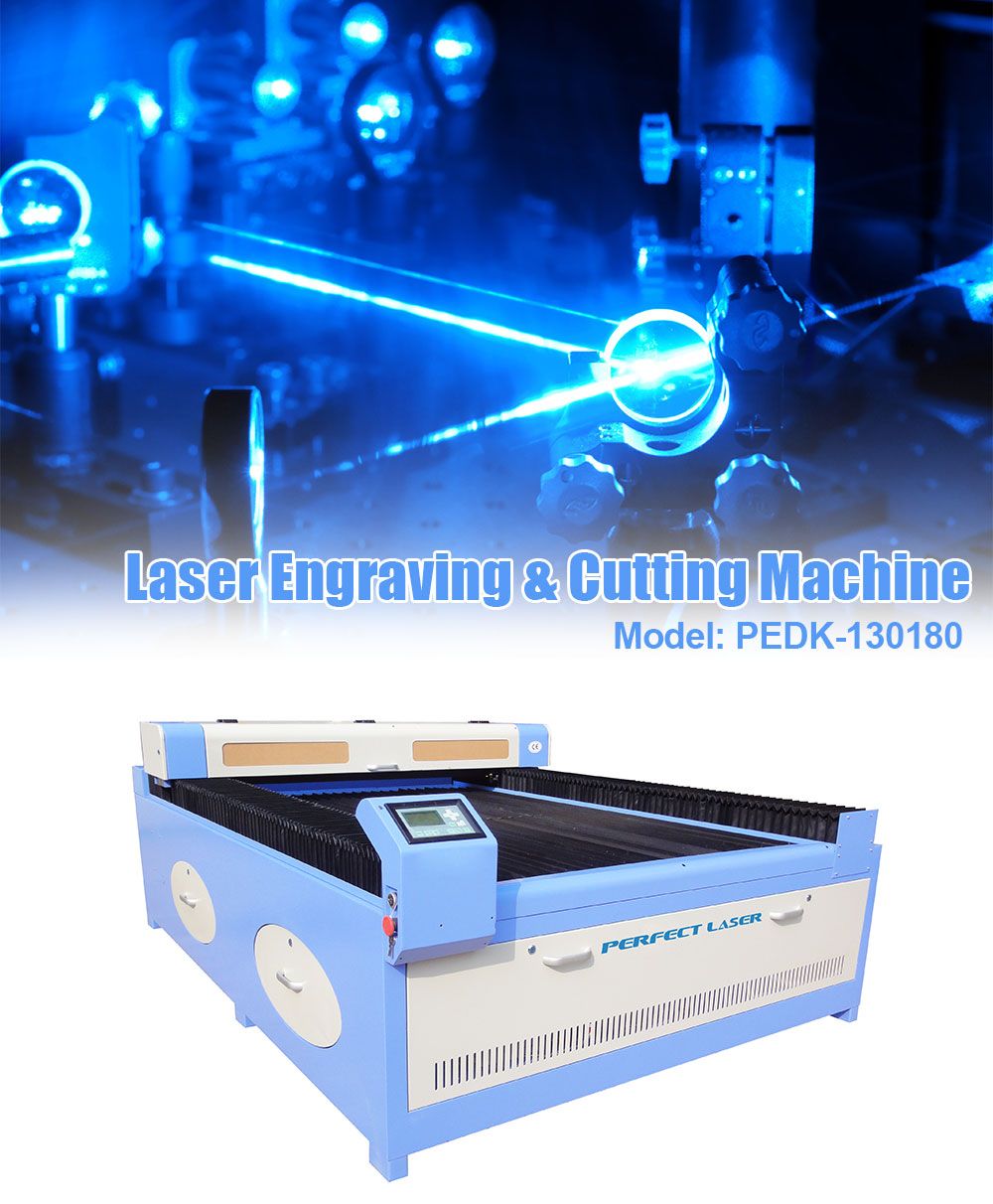

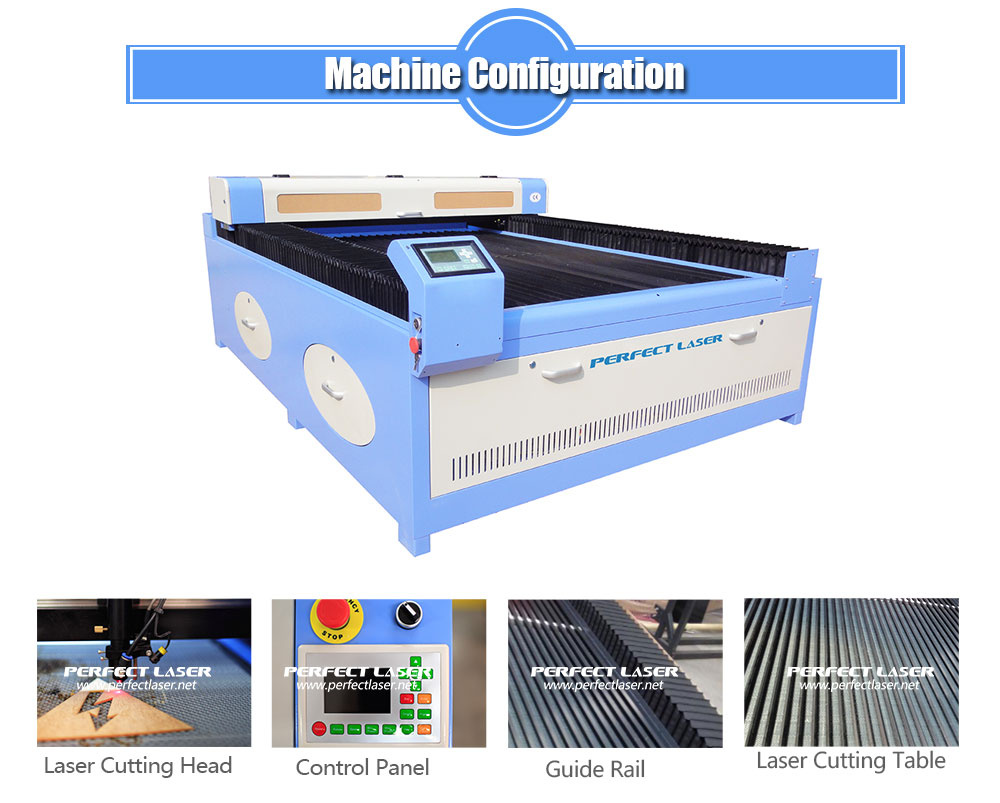

Hot Sale PEDK-130180 Leather CO2 Laser Engraving Cutting Machinery
Model: PEDK-130180
Contact: Lily
Introduction of CO2 Laser Cutting MachineThe flat bed laser etching machine is a multi-function laser process machinery, it combines the functions of drawing, engraving and cutting.
The fabric etching machine adopts automatic stainless steel crawler platform & large scope, so it can meet the demand of large-format cutting and carving for clothing and carpet fields.
This laser engraving machine not only have all the large scale engraving function, but also have mechanical design, capability, and working area perfect improved.
Non-metal materials.Applied Industry of CO2 Laser Cutting Machine:Plexiglass, Rubber Plate, Mould, craft, advertising decoration, paper etc. Industry.
Features of CO2 Laser Cutting Machine:1) Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
2)LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.

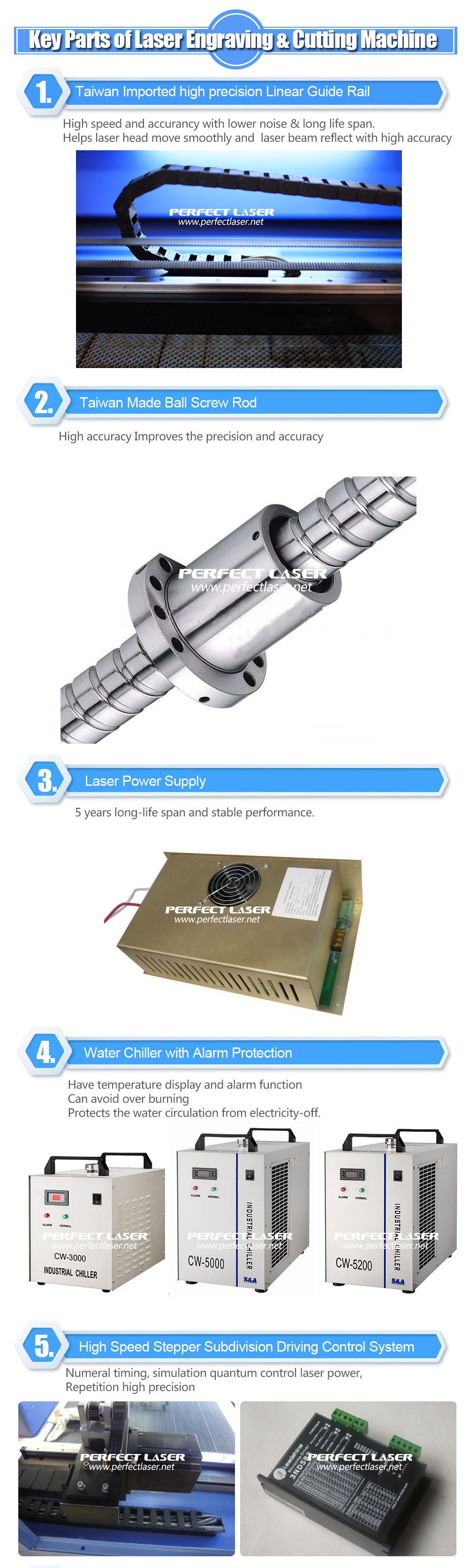

3) Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
4) Special Front and back running-through design, the unique door for the limitless engraved materials through.
5)Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
6) Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.

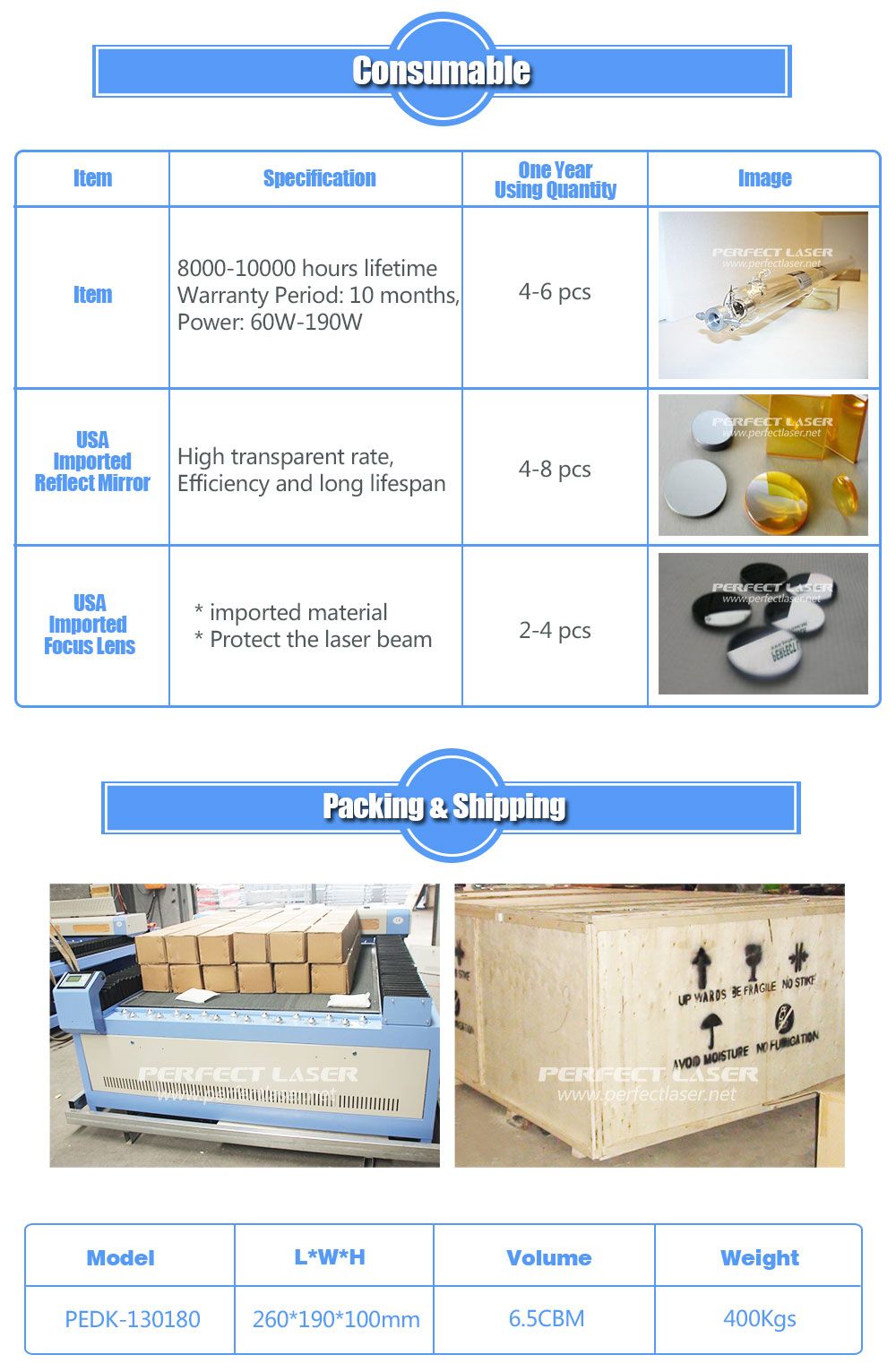

7) Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, 10000 hours Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
8)High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
9) Red Light Pointer realizes the exact position without laser.
10) Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system.
11) With powerful edition software and strong compatibility, it can support BMP, PLT, AL, DST, DXF etc.File format.
Applied Scope:Motorized up-down table as optional item, easy operation, wide application, it both can cut, engrave and make hole etc. It's the preferred type to produce different crafts.
Model |
PEDK-4030 |
PEDK-6040 |
PEDK-9060 |
PEDK-13090 |
PEDK-160100 |
PEDK-130250 |
PEDK-130180 |
PEDK-160260 |
Working Area |
400×300mm |
600×400mm |
900×600mm |
1300×900
mm |
1600×1000mm |
1300×2500mm |
1300×1800mm |
1600×2600mm |
Laser Power |
40W / 50W |
50W / 60W |
60W / 80W |
60W / 80W / 100W / 120W / 150W |
Laser Type |
Hermetic and Detached Co2 Laser Tube |
Engraving Speed |
1-60000mm/min |
Cutting Speed |
1-10000mm/min |
Repeat Location Accuracy |
± 0.0125mm |
Laser Power Controlling |
1-100% Manual Adjustment and Software Controlling |
Voltage |
220V(±10%) 50Hz |
Cooling Mode |
Water Cooling and Protect System |
Cutting Platform |
Professional Thickening Strip or Honeycomb Work Table |
Controlling Mode |
CNC Professional Control System |
Support Graphics Formats |
BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF
Compatible HPG Order To Support DXF, WMF, BMP, DXT |
Power Controlling Mode |
Laser Energy Combining Movement Control System |
Control Software |
Original Perfect Laser's Engraving & Cutting Software |
Training |
Video Training |
Guarantee |
12 month Guarantee Period |
Remark :1.Payment terms: T/T, L/C, West Union,Alibaba Escrow.
2. Delivery lead time: 7-10 working days after receipt of the advance payment.
3. Delivery method: by sea or air shipment.
4. Packing: compound wooden cases with exporting standardTraining&Service:1. 12months Gurantee Period;
2. Free Online Consulting Service
3. Free Operation Tranining in our factory;
4. Detailed Operational Manual &Traning CD in English Version
5. Guarantee of Quality and After Sales-Service:
The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination. Except the artificial damage and wearing parts, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China Perfect Laser!
1):The exact material you want to engrave/cut? (wood, acrylic, cloth, fabric, leather, rubber, paper, plastic, marble....)
2):The cutting depthon above materials?(max thickness, 3 mm, 6 mm, 15 mm, 20 mm....)
3):The working area you demand? (max dimension of material, width*length, 600*400 mm, 900*600 mm, 1300*900 mm,1600*1000mm...)Working area and laser power can be customized.
4)After cut/engrave, what will be the material used for? (application)
5)Are you an end user or reseller?
Welcome for your inquiry soon.
