| Prod Model: |
PEDK-130180 |
| Laser Power: |
60W / 80W / 100W / 120W / 150W |
| Engraving Speed: |
1-60000mm/Min |
| Cutting Speed: |
1-10000mm/Min |
| Repeat Location Accuracy: |
± 0.0125mm |
| Voltage: |
220V(±10%) 50Hz |
| Support Graphics Formats: |
BMP, Hpgl, JPEG |
| Control Software: |
Reader |
| Cutting Platform: |
Thickening Strip or Honeycomb Work Table |
| Controlling Mode: |
CNC Professional Control |
| Delivery Date: |
3-7 Working Days |
Product Description
---Introduction:

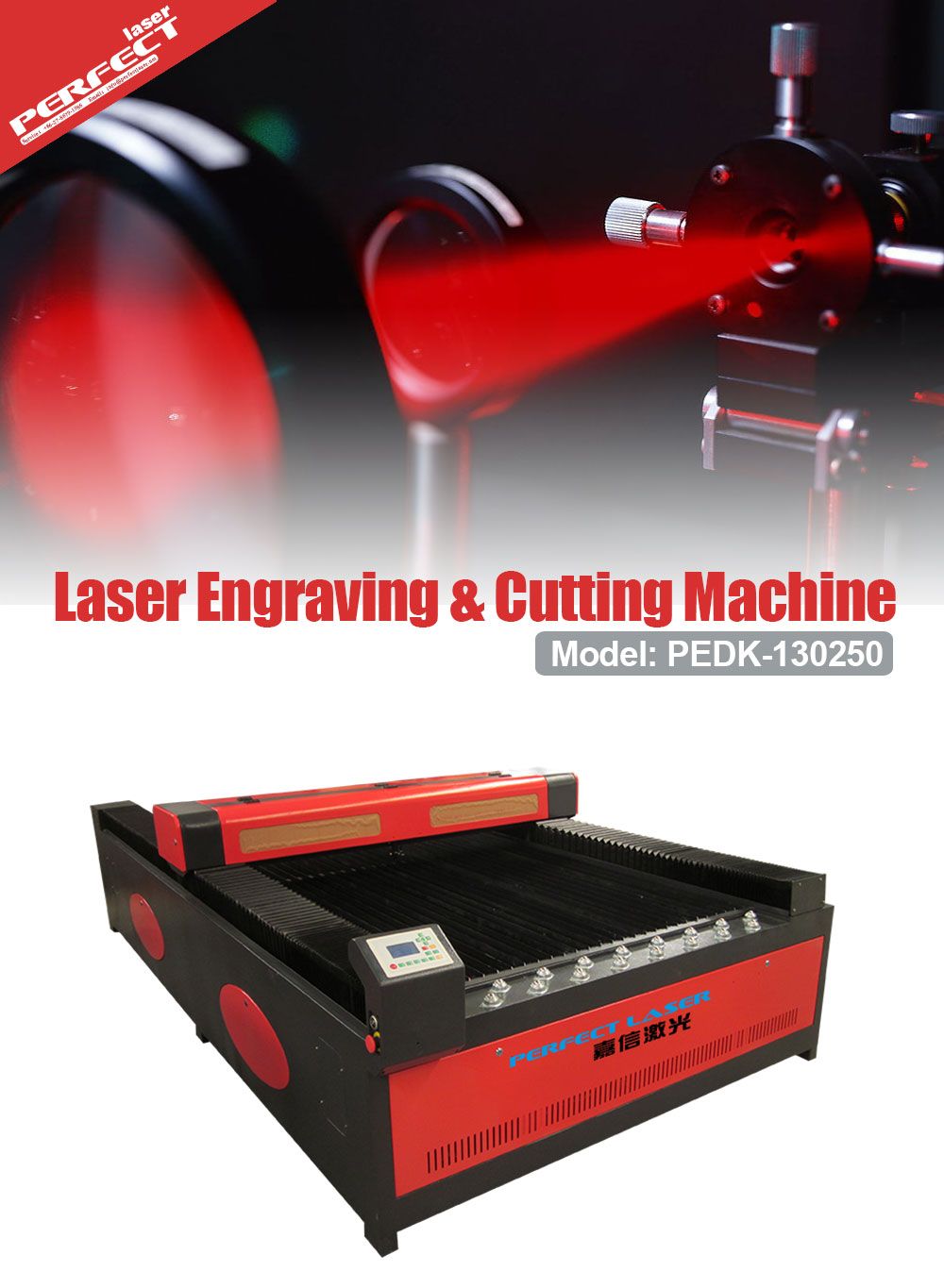

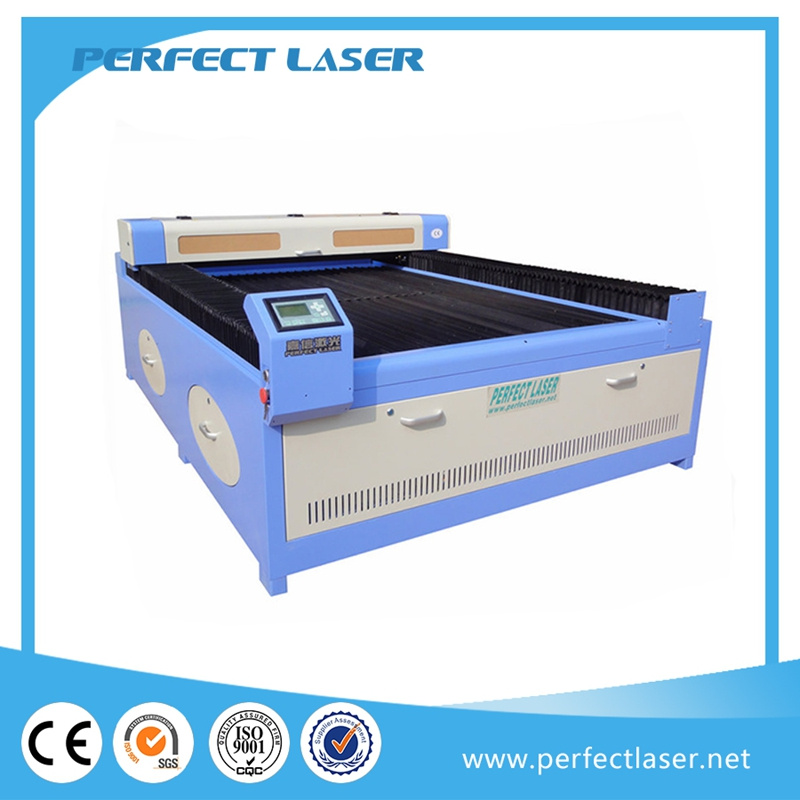

The flat bed laser etching machine is a multi-function laser process machinery, it combines the functions of drawing, engraving and cutting.
The fabric etching machine adopts automatic stainless steel crawler platform & large scope, so it can meet the demand of large-format cutting and carving for clothing and carpet fields.
This laser engraving machine not only have all the large scale engraving function, but also have mechanical design, capability, and working area perfect improved.
----Available Materials:
1. The laser etching machine widely used in garment material: leather engraving and cutting, textile engraving, fabric engraving, cloth engraving, shoe engraving, jeans engraving, carpet engraving and cutting, toy cutting, woolen cutting, denim engraving and cutting.
2. Advertisement materials: acrylic, plastic, PVC board, double color board, rubber plate, stamp and seal, organic glass, plexiglass, paper engraving and cutting.
3. Wood material: wood engraving and cutting, MDF engraving, plywood cutting.
---Application Industry:
Garment and leather, embroidery, billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, decoration and upholster industry.
The laser etching machine can be also called laser etch machine,etching machine,leather etching,lazer etching machine,fabric etching machine.

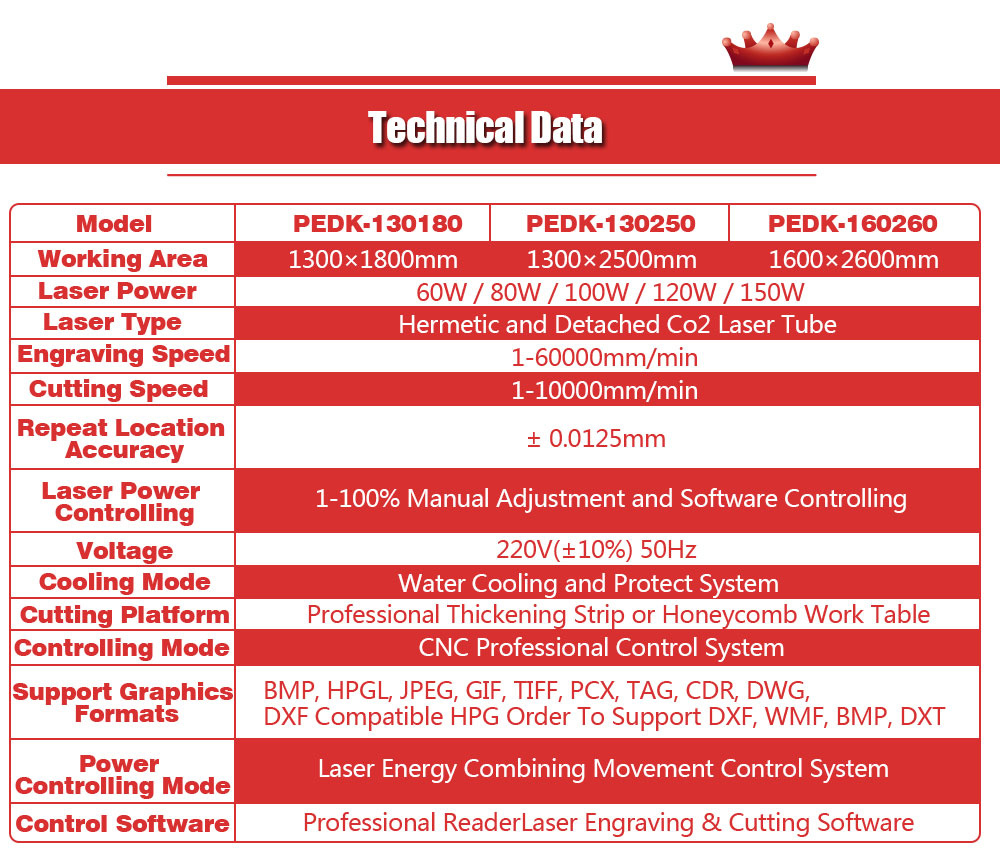

---Technical data:
| Model | PEDK-130180 | PEDK-130250 | PEDK-160260 |
| Working Area | 1300×1800mm | 1300×2500mm | 1600×2600mm |
| Laser Power | 60W / 80W / 100W / 120W / 150W |
| Laser Type | Hermetic and Detached Co2 Laser Tube |
| Engraving Speed | 1-60000mm/min |
| Cutting Speed | 1-10000mm/min |
| Repeat Location Accuracy | ± 0.0125mm |
| Laser Power Controlling | 1-100% Manual Adjustment and Software Controlling |
| Voltage | 220V(±10%) 50Hz |
| Cooling Mode | Water Cooling and Protect System |
| Cutting Platform | Professional Thickening Strip or Honeycomb Work Table |
| Controlling Mode | CNC Professional Control System |
| Support Graphics Formats | BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT |
| Power Controlling Mode | Laser Energy Combining Movement Control System |
| Control Software | Original Perfect Laser Engraving & Cutting Software |
--Working Video:
Perfect Laser-Laser Engraving & Cutting On Acrylic: HTTP: //youtu. Be/wOYac56L8Sc
---Fearures:
1. Install "Automatic Feeding and Rolling System" to make the whole cloth processing steps finish one time, suitable for engraving/cutting on very long work piece, such as one roller of cloth/fabric/leather/garment.
2. Matched software of laser fabric cutting machine is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system, also can according to your requirement to set the engraving length of material.
3.The laser fabric cutting machine adopts thickness crawler type working table, which can push material and keep them as planar / even / flat surface during working.
4. The laser caving machine adopt advanced LCD touching screen, with USB port and DSP offline control system, which make the The laser fabric cutting machinecan not only work without computer, but also connect to U disk, USB communication.
---About US ( PERFECT LASER ):
Our Mission is to Improve Our Customers' Competitive Position in the Marketplace.
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact China Perfect Laser!
The exact material you want to cut? (Acrylic, Wood, Leather, Paper, , , , etc)
The cutting depth on above materials? (Like, 3 mm, 5 mm, 7 mm, 15 mm...)T
He working area you demand? (max dimension of material, width*length, 400*300mm, 1300*900 mm, 1300*2500mm...)To benefi
Perfect Laser (Wuhan) Co., Ltd. is a professional manufacturer of industrial laser equipment, located in China "Optics Valley" - Wuhan City. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipment.
With over 20 years efforts and innovation. Our products have been exported to 180 different countries and regions. Our company has the European CE certificate, Germany TUV certificate, ISO9001: 2000 quality system certificate.
We are one of the most trustworthy company in central China among laser equipment manufacturers. Winning the honor of "Hi-tech Eenterprise" and "Famous Brand in Hubei Province", Perfect Laser willcontinue to embrace and create a better future with open mind.
Perfect Laser History
1995, Company established. Distribute large laser medical surgical instruments.
2003, Renamed as Wuhan Perfect Laser Co., Ltd. (China), set up business in the field of laser equipment manufacturing and sales.
2005, Set up Perfect Laser (Wuhan) Co., Ltd international group. Become an international group Co., Ltd, which concludes mass production, science and technology research and development, global sales and after sales service.
2008, Obtained the ISO 9001: 2000 Quality Management System Certification.
2009, Obtained "The Most Competitive Brand In China".
2010, Become the most popular laser equipment manufacturers and exporters of central China.
2011, Acquired The European Union CE certification, to prove stable reliability of products.
2012, Became the most reliable and trustworthy integrity manufacturing enterprises, products exported to more than 130 countries and regions.
2013, Become the excellent member of the "Hubei Association of E-commerce Association", make mutual progress with other members through exchange of learning.
2014, Get approval to apply for "High-tech Enterprise" and gained eight patents. Products exported to over 180 countries.
2015, Won the honor of "high-tech Enterprises". Become director member of " Hubei Association of E-commerce Association"
Why Choose Perfect Laser
Professional

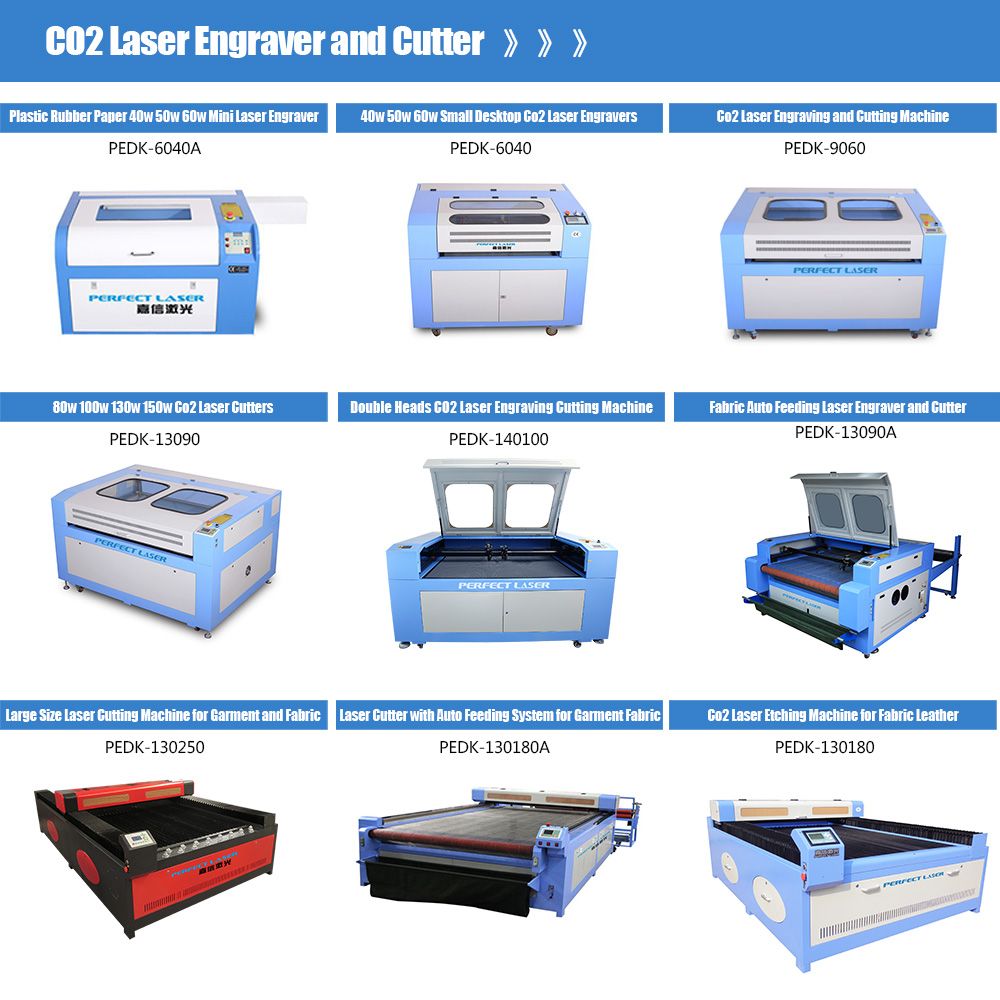

We produce 20 series product ranges and 200 different models, including: Fiber Laser, YAG laser, CO2 Laser Engraver, YAG Metal Cutting Machine, Fiber metal cutter, Robot Metal Laser Cutting Machine, Fiber & YAG Laser Welder, as well as supplying laser components.
