Engraving for Leather, Cloth, Wood, Double Heads Laser Cutter
| Price: |
US $ 1900/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
PEDK-13090 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Usage: |
Woodworking |
| Power: |
High Power |
| Drive Type: |
Stepper Drive |
| Certification: |
SGS, Ce, ISO 9001 |
| Laser Type: |
CO2 |
| Control: |
CNC |
| Current: |
AC |
Product Description
Engraving for Leather, Cloth, Wood, Double Heads Laser Cutter
Model: PEDK-13090
Contact: Lily

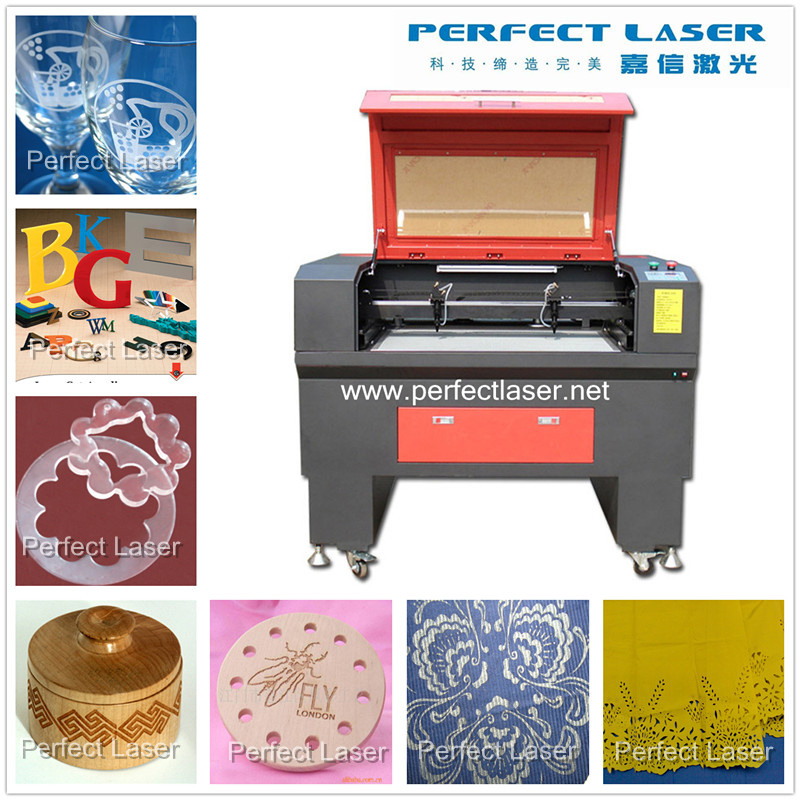

Description:Perfect Laser - PEDK Models CO2 Laser Engraving Machine with different working area/laser power, which can engrave/cut on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of nonmetal materials with complex shapes. Our Laser Engraving Machine is widely applicable for advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.
Application Fields: Application Industry: Advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.Special FeaturesAdvanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
Special Front and back running-through design, the unique door for the limitless engraved materials through.

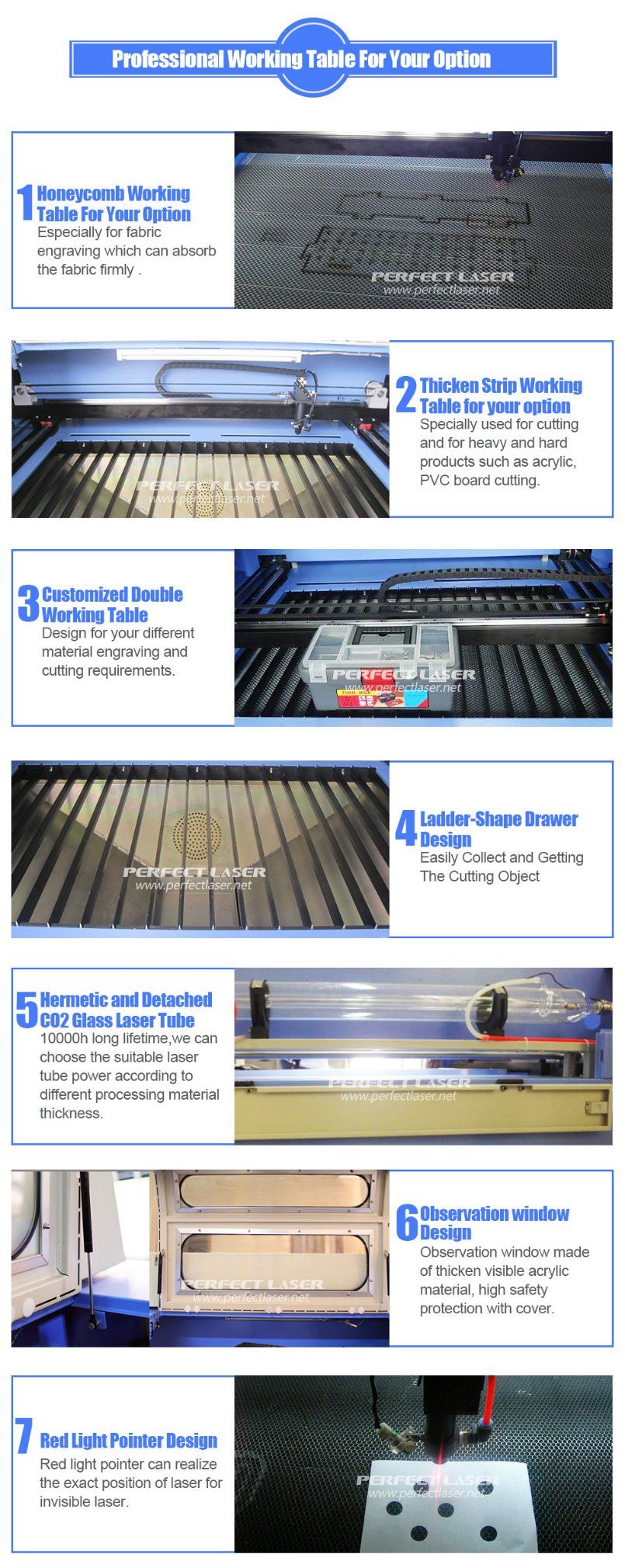

Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, 10000 hours Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1× 1mm little English character perfect.
Red Light Pointer realizes the exact position without laser.

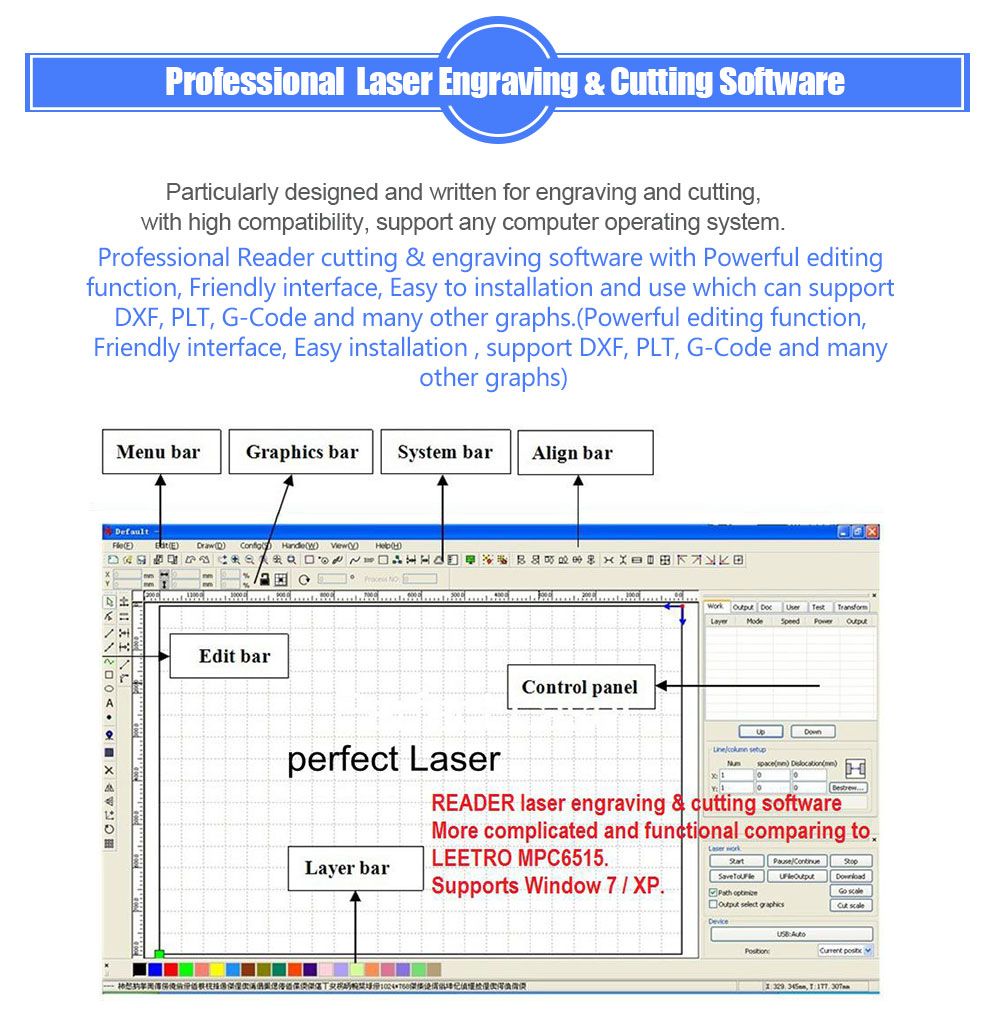

Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system.
Optional Motorized up-down work table with Auto Focus Function, very good for precise focusing and different cutting depth requirement for lots of material;
Optional 3D Rotary System, engrave circumrotately 360 degree, applicable in column or cone work piece surface.
Optional Rolling and Automatic Feeding System, realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.
Optional Imported Ball Screw Rod, with high speed and accuracy, it is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.
Technical Data:| Working Area | 1300x900mm (4 feet*3 feet) |
| Laser Power | 60w / 80w / 100w / 130w / 150w |
| Laser Type | Hermetic and Detached Co2 Laser Tube |
| Engraving Speed | 0-60000mm/s |
| Cutting Speed | 0-10000mm/s |
| Cutting Thickness | 0-25mm acrylic (Others Determined by Materials) |
| Repeat Location Accuracy | +/-0.0125mm |
| Driving Mode: | DC0.8A 24V Stepper Motor |
| Position System: | Red dot Laser Pointer |
| Interface: | USB port transfer |
| Voltage | AC220v/50hz or 110v/60hz |
| Machine Power | 900w |
| Controlling System | CNC Professional Control System |
| Support Graphics Mode | BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc. |
| Cooling Mode | CW-3000 Water Cooling (with Protection Function) |
| Auxiliary Devices | Exhaust Fan and Exhaust Pipe |
| Cutting Platform | Professional Thickening Strip or Honeycomb Work Table |
| Power Control Mode | Laser Energy Combining Movement Control System |
| Software | Professional Reader Laser Cutting Software |
| Operating Temperature | 0-45C |
| Operating Humidity: | 5-95% |
| Packing: | Wooden Box |
| Guarantee Time: | 12 Months for Machine, 3-10 Months for Laser Tube |
| Operation: | VCD Training, Engineer Overseas Available |
| Machine Size | 1970mm*1480mm*1250mm |
Remark :1.Payment terms: T/T, L/C, West Union,Alibaba Escrow.
2. Delivery lead time: 7-10 working days after receipt of the advance payment.
3. Delivery method: by sea or air shipment.
4. Packing: compound wooden cases with exporting standardTraining&Service:1. 12months Gurantee Period;
2. Free Online Consulting Service
3. Free Operation Tranining in our factory;
4. Detailed Operational Manual &Traning CD in English Version
5. Guarantee of Quality and After Sales-Service:
The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination. Except the artificial damage and wearing parts, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China Perfect Laser!
1):The exact material you want to engrave/cut? (wood, acrylic, cloth, fabric, leather, rubber, paper, plastic, marble....)
2):The cutting depthon above materials?(max thickness, 3 mm, 6 mm, 15 mm, 20 mm....)
3):The working area you demand? (max dimension of material, width*length, 600*400 mm, 900*600 mm, 1300*900 mm,1600*1000mm...)Working area and laser power can be customized.
4)After cut/engrave, what will be the material used for? (application)
5)Are you an end user or reseller?
Welcome to contact us for perfect laser engraving cutting solution
