Honeycomb Table Leather Fabric Engraving Cutting Carving Machine CO2 Laser
| Price: |
US $ 3600/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
PEDK-160260 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Usage: |
Woodworking |
| Power: |
High Power |
| Drive Type: |
Stepper Drive |
| Certification: |
SGS, Ce, ISO 9001 |
| Laser Type: |
CO2 |
| Control: |
CNC |
| Current: |
AC |
Product Description

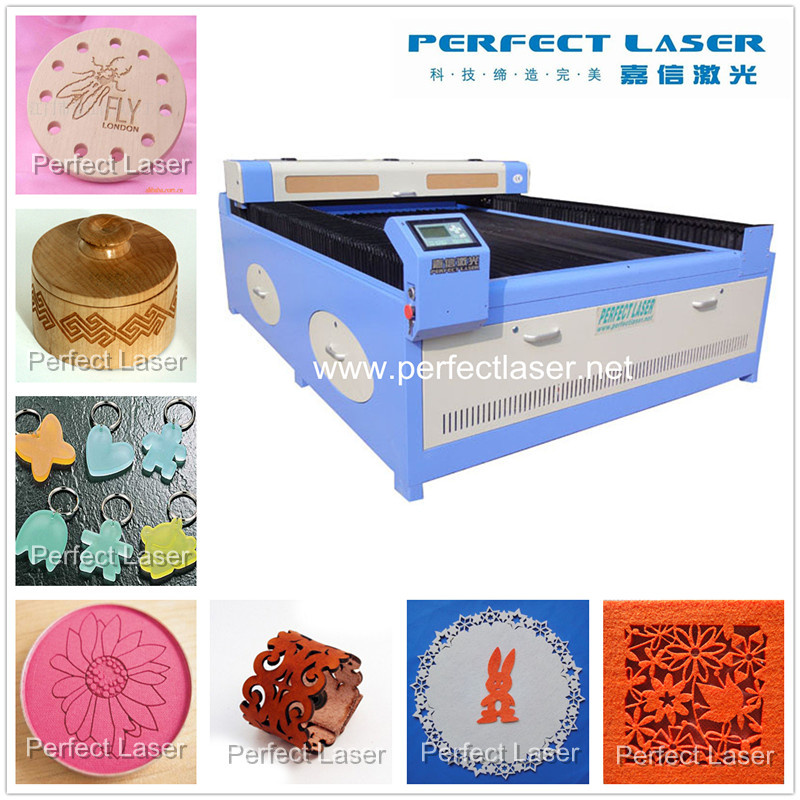

Honeycomb Table Leather Fabric Engraving Cutting Carving Machine CO2 Laser
Model: PEDK-160260
Contact: Lily
Laser Engraving & Cutting Machine PEDK-160260 is widely used in trademarks, embroidery, apparel and other industries. Adaptable for clothing, tailoring, embroidery cutting, leather cutting, leather carving, leather punch & hollow, shoes cutting & carving, etc.Description of CO2 Laser Engraving Machine:Perfect Laser - PEDK Models CO2 Laser Engraving Machine with different working area/laser power, which can engrave/cut on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of nonmetal materials with complex shapes. Our Laser Engraving Machine is widely applicable for advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.
Application Fields: Application Industry: Advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.
Special Features of CO2 Laser Engraving Machine:Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.

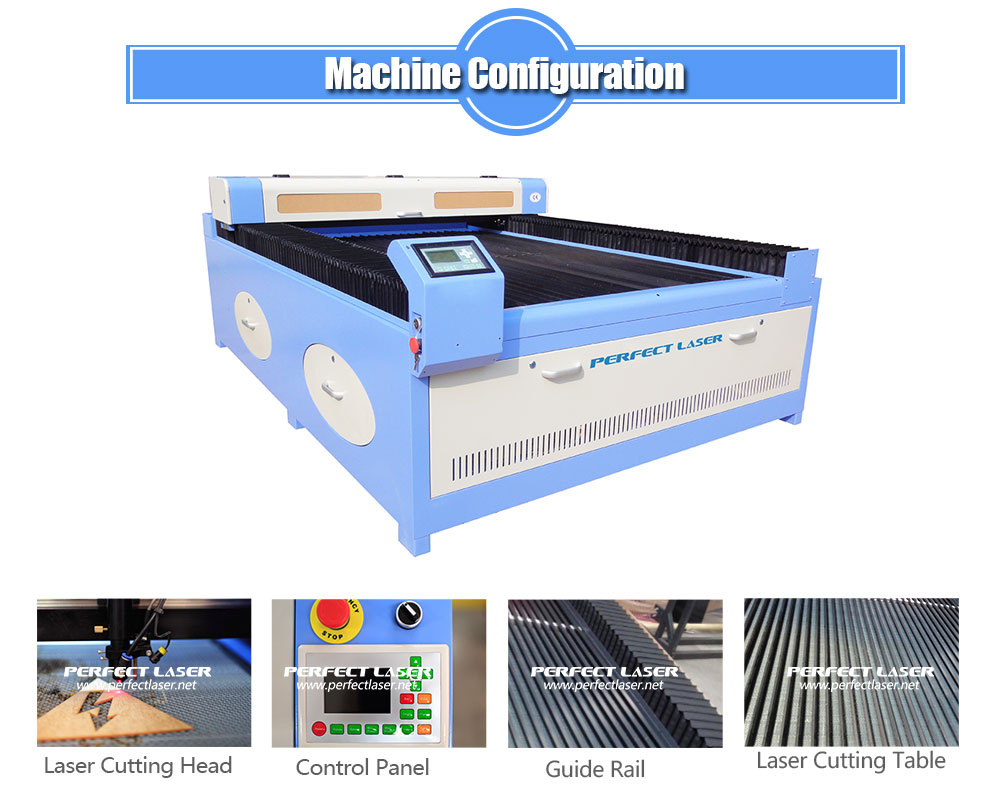

Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
Special Front and back running-through design, the unique door for the limitless engraved materials through.
Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.

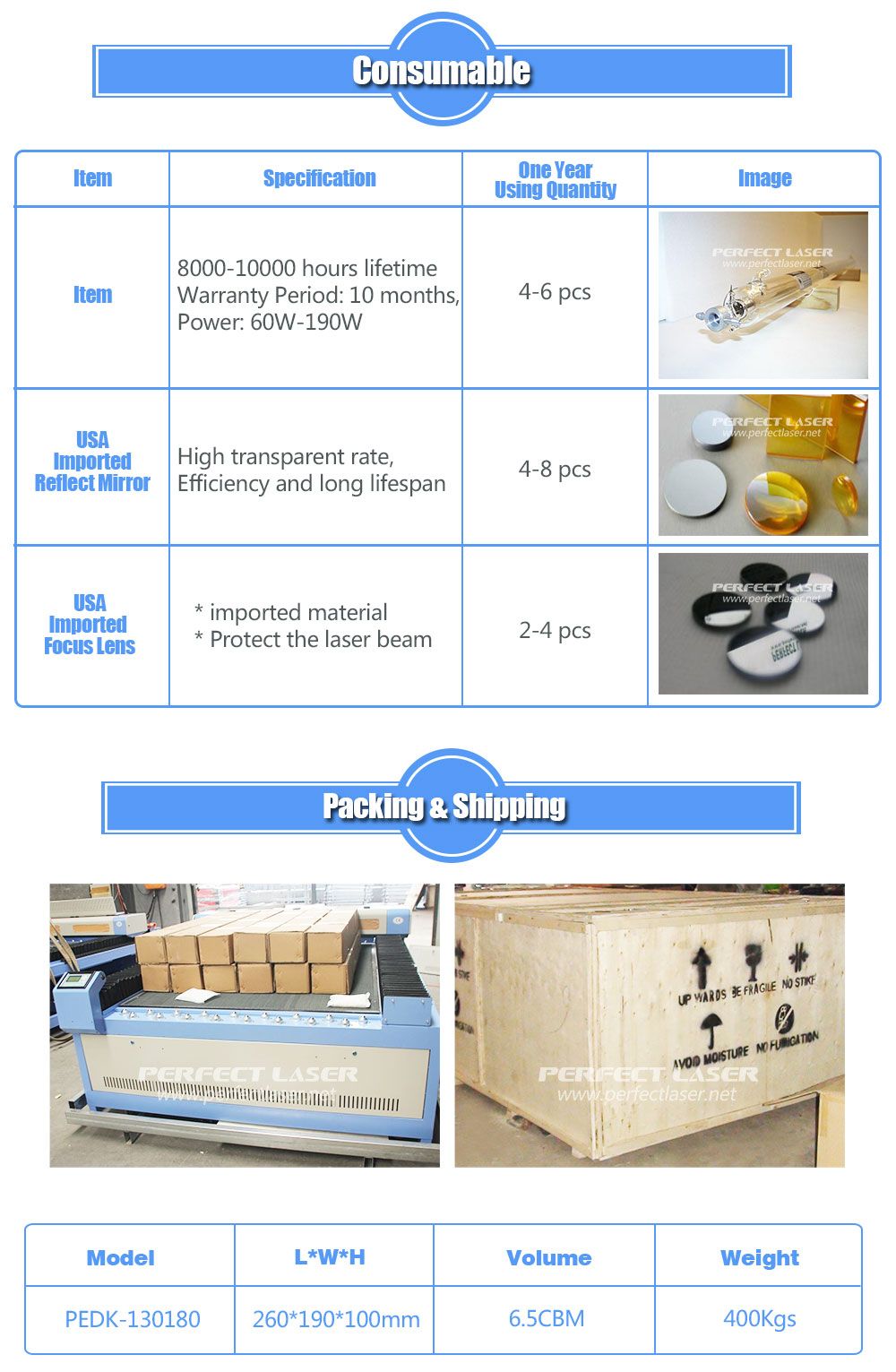

Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, 10000 hours Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1× 1mm little English character perfect.
Red Light Pointer realizes the exact position without laser.
Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system.

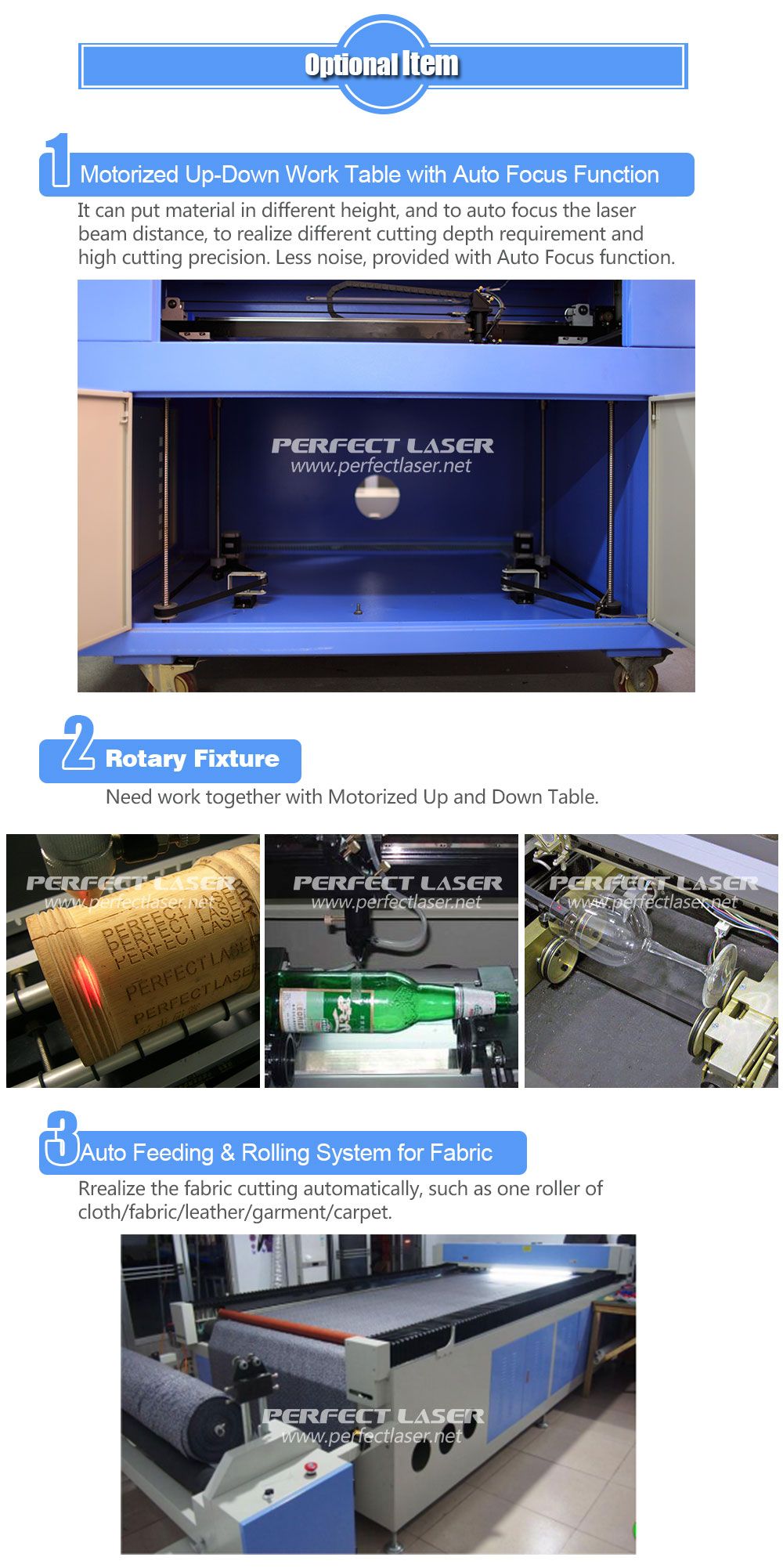

Optional Motorized up-down work table with Auto Focus Function, very good for precise focusing and different cutting depth requirement for lots of material;
Optional 3D Rotary System, engrave circumrotately 360 degree, applicable in column or cone work piece surface.
Optional Rolling and Automatic Feeding System, realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.
Optional Imported Ball Screw Rod, with high speed and accuracy, it is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.

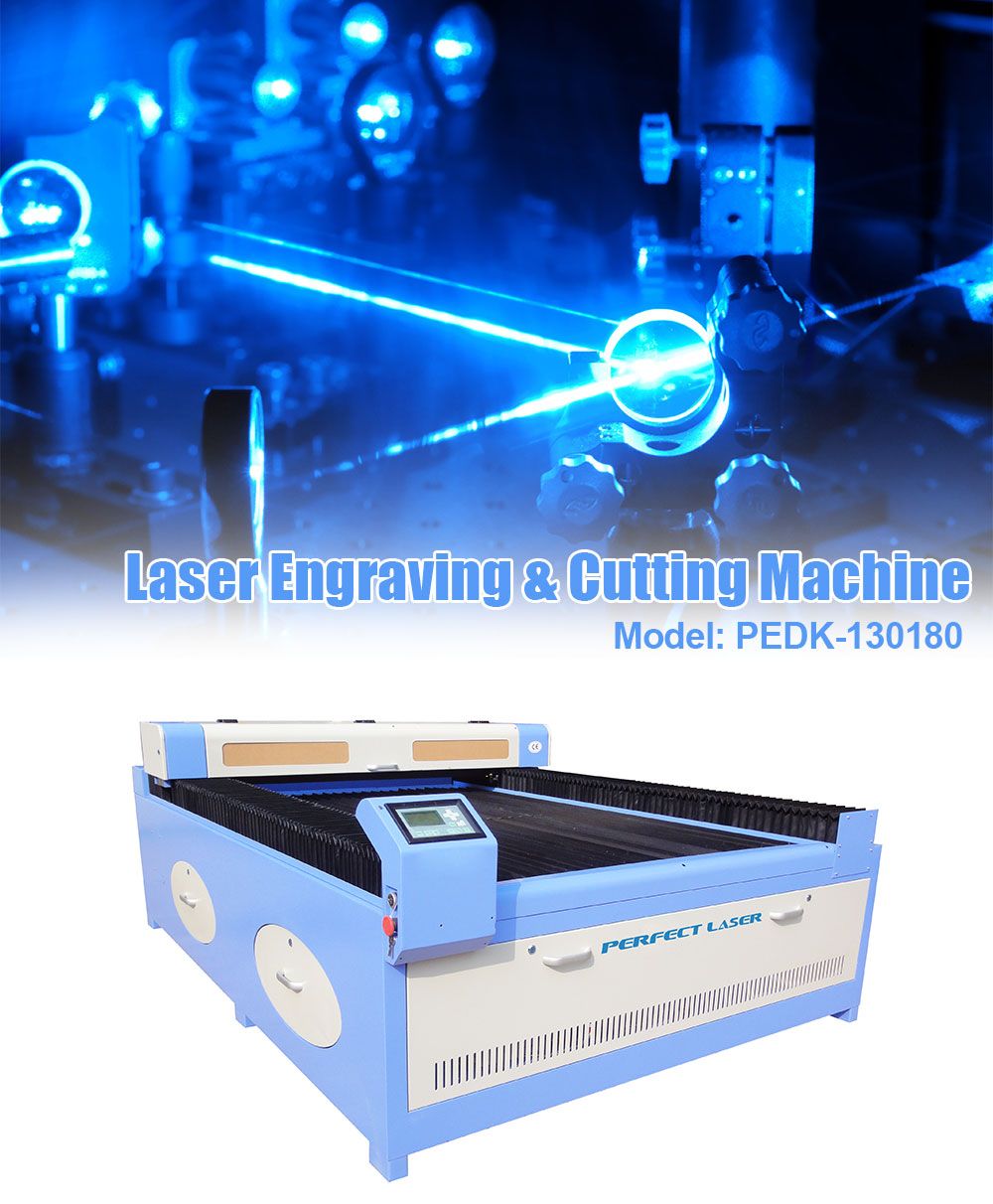

Technical Data of CO2 Laser Engraving MachineModel
| PEDK-130180
| PEDK-130250
| PEDK-160260
|
Working Area
| 1300×1800mm
| 1300×2500mm
| 1600×2600mm
|
Laser Power
| 60W / 80W / 100W / 120W / 150W
|
Laser Type
| Hermetic and Detached Co2 Laser Tube
|
Engraving Speed
| 1-60000mm/min
|
Cutting Speed
| 1-10000mm/min
|
Repeat Location Accuracy
| ± 0.0125mm
|
Laser Power Controlling
| 1-100% Manual Adjustment and Software Controlling
|
Voltage
| 220V(±10%) 50Hz
|
Cooling Mode
| Water Cooling and Protect System
|
Cutting Platform
| Professional Thickening Strip or Honeycomb Work Table
|
Controlling Mode
| CNC Professional Control System
|
Support Graphics Formats
| BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT
|
Power Controlling Mode
| Laser Energy Combining Movement Control System |
| Working Area | 1300x800mm |
| LaserPower | 60W(forengraving)/80W(forcutting) |
| Engraving Speed | 0-900mm/s |
| Cutting Speed | 0-300mm/s |
| RepeatLocationAccuracy | 0.0125mm |
| Voltage | 220v(+/-10%)50Hz |
| CoolingMode | WaterCoolingandProtectionSystem |
| CuttingPlatform | ProfessionalThickeningStrip or HoneycombWork Table |
OptionalItems | Offline Control System (LCD Screen + USB Port), Rolling Auto-feeding System, Vacuum Absorbing System with Active CarbonFilter |
| SupportGraphicsFormats | BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF |
| ControlSoftware | OriginalPerfectLaser Engraving & Cutting Software |
| MachineDimension | 3150*2300*1460mm |
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China Perfect Laser!
1):The exact material you want to engrave/cut? (wood, acrylic, cloth, fabric, leather, rubber, paper, plastic, marble....)
2):The cutting depthon above materials?(max thickness, 3 mm, 6 mm, 15 mm, 20 mm....)
3):The working area you demand? (max dimension of material, width*length, 600*400 mm, 900*600 mm, 1300*900 mm,1600*1000mm...)Working area and laser power can be customized.
4)After cut/engrave, what will be the material used for? (application)
5)Are you an end user or reseller?
