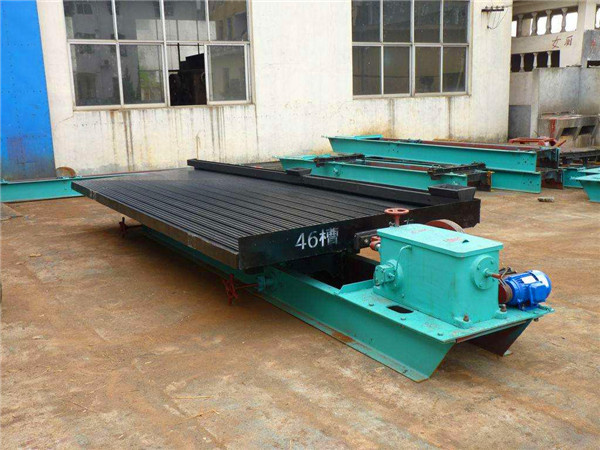

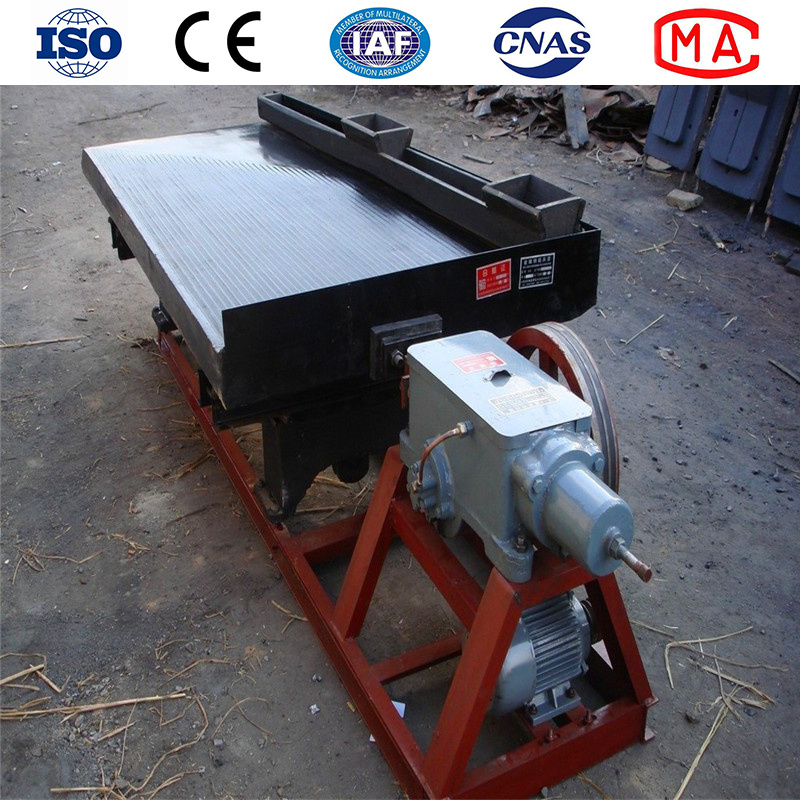

High Efficiency Ore Dressing Shaking Table with Ce Certificate

High Efficiency Ore Dressing Shaking Table with Ce Certificate
Price: US $ 1300-1600/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: Ls<6-s>
Name: Shaking Table
Table Structure: Glass Steel Material, Composite Structure
Table Specification: 1500-1850X4500mm
Sorting Area: 7.5 M2
Table Direction: Left and Right
Horizontal Gradient: 0.5 Degree
Stroke: 10-30mm
Stroke Frequency: 240-360c/Min
Type: Gravity Separator
Voltage: 380V
Weight: <1T
Certification: CE
Warranty: 1 Year
Customized: Non-Customized
Condition: New
Material: Fiber Glass Steel
Color: as Requirement

Product Description

High efficiency ore dressing shaking table with CE certificate

Introduction: Shaking table is applied in ore dressing of non-ferrous metals, ferrous metals, rare metals, such as tungsten, tin, iron, manganese, chrome, titanium, gold, niobium and bismuth, as well as different process of roughing, cleaning, and scavenging.


Working principle

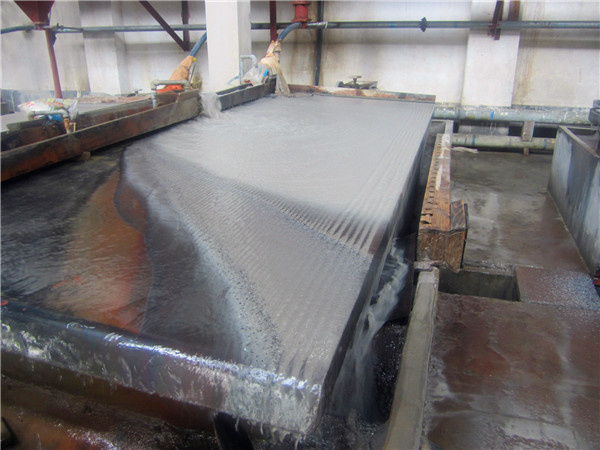

6-S Gold Shaking table beneficiation process is conducted in a copy of the tilted  table, ore grain group from the Angle of mesa feeder trough into, by lateral flushing water supply for the sink at the same time, under the influence of vibration wave, according to the proportion and granularity theory, and vertical movement and lateral movement. YanTai proportion and granularity of different ore grain along the movement direction of the respective trapezoidal shed, respectively from the concentrate and tailings discharge side of different position, the final is divided into concentrate, middlings and tailings.


Feathures
-Classification, Concentration, Recovery of Metals, Minerals from Placer or Alluvial Fields.
-Works as a Wash Plant, Gravity Separation Plant for small to medium size Dredging Operation.
-Classification, Pre-Concentration & Recovery of Primary (Hard Rock) deposits of Gold, Base Metals, Ferrous Metals, Diamonds and other Minerals.




Main technical parameter:
ModelLs<6-s>
Table structureGlass steel material, composite structure
Table specification1500-1850X4500mm
Sorting area7.5 m2
Table directionLeft and right
Horizontal gradient0.5 degree
Stroke10-30mm
Stroke frequency240-360c/min
Feed size: Coarse sand 2-0.5mm;  fine sand 0.5-0.074mm;  slurry 0.074mm



About us
CITICHL Heavy Industries CO., LTD. The former was CITIC Heavy Machinery Co., Ltd. It was used be subsidiary of CITIC heavy machinery co., ltd. The company was founded in 1981 and finished joint stock reform in 2005, which is located in Luoyang city, capital city of nine dynasties in ancient times.

With a garden-like industrial park and modern standard plant covering 80000 square meters, CITICHL possesses advanced equipments, technologies and detecting methods. After more than 30 years development, the company has developed into a collectivized one with product designing, manufacture, installation and technical services.
The products comprise all the equipments used in mining, ore dressing, hoisting, coal preparation, crushing and grinding, cement plant, metallurgic and steel rolling, environment protection, and also power generator, heavy-duty gear reducers and large-sized castings and forgings, etc.



After-sales service support:
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.

We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.





CITICHL Heavy Industries Co., Ltd. The former was CITIC Heavy Machinery Co., Ltd. It was used be subsidiary of CITIC heavy machinery Co., Ltd. The company was founded in 1981 and finished joint stock reform in 2005, which is located in Luoyang city, capital city of nine dynasties in ancient times.

With a garden-like industrial park and modern standard plant covering 80000 square meters, CITICHL possesses advanced equipments, technologies and detecting methods. After more than 30 years development, the company has developed into a collectivized one with product designing, manufacture, installation and technical services.

The products comprise all the equipments used in mining, ore dressing, hoisting, coal preparation, crushing and grinding, cement plant, metallurgic and steel rolling, environment protection, and also power generator, heavy-duty gear reducers and large-sized castings and forgings, etc.

CITICHL is national major industry and heavy machinery manufacturing base in the middle of China, we can supply the customers with important complete technical equipments in mining, non-ferrous metal, chemical industry, metallurgy, construction materials, environment protection, and power generating as well as other basic industries. The company can accept the packed engineering project. Our products are sold well to countries and regions in Asia, Africa, Europe, and Australia, and hold a large market share home and abroad.
