| Price: | US $ 1300-1600/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | Ls<6-s> |
|---|---|

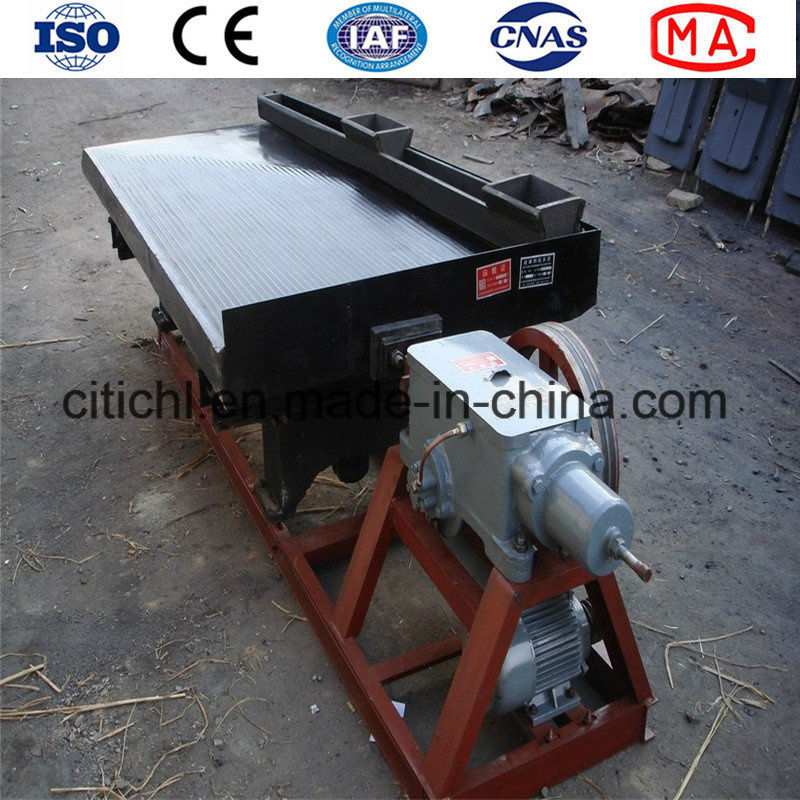

| Name: | Shaking Table |
| Application: | Mine |
| Capacity: | 1t/H |
| Table Direction: | Left&Right |
| Sorting Area: | 7.5 M2 |
| Horizontal Gradient: | 0.5 Degree |
| Stroke: | 10-30mm |
| Type: | Gravity Separator |
| Voltage: | 380V |
| Weight: | <1T |
| Certification: | ISO9001:2008 |
| Warranty: | 1 Year |
| Color: | Black |
| Customized: | Non-Customized |
| Condition: | New |
| Material: | Glass Steel |
Introduction :

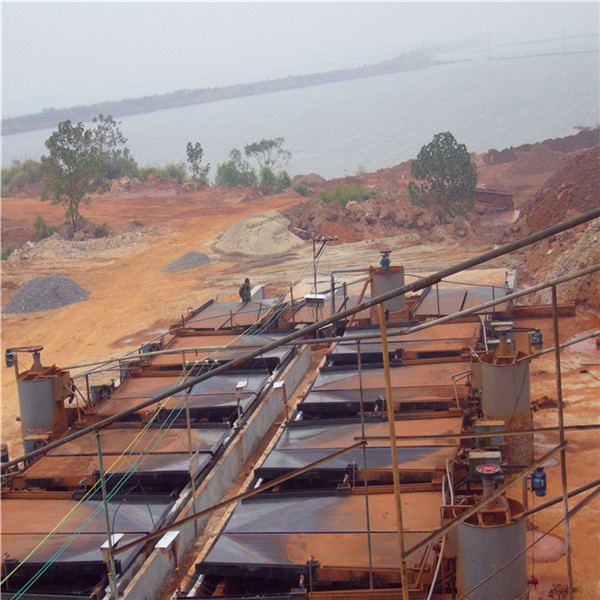

Shaking table is applied in ore dressing of non-ferrous metals, ferrous metals, rare metals, such as tungsten, tin, iron, manganese, chrome, titanium, gold, niobium and bismuth, as well as different process of roughing, cleaning, and scavenging.
Working principle of shaking table:

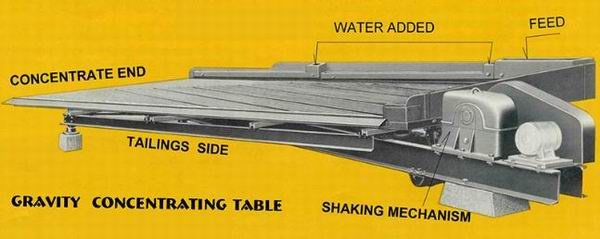

The working principle of Shaking Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch grooveto allow loose layering of ores on the bed surface and fan shaped zoning. Then different products can be produced.
Deck Type Shaking Table have three distinct deck designs available.
Course ore deck is designed for recovering particles size from 0.5 mm to 2 mm;
Fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm;
Slime deck is designed for recovering super extremely fine particles in the range of 0.05 mm to 0.074mm
Technical parameter:
| Model | Ls<6-s> |
| Table structure | Glass steel material, composite structure |
| Table specification | 1500-1850X4500mm |
| Sorting area | 7.5 m2 |
| Table direction | Left and right |
| Horizontal gradient | 0.5 degree |
| Stroke | 10-30mm |
| Stroke frequency | 240-360c/min |
| Coarse sand 2-0.5mm; fine sand 0.5-0.074mm; slurry 0.074mm | |
