Price: | US $ 1300-1600/Set |
---|---|
Min Order: | 1/Set |
Pay Type: | L/C,T/T,Western Union |
Prod Model: | 6S |
---|---|
Name: | Shaking Table |
Application: | Mine |
Capacity: | 1t/H |
Table Direction: | Left & Right |
Sorting Area: | 7.5 M2 |
Horizontal Gradient: | 0.5 Degree |
Stroke: | 10-30mm |
Type: | Gravity Separator |
Voltage: | 380V |
Weight: | <1T |
Certification: | CE |
Warranty: | 1 Year |
Color: | Black |
Customized: | Non-Customized |
Condition: | New |
Material: | Glass Steel |
Introduction :

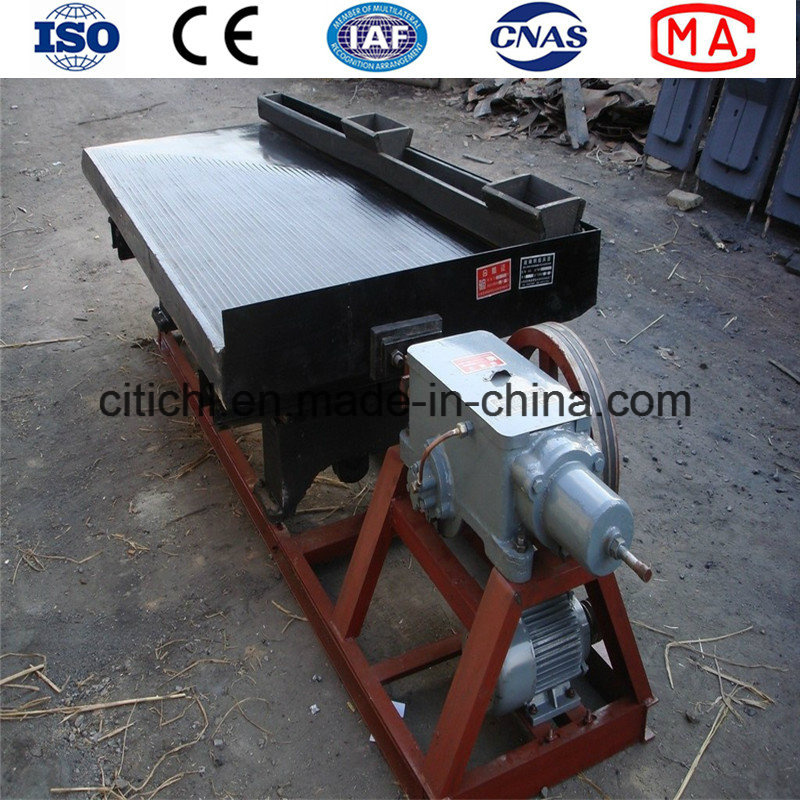

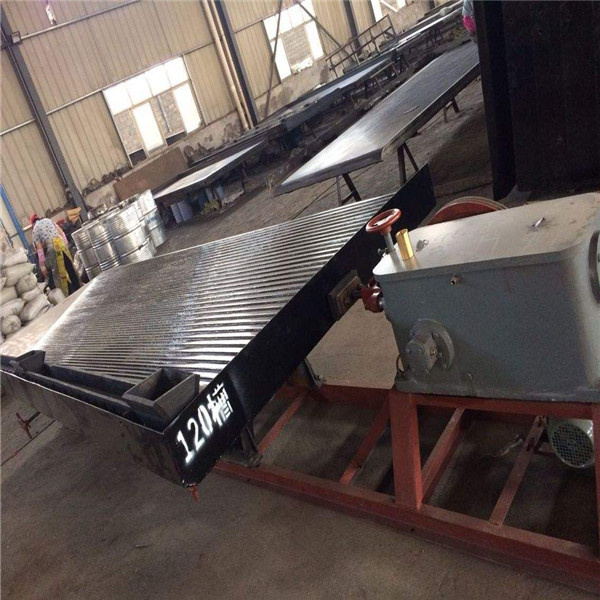

Shaking table for sale is one of the main equipments of gravity concentration. Gravity Concentration Equipment is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore. Also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.037 millimeters.
Working principle of shaking table:
The working principle of Shaking Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch grooveto allow loose layering of ores on the bed surface and fan shaped zoning. Then different products can be produced.
Deck Type Shaking Table have three distinct deck designs available.
Course ore deck is designed for recovering particles size from 0.5 mm to 2 mm;
Fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm;
Slime deck is designed for recovering super extremely fine particles in the range of 0.05 mm to 0.074mm
Technical parameter:
Model | Ls<6-s> |
Table structure | Glass steel material, composite structure |
Table specification | 1500-1850X4500mm |
Sorting area | 7.5 m2 |
Table direction | Left and right |
Horizontal gradient | 0.5 degree |
Stroke | 10-30mm |
Stroke frequency | 240-360c/min |
Coarse sand 2-0.5mm; fine sand 0.5-0.074mm; slurry 0.074mm |
