| Prod Model: |
S5 |
| Function: |
Mulitifuction |
| Specifiction: |
Lxwxh:2240X1100X630-1000mm |
| Backrest: |
0~75 Degree |
| Legrest: |
:0~45 Degree |
| Height Adjustment: |
450~740mm; |
| Trendelenburg And Reverse Trendelenburg: |
0~12 Degree |
| Material: |
Metal |
| Type Of Hospital Bed: |
Manual Bed |
| Numbers Of Function: |
Five-function |
| Certification: |
ISO13485 |

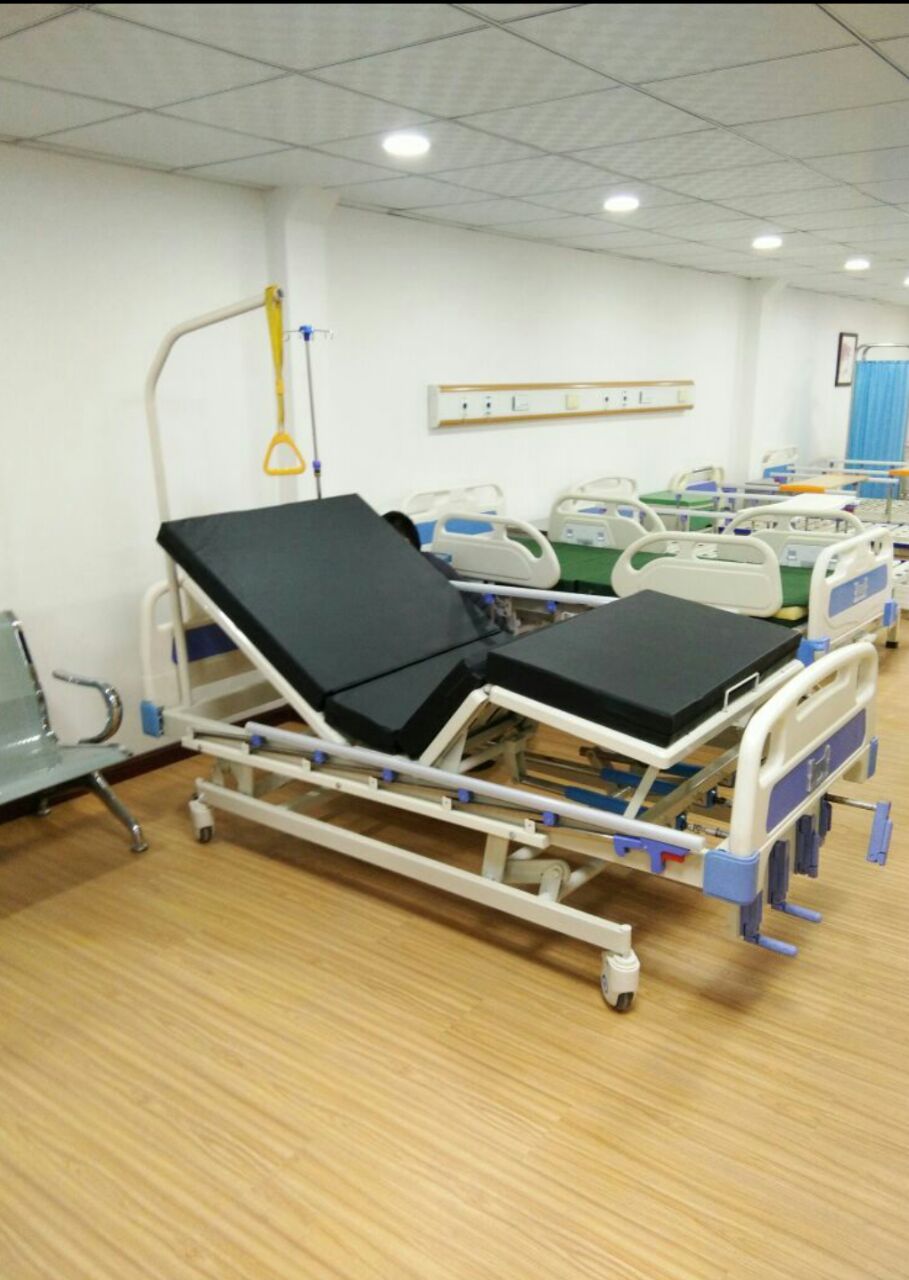

Product Description
1. Manufacture, factory
2. CE, ISO9001, ISO13485 approval
3. European style
Various positions can be adjusted by hand controller (Figure1): One cranks use for back up lift, another crank use for knee lift.6.2 Lower or up of the guardrail:If your bed is equipped with aluminum alloy Guardrail:- Press the red button and lower the side rail. (Figure 2)
- To secure, press the red button and pull the side rail up until you hear click.
6.3 Using method of I.V pole:This kind of I.V. pole can be chosen or not according to the demand, it can be move away if no using.Erect the I.V. pole when using. When the I.V. pole is upright, the height can be adjusted. When the height is not enough, rotate point of C and pull the pole B to be higher, and then clockwise point of C as locked, and put the infusion bag hang on the point A. (Figure 3)Use is completed, fold up the I.V. pole, take the infusion bag away from the A's, rotate the point C to restore B to the lowest height and then clockwise rotation C fixed under B, take out of the I.V. pole from the hole.6.4 Using method of casters:Your bed is equipped with casters individually equipped with brakes, you can move the beds with/without patient on bed.Note: Lock the casters when you stop the bed or locate the bed. (Figure 4) Foot step on the down pedal to lock the caster; foot step on the up pedal to unlock the casterMain Function as below:- Backrest:0~75°±5°;
- Legrest:0~45°±5°;
- Height adjustment:450~740mm;
- Trendelenburg and reverse Trendelenburg 0~12°±2°.
Features:
1. High level on patient protection and safety factor
2. With bedsider Radiography and bed rollover function
3. Electric beds have the stability, flexibility and durability, suitable for a variety of clinical environments demand.
4. Afety weight loading ≥ 300kg, protection class reach IP54.
5. Bed height adjustment range 30-75cm, low clearance above ground, high security.
6. Bed board is divided into four parts, the angle of each part can be electric adjusted and scale displayed, knees bend posture angle up to 30º
