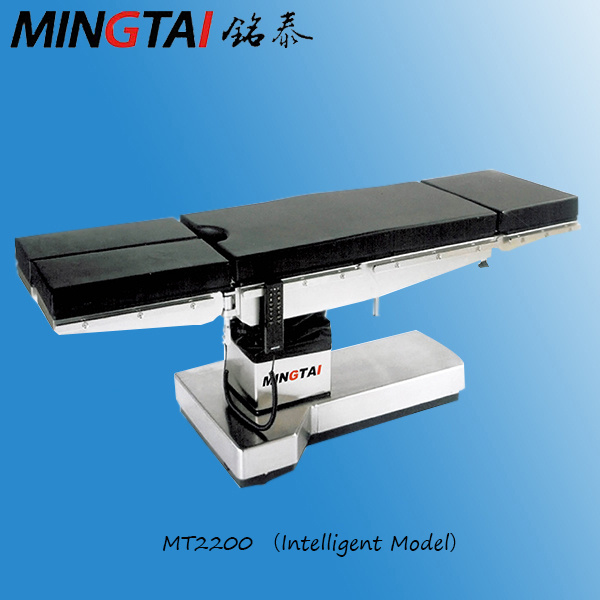

Ent Operation Mt2200 Electrical Hydraulic Surgical Table

Ent Operation Mt2200 Electrical Hydraulic Surgical Table
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: MT2200
Length: 2000mm±50mm
Width: 550mm
Forward And Backward Tilt: ≥32°
Left/Right Tilt: ≥25°
Head Board Up/Down: ≥90°
Back Board Up: ≥90°
Leg Board Down/ Evagination: ≥90°
Waist Bridge Up: ≥130mm (Optional Electric Kidney Bridge)
Type: Operating Table
Certification: ISO9001
Kind: Multifunction

Product Description

Electric hydraulic ce approved surgical operating table price

Full set of electrical hydraulic system from Germany, four times safety coefficient
SUS#304 stainless steel from Korea
2 sets of independent circuit control system
"T" shaped base design, memory sponge mattress
Electric braking, supply inside emergency power
One-key-resetting function,one-key-locking function, FLEX, CHAIR
Optional four-point hydraulic brake system imported from Germany
Optional digital communications interface for the digital operating room



Technical parameters:
Technical parameters MT2200
Length 2100±50mm
Width 520mm (standard configuration)
Lowest and highest table height (680-1030) ± 50mm
(standard configuration)
forward and backward tilt≥32°
Left/right tilt≥25°
Head board up/down≥90°
Waist bridge up≥132mm (optional electric kidney bridge)
Leg board down/ evagination≥90°
Leg board up≥15°
Back board up ≥90°
Back board down ≥30°
Should board up≥30° (optional)
Should board down ≥20° (optional)
FLEX / CHAIR240° / 120°
Power AC 220V 50Hz
Input power 500VA
Customize
Table width customizedbetween (480-560)mm
The lowest customized heightbetween (500-750)mm
Custom table height of lifting up and down between (200-500)mm
NOTE: Custom sizes require to pay a separate cost

Main Feature:

1.The operating table uses German imported hydraulic system operation, no leakage phenomenon, stable operation, low failure rate, long service life. Operating table uses hand controller to operate bed lifting, forward and backward tilt, left and right tilt/backboard lifting, braking and releasing, and is equipped with the function that when emergency power shutoff, can brake with manual release.

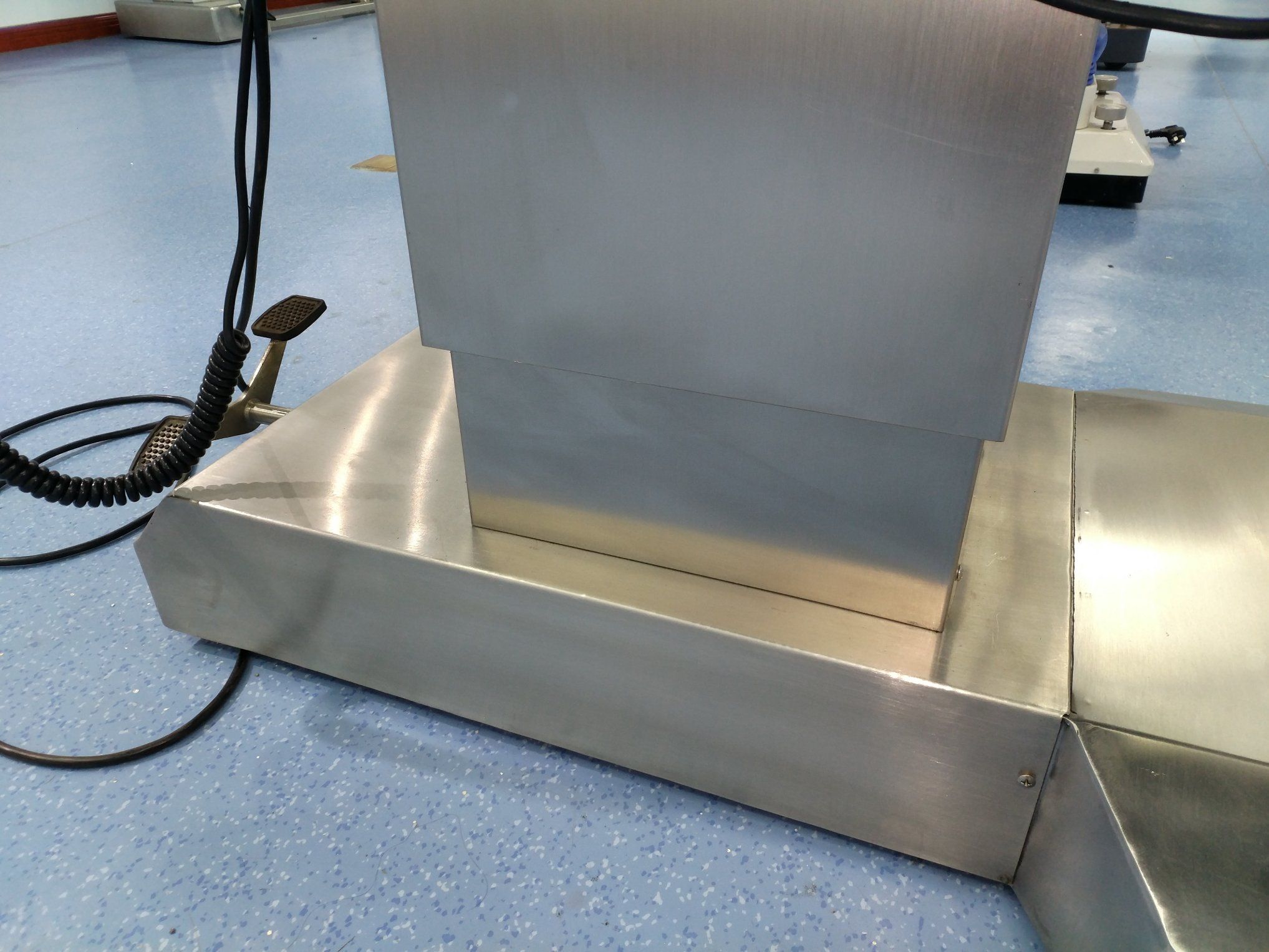

2."T" shaped base design, providing an active space for medical staffs' feet, and reduce the fatigue of the long surgery.
3.Optional universal USB communication interface, providing communication with the outside, can be integrated with digital operating room intelligently, with remote fault diagnosis function. Self-diagnosis and fault code display timely, easy to quickly find the fault position, timely solve failure, applies to the digital operating room.
4.Optional electric four-point intelligent electro-hydraulic brake system, when the floor is not smooth, it will automatically adjust to compensate, so the operating table is always in safe and stable condition, standard configuration with electric brake system.
5.Having one-key-resetting function,one-key-locking function, one-key- position function, double control system, easy to operate various functions of the operating table. Built-in rechargeable lithium battery.

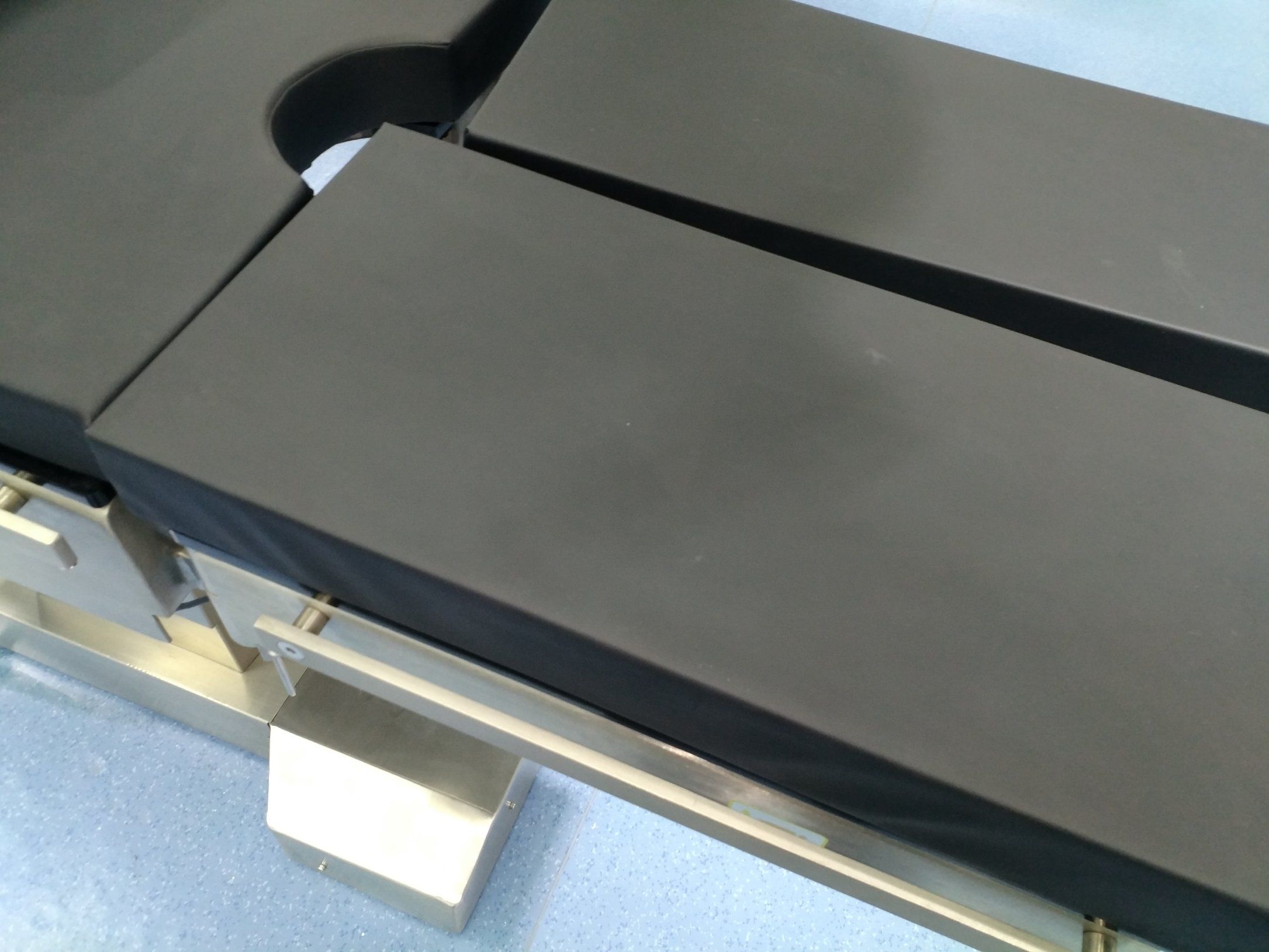

6.Overall table is made of SUS304 stainless steel. Base and pillar cover is also made of 304 stainless steel. The mattress is with low pressure, memory, fire-retardant features and can prevent pressure sores.
7.Square lifting column is made by Germany, which has 4 times safety factor and 8 fasteners which can make it stable.
8.Optional manual control box panel has backlit display, easy to find the desired key in endoscopic surgery. A separate emergency button on the hand control box panel, an emergency, pressing this button to stop all operations, for the maximum degree of protection of patient safety.
9.Having wired remote control, bedpost panel control, and has the back foot control system. Optional wireless remote controller, optional electric kidney bridge.











MINGTAI--Expert of Medical Devices for OR&ICU

Mingtai, as a well-known medical equipment manufacturer of China, since its establishment, continues to develop, enterprising constantly, with better quality, better service, make it easy for public enjoy the health future of medical science.

Mingtai Medical Group was founded in 2 0 0 0, Is a global leading supplier of OR & ICU Products. Mingtai Medical adhere the technological innovation to create value for customers. She has a close strategic cooperative relations with the famous Germany medical company brand "Draeger"(Germany Draeger Medical GmbH) Wellknown Hydraulic System "HOERBIGER"(Germany HOERBIGER Automation Technology GmbH), Germany medical suspension system supplier "Ondal"(Germany Ondal Medical Technology GmbH).

Mingtai won the trust and cooperation of global customers by the increasing innovation ability, prominent flexible customization capabilities and the gradually perfected delivery ability.

All the products passed I S O 13485, I S O 9001, CE Certificate & SFDA. The company have a number of invention patents. Utility model patents and design patents. The Mingtai medical have the most complete end-product lines of industry, integration solutions and International brands MINGTAI MEDICAL series Surgical lamp, Operation table, Medical pendant, Electric care nursing bed. Flexibility to meet different global distributors and end customers' different needs, As well as the pursuit of rapid innovation.

In 2012, the company won the financial and technical support from UK WINDER WILSON medicine holding company. In many countries and regions in the world and the Chinese market to establish a perfect sales and service network, with scientific, professional service system quickly and timely to meet the diverse needs of customers, become their most valuable partners. In more than 88 countries and regions in the world, there are more than 8000 medical establishments bring health life to public by mingtai medical products.

Quality is the life of the product, the service is the continuation of life, from the first time shaking your hands, you will feel the most sincere service of mingtai person. All Mingtai colleagues will return your trust by the most enthusiastic service!
