| Prod Model: |
MT1800( Clasic model) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Length: |
1900mm |
| Width: |
600mm |
| Height: |
700-950mm |
| Auxiliary Bed: |
520*500mm |
| Bed Inclining Forward: |
20 Degree |
| Bed Inclining Backward: |
20 Degree |
| Back Board Folding Upward: |
75 Degree |
| Material: |
Metal |
| Folded: |
Folded |
| Certification: |
ISO13485 |
| Type Of Hospital Bed: |
Obstetric Delivery Bed |
Product Description

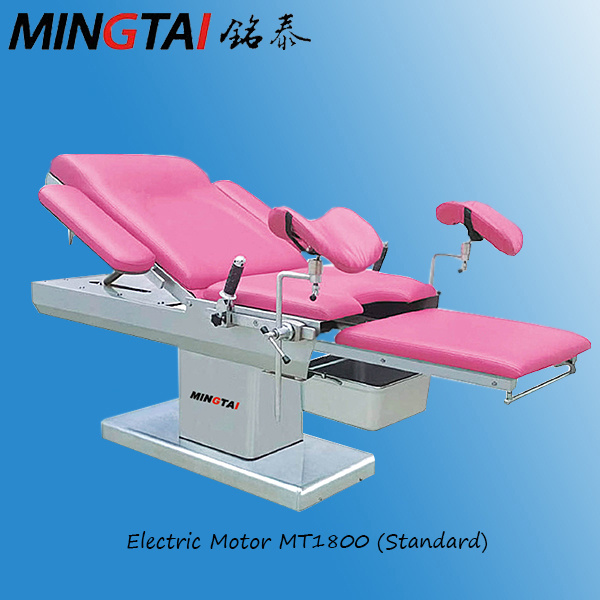

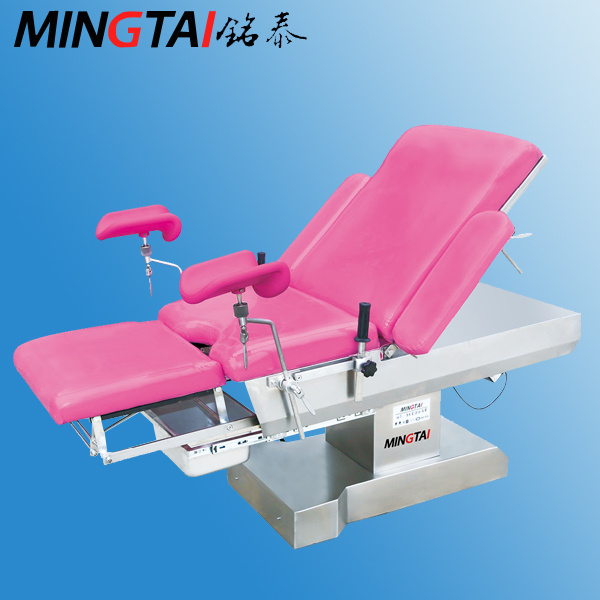

Gynecology Delivery Operating Table (MT1800)
Configuraton:1.Electric hydraulic pressure system imported from German(optional)
3.High quality 304 stainless steel on the whole body
4.Built-in auxiliary leg plate,large dirt basin
5.Pedal can adjust angle
6.ABS guardrail on the circum(optional)
7.Hip board lifts up(optional)
8.Electric pedal switchMain Features1.This series operation table's whole body up and down,front and rear's slants,back side up and down,seat board's up and down adopts imported electric hydraulic pressure transimission method.handled by hand press control, it is very convient and flexible.
2.The whole performance is very reliable,durable,this series product's mattress mould is integrally formed, no gap,antibiosis,easy clean.
3.All of the outer cover and accessories are high quality 304 stainless steel imported from Korea, beautiful, easy clean and preserve
4.Main up and down stand column:German design, Bearing with a safety factor of four times,square column lifts up and down, Eight fixed fasteners,ensure the weighing steady
5.Embedded auxiliary device do not occupy space,extraction or striction is very easy, it also can hold devices when suture,support doctor's elbow,improve the steady of the clinical
6.The pedestal brake foundation can fixed table steady
7.Enbedded truckle which can move all direction,is made of ABS plastic cement ,there is no noise and steady when moving.
8.According to the clinical experience,one can choose advanced hip board up function and luxury collapsible pedal.
| Bed length and width | 1920×840mm |
| The height between the floor and the bed surface | 750-950mm |
| Auxiliary bed | 500*520mm |
| Back board replicate angle | ≥80° |
| Hip board slants front to rear angle | ≥20° (optional) |
| Forwards | ≥20° |
| Backwords | ≥20° |
| Power | AC220V 50HZ |
| Input power | 500VA |
