| Prod Model: |
JYK-B502-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control: |
Electric |
| Fcuntion No.: |
Five |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |
| Numbers Of Function: |
Five-function |
| Certification: |
ISO13485 |
Product Description

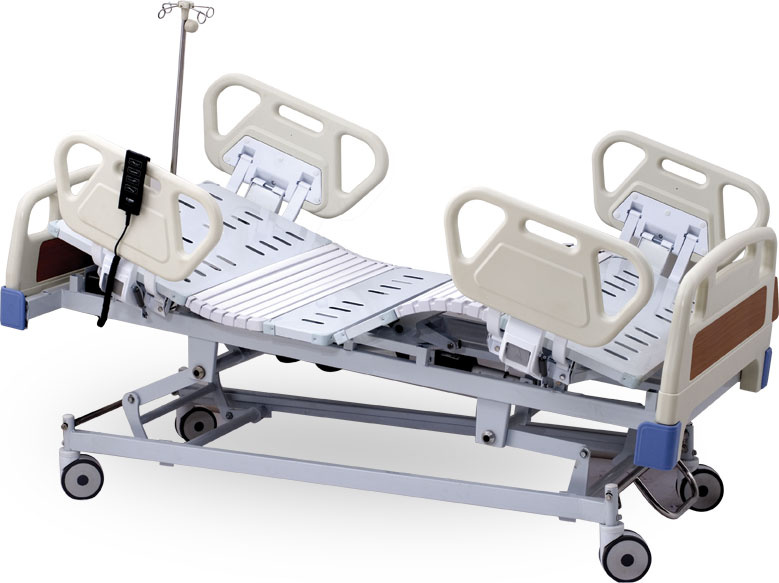

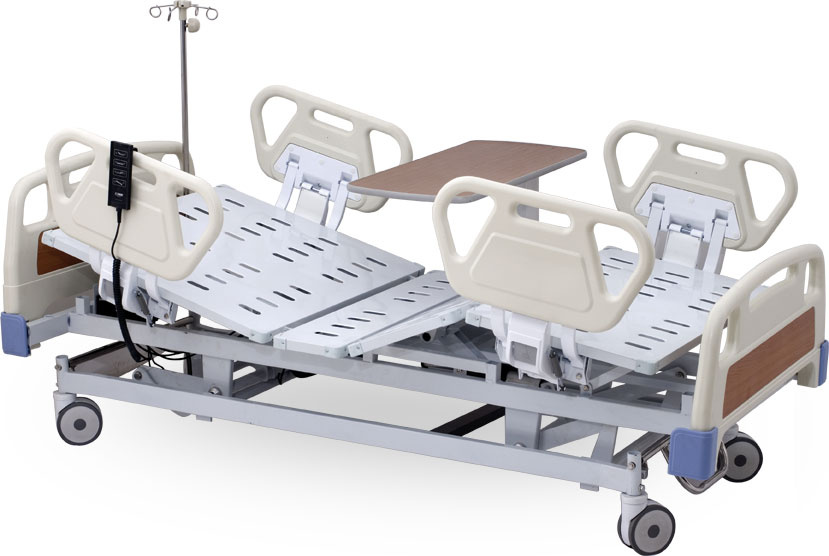

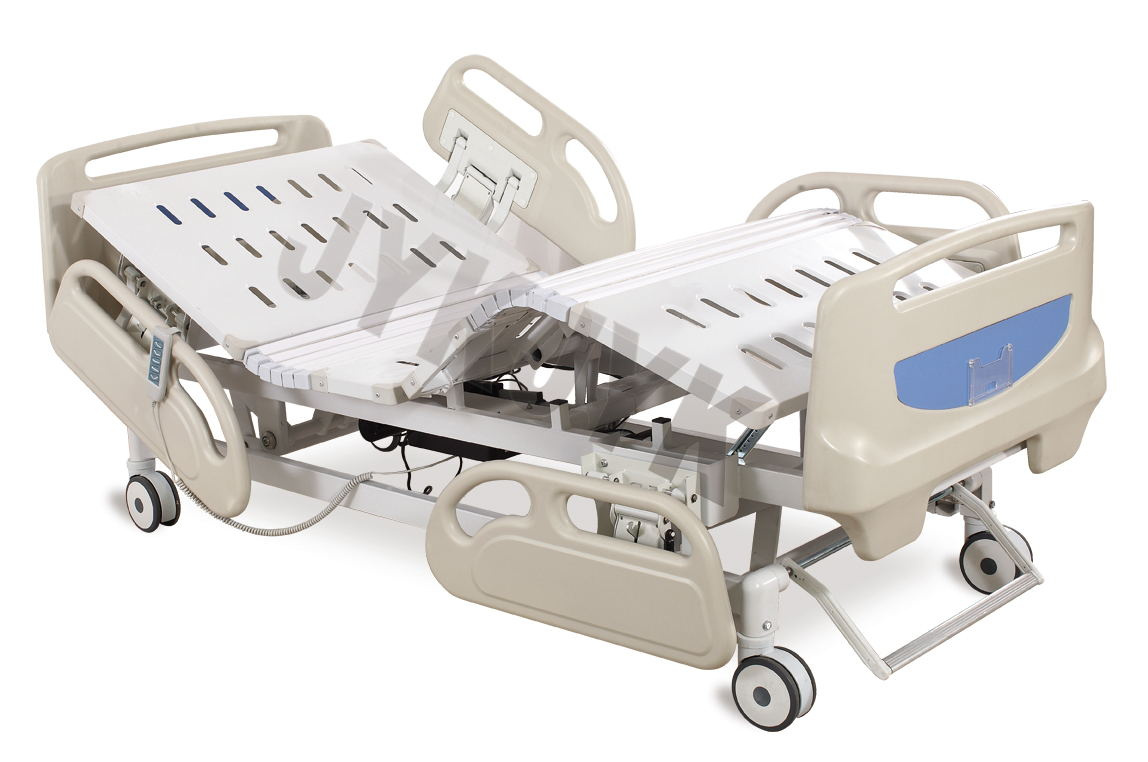

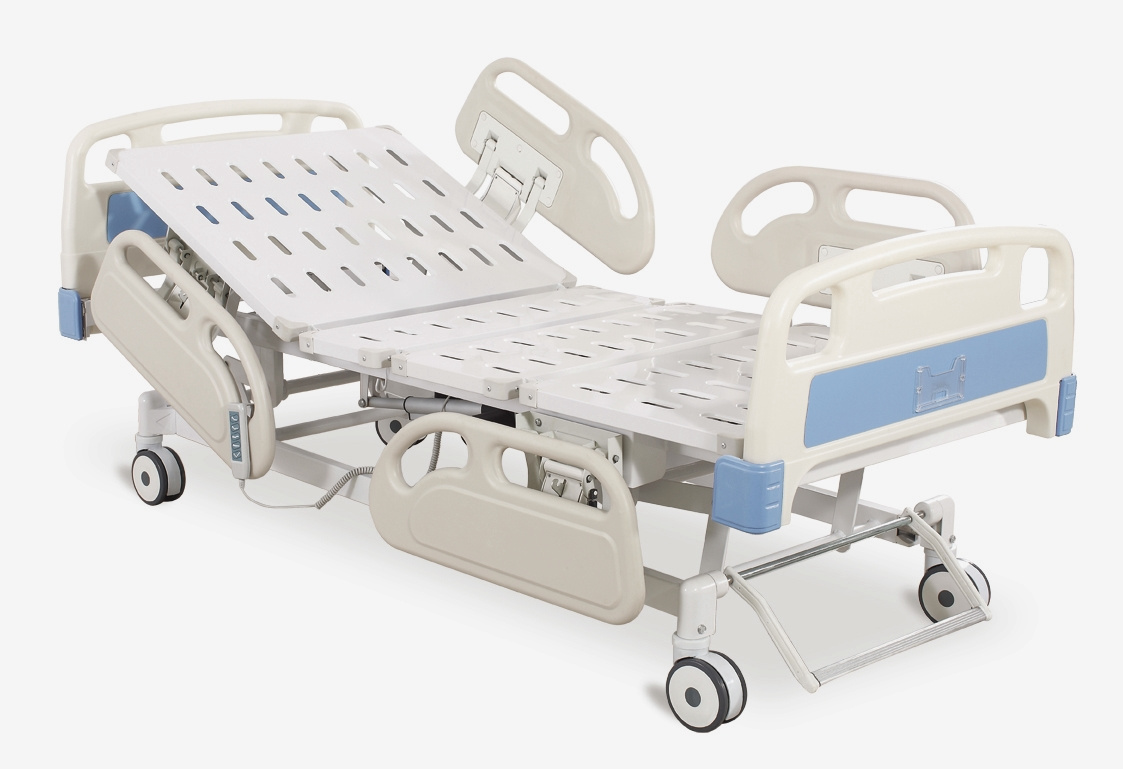

ICU Five -Function Electric Hospital Bed (JYK-B502-1)
Electric Hospital Bed Medical bed ICU bed
Size: 2160*1050*460~720mm Gross weight: 118kg Net weight: 116kg
Material: Steel electrostatic spraying frame +ABS Head & Foot boards , Standard accessories: Four 5" luxurious castors with central-controlled brake system, 4 pieces of PP side rails,1 set of detachable ABS Head & Foot boards,1set of soft link, 2 Urine hooks, 1 set of MOTECK motors
Features:
Cold steel plate wholly molded surface
Integrated stamping frame and treated with electrostatic spraying, anti-aging and anti-rust
Beautiful design bed headboard and footboard made of ABS
4pcs PP automatic lifting side rails,2pcs of soft link
4pcs electro-motor, 1pc control box,1pc handset
2 urine hooks
Four wheels adopt central control system, which is stable and reliable
Has been assessed and conforms to the standards of ISO13485:2003,CE
Max loading: 250kg
Dimensions:
Product size: 2200*1050*460~720
Backrest adjust: 0~75°(±5°)
Footrest adjust: 0~40°(±5°)
Trendelenburg and reserve Trendelenburg: 0-12°(±2°)
Adjustable height: 450-720mm
| Backrest adjust | 0~75°(±5°) |
| Footrest adjust | 0~40°(±5°) |
| Trendelenburg and reserve Trendelenburg | 0-12°(±2°) |
| Adjustable height | 450-720mm |
