| Prod Model: |
QL-1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
CNC Engraving Machine |
| Working Voltage: |
AC380V/50Hz |
| Color: |
Optional |
| Spindle Power: |
3.0kw Water-Cooling |
| Warranty: |
One-Two Years |
| Control System: |
Ncstudio/DSP Hand-Held |
| Machine Structure: |
Steel Structure Lathe Bed and T-Slot of Sectional |
| Working Speed: |
10.000mm/Min |
| Idling Speed: |
15.000mm/Min |
| Available Tools: |
3.175-12.7mm |
Product Description

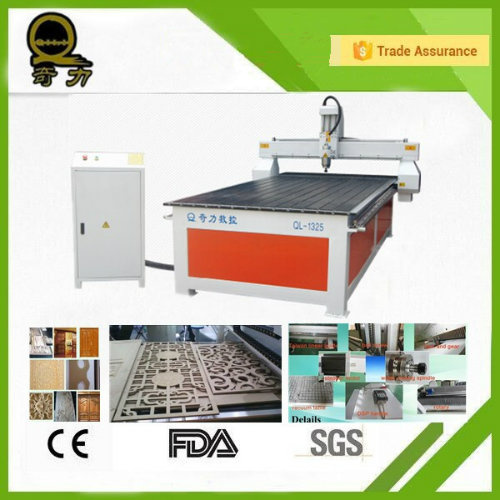

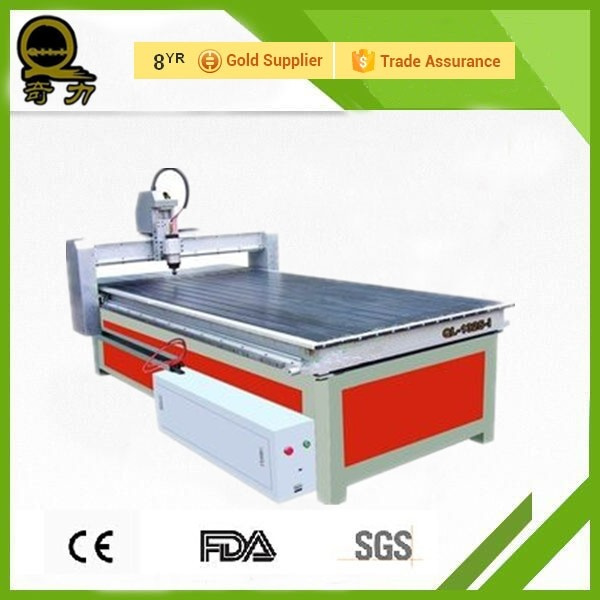

Factory supply Wood Furniture CNC Machine (QL-1325)
Product Features:1. Axis under the control of software, high automation;
2. High speed and efficiency, max. Speed over 14m/m;
3. The Antique Furnture Woodworking Machine is with high power spindle and good rigidity;
4. Two motors and unique two rack driving, No deformation and vibration after a long time work at high speed.
Standard ConfigurationsSteel Lathe Bed
X Y with racks, all with round guides
NCSTUDIO system
Small Leadshine driver
Max. Speed 10-12m/min
Options: 2.2KW Dust Collector.
| Technical Data |
| X Y Working Area | 1300mm*2500mm |
| Z Working Area | > 120mm |
| Table Size | 1440mm*3000mm |
| Max. Speed | 8m/min |
| Max. Working Speed | 6m/min |
| Working Delicacy | 0.01mm |
| Repositioning Accuracy | 0.05mm |
| Feeding Height | 120mm |
| Command Code | G Code*. u00*. mmg*. plt |
| Working Software | Windows98/2000/xp |
| Power (not including spindle) | 1500w |
| Working Voltage | AC220V/50HZ |
| Spindle Power | 2.2kw |
| Spindle Running Speed | 0-24000rpm |
| Motor | Stepper |
Samples:

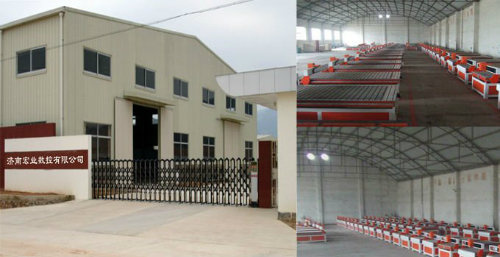

Factory:
Jinan Hongye CNC Machine Co., Ltd., is a professional manufacturer for CNC Routers, Laser Engraving Cutting Machines and Vinyl Cutting Plotters. Since the company has been founded, devotes in carves the CAD/CAM technology, the CNC numerical control technology research and development, makes the considerable progress in the precision engraving machine design theory and the processing technology aspect, the success has realized the automation control technology the process which transforms to the industrial production. The wonderful strength product selection fine fitting, vigorously promotes the packaging technique, caused the product to move toward stably, in the advertisement profession, the carpentry profession, in the metal mold profession held the small space.
The wonderful devoting for in the national relatively well-known product brand, by it especially superior performance-to-price ratio, high quality perfect and the post-sale service, the market share expands unceasingly, has determined Qi Li in same profession status gradually. The wonderful strength person presently unceasingly develops the innovation by the full enthusiasm, carries forward ours brand, realizes the product multiplication, will be better, a more superior product to offer to the user community.
