| Prod Model: |
TL-PO |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Low Cost /Mobile/Prefab/Prefabricated Steel House |
| Window: |
PVC or Alluminum Alloy |
| Roof: |
EPS, Rock Wool, PU, Single Color Sheet |
| Steel Grade: |
Q235&Q345(S235jr&S355jr) |
| Materials: |
EPS, Rock Wool, PU, Single Color Sheet |
| Performence: |
Safety, Water-Proof, Sound Insulated, Hear-Preserv |
| Door: |
Color Steel Silding Door or Electric Rolling Gate |
| Quality Certificated: |
CE ISO9001:2000 |
| Material: |
Sandwich Panel |
| Usage: |
Workshop |
| Certification: |
CE |
| Customized: |
Customized |
Product Description

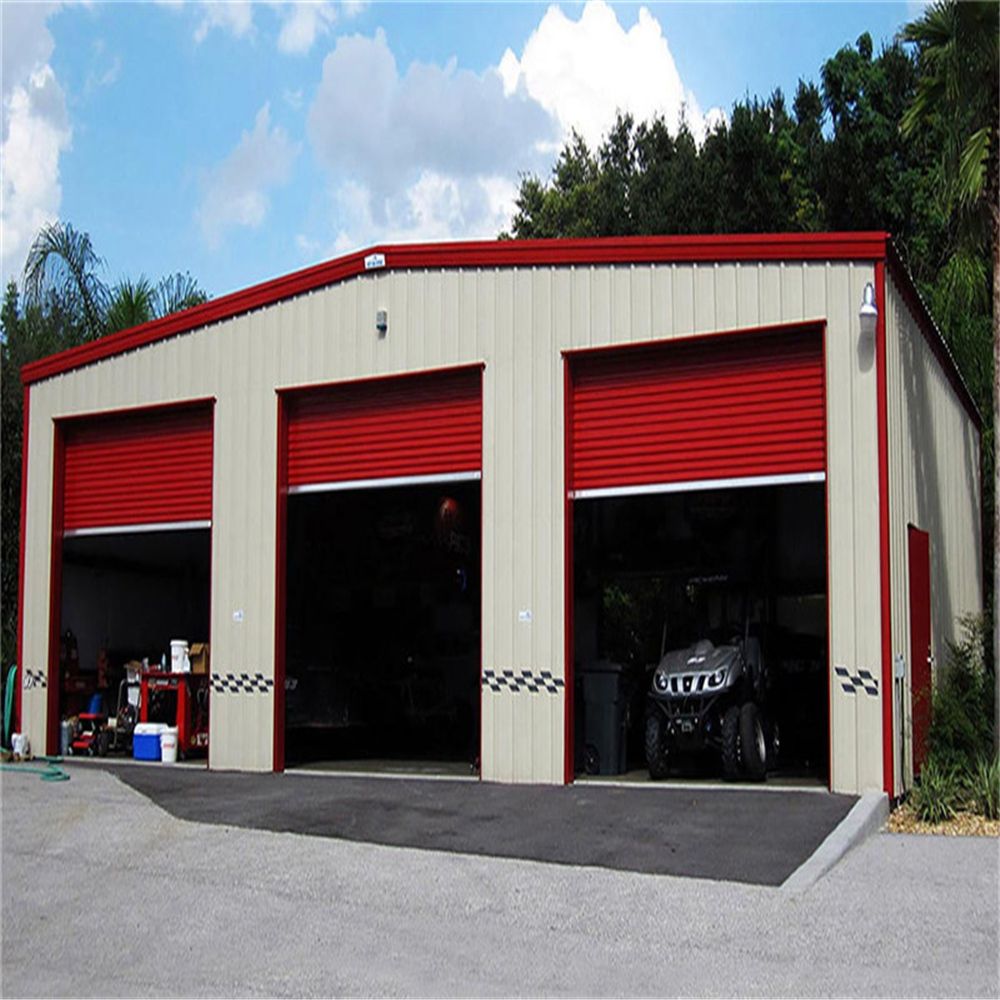

Factory Industrial Steel Structure Car Garage
Specification:
| Column and Beam | Q235, Q345 H section steel or square tube |
| Roof | Sandwich panels with EPS, rock wool, fiber glass. |
| Corrugated Steel sheet or with insulation layer |
| Wall | Steel mesh and tarpaulin or sandwich panel or steel sheet |
| Brace | Round bar |
| Purlin | C or Z section steel |
| Accessories | High strength bolts |
| Feeding system | As the customer's requirements |
Regarding details, please check as follows:
Usage:
Homes, Residence, Accommodation, Hostel, Office, Reception house, Rest-room, Show-room, Public-accommodation, Place of recreation and so on.
House Size:
1) Length is free as client's requirement
2) Width: Less than 12m (no middle post), more than 12m (add post in the middle)
3) Height: Single floor≤ 5m, two or three floors, average height ≤ 4m.
4) Floors: Ground+2 floors.
5) Roof pitch: Slope is 1: 10~1: 5
Design technical data:
1) Wind load: 0.6KN/sqm
2) Roof dead load: 0.3KN/sqm
3) Roof live load: 0.5KN/sqm
4) Floor dead load: 0.5KN/sqm
5) Floor live load: 2KN/sqm
4) Earthquake intensity: 8 grade
5) Location temperatures: -25º C to 50º C
House Body-bearing system:
1) Beam: Light gauge steel welding A-frame beam with paint.
2) Purline: Wall and roof purline, C type steel with paint
3) Square post: Square steel with paint, different house span and different weather condition with different section.
4) Ground channel: U type, galvanized, thick is 0.8mm
5) Hardware: All steel structure components are jointed with bolts.
House Body-maintenance system:
1) Wall panel: Color steel sandwich panel, the insulation could be EPS, glass wool, rock wool, or PU. Standard thickness: 50mm, 75mm, 100mm.
2) Roof panel: Color steel corrugated sandwich panel, the insulation could be EPS, glass wool, rock wool, or PU. Standard thickness: 50mm, 75mm, 100mm.
3) Decoration: Outside PVC or metal cladding panel, inside gypsum board with keel.
3) Door: Entrance door could be steel security door or aluminum door, interior doors could be steel frame sandwich panel door or compound wooden door.
4) Window: PVC or aluminum alloy window with screen, sliding or casement type.
5) Compression decorative parts: 0.4mm thick color steel sheet
Other option items (accessories):
1) Ceiling: PVC or aluminum ceiling for wet rooms, mineral wool ceiling board for other office, living room and other dry area.
2) Flooring: Ground tiles, PVC flooring, compound wooden floor or carpet of options.
3) Plumbing system: Indoor water supply and drainage pipes, couplings, elbows, tees etc., Chinese standard.
4) Wiring (High voltage) system: Indoor wires, sockets, switches, lamps, wire channels, distribution box, etc., Chinese standard.
5) Sanitary appliance: Wash basin, shower, toilet, bathtub as client's requirements.
6) Furniture: Kitchen cupboard, sofa, office table, desk, chair, bed, wardrobe, etc. As client's requirements.
Qingdao Tailong Steel Structure
http://www.chinasteelconstructions.com
Tel:0532-8878-0515

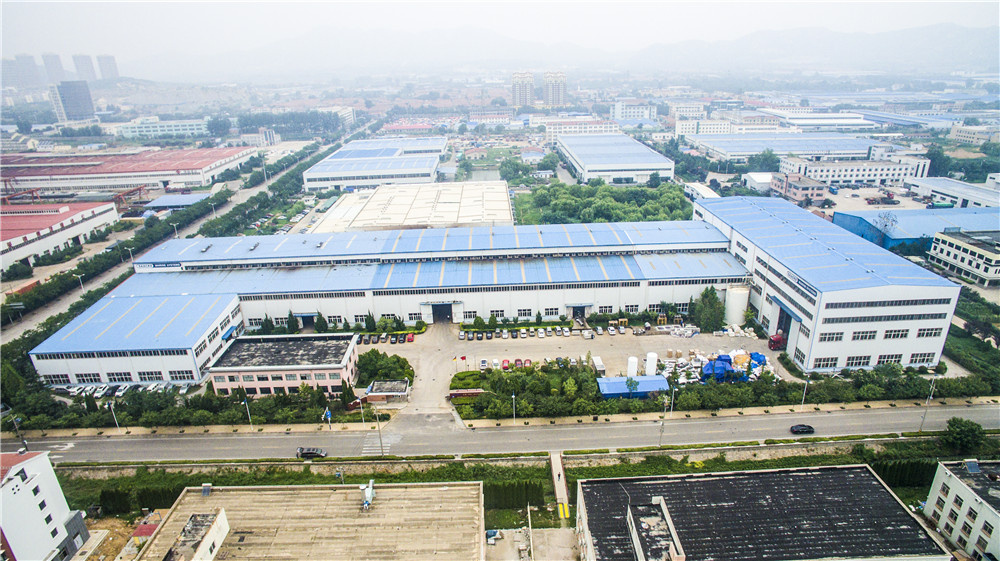

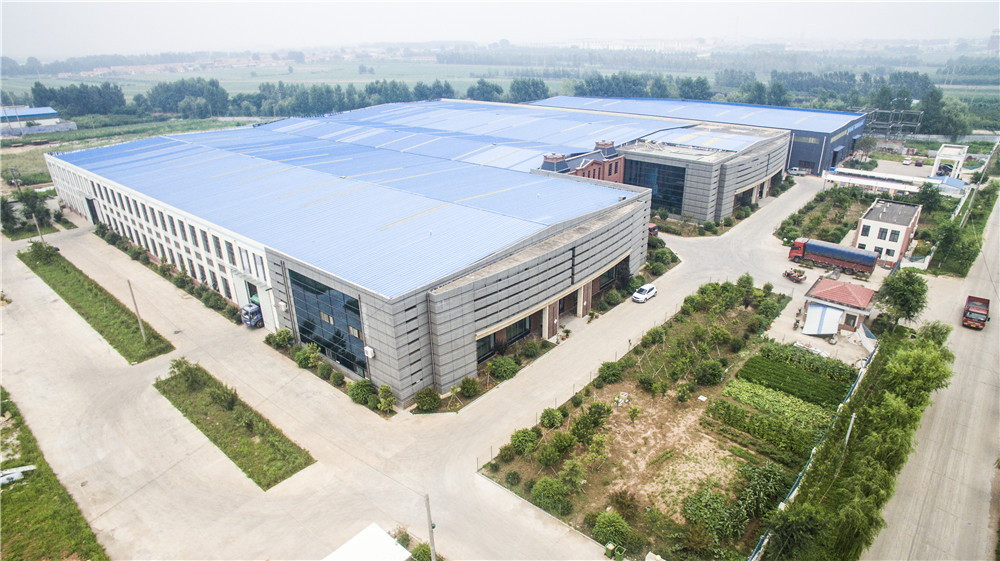

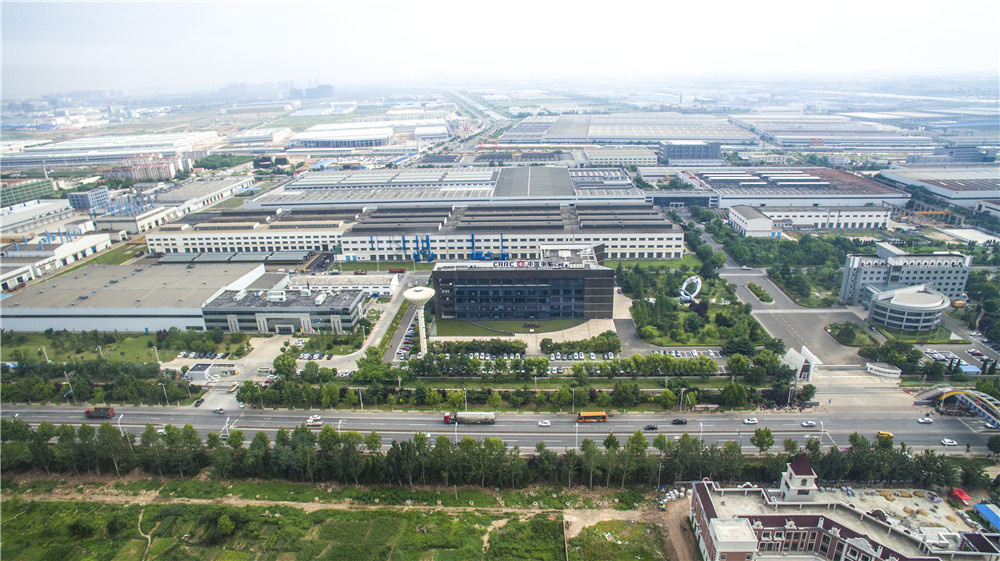

Qingdao TaiLong Steel Structure Co, . Ltd was founded in June, 2003 and is located in Qingdao, enjoying convenient transportation and beautiful environment. We have a general investment of 70 million yuan and a plant area of more than 81 thousand square meters. Qingdao TaiLong Steel Structure Co, . Ltd has abundant financial resources and advanced equipment with 6 production lines. We have been in steel structure lines for 13 years and are specialized in producing all kinds of steel structure workshop, warehouse, building, prefab house, container house and villa. We are famous for superior quality, competitive prices, first-class craftworks, safe package, and prompt delivery. Therefore, we can fully satisfy your demands and have a large customer base. As a supplier, we have excellent teams who focus on product development & design, quality control & inspection and company running. In order to supply the best products and services, we have built a modern quality management system which is in strict accordance with international standards. Besides, because of large overseas markets, most of our products have got I S O 9 0 0 1 certificates. If you have any new ideas or concepts for the products, please contact us. We are glad to work together with you and finally bring you the satisfied products.
