| Prod Model: |
TL-GB6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Q235 Q345 |
| Roof Panel: |
EPS, Rock Wool, PU, Single Color Steel |
| Wall Panel: |
EPS, Rock Wool, PU, Single Color Steel |
| Window: |
PVC or Aluminum Alloy |
| Door: |
Sliding or Rolling Door |
| Purlin: |
C Type or Z Type |
| Type: |
H-Section Steel |
| Standard: |
JIS |
| Trademark: |
Carbon Structural Steel |
| Forming: |
Hot-Rolled Steel |
| Connection Form: |
Welded Connection |
| Member: |
Steeltruss |
| Type Of Steel For Building Structure: |
High-Strength Steel |
| Carbon Structural Steel: |
Q235 |
| Residential Wall Structure: |
Top Wall Beam |
| Application: |
Frame Part |
Product Description

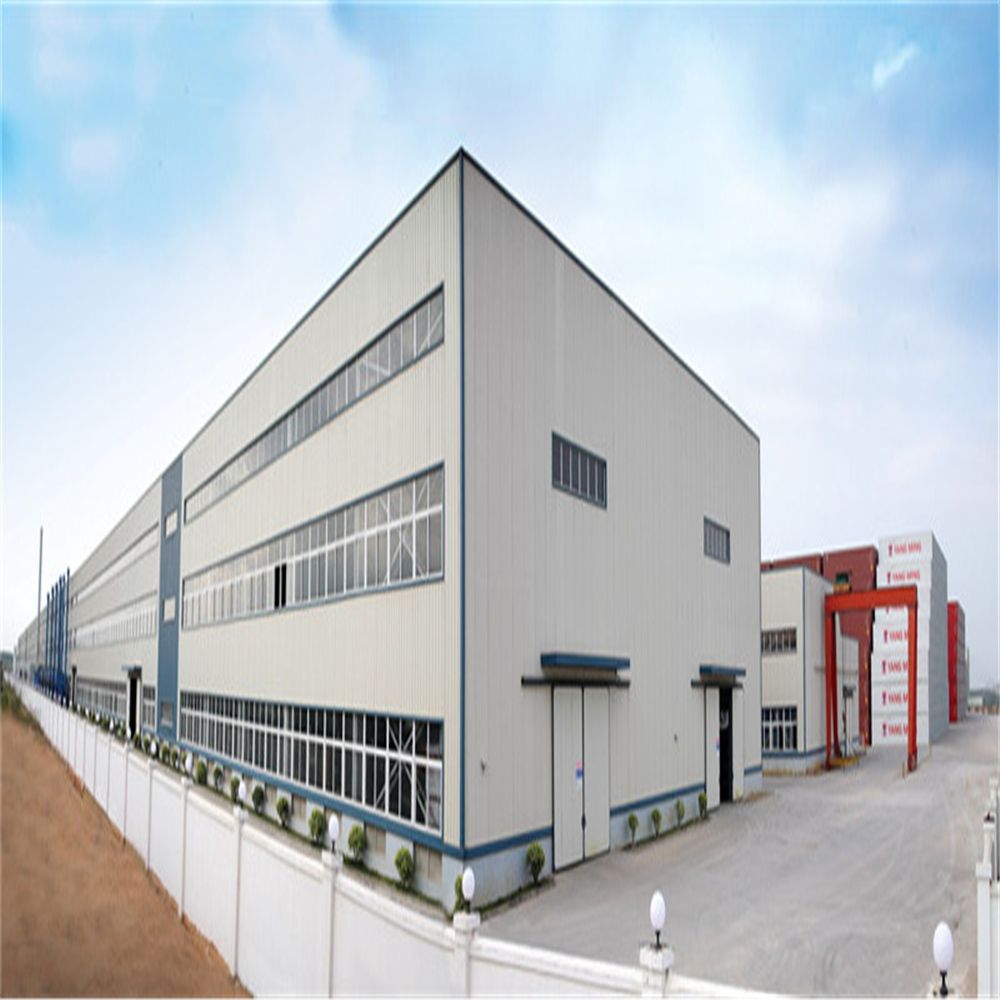

Prefabricated Light Steel Frame Structure Sheds Warehouse
Product Description
Prefabricated House Temporary Office
1. General technical description for standard prefabricated house
Technical Parameter:
Technical Parameter of standard prefabricated house:
(1). Wind resistance: Grade 11(wind speed≤ 120km/h)
(2). Earthquake resistance: Grade 7
(3). Live load capacity of roofing: 0.6kn/m2
(4). External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
(5). Second Floor Load Capacity: 150 kg/m2
(6). Live load of corridor is 2.0kn/ m2
(7). Wall permitted loading: 0.6KN/ m2
(8). Ceiling Permitted live loading: 0.5 KN/m2
(9). Wall Coefficient of thermal conductivity: K=0.442W/m2k
(10). Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K
Steel framework
Main column: Fabricated by 80*80 or 100*100 or 120*120 or 150*150 Square Tube, Q235 Steel Surface working: Alkyd painting, two primary and two surface.
Main triangle Beam: Fabricated by C80, C100, C120, C140 Section steel, Q235 Steel, Surface working: Alkyd painting, two primary and two surface.
Wall and roof purlin: C80, C100, C120, C140 Section steel, Q235 Steel,
Surface working: Galvanized
Floor
Ground floor will be the concrete foundation with Ceramic tiles or PVC floor leather.
First floor: 18mm plywood with 2.0mm PVC floor leather for living rooms floor
Ceiling
6mm Gypsum board for dry room
12mm PVC ceiling for wet room
Walls
Insulated Steel Sandwich Panel wall
Panel width: 950mm;
Thickness: 50-1200mm.
Powder coated Color steel on both sides: 0.4mm/0.5mm/0.6mm
Insulation: Polystyrene, Rockwool or Polyurethane
Density of Rockwool: 120Kg/m3
Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3
Density of Polyurethane: 40Kg/m3
Door
External door: Insulated with opening dimension 950*2100mm, furnished with lock, with 3 keys.
Inner door: Insulated steel door.
Windows
Window material: PVC window with fly screen, 4mm glass.
Electrical fittings option
Electrical wire, 2.5mm2 for lighting system, and 4mm2 for AC units.
16A five hole universal socket.
Double tube fluorescent lamp, 220V, 50-60Hz
Single Switch, Honyar brand, with junction box
Electrical distribution box, box+breakers+earth leakage protective device
Optional Water system fittings
(1). Water drain pipe, PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years.
Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC
(2). Sanitary ware:
Western Close tool: Ceramic, with pipes and installation fittings
Urinal: Ceramic, with pipes and installation fittings
Wash basin: Ceramic, with post, faucet, pipes and installation fittings
Shower head, Shower base, Water mixture
Temporary building Characteristics:
(1). Environment protective, no garbage caused
(2). Doors, windows and interior partitions can be flexibly fixed
(3). Beautiful appearance, different colors for the wall and roof.
(4). Cost saving and transportation convenient
(5). Anti-rust and normally more than 15 years using life
(6). Safe and stable, can stand 8 grade earthquake.
2. Our Services:
(1). Professional design and engineering team: Full solution for site camp design. We could make the design for whole camp as per your requirement.
(2). Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO/CE/SGS standard, to make sure the fabrication works with high technology.
(3). Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.
If you have any question ,pls contact to me.
Qingdao Tailong Steel Structure
http://www.chinasteelconstructions.com
Tel:0532-8878-0515

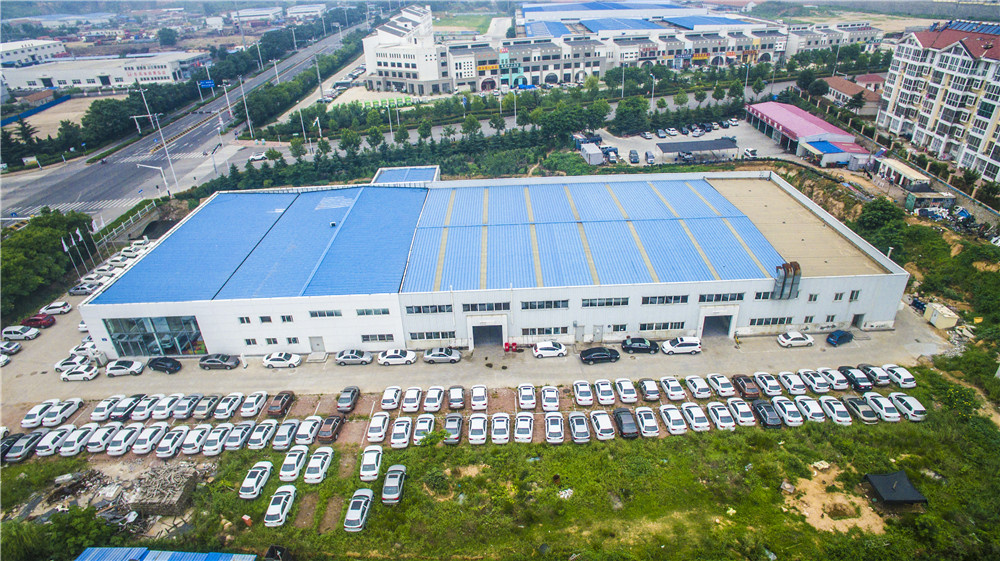

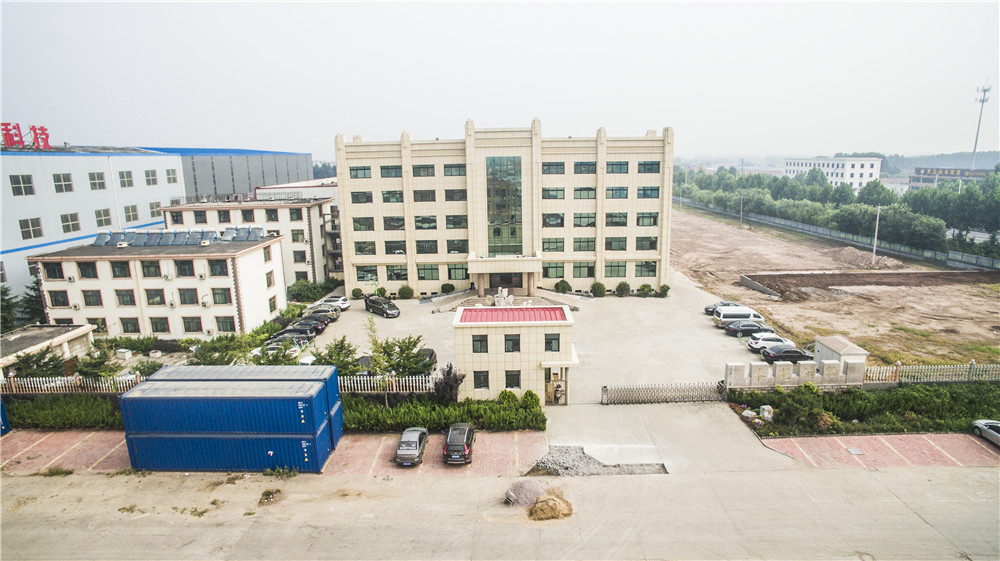

Qingdao TaiLong Steel Structure Co, . Ltd was founded in June, 2003 and is located in Qingdao, enjoying convenient transportation and beautiful environment. We have a general investment of 70 million yuan and a plant area of more than 81 thousand square meters. Qingdao TaiLong Steel Structure Co, . Ltd has abundant financial resources and advanced equipment with 6 production lines. We have been in steel structure lines for 13 years and are specialized in producing all kinds of steel structure workshop, warehouse, building, prefab house, container house and villa. We are famous for superior quality, competitive prices, first-class craftworks, safe package, and prompt delivery. Therefore, we can fully satisfy your demands and have a large customer base. As a supplier, we have excellent teams who focus on product development & design, quality control & inspection and company running. In order to supply the best products and services, we have built a modern quality management system which is in strict accordance with international standards. Besides, because of large overseas markets, most of our products have got I S O 9 0 0 1 certificates. If you have any new ideas or concepts for the products, please contact us. We are glad to work together with you and finally bring you the satisfied products.
