| Prod Model: |
JYK-B701 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control: |
Electric |
| Functions: |
for Surgeries |
Product Description

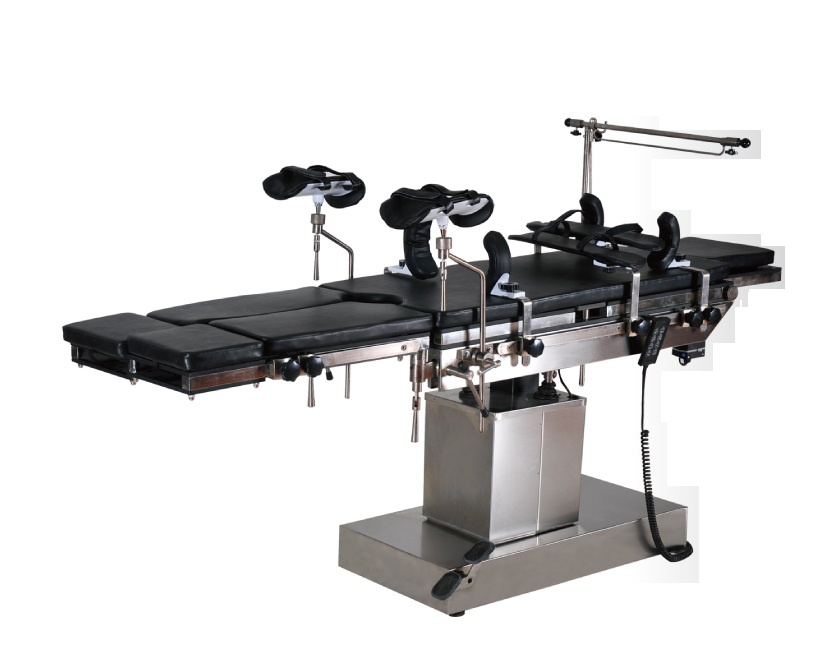

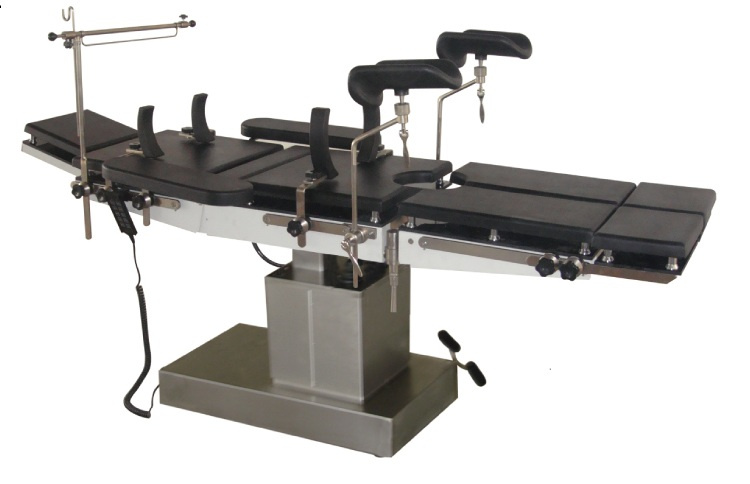

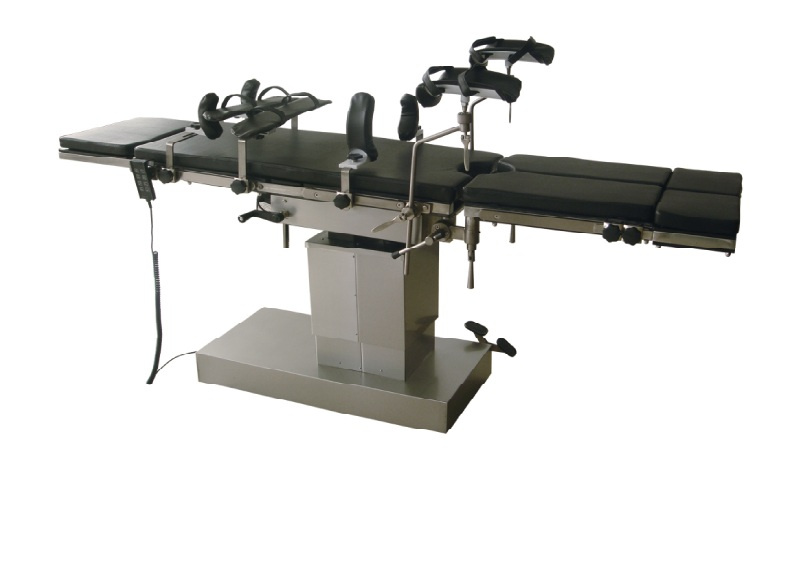

Electric operation table for surgery JYK-B701
Surgical table, medical table, medical apparatus
- Size: 2100*480*700-1000mm (L*W*H)
- Description: this table is used for the surgeries of head, neck, chest, abdomen, perineum, limbs, obstetrics, ophthalmology, tot laryngology and orthopedics and more
- It has double plastic boards and it can be X-rayed
- The dismountable leg board could be outreached by 90 degree, suitable for urology surgery, the board floor can move up and down, lean from left to right and move back and forth
- The back section can be folded and turned
- All these motions are motivated by electric equipment, flexible, safe and reliable
- Details:
- Length/width: 2100mm/480mm
- Height adjustment (up/down): 750mm/1000mm
- Trendelenburg/reverse Trendelenburg: 25°/25°
- Lateral tilt: 20/°20°
- Longitudinal movement: 400mm
- Head rest (up/down): 45°/90°
- Back section: 0°/ 45°
- Leg plate (up/down): 0°/ 90°
- Kidney bridge elevation: 100mm, swiveling of leg plate: 90°
- Standard accessories:
- 1 anesthetic screen
- 2 shoulder rest
- 2 arm support
- 2 waist support
- 2 knee crutch
- 2 leg board
- Package: 1pc in a box
- Meas: 1220×740×1040mm
- G/N.W: 280/225KG
