| Prod Model: |
JYK-B703 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control: |
Electric |
| Functions: |
for Surgeries |
Product Description

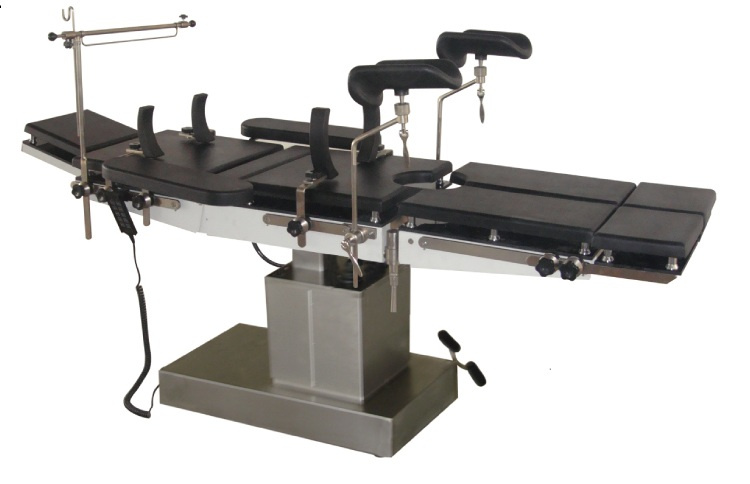

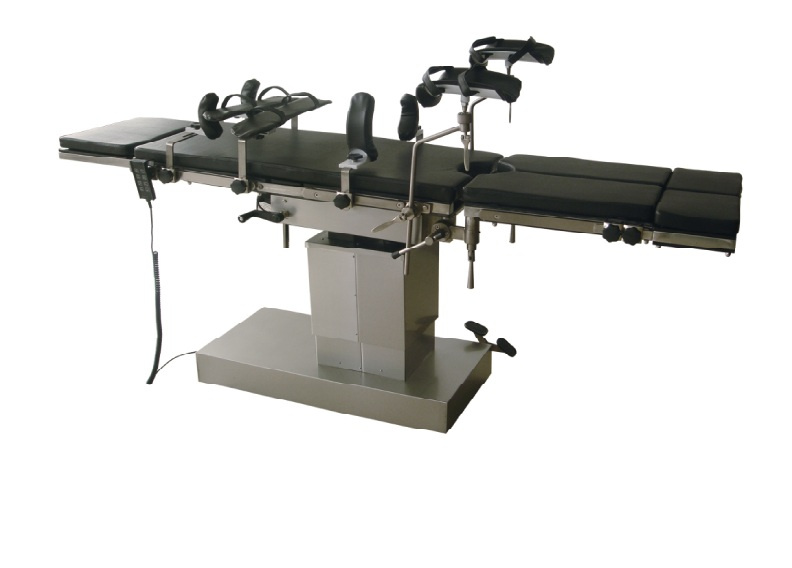

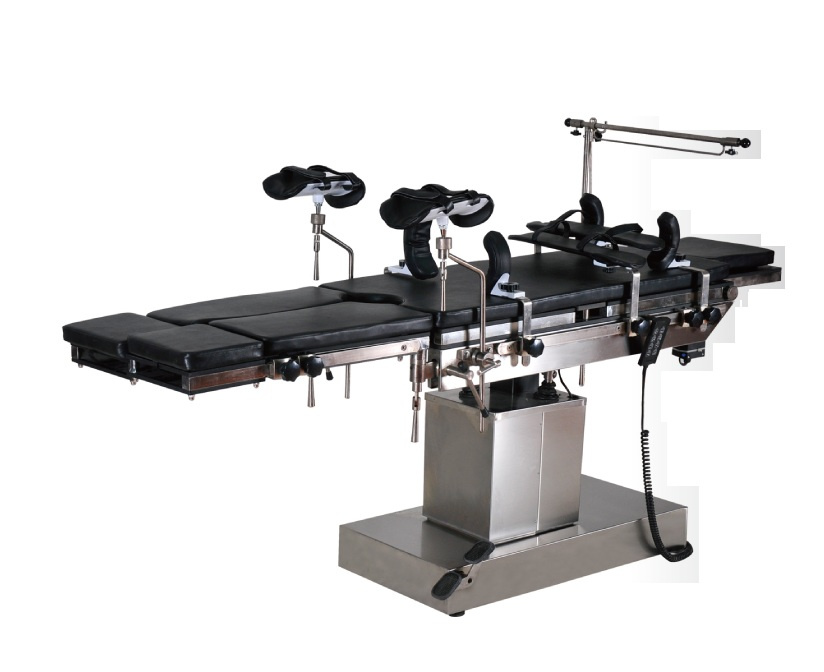

Electric operation table for surgery JYK-B701
Surgical table, medical table, medical apparatus
- Model No.: JYK-B703
Size: 2100*500*750-1000mm(L*W*H)
Description: is for surgeries of chest, abdomen, ophthalmology, otolaryngology, gynecology, obstetrics and urology etc., it has the following advantages:1,the board can shift longitudinally, made of plastic plate, can be used with C-ARM to match X-ray or take photos.2,the leg board is dismountable, can be adjusted by hand to lean from left to right and move up and down, convenient for urology operation.3,the manipulator used with 24v DC easy to operate, safe and reliable.4,the board is controlled by pressing buttons and electric handspike to move up and down, lean from left to right and move back and forth. The folding of the back section and the leg board is motivated by the force of the spring and gravity.
details:
Length/width: 2100mm/500mm, height adjustment (up/down): 750mm/1000mm, Trendelenburg/reverse Trendelenburg: 25°/25°, lateral
tilt: 20/20°, longitudinal movement: 300mm, head rest (up/down): 45°/-90°, back section: 60°/ -15°
Leg Plate(up/down): 90°
Kidney bridge
Elevation:100mm
Swiveling of leg plate: 90
Standard accessory:
1 anesthetic screen
2 shoulder rest
2 arm support
2 waist support
2 knee crutch
2 leg board
2 foot board
