| Prod Model: |
DEK-1325 |
| Power(W): |
4.5kw |
| Voltage: |
380V, 50/60Hz |
| Dimension(L*W*H): |
3070X1970X1550mm |
| Weight: |
1600kg |
| Engraving Speed: |
12000mm/Min |
| Spindle: |
4.5kw Water Cooling Spindle |
| Software: |
Type3, Artcut, Artcam, Ucancam |
| Table: |
T-Slot and Vacuum Working Table |
| Control System: |
Taiwan Syntec/Weihong Nk300 |
| Lathe Structure: |
Welding Steel Frame |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
Product Description

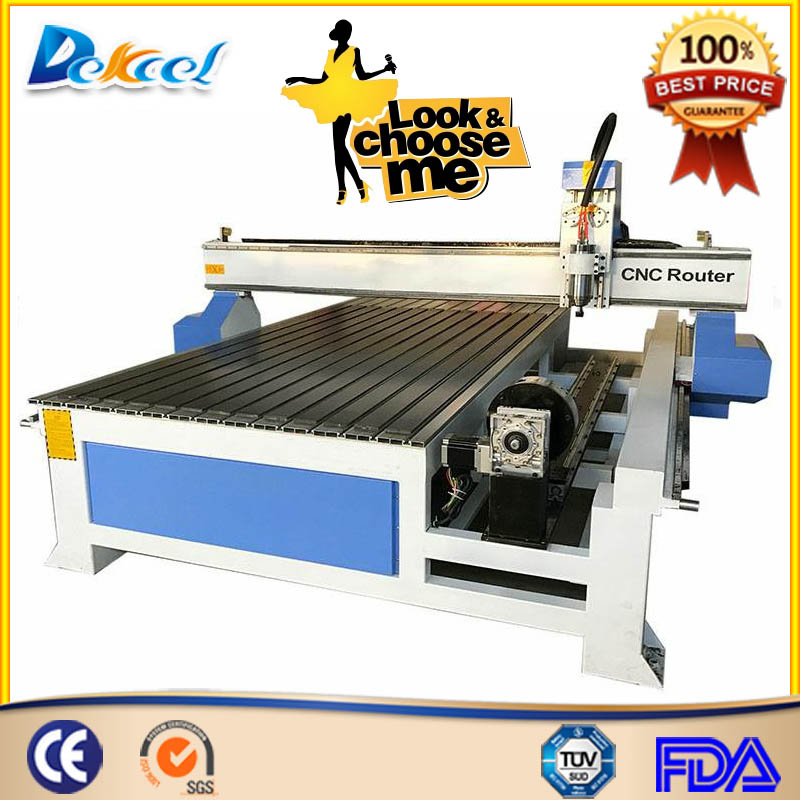

Feature of cnc wood router with rotary device:
1.Dek-1325 machine is specially designed for woodworking, metal and advertisement.It has high precision, fast speed, cost-effective.
2.By the way of seamless welding and vibrating treatment, the lathe bed steel structure is firm, durable, strength steel and non-deformation.
3.Computer cabinets and Weihong control system make the machine have good stability and high reliability.
4.Using automatic lubrication system, it's convenient for maintenance.
5.Owns more functions of power-off restoration, continuation on break point, working time anticipation etc.
6.XYZ axis adopt high-precision linear and square rail from Yintai in Taiwan.High-precision and durable no-learance rolling ball screws for Z axis, it's imported from Yintai brand in Taiwan, rack
Drive for X Y axis, high-precision, faster and better efficiency.
Application of cnc router
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
5.Cylindrical object
Techinical parameter of Wood CNC Cutting Machine:
Working area: |
1300*2500*300mm |
Spindle type: |
Water-cooling spindle |
Spindle power |
4.5KW |
Spindle rotating speed |
0-18000rpm |
Power (except spindle power) |
5.8KW (include powers of: motors, drivers, inverters and so on) |
Power supply: |
AC380±10, 50 HZ |
Worktable: |
T-slot and vacuum table combined ,4 vacuum zone with clamps |
Locating precision: |
<0.01mm |
Min shaping character: |
Character:2x2mm,letter:1x1mm |
Operating temperature: |
5°C-40°C |
Working humidity |
30%-75%(without condensed water) |
Working precision |
±0.03mm |
System resolution |
±0.001mm |
Control configuration: |
Weihong control system /Syntec control system |
Data transfer interface: |
USB |
System environment: |
windows 7 |
Graphic format supported: |
G code: *.u00, * mmg, * plt, *.nc |
Compatible software |
ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares. |
Cutting thickness: |
0-40mm also (depends on different material) |
Z tool censor: |
yes |
packing |
Plywood case (veneer wood case for export) |
Optional parts |
1. Vacuum water pump / Vacuum oil-free pump
2. Double-head or multi-heads
3.Air cooled type spindle (China or Italian brand air spindle)
4.Smaller power spindles
5.Servo motors (China or Japan brand)
6.Weihong NC Control system ,Taiwan Syntec or DSP control system
7.Auto tool change system
(this system need other systems accordingly, like LNC control system, servo motors etc)
8.Mist spay cooling system
9.Dust collector
10.their features could be customized accordingly |
After service
1.1.5 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
About payment
We accept TT or Western Union. Paypal.
Before you pay,we will make Proforma Invoice for you.all items will listed on there.
About shipment
by sea or by air for your optional.
About delivery time:
As the manufacturer ,we pay more attention to the quality .So the machine will be tested well then send it to you.The delivery time is about 7-10 working days .because we must ensure all things are ready,then can send the machine to you.
