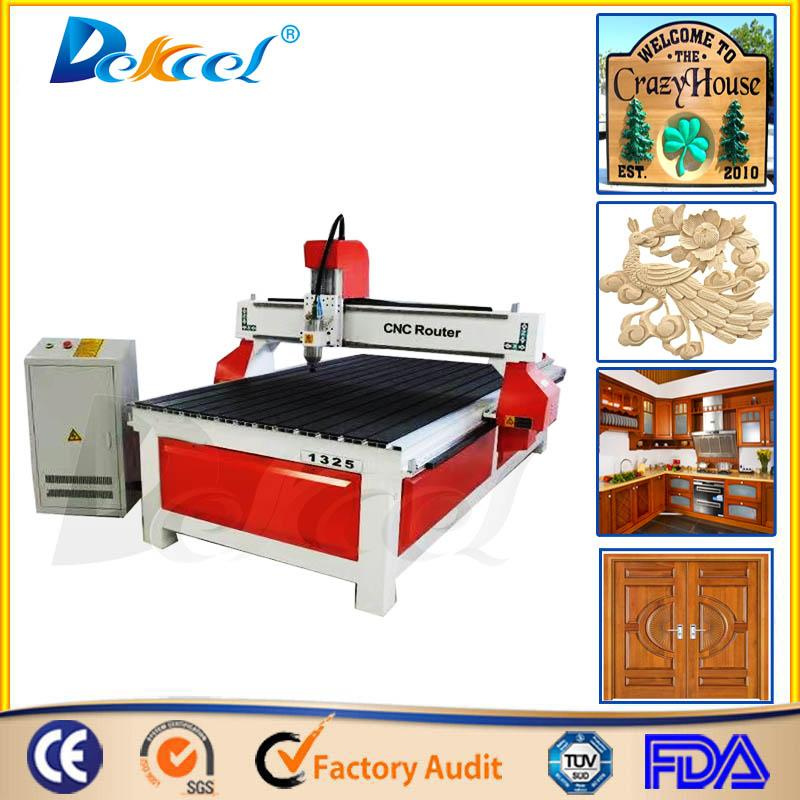

Single-Head CNC Wood Router Cutting&Engraving Machine 1325

Prod Model:	DEK-1325
Power(W):	5.8kw
Dimension(L*W*H):	3070X1970X1550mm
Weight:	1600kg
Engraving Speed:	12000mm/Min
Spindle:	3.0kw Water Cooling Spindle
Software:	Type3, Artcut, Artcam, Ucancam
Table:	T-Slot and Vacuum Working Table
Control System:	Taiwan Syntec/Weihong Nk300
Lathe Structure:	Welding Steel Frame
Type:	Engraving Router
Spindle Layout:	Vertical
Spindle Number:	Single-Spindle
Feed Mode:	Mechanical
Controlling Mode:	CNC
Customized:	Customized
Color:	Customized

Product Description

Features of woodworking machinery cnc router:
1.Taiwan HIWIN high precison square guide rail, high efficiency and high precision
2.Equipped with professional vacuum system,adopt integral adsorption base with the high strength engineering plastics in order to ensure stability when it's working
3.Taiwan TBI ball screw with high working precision
4.Water cooling spindle or air cooling spindle, working with high speed,high power
5 Whole machine is heavy duty welded bed structure when working it's more stable
6.Has the function of re-carving after break point and power failure
7.Large compatibility of software such as Type3,Artcam,some other CAD or CAM etc.
8.Ncttudio or DSP control system it's easy to operate
9.Our wood cnc router are suitable for engraving(carving,cutting and sculpture)wood doors,wood cabibets,wood furniture,wood tables,desktop,PVC,Acrylic and so on.

Appplication:
 Large quantity production for different materials, best choice for making wood door, Antique reproduction furniture, furniture making , instruments making, art and crafts, vacuum 3D LED box, aluminum composite boards, model-building, etc.

Special configuration:
 Servo motor and driver, large models, imported spindles, etc.

Techinical parameter of cnc wood router machine


Working area:	1300*2500*300mm
Spindle type:	water-cooling spindle
Spindle power	3.0KW
Spindle rotating speed	0-18000rpm
Power (except spindle power)	5.8KW (include powers of: motors, drivers, inverters and so on)
Power supply:	AC380±10,  50 HZ
Worktable:	T-slot and vacuum table combined ,4 vacuum zone with clamps
Locating precision:	<0.01mm
Min shaping character:	Character:2x2mm,letter:1x1mm
Operating temperature:	5°C-40°C
Working humidity	30%-75%(without condensed water)
Working precision	±0.03mm
System resolution	±0.001mm
Control configuration:	Weihong control system /Syntec control system
Data transfer interface:	USB
System environment:	windows 7
Graphic format supported:	G code: *.u00, * mmg, * plt, *.nc
Compatible software	ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares.
Cutting thickness:	0-40mm also (depends on different material)
Z tool censor:	yes
packing	Plywood case (veneer wood case for export)
Optional parts	1. Vacuum water pump / Vacuum oil-free pump  2. Double-head or multi-heads   3.Air cooled type spindle (China or Italian brand air spindle)  4.Smaller power spindles   5.Servo motors (China or Japan brand)  6.Weihong NC Control system ,Taiwan Syntec or DSP control system  7.Auto tool change system  (this system need other systems accordingly, like LNC control system, servo motors etc)  8.Mist spay cooling system  9.Dust collector 10.their features could be customized accordingly

 Application:
Our 9KW CNC woodworking engraving Machine with ATC  is widely used in the wood industry to engrave and process red furniture and antique furniture which can be also used in the advertising to process models with various picture. It's widely used in wood engraving, wood cutting ,bamboo engraving, bamboo cutting, marble engraving , marble cutting ,duotone acryl engraving, duotone acryl cutting, plastic engraving, plastic cutting and metals such as copper engraving, cooper cutting and aluminum engraving , aluminum cutting. It can be also used for lettering, embossment, and characters cut in relief, etc.

Why choose Dekcel product ?
 1. Dekcel company is specialized in manufacturing and selling CNC Router and laser

machine for many years . We have lots of experience.

 2.Our worker have experience,they can produce machines professional and skilled,so make the

machine with high quality and can work well.

 3.All the parts of our machines are famous brand in China or in international,so it make sure our

machine have high quality and long lifetime.

 4. Our company has all kinds of machines in store, so we can make sure deliver quickly.

 5. Our company has international technical service team and provides 24 hours online services and technical supports for customers.
