| Prod Model: |
ZMD-1513A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CNC Furniture Making Machine: |
Furniture Manufacture Equipment |
Product Description
We are recognized leading manufacture and exporter of woodworking CNC engraving machine, sign making advertising CNC router machine, cutting plotter, CNC laser engraver which are CE, RoHS, and BV certificated. I noted that you're on the market for CNC products.

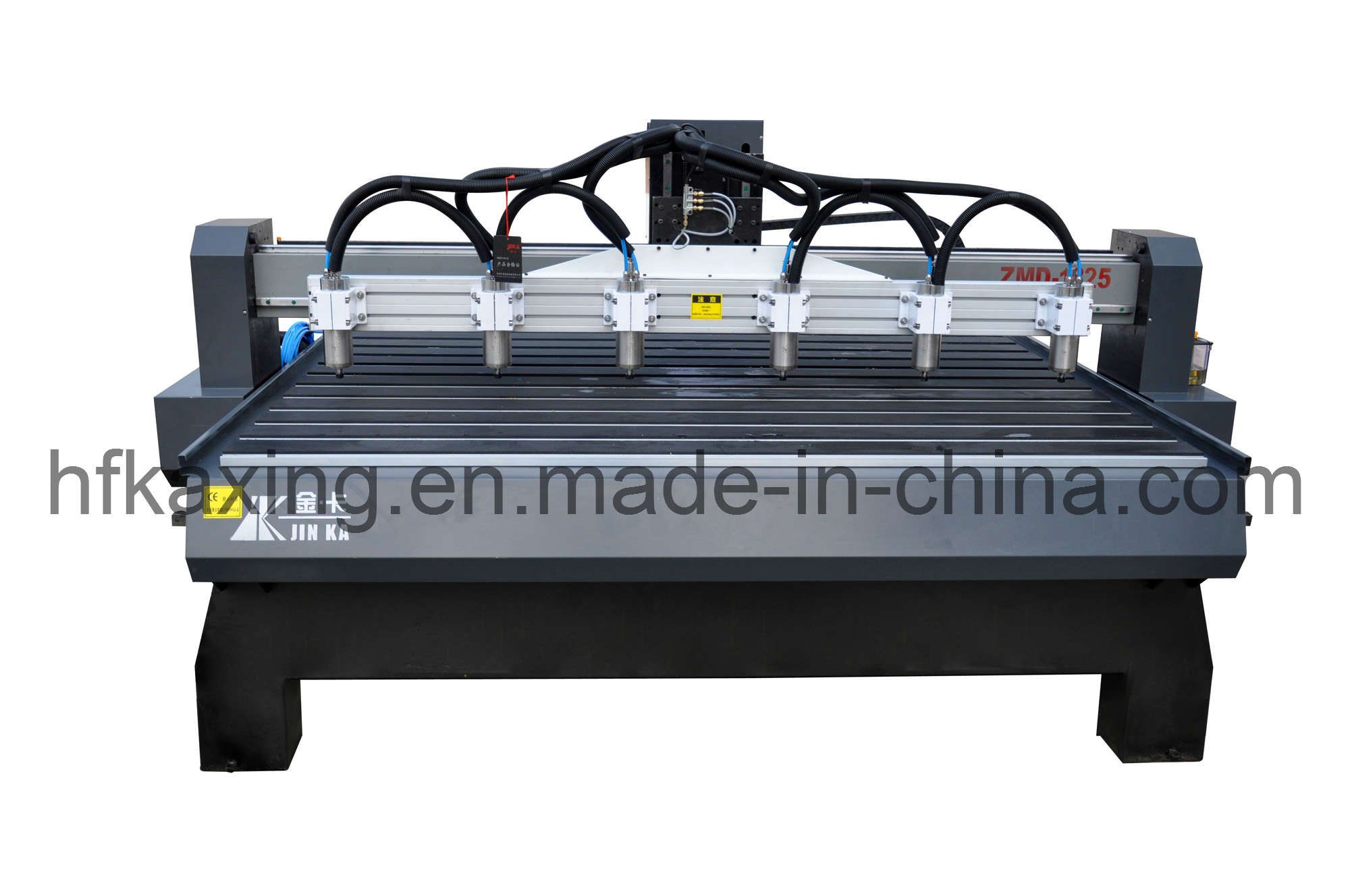

Competitive Wood Working Engraver Machine (ZMD-1513A)
Application:
Classical black wood furniture, European style furniture, antique reproduction furniture carving, screen hollowing, solid wood door, art craft wooden door, free of paint door, art craft window, various of tables, board furniture, advertising signs, scutcheon making, acrylic cutting, blister light boxes, curtain wall making, copper, aluminum, plastic board, wooden board and non metal mould.
Competitive Wood Working Engraver Machine (ZMD-1513A)
Features:
-Adopting imported linear square rail features heavy loading, stable running, and high precision.
-Gear rack transmission for all axes contributes to high accuracy and abrasion resistance
-Manual lubricator for option saves maintenance time and extends the lifetime of square rail.
-Employing high performance frequency adjustable constant power water cooling spindle and inverter features good performance, large torque, and high efficiency.
-Fast and stable by adopting step driving system and double step motors for Y axis.
-The control system is compatible with software such asType3 / Artcam / CAXA / UG / PRO-E / Mastercam / Ucancam and so on.
Competitive Wood Working Engraver Machine (ZMD-1513A)
Standard configuration:
Control system: NC Studio motion control system
Transmission type: Gear rack
Driver: Stepping motor
Spindle: Variable frequency constant power water cooling spindle
Guide rail and motion slides: Linear square rail and motion slides imported from Taiwan
Body: High quality steel structure welded body
Table: T-slot aluminum table
Competitive Wood Working Engraver Machine (ZMD-1513A)
Options:
-Double independent Z axes or single Z axis with multi spindles
-Various spindles meet different applications
-Air cooling spindle
-NC Studio PCIMC-6B motion control system
-Manual pulse generator
-DSP control system
-Panasonic, Yaskawa AC servo system
-Rolling ball screw transmission for Z axis
-Dust cover(dust prevention) for X axis
-PVC board
-Manual oil lubricating system
-Dust collector
-Vacuum absorption
-Industrial cooling system
| Model Available | ZMD1313A | ZMD1318A | ZMD1325A | ZMD1513A | ZMD1518A | ZMD1525A | ZMD1530A | ZMD1815A | ZMD1825A | ZMD2030A |
| Working Area (mm) | 1300*1300 | 1300*1800 | 1300*2500 | 1500*1300 | 1500*1800 | 1500*2500 | 1500*3000 | 1800*1500 | 1800*2500 | 2000*3000 |
| Feeding height (mm) | 160mm |
| Idle speed | 20m/min |
| Processing speed | 10m/min |
| Spindle power | 800W~4.5KW Variable frequency water cooling spindle |
| Rotary rate | 6000 or 24000 rpm/min |
| Working voltage | AC220V/50Hz or AC380V/50Hz |
| Engraving tool | Φ 3.175/4/6/12.7mm |
| File format | G code/ HPGL |
| Positioning precision | ± 0.05mm |
| Repeat positioning precision | ± 0.02mm |
Hefei Kaxing Digital Control Equipment Co., Ltd. is a high-tech industry enterprise integrating research, development, manufacturing, sale and after-sales service. Our company mainly focuses on manufacturing CNC engravers, laser engravers, mould engravers, cutting plotters and CAD plotters.
The Gold Cut series products of our company have been widely used in woodwork industry, advertisement decoration industry, sign and scutcheon industry, art craft and gifts industry and module industry. With high technique, reliable quality and excellent character, our products have won a good reputation in the world. Our products sell well not only in domestic market, but also in oversea marketing. Such as in Southeast Asia, Europe, America and Africa.
We follow in "Gold Cut brand, Gold Cut quality and Gold Cut Service" principle to pursue excellent, aggressive and innovative.
