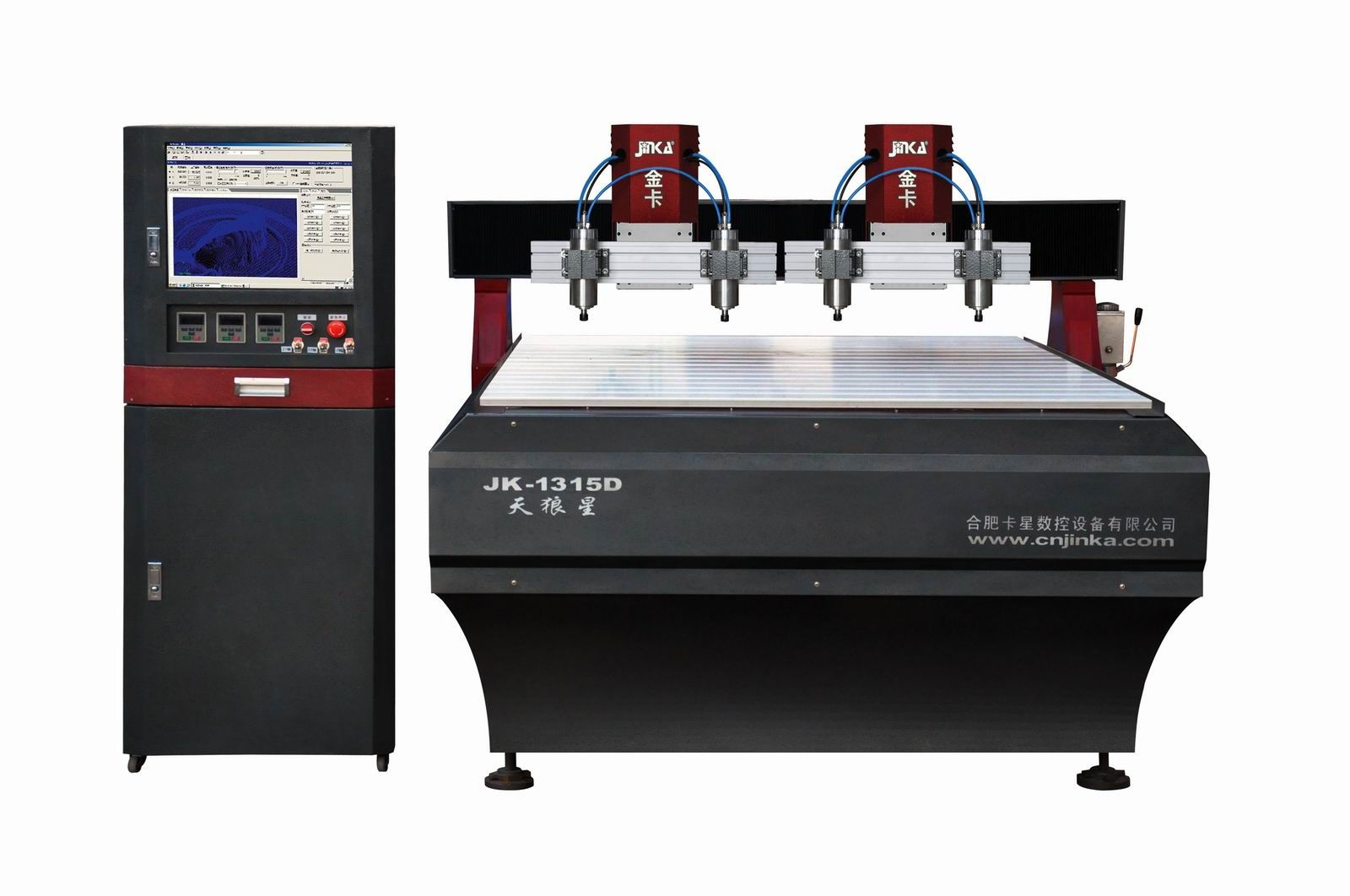

Prod Model: |
JK-1315D-2Z |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Classification: |
Wood Process and Matching Equipment |
Certification: |
CE |
Product Description
1. Standard configuration
*NC Studio PCIMC 6B motion control system
*Panasonic AC servo system
*Frequency adjustable constant power water cooling spindle
*Rolling ball screw transmission
*Cast iron body
*X shape gantry, cast aluminium bracket
*Imported linear square rail
*Control cabinet
2. Options
* Multi independent Z axes or single Z axis with multi spindles
*At most 4 PCS 1.5KW spindle
*DSP control system
*Air cooling spindle
* PVC Board
*Dust collector
*Vacuum absorption
*Industrial cooling system
3. Applications
Classical red wood furniture, antique reproduction, woodcarving, gift wooden box, red wood jewelry box, ink stone engraving and processing, decoration products carving.
4. Features
*Jinka Sirius series engraving machine which is the best new model engraving machine by adopting best configuration features high quality processing of complicated red wood furniture.
*Employing integrated reinforced casting aluminium structure ensures high speed and low noise running.
*Function such as resumption after cutting of power, on the knife automatically, path prediction.
*Adopting imported linear square rail, four rows of rolling balls and high strength good quality steel features high precision, long life span as well as abrasive resistance.
*Adopting cast aluminium gantry and rigid body features duration and non-deformation.
*Adopting imported servo system featuring high precision and long time working possesses malposition detecting and alarm function
*Compatible with software such asType3/Artcam/CAXA/UG/PRO-E/Mastercam/Ucancam and so on.
Model | JK-1315D |
Dimension | 1300×1500mm |
Feeding hight | 180mm |
Idle speed | 20m/min |
motor | 15m/min |
Processing speed | Panasonic or Yaskawa AC servo |
Spindle power | 800W~1.5KWfrequency adjustable water cooling spindle |
Rotary rate | 6000 or 24000 rpm/min |
Working voltage | AC220V/50Hz |
Engraving tool | 3.175/4/6mm |
File format | G code/HPGL |
Positioning precision | ±0.03mm |
Repeat positioning precision | ±0.02mm |
control system | NC studio system |
Hefei Kaxing Digital Control Equipment Co., Ltd. is a high-tech industry enterprise integrating research, development, manufacturing, sale and after-sales service. Our company mainly focuses on manufacturing CNC engravers, laser engravers, mould engravers, cutting plotters and CAD plotters.
The Gold Cut series products of our company have been widely used in woodwork industry, advertisement decoration industry, sign and scutcheon industry, art craft and gifts industry and module industry. With high technique, reliable quality and excellent character, our products have won a good reputation in the world. Our products sell well not only in domestic market, but also in oversea marketing. Such as in Southeast Asia, Europe, America and Africa.
We follow in "Gold Cut brand, Gold Cut quality and Gold Cut Service" principle to pursue excellent, aggressive and innovative.
