| Prod Model: |

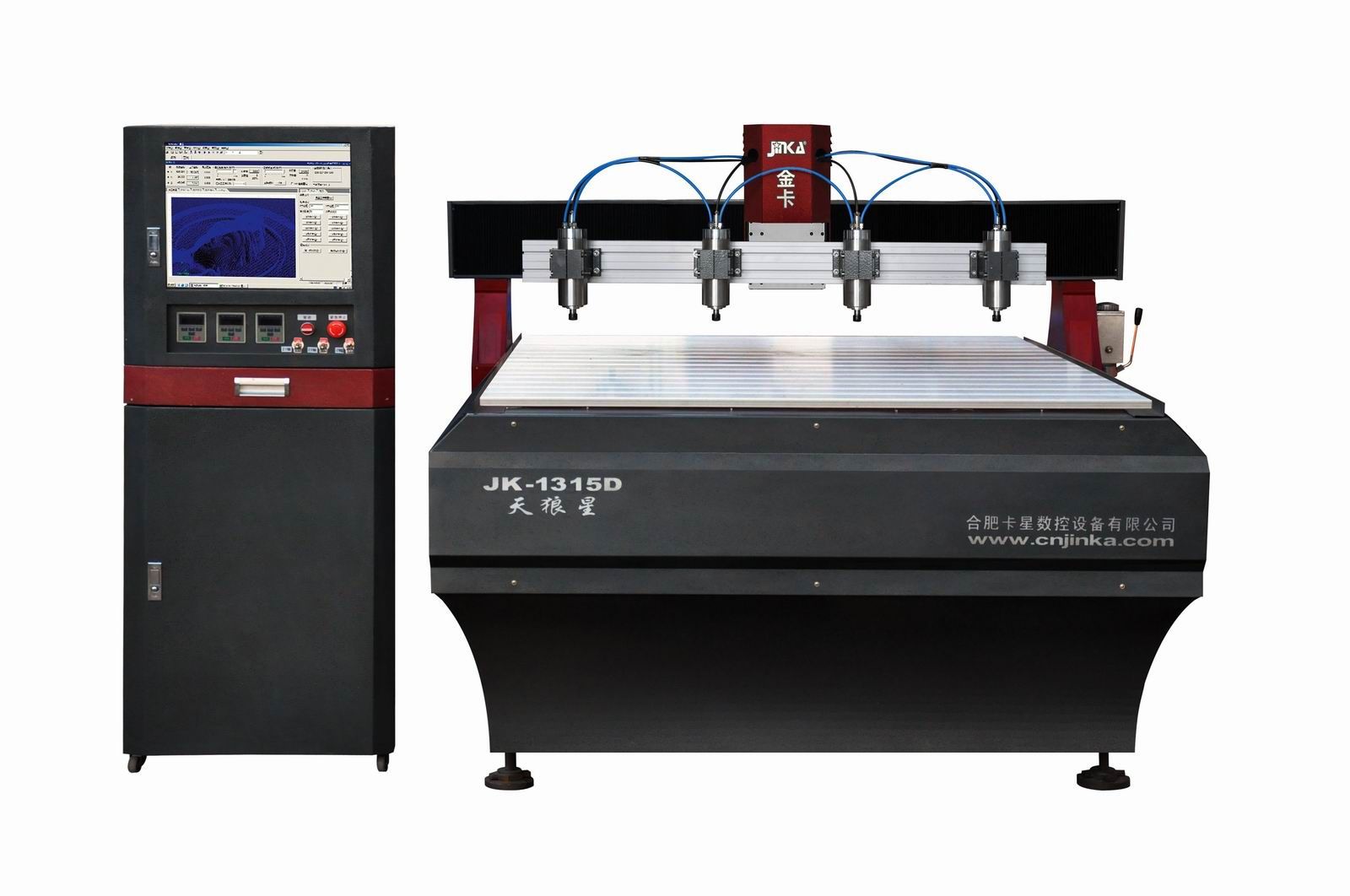

JK-1315D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Classification: |
Wood Process and Matching Equipment |
| Certification: |
CE |
Product Description
1. Standard configuration
*NC Studio PCIMC 6B motion control system
*Panasonic AC servo system
*Frequency adjustable constant power water cooling spindle
*Rolling ball screw transmission
*Cast iron body
*X shape gantry, cast aluminium bracket
*Imported linear square rail
*Control cabinet
2. Options
* Multi independent Z axes or single Z axis with multi spindles
*At most 4 PCS 1.5KW spindle
*DSP control system
*Air cooling spindle
* PVC Board
*Dust collector
*Vacuum absorption
*Industrial cooling system
3. Applications
Classical red wood furniture, antique reproduction, woodcarving, gift wooden box, red wood jewelry box, ink stone engraving and processing, decoration products carving.
4. Features
*Jinka Sirius series engraving machine which is the best new model engraving machine by adopting best configuration features high quality processing of complicated red wood furniture.
*Employing integrated reinforced casting aluminium structure ensures high speed and low noise running.
*Function such as resumption after cutting of power, on the knife automatically, path prediction.
*Adopting imported linear square rail, four rows of rolling balls and high strength good quality steel features high precision, long life span as well as abrasive resistance.
*Adopting cast aluminium gantry and rigid body features duration and non-deformation.
*Adopting imported servo system featuring high precision and long time working possesses malposition detecting and alarm function
*Compatible with software such asType3/Artcam/CAXA/UG/PRO-E/Mastercam/Ucancam and so on.
| Model | JK-1315D |
| Dimension | 1300×1500mm |
| Feeding hight | 180mm |
| Idle speed | 20m/min |
| motor | 15m/min |
| Processing speed | Panasonic or Yaskawa AC servo |
| Spindle power | 800W~1.5KWfrequency adjustable water cooling spindle |
| Rotary rate | 6000 or 24000 rpm/min |
| Working voltage | AC220V/50Hz |
| Engraving tool | 3.175/4/6mm |
| File format | G code/HPGL |
| Positioning precision | ±0.03mm |
| Repeat positioning precision | ±0.02mm |
| control system | NC studio system |
