| Prod Model: |
ZMD-1318 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Classification: |
Wood Process and Matching Equipment |
| Certification: |
CE |
Product Description
Landing Ship Series-Cross bar high leg
1. Features
*Adopting imported linear square rail ensures heavy loading, stable running, and high precision.
*Gear rack transmission for all axes ensures high accuracy and abrasion resistance
*Manual lubricator for option saves maintenance time and extends the lifetime of square rail.
*Employing high performance frequency adjustable constant power water cooling spindle and inverter ensures good performance, large torque, and high efficiency.
*Fast and stable by adopting performance motor and driving motor and double motors for Y axis.
*Compatible with software such asType3/Artcam/CAXA/UG/PRO- E/Mastercam/Ucancam and so on.
2. Options

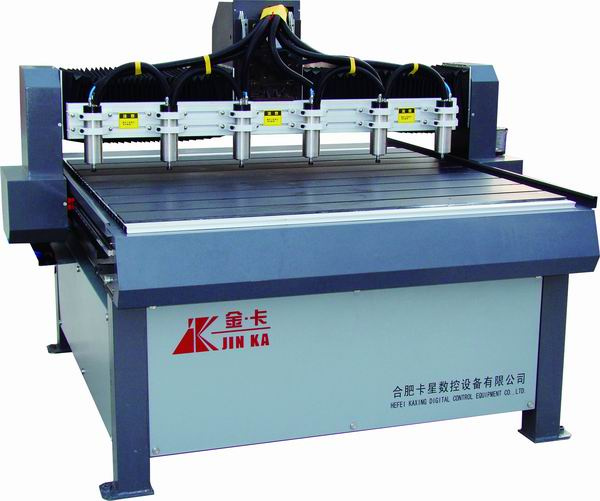

*Double independent Z axes or single Z axis with multi spindles (At most six PCS 1.5KW spindles)
*various spindles meet different market needs
*Air cooling spindle
*NC Studio PCIMC motion control system
*DSP control system
*Panasonic, Yaskawa AC servo system
*Rolling ball screw (imported for option) transmit for Z axis
*Dust cover for X axis
*PVC board
*Manual lubricator
*Dust collector
*Vacuum absorption
*Industrial cooling system
*Panasonic AC servo system, German Becker vacuum pump, Industrial cooling system
3. Applications
Classical mahogany furniture, European style furniture, Antique reproduction furniture carving, Screen hollowing-out, Solid wooden door, Art craft wooden door, Free of paint door, Art craft windows, Various of tables, Board furniture, Advertising sign, Scutcheon making, Acrylic cutting, blister light boxes, Curtain wall making
Copper, aluminium, plastic plate, Wooden board and non metal mould
4. Standard configuration
NC Studio motion control system
Step driver
Frequency adjustable constant power water cooling spindle
Linear square rail and motion slide imported from Taiwan
High quality bridge square steel body
Thick aviation aluminium table
Gear rack transmission
Control cabinet
| Model | ZMD-1313/ZMD-1313A | ZMD-1318/ZMD-1318A | ZMD-1325/ZMD-1325A |
| Dimension | 1300× 1300mm | 1300× 1800mm | 1300× 2500mm |
| feeding height | 160mm |
| Idle speed | 20m/min |
| Processing speed | 10m/min |
| Spindle power | 800W~4.5KW frequency adjustable water cooling spindle |
| Rotary rate | 6000 or 24000 rpm/min |
| Working Voltage | AC220V/50Hz or AC380V/50Hz |
| Engraving tool | 3.175/4/6/12.7mm |
| File format | G code/ HPGL |
| Positioning precision | ± 0.05mm |
| Repeat positioning precision | ± 0.02mm |
| control system | NC Studio PCIMC motion control system |
