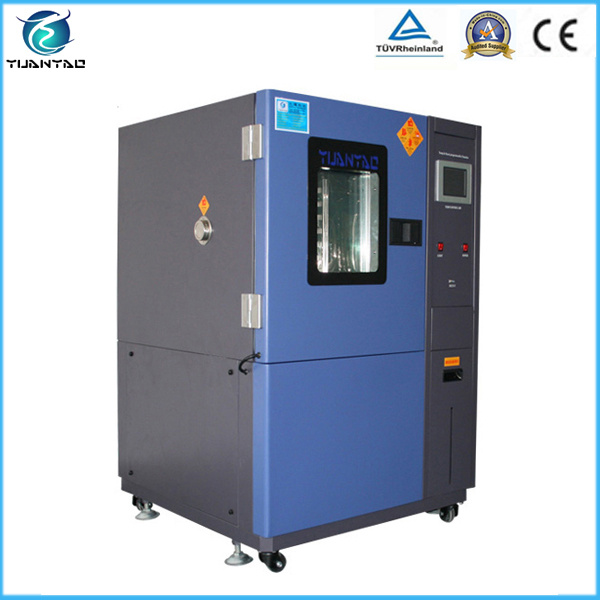

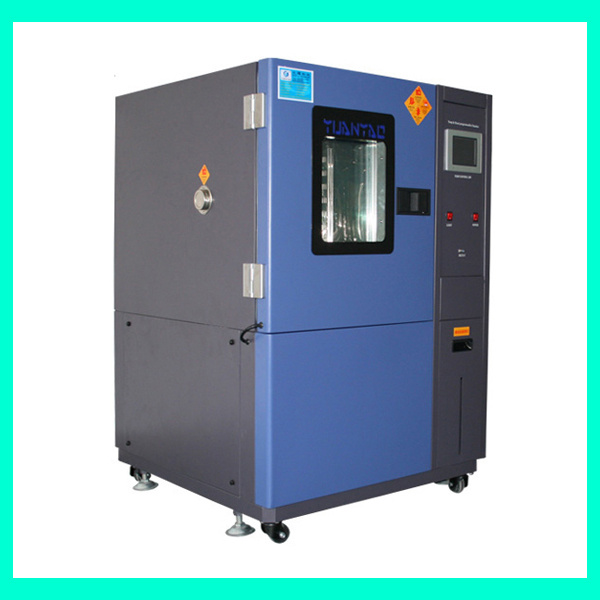

Climatic Temperature Cycling Test Cabinet

Climatic Temperature Cycling Test Cabinet
Price: US $ 4800/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: YTH-800
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Chamber Size W*H*D: 1000*1000*800mm
Usage (Application): Temperature Humidity Test Machine
Exterior Chamber Size W*H*D: 1500*1900*1350mm
Color: Ivory / Blue/ Other
Temperature Range: -60~ +180 Celsius Degree
Humidity Range: 20% - 98%Rh
Controller: Digital Touch Screen (Imported Japanese Unique)
Compressor: Imported French Tecumseh
Inspection & Calibration: in House
Power: AC 3 Phase 380V 50Hz
Type: Universal Testing Machine
Weight: 100-500Kg
Power Source: AC380V
Control: Controller
Oil Cylinder Position: N/a

Product Description

Application
Climatic temperature cycling test cabinet
Climatic temperature cycling test cabinet for detecting material under a variety of environmental equipment and test the performance of a variety of materials, heat, cold resistance dry and wet performance. Suitable for electronic, electrical, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and other products quality testing purposes.



Feature

LCD colour touch screen

CE Certification

High quality and lowest price Power leakage protection

Available at economical prices

Versatile and energy efficient design

Easy installations

Advanced and reliable refrigeration system


Technical parameters: pls see the form
ModelYTH-080YTH-150YTH-225YTH-408YTH-800YTH-1000
Internal Dim.W×H×D(mm)400×500×400500×600×500500×750×600600×850×8001000×1000×8001000×1000×1000
External Dim.W×H×D(mm)900×1400×9501000×1500×10501000×1650×11501100×1750×13501500×1900×13501500×1900×1550
Temperature Range -70ºC-60ºC,-40ºC,-20ºC,0ºC~+150ºC,+180ºC
Humidity Range20%HR ~98%HR
PerformanceTemp.&Humi accuracy±0.2ºC(1p), ±0.3ºC(2p);±2.5%RH(1p),±3.0%ºC(2p)
Temp.&Humi regularity±1.5ºC,±3.0%RH
Indication Resolution0.01ºC,0.01%RH
Heat up time          (20ºC~HT)ºC100    150100     150100     150100     150100     150100     150
min30    4030      4030      4530      4530      4530      45
Heat down time(20ºC~HT)ºC0 -20 -40 -60 -700 -20 -40 -60 -700 -20 -40 -60 -700 -20 -40 -60 -700 -20 -40 -60 -700 -20 -40 -60 -70
min25 40 50 80 9025 40 50 80 9025 40 50 80 9025 40 55 80 9025 40 75 85 9025 40 85 95 100
MaterialExteriorStainless steel plate+Powder Coated
InteriorSUS#304 stainless steel plate
InsulationPU & Fiberglass wool

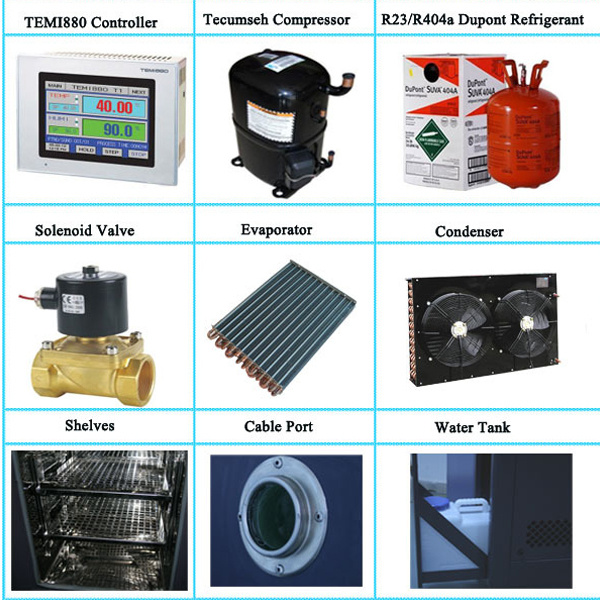

SystemsCirculationSirocco fan
HeatingSUS#304 stainless steel high-speed heater
HumidifyingSurface evaporating system
CoolingAirtight compressor+vaporator fins+air-cooling condenser
DehumidifyingADP Critical dewpoint cooling/dehumidifying method
ControllerDigital electronic indicatrs+S.S.R.With PID automatic calculation capabilty
AccessoriesViewing window, Shelves (freely adjustable 2 pcs.), Cable port(Ø60mm)Chamber lamp.
Safety devicesNo fuse breaker refrigerator over load relay, Refrigeration High pressure Switch, Over Temp, Protector, Protection relay, Protection fuse, Water Lever protector, Overheat protector, Alarm
Power(K.W.)AC 1Ψ 220V,3Ψ380V 60/50Hz

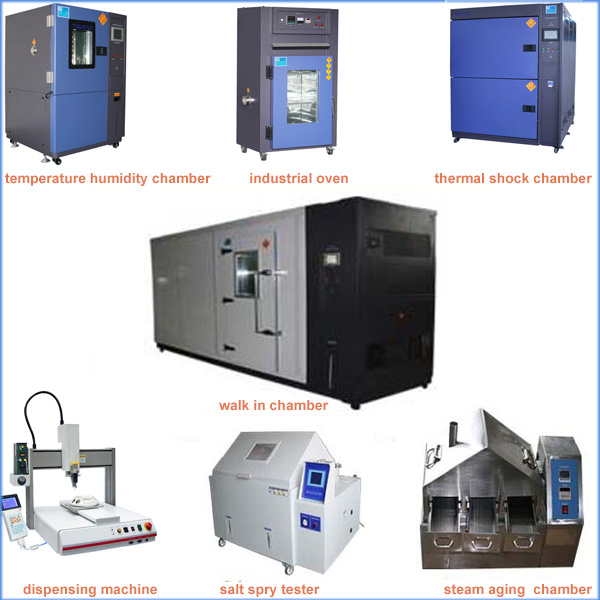

Besides climatic temperature cycling test cabinet, we are also supply

Thermal shock chamber, Temperature & humidity Control Host, Ozone test chamber, Salt Spray Tester, Walk In environmental Testing Room, Temperature & humidity & Vibration Combined Testing Chamber, Aging Oven Tester, Rain/Spray Testing Chamber, Burn-in testing equipment, Dust Tester, Steam Aging Tester, Electromagnetic High Frequency Vibration Tester, Tensile Tester, Drop Tester, Precision Oven Tester, etc.



Founded in 2009, Dongguan Yuanyao Electronics Technology Co., Ltd. Has become a leading manufacturer of environmentally friendly test chambers.

Our main products include Programmable Temperature & Humidity Chambers, Thermal Shock Testers, Walk-In Environmental Test Rooms, LCM (LCD) Aging Chambers, Salt Spray Testers, Aging Ovens, Vibration Combined Test Chambers, Steam Aging Testers, etc.

We have helped companies in a wide range of industry sectors including photo electricity, electronic communication, semi-conductor, electric appliance and machine, spaceflight, automobile, locomotive, telecommunication, food and pharmacy and academic institutions realize their climate test objectives.

We have developed rapidly these years. The commitment of our experienced team of engineers has been and continued to be excellence - excellence in engineering and design, excellence in manufacture and excellence in the service that we provide for our ever increasing lists of customers.

Our resources and expertise enable us to supply high quality equipment ranging from simple benchtop chambers to major "turnkey" projects. We can produce equipment according to customers' Exact requirements, from conception to completion.

We will take an active role to ensure that our equipment proposed will not only meet the specifications but also will be made as per the budget. We also provide timely delivery.
