| Prod Model: |
OA series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temperature Range: |
(Rt+15)-65 Deg C |
| Control Accuracy Of Temperature: |
+-0.5 Deg C |
| Distribution Uniformity Of Temperature: |
+-2.0 Deg C |
| Analytic Accuracy Of Temperature: |
0.1 Deg C |
| Ozone Concentration (Pphm): |
1-1000 Adjustable |
| Deviation Of Ozone Concentration: |
<=10% |
| Ozone Generator: |
Silent Discharge Tube Type |
| Internal And External Material: |
Polyurethane Rigid Foam/Superfine Glass Fiber Cott |
| Security: |
Leakage, Short Circuit, Over-Current Protection |
| Power: |
AC 220V |
| Type: |
Ozone Aging Test |
Product Description

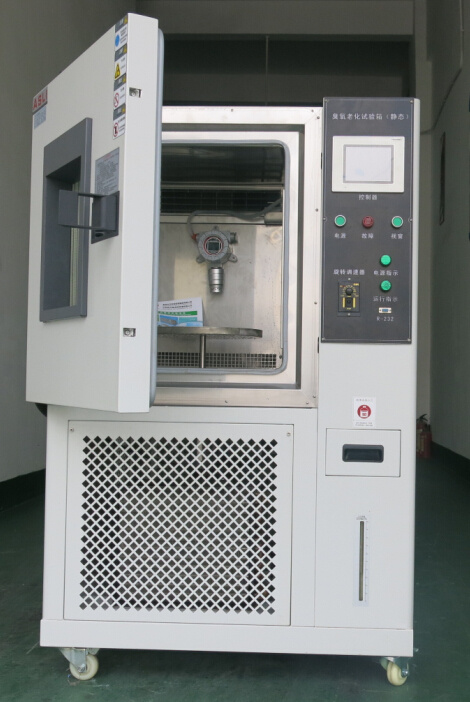

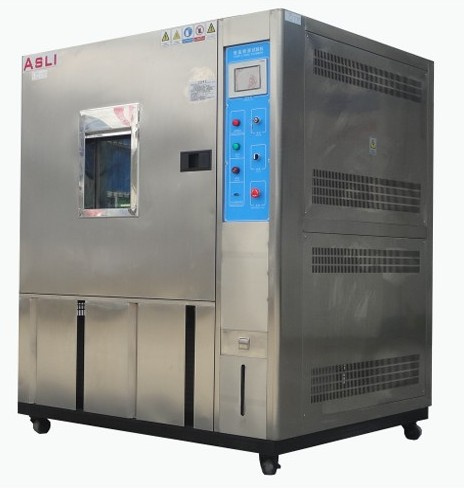

AATCC 129 standard High Quality Ozone Test Chamber/Aging Test Cabinet for Rubber/testile
AATCC 129 standard High Quality Ozone Test Chamber/Aging Test Cabinet for Rubber is used to test the ozone environment, the characteristics of crack-resistant rubber, ozone
resistance testing machine, can control and adjust the concentration of ozone environment, to determine the anti-ozone properties of the specimen.
AATCC 129 standard High Quality Ozone Test Chamber/Aging Test Cabinet for Rubber/texitle features: 1. Stainless steel inside and outside
2. Outside made iron with powder coating
3. Durable ozone generator
4. Insulation material is High-density glass fiber cotton
5. Bottom is universal round wheel and fixed foot

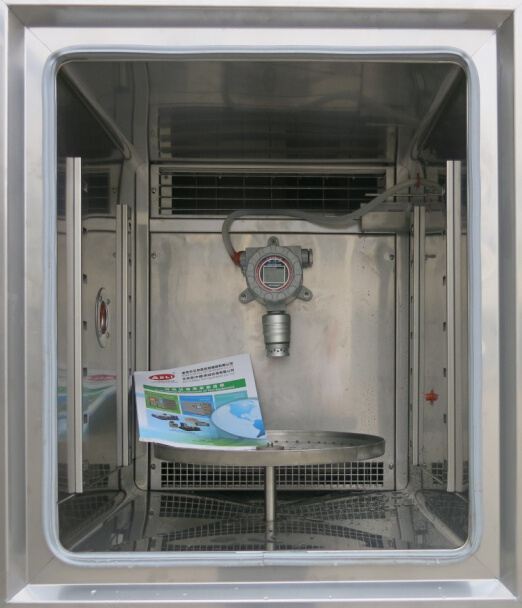

6. Window materials is multilayer steel-glass, the inside is chip conductive
High quality Ozone test chamber/aging test cabinet for rubber/textile technical parameters:
Model |
OA-80 |
OA-408 |
OA-800 |
Internal Dimensions
WxHxD (mm) |
400x500x400 |
600x850x800 |
1000x1000x800 |
Internal Dimensions
WxHxD (mm) |
950x1650x950 |
1200x1950x1350 |
1600x2000x1450 |
Temperature Range |
RT+10°C~+65°C |
Control Accuracy
of Temperature |
±0.5°C |
Distribution Uniformity
of Temperature |
±2.0°C |
Indication Resolution
of temperature |
0.1°C |
Ozone Concentration
(pphm) |
1~1000, adjustable |
Tolerance of
Ozone Concentration |
≤10% |
Ozone Generator |
Silent discharge tube type |
Internal and
External Material |
Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel
or SEE cold-rolled steel with paint coated. |
Insulation Material |
Polyurethane rigid foam / superfine glass fiber cotton |
Security |
Leakage, short circuit, over-current protection |
Power |
AC 220V |
