Wood Factory Use Stationary Hydraulic Scissor Lift Table with Roller
Price: |
US $ 950-1300/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
RLT |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Load Capacity: |
1000kg to 2000kg |
Lifting Height: |
870mm |
Quantity Of Hydraulic Cylinder: |
2 |
Voltage: |
as Per Customers' Local Standard |
Color: |
Yellow, Blue, Red or as Per Customer Requiement. |
Quality Warranty: |
12 Months |
Way Of Installation: |
on Ground or Underground |
Lead Time: |
20 |
Name: |
Roller Lift Table |
Series: |
Lift Table |
Application: |
Building Crane |
Carrying Capacity: |
Weight Level |
Driven Type: |
AC |
Running Mode: |
Stationary |
Feature: |
Spillover Valve |
Product Description
Wood factory use stationary hydraulic scissor lift table with rollerIntroduction:
Driven by the electric and hydraulic system.
Installed in the pit or on ground floor
Advantages:
1.Standard ramp make it easier to load and unload.
2.High quality pump station make it lift and fall very stably.
3.Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
4.Equipped with aluminum alloy blend-stop under the platform
5.Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
6.Explosion-proof valve stops platform lowering quickly when pipe bursts.
7.Up to American standard ANSI/ASME and Europe standard EN1570
Safety Precautions:
1. Explosion-proof valves
2. Spillover valve
3. Emergency decline valve
4. Overload protection locking device.
5. Emergency decline valve
6. Overload protection locking device.

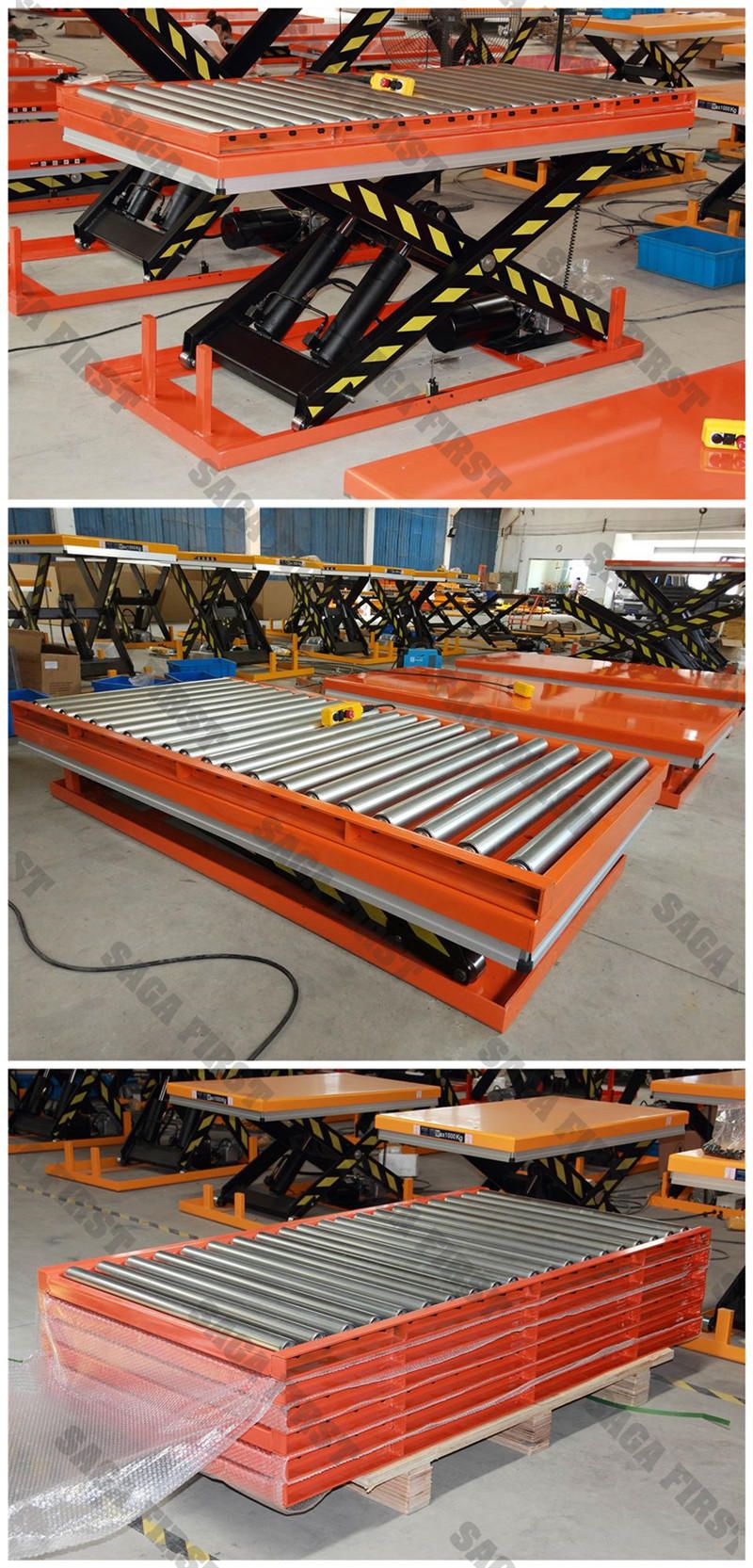

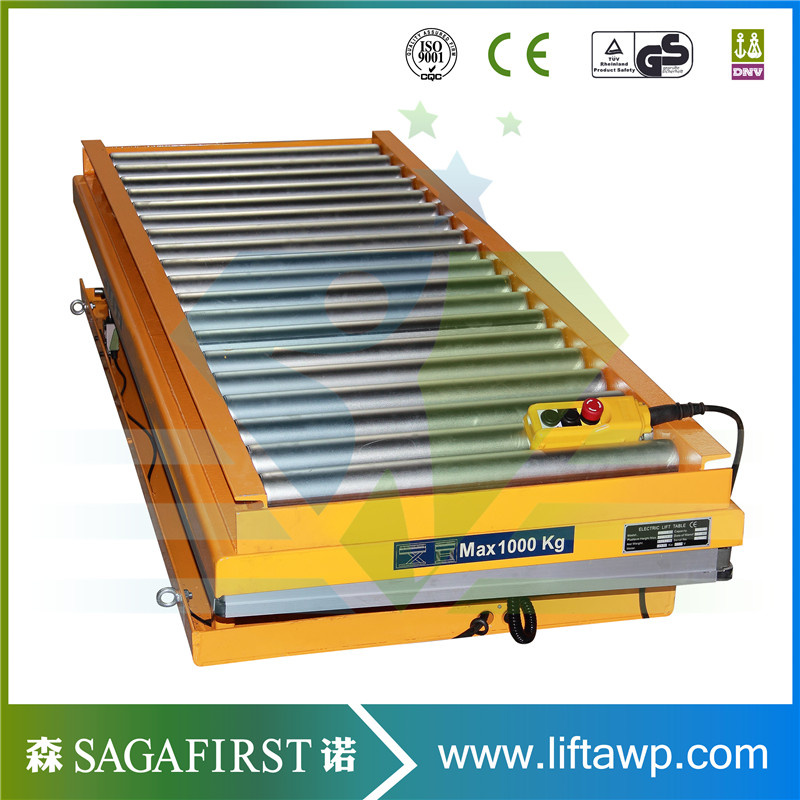

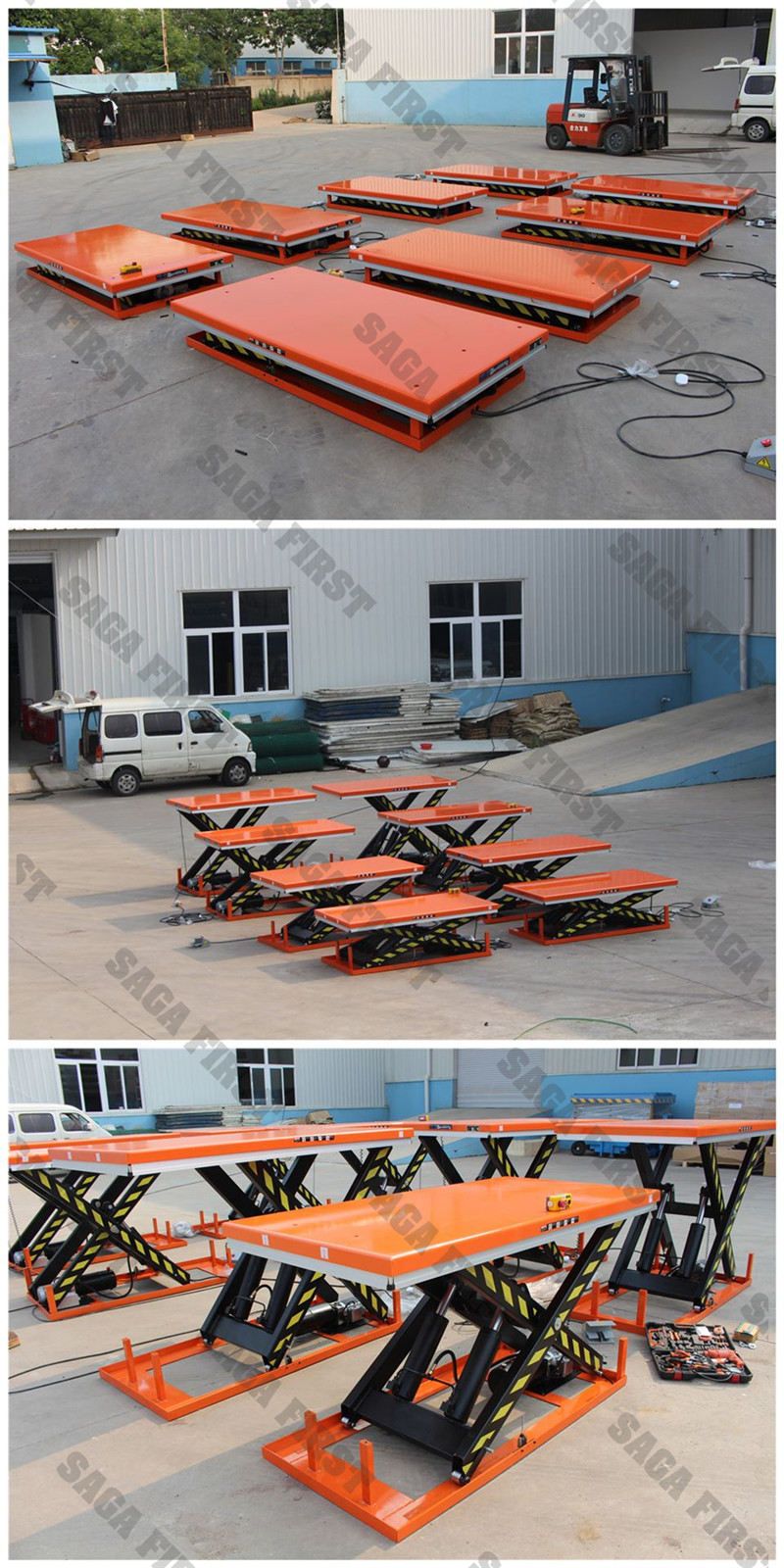

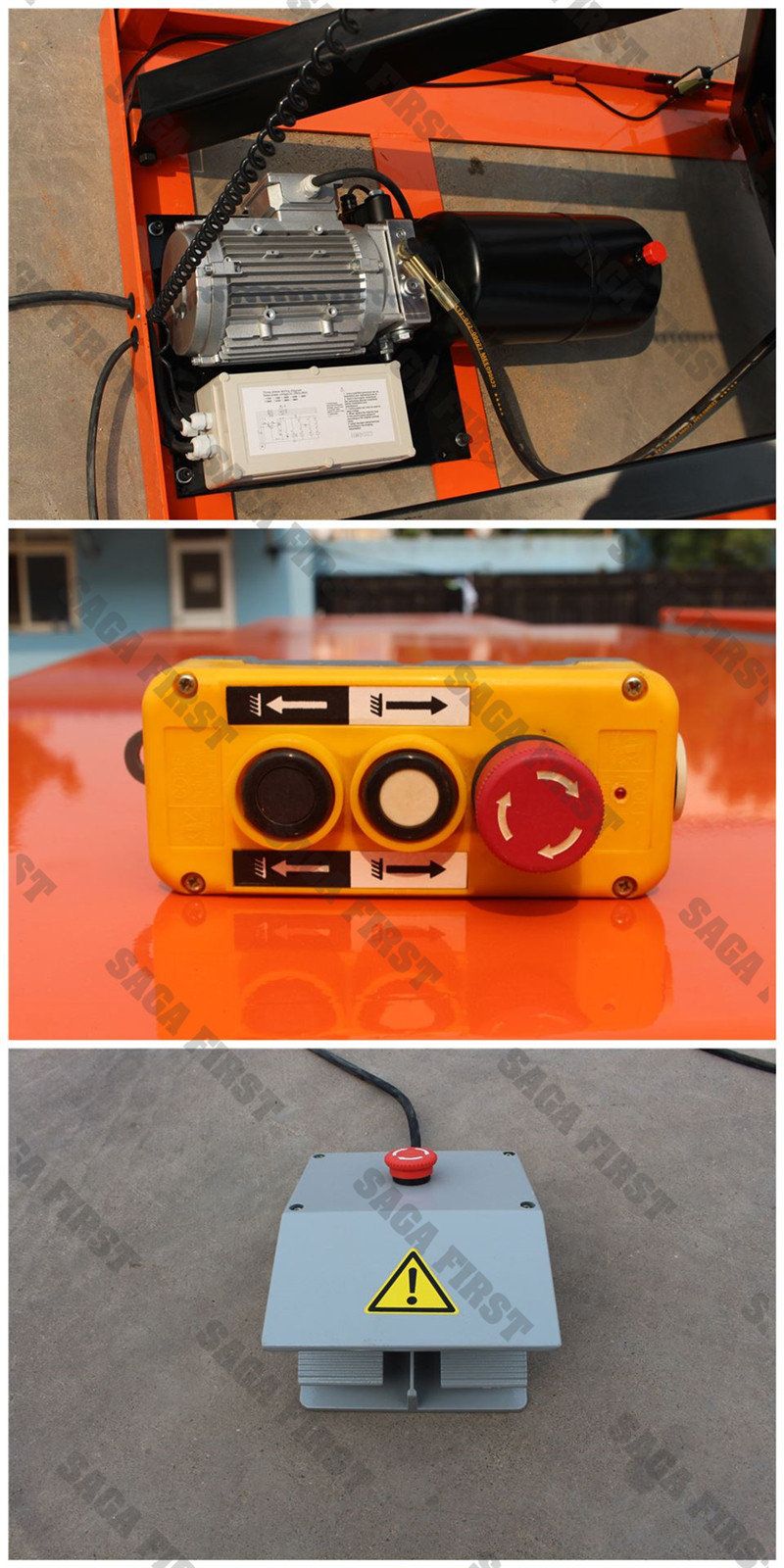

Picture for Your Review
Specification:Model | Load Capacity | Lowed Platform Height | Max.Platform Height | Platform Size | Size of Frame | Lifting time | Motor | Net weight |
| kg | mm | mm | (L×W)mm | (L×W)mm | s | kw | kg |
SS01 | 1000 | 205 | 1000 | 1300×820 | 1240×640 | 20-25 | 1.1 | 160 |
SS02 | 1000 | 205 | 1000 | 1600×1000 | 1240×640 | 20-25 | 1.1 | 186 |
SS03 | 1000 | 240 | 1300 | 1700×850 | 1580×640 | 30-35 | 1.1 | 200 |
SS04 | 1000 | 240 | 1300 | 1700×1000 | 1580×640 | 30-35 | 1.1 | 210 |
SS05 | 1000 | 240 | 1300 | 2000×850 | 1580×640 | 30-35 | 1.1 | 212 |
SS06 | 1000 | 240 | 1300 | 2000×1000 | 1580×640 | 30-35 | 1.1 | 223 |
SS07 | 2000 | 230 | 1050 | 1300×850 | 1280×785 | 20-25 | 1.5 | 235 |
SS08 | 2000 | 230 | 1050 | 1600×1000 | 1280×785 | 20-25 | 1.5 | 268 |
SS09 | 2000 | 250 | 1300 | 1700×850 | 1600×785 | 25-35 | 2.2 | 289 |
SS10 | 2000 | 250 | 1300 | 1700×1000 | 1600×785 | 25-35 | 2.2 | 300 |
SS11 | 2000 | 250 | 1300 | 2000×850 | 1600×785 | 25-35 | 2.2 | 300 |
SS12 | 2000 | 250 | 1300 | 2000×1000 | 1600×785 | 25-35 | 2.2 | 315 |
SS13 | 4000 | 240 | 1100 | 1700×1200 | 1600×900 | 30-40 | 2.2 | 375 |
SS14 | 4000 | 240 | 1100 | 2000×1200 | 1600×900 | 30-40 | 2.2 | 405 |
SS15 | 4000 | 300 | 1400 | 2000×1000 | 2000×900 | 45-50 | 2.2 | 470 |
SS16 | 4000 | 300 | 1400 | 2000×1200 | 2000×900 | 45-50 | 2.2 | 490 |
SS17 | 4000 | 300 | 1400 | 2200×1000 | 2000×900 | 45-50 | 2.2 | 480 |
SS18 | 4000 | 300 | 1400 | 2200×1200 | 2000×900 | 45-50 | 2.2 | 505 |
Certificate:ISO and CE
Our Service:1.We can design the customerized scissor lift table as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the scissor lift table break down to help you repair.
6.Parts of scissor lift table can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The scissor lift table adopt most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the scissor lift table.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it breask down within one year,we can send the parts free of charge to you.

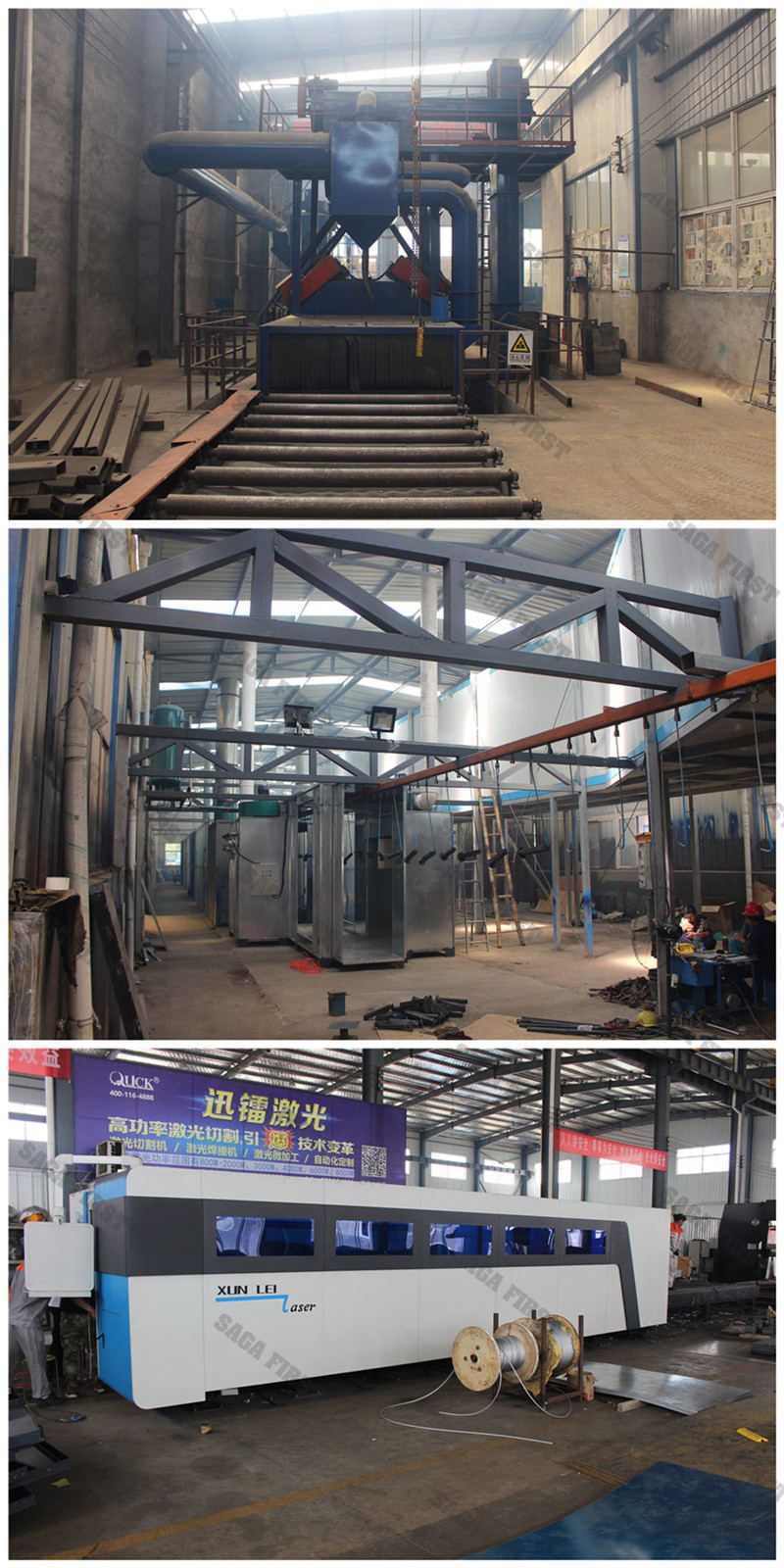

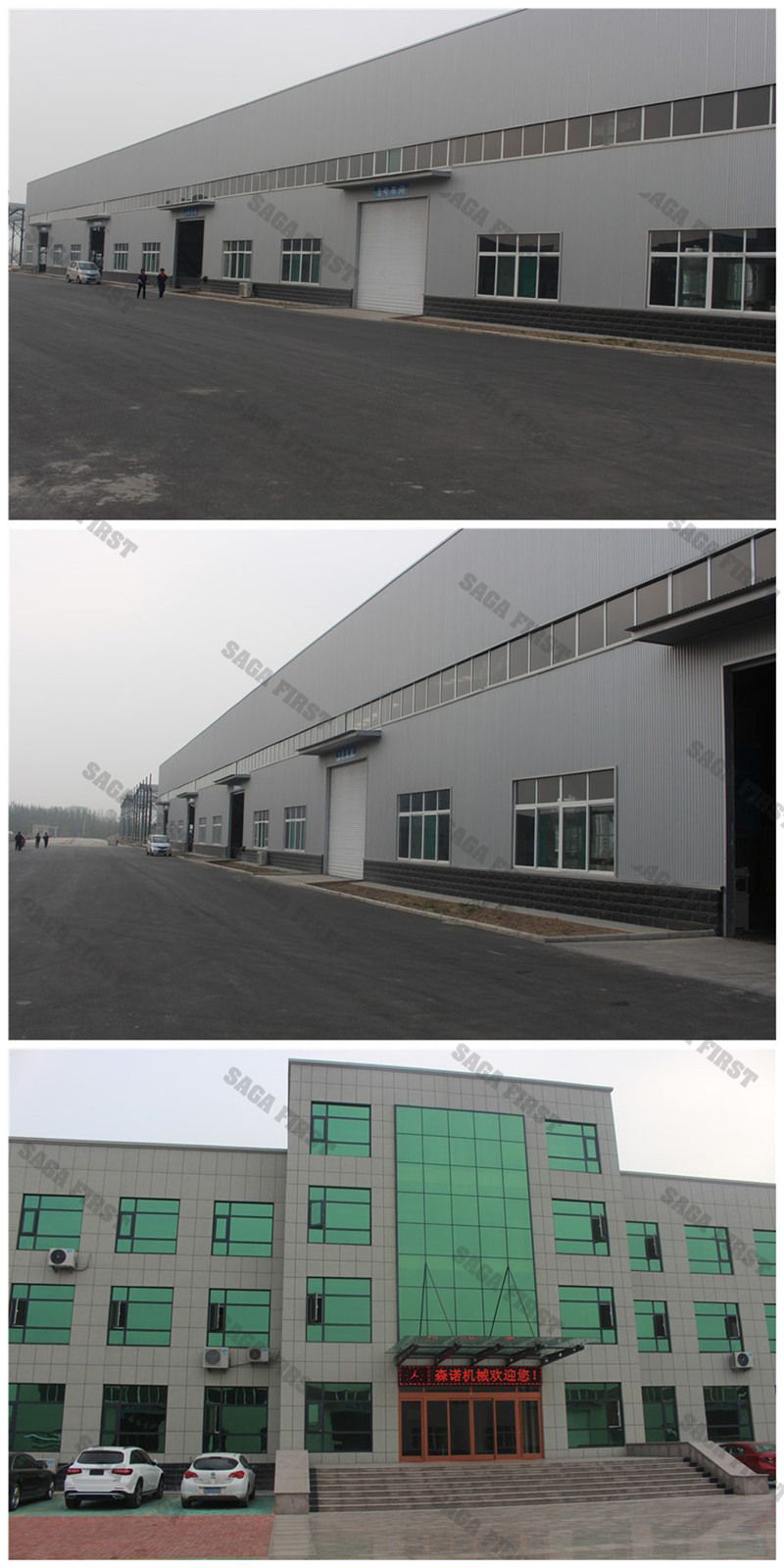

Factory Show:
