| Prod Model: |
RLT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Load Capacity: |
1000kg to 2000kg |
| Lifting Height: |
870mm |
| Quantity Of Hydraulic Cylinder: |
2 |
| Voltage: |
as Per Customers' Local Standard |
| Color: |
Yellow, Blue, Red or as Per Customer Requiement. |
| Quality Warranty: |
12 Months |
| Way Of Installation: |
on Ground or Underground. |
| Lowering Speed: |
Adjustable |
| Application: |
Building Crane |
| Carrying Capacity: |
Weight Level |
| Driven Type: |
AC |
| Running Mode: |
Stationary |
| Feature: |
Spillover Valve |
Product Description

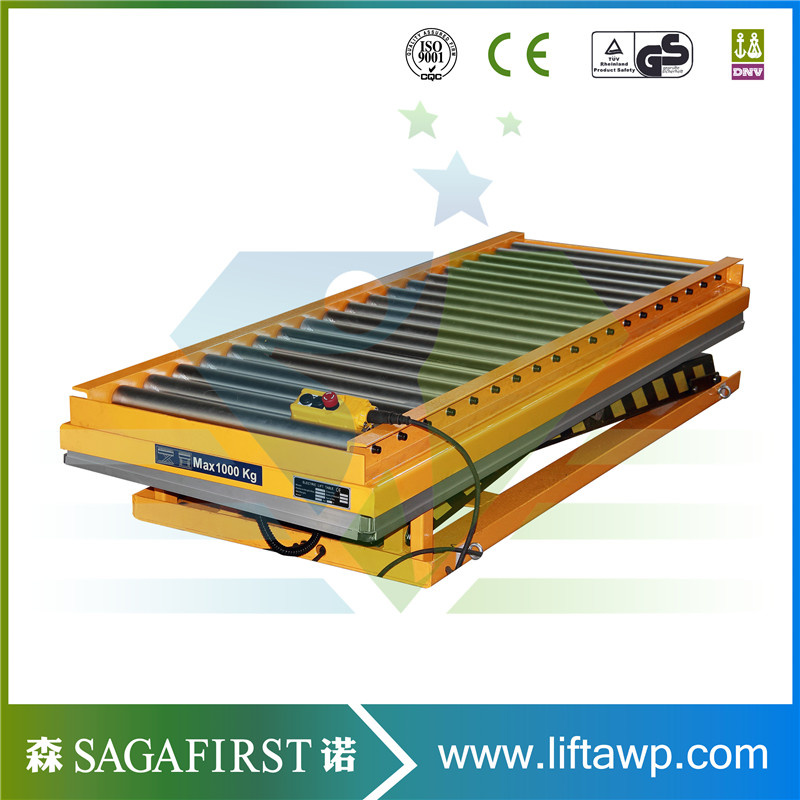

1ton stationary hydraulic roller conveyor wood lifting table
Introduction:
Driven by the electric and hydraulic system.
Installed in the pit or on ground floor
Advantages:
1.Standard ramp make it easier to load and unload.
2.High quality pump station make it lift and fall very stably.
3.Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
4.Equipped with aluminum alloy blend-stop under the platform
5.Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
6.Explosion-proof valve stops platform lowering quickly when pipe bursts.
7.Up to American standard ANSI/ASME and Europe standard EN1570
Safety Precautions:
1. Explosion-proof valves
2. Spillover valve
3. Emergency decline valve
4. Overload protection locking device.
5. Emergency decline valve
6. Overload protection locking device.
7.Automatic Safety sensor: lift platform will stop automatically when come across barriers.
Specification:
| Model | Load Capacity
(Kg) | Platform Size
(mm) | Base Size
(mm) | Min./Max.Platform Height
(mm) | Lifting time
(S) | Voltage
(V) | Net Weight
(kg) |
| LP01 | 1000 | 1450*1140 | 1325*1074 | 85/860 | 25 | As Per Customers' Local Standard | 357 |
| LP02 | 1000 | 1600*1140 | 1325*1074 | 85/860 | 25 | 364 |
| LP03 | 1000 | 1450*800 | 1325*734 | 85/860 | 25 | 326 |
| LP04 | 1000 | 1600*800 | 1325*734 | 85/860 | 25 | 332 |
| LP05 | 1000 | 1600*1000 | 1325*734 | 85/860 | 25 | 352 |
| LP06 | 1500 | 1600*800 | 1325*734 | 105/870 | 30 | 302 |
| LP07 | 1500 | 1600*1000 | 1325*734 | 105/870 | 30 | 401 |
| LP08 | 1500 | 1600*1200 | 1325*734 | 105/870 | 30 | 415 |
| LP09 | 2000 | 1600*1200 | 1427*1114 | 105/870 | 35 | 419 |
| LP10 | 2000 | 1600*1000 | 1427*734 | 105/870 | 35 | 405 |
Certificate:ISO and CE
Our Service:
1.We can design the customerized stationary scissor lift as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the stationary scissor lift break down to help you repair.
6.Parts of scissor lift can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The stationary scissor lifts adopt most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the stationary scissor lifts.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it breask down within one year,we can send the parts free of charge to you.
