Window Cleaning Lift Table for Cleaning Building
| Price: |
US $ 3200-12500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SJY0.3 and GTJZ |
| Material: |
High-Duty Steel Structure |
| Platform: |
Antiskid Platform |
| Control Mode: |
Electric Box and Button |
| Tire: |
Four Solid Rubber Tires |
| Color: |
Blue,Red,Ect |
| Usage: |
Workshop, Square, Gas Station,Ect |
| Hydraulic Cyclinder: |
2-4 |
| Voltage: |
110V 220V 240V 380V Optional |
| Max Heigh: |
16m |
| Min Heigh: |
4m |
| Application: |
Building Crane |
| Carrying Capacity: |
Light Level |
| Driven Type: |
Hydraulic |
| Running Mode: |
Moving |
Product Description
window cleaning lift table for cleaning building
 |

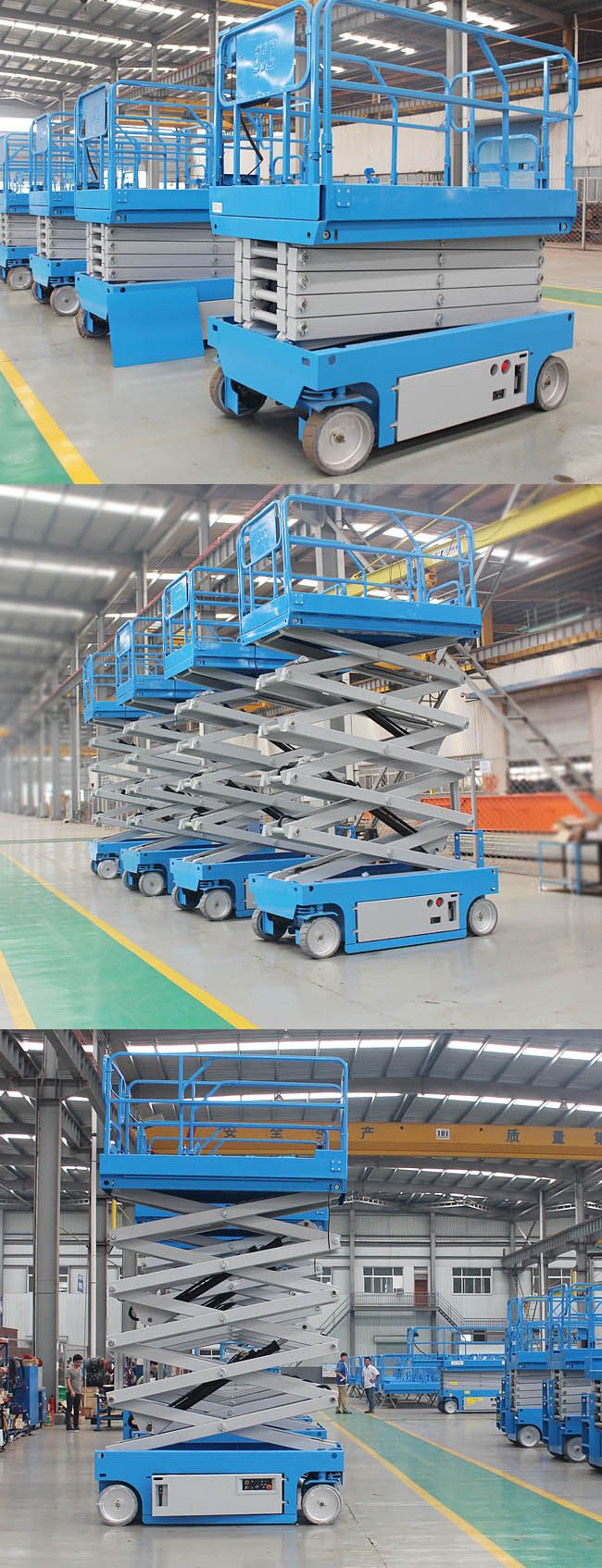

| About self-propelled scissor lift |
self-propelled Scissor lift provide you in comparable reliability and versatility - enhance efficiency. As the ideal model for flexible operation in crowded space , it is suitable for both flat and rugged ground indoor and outdoor construction, repairing and installation . GTJZ series have the features of low noise , higher loading capacity and larger work platform.
 |

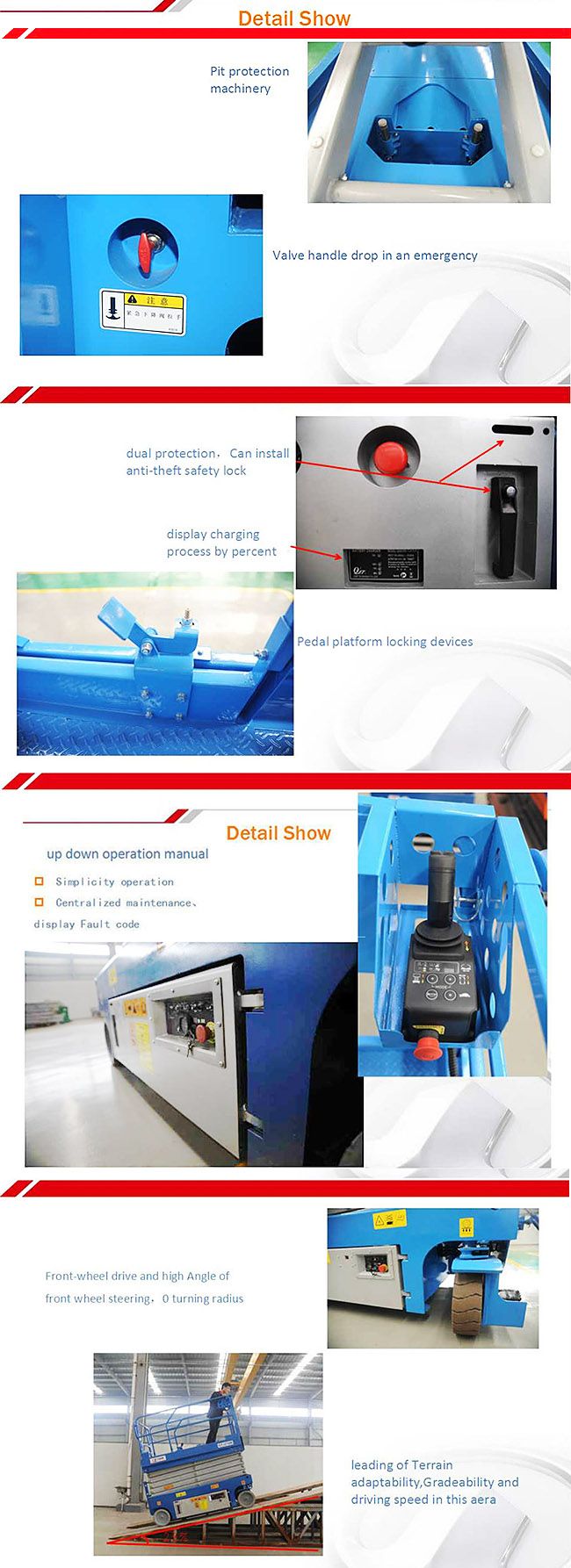

| Detail display | 1.self-propelled hydraulic powered. 2.solid non-marking tires to suit tough outdoor working conditions. 3.manual platform lowering valve in case of machine breaking down. 4.on-board diagnostic system to save time and manpower maintenance. |
|
| Security assurance | 1. Control voltage is DC24V.Keeping working person safe.
2. Electrical control box is water-proof design.
3. Installing Emergency button,Can keeping working person safe.
4. Self-locking funtion will work when electricity is suddenly cut off.
5. System have Emergency drop valve,which can let platform down safely |
| Safe guarantee control system | · Electric control:
| A.manual button box, which may be placed on the platform for the convenience of operation.
B.electric control box, which is supported with emergency stop button for prevention of any accident. | · Manual control:
| It can install manual lowering valve, in case of power cut off suddenly. |
 |

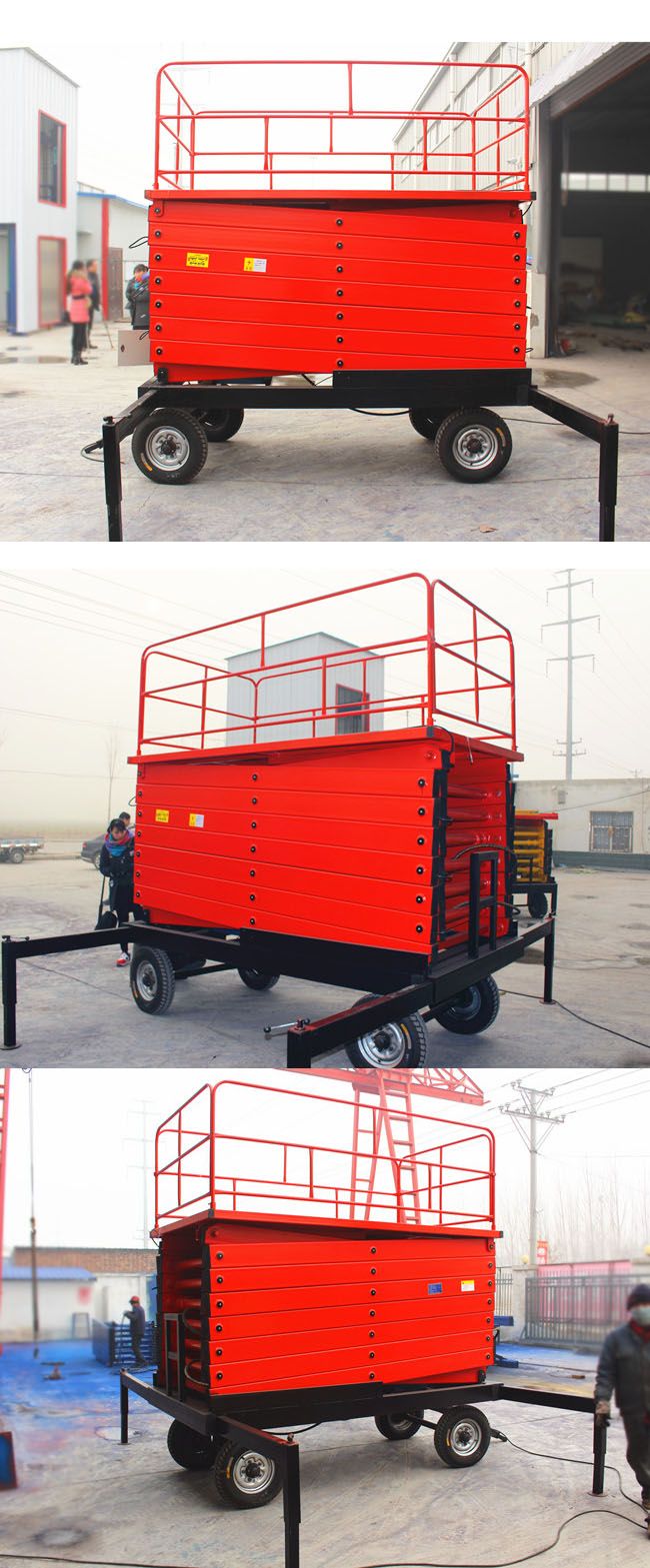

| About towable hydraulic scissor lift |
The series scissor lift is manually pulled types.The elevating power for platform has 380V/400V/415V/110V/220V and so on, giving customers more choice. It has two kinds of control method at the same time:Manual control,electric control. Moreover,simple set up and 4M to 16M of working height make them the ideal resolution for application requiring close access. The product are the best choice for customers on a budget.Compact outriggers,handrails and other devices ensure safety during operation.
|
| basic parameter |
1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture 2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure. 3. Emergency decline valve: it can go down when you meet an emergency. |
The features |
1.great loading capacity
2.flexible movement
3.go up and down stably | 1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture 2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure. 3. Emergency decline valve: it can go down when you meet an emergency. |
| The following is only a reference. We can design and make products according to the buyer's requirement. GTJZ MODEL | Model | GTJZ06 | GTJZ08B | GTJZ10A | GTJZ10B | GTJZ12 | GTJZ14 | | Working Height | 6.0m | 8.0m | 9.8m | 10.0m | 11.8m | 14m | | Platform Height | 4.0m | 6.1m | 7.8m | 8.2m | 9.8m | 12m | | Capacity | 270kg | 320kg | 320kg | 450kg | 450kg | 350kg | | Platform dimension | 2.3*0.77m | 2.3*0.85m | 2.3*0.85m | 3.22*1.2m | 2.65*1.15m | 3.22*1.2m | | Length | 1.88m | 2.3m | 2.3m | 2.45m | 2.56m | 2.55m | | Height | 1.9m | 2.25m | 2.38m | 2.26m | 2.4m | 2.5m | | Width | 0.77m | 0.85m | 0.85m | 1.2m | 1.15m | 1.2m | | Weight | 1335kg | 2005kg | 2180kg | 2330kg | 1500kg | 3350kg | | Grade ability | 25% | 25% | 25% | 25% | 25% | 25% |

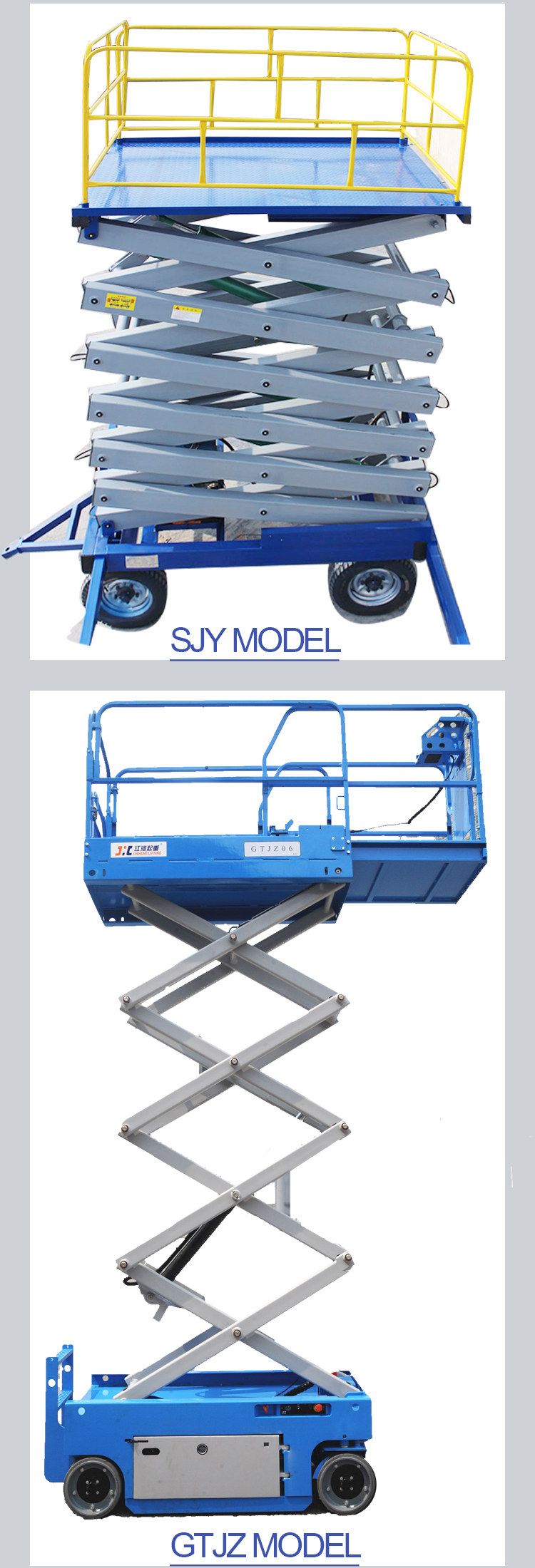

SJY MODEL | Model | Lifting height
(M) | Loading capacity
(KG) | Table size
(L*W )(MM) | Total dimension
(L*W*H)(MM) | Power
(KW) | Weight
(KG) | | SJY0.3-4 | 4 | 300-2000 | 1750*1100 | 1800*1300*1350 | 3 | 660 | | SJY0.3-6 | 6 | 300-2000 | 1750*1100 | 1800*1300*1350 | 3 | 750 | | SJY0.3-8 | 8 | 300-2000 | 1750*1100 | 1800*1300*1550 | 3 | 1000 | | SJY0.3-10 | 10 | 300-1000 | 2000*1300 | 2700*1550*2380 | 3 | 1400 | | SJY0.5-10 | 10 | 500-2000 | 2000*1300 | 2050*1400*1860 | 3 | 1800 | | SJY0.3-12 | 12 | 300-500 | 2000*1300 | 2550*1630*2000 | 3 | 2000 | | SJY0.3-14 | 14 | 300-1000 | 2400*1500 | 2550*1630*2000 | 3 | 2400 | | SJY0.3-16 | 16 | 300-1000 | 2700*1500 | 2770*1630*2140 | 3 | 2800 |
 |
1. What should I provide when inquiry? A: Max. platform height or working height B: Lift capacity C: voltage | Our delivery is Efficient , Reliable ,and Prompt!

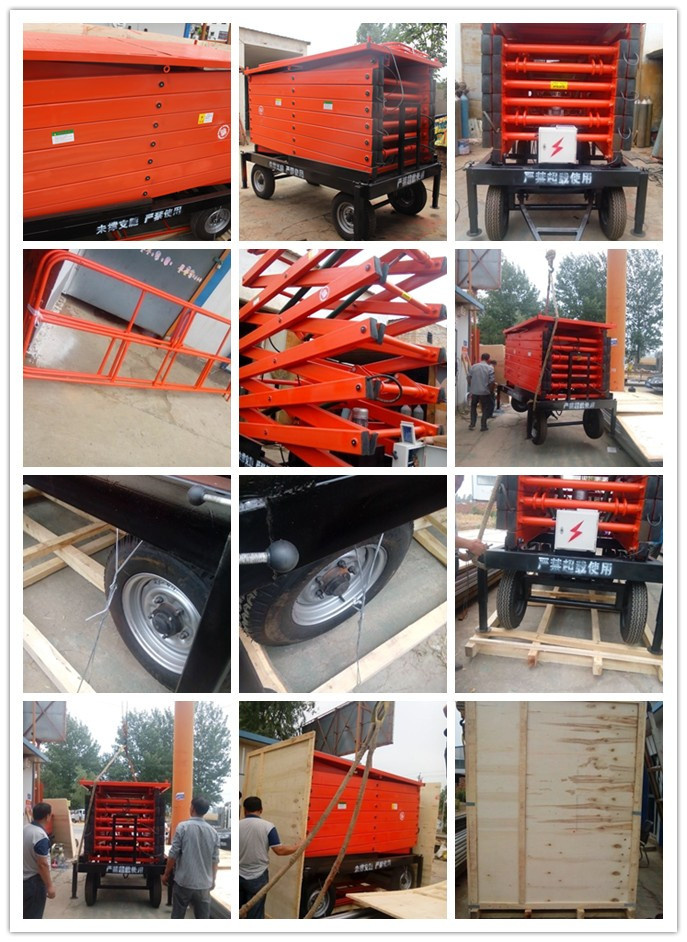

Electric parts are packed by strong plywood crate,others packaged in polythene woven cloth.
Or according to customer's requiment.
Our delivery is Efficient , Reliable ,and Prompt!
Electric parts are packed by strong plywood crate,others packaged in polythene woven cloth.
Or according to customer's requiment. |
2. Are the products customized? Yes,the lift platform can be customized according to your using condition and requirements |
3. Platform fault The accessories are free in the period of warranty if it is the quality problems |
4. How to Guarantee the qualities? All the export products are carefully examined for 3 times before shipping |
