High Quality Hydraulic Electric Lift Table

High Quality Hydraulic Electric Lift Table
Price: US $ 3080-8600/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: SJY0.5-10
Material: High-Duty Steel Structure
Platform: Antiskid Platform
Control Mode: Electric Box and Button
Tire: Four Solid Rubber Tires
Color: Blue, Red, Ect
Usage: Workshop, Square, Gas Station, Ect

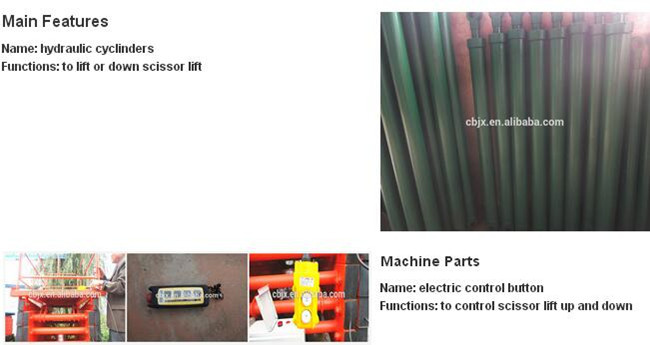

Hydraulic Cyclinder: 2-4
Voltage: 110V 220V 240V 380V Optional
Max Heigh: 16m
Min Heigh: 4m
Application: Building Crane
Carrying Capacity: Weight Level
Driven Type: Hydraulic
Running Mode: Moving
Feature: Explosion-Proof

Product Description

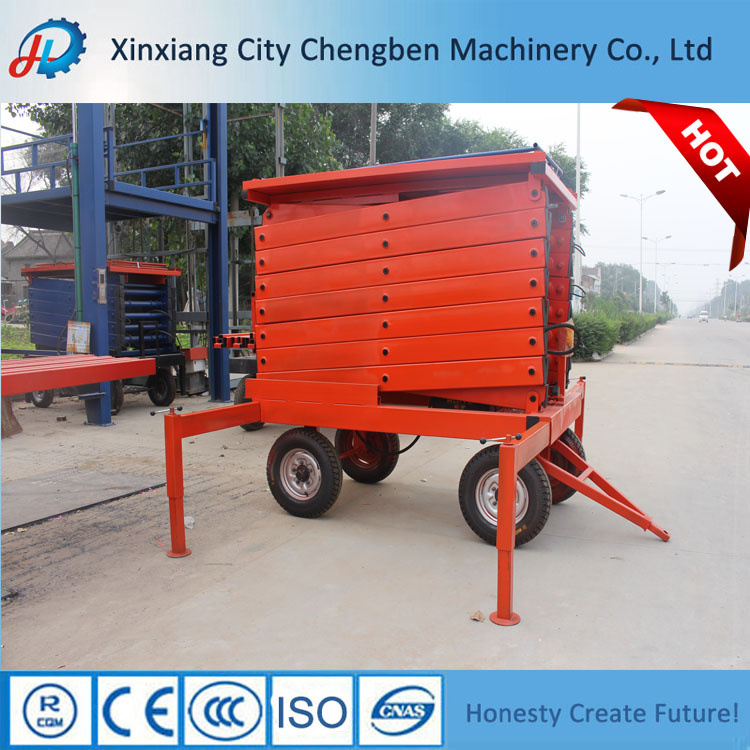

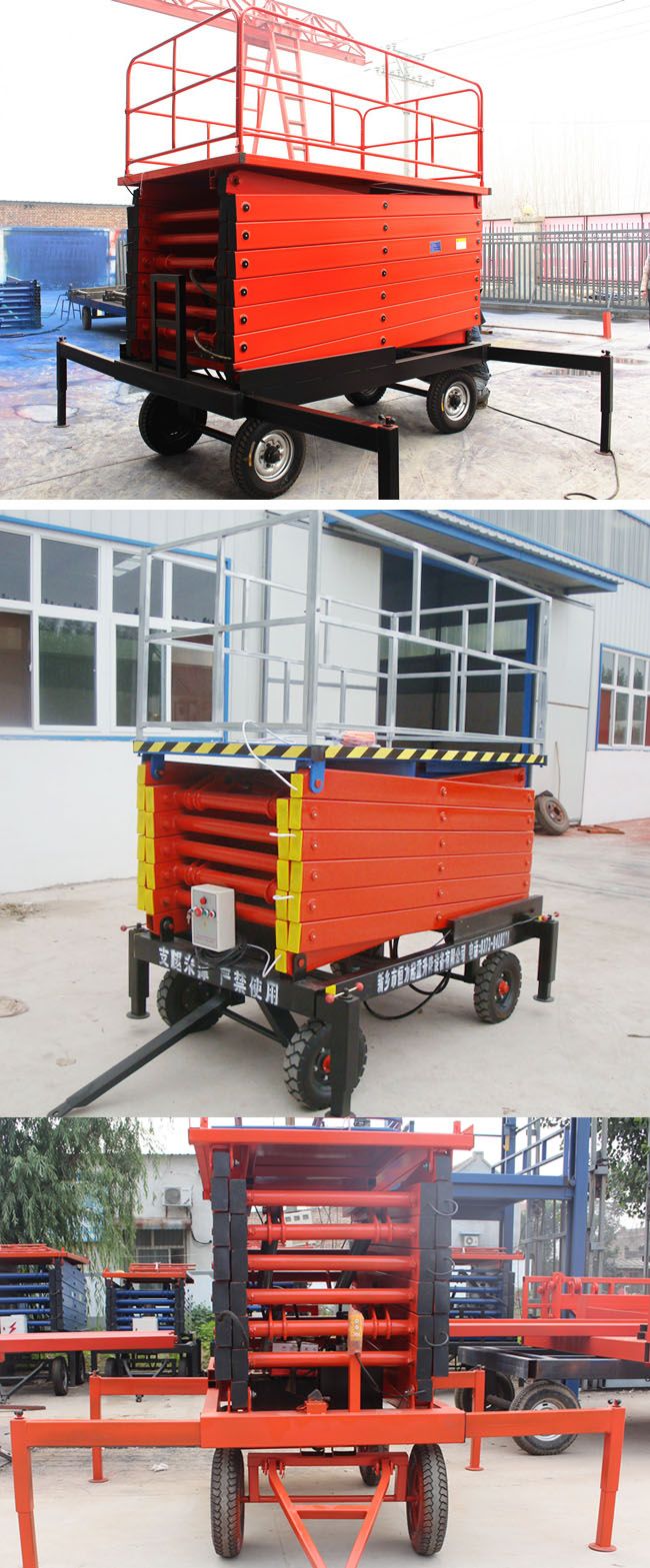

                            High quality hydraulic electric lift table
 Product introduction
1. Load capacity: 300-2000kg
2. Lifting height: 4-16m
3. Drive power: 4 pneumatic rubber tyres.
4. Applications: aerial installation, maintenance, clean at the construction sites, workshops, warehouse, station, hotel, airport, wharf, gas station and stadium etc.
5. Custom-made according to the requirement

The safety protection
1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency.
The following is only a reference. We can design and make products according to the buyer's requirement.
ModelLifting height
(M)
Loading capacity
(KG)
Table size
(L*W )(MM)
Total dimension
(L*W*H)(MM)
Power
(KW)
Weight
(KG)
SJY0.3-44300-20001750*11001800*1300*13503660
SJY0.3-66300-20001750*11001800*1300*13503750
SJY0.3-88300-20001750*11001800*1300*155031000
SJY0.3-1010300-10002000*13002700*1550*238031400
SJY0.5-1010500-20002000*13002050*1400*186031800
SJY0.3-1212300-5002000*13002550*1630*200032000
SJY0.3-1414300-10002400*15002550*1630*200032400
SJY0.3-1616300-10002700*15002770*1630*214032800

The main features
1.great loading capacity 2.flexible movement3.go up and down stably
-High working capacity, easily pushed around,most spacious platforms for several people to work on
-High strength steel structures,smoothly lifting up and droping down, easily operated,few faults.
-Moving method:4 wheel mible,it could be pnumatic rubber tyres,solid rubber tires
-Power sources: local power available at the working sites(110V,220V,380V,415V)
-Working heights: ranging from 4m,6m,8m,10m,12m,14m,16m
-Applications: It is widely used for the equipments installations and maintenance at the following places like construction sites workshops,warehouse,granary,bus/railway stations,hotels,airports,gas station and aerial pipeline

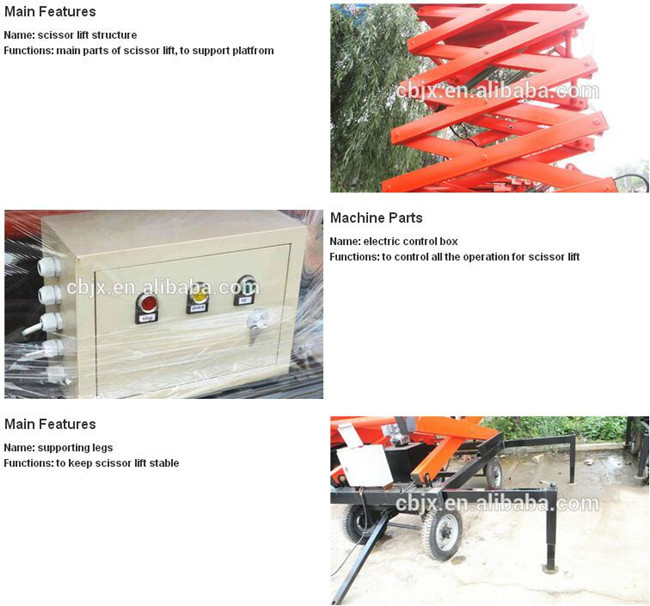

Humanized parts design
1. Ladder on chassis Humanized design, easy for operator to go up and down.
2. The support legscan level the whole lift, keep the lift stable when working.
3. Non-slip platform boardantiskid plastic board, increase friction for safety of worker.
4.Foldable guardrailscan reduce height of whole machine when enter small doors or hall
5.Controllerelectric controller switch at the work platform; electric control box
 on the ground. Easy for your controlling wherever you are.
6.Free partswill be delivered to customer with the machine.

Any question pls feel free to contact Ms. Julia at any time. Thanks!
Mobile: +86-15560236078
Office No.: +86 373 5895178
Web: www.crane-lifts.com / www.cn-cbjx.com
Welcome to consulting!
Q1:What is the warranty for the aerial work platforms?
A1: For the products,we have 1 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
Q2:How to Guarantee the qualities?
A2:All the export products are carefully examined for 3 times before shipping.
Q3:If qualities problems happen, what should you do?
A3:we have established a muture after-sales network, professional hydraulic engineers and electrical engineers will offer help 24 hours online.
Q4:Will you offer operation and maintenance traninging?
A4:Yes, for all our customers, we have prepared full operation and maintenance courses to help you operate the machine.

nxiang
City Chengben
Machinery Co,Ltd.
Henan Xinxiang Chengben Machinery Co.,Ltd is a professional manufacturer and trading company, specializing in all kinds of cranes which was founded in 1985. We serve our clients with professional skills, high responsibility, rigorous working attitude, cohesive teamwork and have ability to provide a complete set of advanced lifting projects.
Our company focuses more on innovation and development about products in the future and accumulates more rich experiences and support in production from our co-partners. Assimilating and seeking the most developed trends and advantages, we design and develop series of high, new and intelligent products. We have many advantages to develop faster than our competitors in the world.
We look forward to establishing business relationship with friends and partners from all over the world!
Xinxiang City Chengben Machinery Co., Ltd is a professional manufacturer and trading company, specializing in all kinds of transferring and lifting equipment which was founded in 1985. We serve our clients with professional skills, high responsibility, rigorous working attitude, cohesive teamwork and have ability to provide a complete set of advanced lifting projects. Our clients include manufacturing and process industries, shipyards, ports, construction factory and so on. Regardless of your transferring and lifting needs, our company is committed to provide you with lifting equipment and services that increase the effectiveness and add value to your business. Our company is having technology and design, which is a worldwide reputed company at domestic & overseas. Our company also called as the "Birth Place of Chinese Cranes".

Our company focuses more on innovation and development about products in the future and accumulates more rich experiences and support in production from our co-partners. Assimilating and seeking the most developed trends and advantages, we design and develop series of high, new and intelligent products. We have many advantages to develop faster than our competitors in the world.

Our products mainly includes material transfer cart, truck crane, lifting table, crane, and other spare part, etc. The product gets CE, SASO, SGS, ISO certificate and other 8 national patent, our products have been exported to more than 50 countries and regions, such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.

In order to make our company a famous, professional manufacturing, trading and service team in this field, we are independent and creative to make full use of high technology. We look forward to having good cooperation and communications with friends and partners from all over the world!
