| Prod Model: |
WD-9403D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission Size: |
90*90mm |
| Wavelength (UV Light): |
300nm |
| Power Of UV Light: |
8W |
| Light Transmittance: |
(230nm-400nm) ≥40%; |
| Power Source: |
AC 220V±22V ; Frequency: 50Hz±1Hz; |
| Dimensions(Lxwxh): |
360 X 250 X 325 (mm); |
| Net Weight:.: |
About 7.8 Kg |
Product Description
WD-9403A UV Viewing Cabinet
Descriptions:
WD9403A is a basic device for visualizing fluorescencestained gels. It is suitable for Lab of University or hospital, Scientific research organization. The lamphouse is white light transmission lamphouse that has a strongwhite light illumination. WD9403A can provide UV light with two different wavelength. Start speed of the lamps is quick and no stroboscopic lamps during the starting.
Features:
1 Dark chamber design;
2 Dark lab is not necessary;
3 Safety for the user;
4 Drawer-mode light boxes, convenient for use;
5 Strong and durable;
6 Offers 2 wavelength of UV light for different requirements;
7 Simple and easy to use.
Specifications:
1 The filter dimension of the white light (actual area): 230 × 190 (mm);
2 Window radiant flux density of UV light: ≥10 μ W /cm2
3 White light illumination ≥100lx (luks-o)
4 Wavelength (UV light): 254nm and 365nm;
5 Power of UV light:: 254nm: 28W, 365nm:28W;
6 The light transmission of UV glass: wavelength of UV (230nm-400nm) ≥40%;
7 Power source : ~ 220V±22V 50Hz±1Hz;
8 Continuous working time: ≥4 hours;
9 Dimensions(L X W X H): 490 X 360 X 430 (mm);
10 Net weight: about 20.00 kg.
Applications:
It is a instrument for providing white light and UV light, and for observing and taking the pictures of the electrophoresis results.
WD-9403B UV Apparatus
Descriptions:
WD9403B is a basic device for visualizing fluorescencestained gels. It is suitable for Lab of University or hospital, Scientific research organization. The lamphouse is white light transmission lamphouse that has a strongwhite light illumination. WD9403B can provide UV light with two different wavelength. Start speed of the lamps is quick and no stroboscopic lamps during the starting.
Features:
1 This model outfits the protective glass sheating to block the passage of harmful UV rays;
2 No darkroom, and easy for cutting the gel;
3 Strong and durable;
4 Offers 3 wavelength of UV light for different requirements;
5 Simple and easy to use.
Specifications:
1 The filter dimension of the UV light (actual area): 192 × 148 (mm);
2 Wavelength (UV light): ( Reflex ) 254nm,365nm and (Transmission) 300nm;
3 Power of UV light:: 254nm: 28W, 365nm:28W, 300nm : 8W;
4 Power source : ~ 220V±22V 50Hz±1Hz;
5 Continuous working time: ≥4 hours;
6 Dimensions(L X W X H): 440 X 340 X 120 (mm);
7 Net weight: about 20.00 kg.
Applications:
It is a instrument for providing UV light, and mainly for observing and taking the pictures of the nuclein acid electrophoresis results.
WD-9403C UV Viewing Cabinet
Descriptions:
WD9403C is a basic device for visualizing fluorescencestained gels. It is suitable for Lab of University or hospital, Scientific research organization. The lamphouse is UV light transmission lamphouse, the wavelength is 300nm. WD9403C can provide UV light with three different wavelength. Start speed of the lamps is quick and no stroboscopic lamps during the starting.
Features:
1 Compact, versatile and efficient;
2 Dark chamber design;
3 Dark lab is not necessary;
4 Safety for the user;
5 Drawer-mode light boxes, convenient for use;
6 Strong and durable;
7 Offers 3 wavelength of UV light for different requirements;
8 Simple and easy to use.
Specifications:
1 The filter dimension of the UV light (actual area): 200 × 150 (mm);
2 Window radiant flux density of UV light: ≥10 μ W /cm2
3 Wavelength (UV light): (Reflex) 254nm,365nm and (Transmission) 300nm;
4 Power of UV light:: 254nm: 28W, 365nm:28W, 300nm: 8W;
5 The light transmission of UV glass: wavelength of UV (230nm-400nm) ≥40%;
6 Power source : ~ 220V±22V 50Hz±1Hz;
7 Continuous working time: ≥4 hours;
8 Dimensions(L X W X H): 490 X 360 X 430 (mm);
9 Net weight: about 20 kg.
Applications:
It is a instrument for providing UV light, and for observing and taking the pictures of the electrophoresis results.

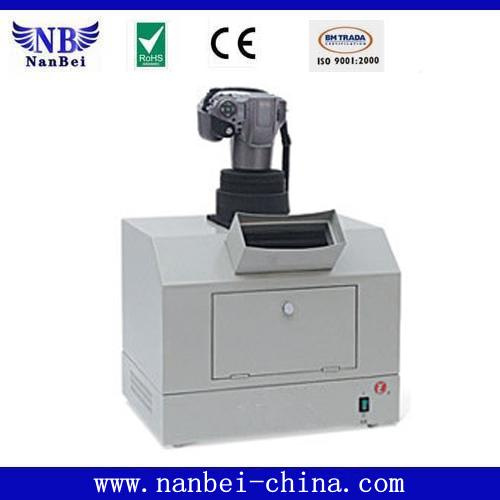

WD-9403D UV Viewing Cabinet
Features:
1 Compact, versatile and efficient;
2 Choose from 254nm,300nm or 365nm wavelength;
3 Drawer-mode light box, convenient to use;
4 Strong and durable;
5 Has dark room and can be used in the daylight room;
6 You can take the pictures with digital camera.
Specifications:
| 1 Transmission size: | 90 × 90 (mm); |
| 2 Wavelength (UV light): | 300 (nm); |
| 3 Power of UV light:: | 8W; |
| 4 Light transmittance: | Light transmittance of wavelength (230nm-400nm) ≥40%; |
| 5 Power source : | Voltage of power source: AC 220V±22V ; Frequency: 50Hz±1Hz; |
| 6 Dimensions(LXWXH): | 360 X 250 X 325 (mm); |
| 7 Net weight:. | about 7.8 kg |
Application:
For observing and taking the pictures of Gel of PCR electrophoresis experiment and DNA electrophoresis of small area gel.
WD-9403E Handheld UV Lamp
Descriptions:
WD9403E is a basic device for visualizing fluorescencestained gels.This model adopted the plastics injection moulding case that make the structure safer and corrosion resistance.
It is suitable for observing the running sample of nucleic acid.
Features:
1 Small and compact unit;
2 Lightweight durable plastic lamps;
3 Portable;
4 Chosing 254nm or 365nm UV light;
5 Simple and easy to use.
Specifications:
1 Filter Size:177 × 48 (mm);
2 Wavelength: 254nm and 365nm;
3 Power of UV light: 254nm: 8W, 365nm:8W;
4 Light transmittance: Light transmittance of wavelength (230nm-400nm) ≥40%;
5 Power source : Voltage of power source: AC 220V±22V ; Frequency: 50Hz±1Hz;
6 Dimensions(LXWXH): 320 X 54 X 90 (mm);
7 Net weight: 0.5 kg.
Applications:
For viewing electrophoresis sample of nucleic acid during the running or fluorescent dye.
WD-9403F UV Viewing Cabinet
WD-9403F basic parameters:
Dimensions (L × W × H): 456 × 430 × 426mm
Reflecting UV light source wavelength: 254nm, 365nm
UV reflector lamp power: 28W
Transmits ultraviolet light source wavelength: 300nm
Transmission of UV lamp power: 8W
Transmission area: 200 × 200mm
UV glass transmittance: wavelength of 230nm ~ 400nm UV light transmittance greater than 40%
The visible light transmittance area: 200 × 200mm
Visible light illumination: more than 100lx
Window irradiance at each wavelength UV light source should not be less than 10μW / cm2
WD-9403F Properties and Uses:
Black-box, no darkroom, all-weather use;
With ultraviolet light, visible light transmittance (drawer boxes interchangeable, easy to use, prevent pollution) and UV reflection;
With inside lighting (camera switch interface, UV filter is optional);
Mainly used for nucleic acid, protein electrophoresis, photography.
