Zhengzhou Nanbei Instrument Equipment Co., Ltd. >> Industrial Chemical Weak Corrosive Liquid Safety Cabinet with Blue

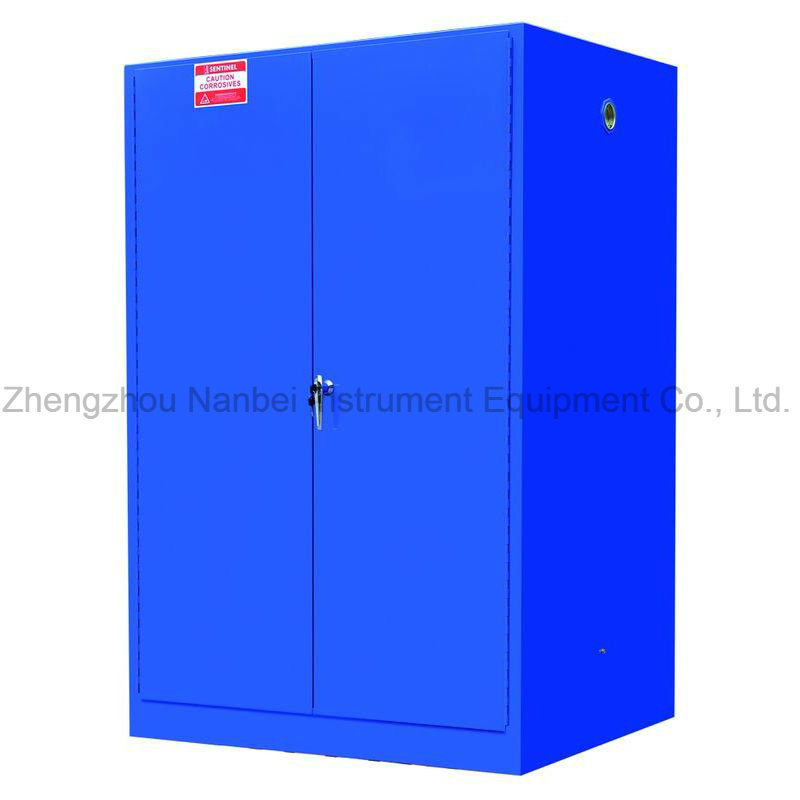

Industrial Chemical Weak Corrosive Liquid Safety Cabinet with Blue

Industrial Chemical Weak Corrosive Liquid Safety Cabinet with Blue
Price: US $ 862-1569set
Min Order: 1set
Pay Type: L/C,T/T,D/P,Western Union,Money Gram
Prod Model: SC9000B
Packing Size: 1820(H)*1150(W)*920(D)mm
N.W.: 190kg
G.W.: 210kg
Capacity: 90 Gallons or 340 Liter
No. Of Shelves: 2 Doors
Material: Cold Rolled Steel Plate

Product Description

Industrial Chemical Weak Corrosive Liquid Safety Cabinet with Blue

Product Parameters
SC3000B
Dimension:
1120(H)*1090(W)*460(D)mm
44.09″(H)*42.91″(W)*18.11″(D)
Inner size:
1020(H)*1010(W)*375(D)mm
40.16″(H)*39.76″(W)*14.76″(D)
Packing size:
1280(H)*1150(W)*540(D)mm
50.39″(H)*45.28″(W)*21.26″(D)
N.W.: 100KG
G.W.: 120KG
Capacity: 30 gallons or 114 liter
No. of shelves: 1
Door type: Dual/Manual
SC4500B
Dimension:
1650(H)*1090(W)*460(D)mm
64.96″(H)*42.91″(W)*18.11″(D)
Inner size:
1550(H)*1010(W)*375(D)mm
61.02″(H)*39.76″(W)*14.76″(D)
Packing size:
1820(H)*1150(W)*540(D)mm
71.65″(H)*45.28″(W)*21.26″(D)
N.W.: 138KG
G.W.: 158KG
Capacity: 45 gallons or 170 liter
No. of shelves: 2
Door type: Dual/Manual
SC6000B
Dimension:
1650(H)*860(W)*860(D)mm
64.96″(H)*33.86″(W)*33.86″(D)
Inner size:
1550(H)*775(W)*775(D)mm
61.02″(H)*30.51″(W)*30.51″(D)
Packing size:
1820(H)*920(W)*920(D)mm
71.65″(H)*36.22″(W)*36.22″(D)
N.W.: 165KG
G.W.: 185KG
Capacity: 60 gallons or 227 liter
No. of shelves: 2
Door type: Dual/Manual
SC9000B
Dimension:
1650(H)*1090(W)*860(D)mm
64.96″(H)*42.91″(W)*33.86″(D)
Inner size:
1550(H)*1010(W)*775(D)mm
61.02″(H)*39.76″(W)*30.51″(D)
Packing size:
1820(H)*1150(W)*920(D)mm
71.65″(H)*45.28″(W)*36.22″(D)
N.W.: 190KG
G.W.: 210KG
Capacity: 90 gallons or 340 liter
No. of shelves: 2
Door type: Dual/Manual


  The high-tech SENTINEL safety cabinet complys with OSHA standard, made in accordance with the requirement of NFPA clause No. 30 for storage of flammable and hazardous chemical material.

1.SENTINEL safety cabinet is designed with double-deck steel plate structure, having a gap of 40mm to maximize the fireproof capability.
2.High quality cold roll steel plate is used to intensify the shield of cabinet for a better fireproof function.
3.The leakproof liquid cell at the bottom of cabinet with the height of 50mm could greatly prevent the chemical liquid from leakout.
4.With special corrosion-proof and leakproof galvanized shelf. The maximum load can up to 400lbs(180kg).
5.Durable and non-lead epoxy resin paint is painted both sides to maximize the anti-chemical ability.
6.Three-language for the clear and corrosion-proof label sticked on the cabinet.
7.Dual vents with built-in flash arresters strategically installed at both sides of the cabinet.
8.With 4 adjustable horizontal supports to guarantee the stability of the cabinet.
9.Construction of cabinet in according to the requirement of OSHA. Cabinet also provided with earthing socket for easy earthing installation.

Note:Blue SENTINEL cabinet is only good for storage of weak alkali/acid chemical material.

Function:
Yellow for flammable liquids
Red for combustible liquids
Blue for Corrosive

Packing and Shipping
Wooden Case


Company Show

Factory Show

Certification

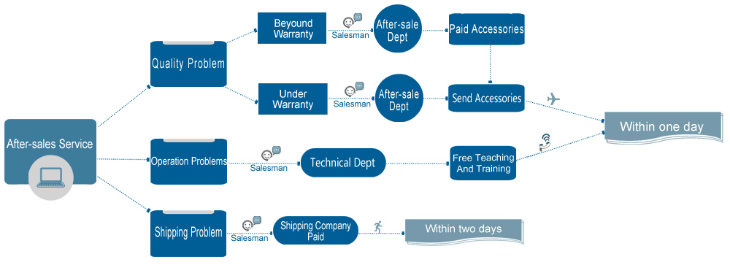

Warranty And After-sale Service

♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥

Contact us




ZHENGZHOU NANBEI INSTRUMENT EQUIPMENT Co., Ltd is affiliated to NANBEI INTERNATIONAL GROUP LIMITED. It is the famous integrated equipment supplier in Chinese equipment field. After years of development, it has become a research, development, production and sales as one of the independent legal personality persified technology group. The headquartered is in ZHENGZHOU (International Air Port Area), China. And it also has the office in Beijing, Shanghai, SHENZHEN, and HONGKANG China.

The main products: Lab instruments, life science equipment, ice machines, electrochemical analysis instruments, optical instruments, physical testing instruments and equipment, environment equipment/flow meter, industry-specific equipment, drug testing equipment, seeds, equipments, agriculture and food equipment, petroleum equipment, coal equipment, surveying instruments, construction equipment, road equipment, geological equipment, reagents supplies, weather instruments, medical equipment, environmental equipment, mining machinery, boilers and other products. Persified business model, professional technology, high-tech equipment, in the course of business with an excellent work ethic, excellent business reputation, high quality products and perfect after-sales service has won the trust and support. We are trying to set up the world' S major regions and service agents at the company is being in the Asia Pacific region Equipment Industry-leading brands.

The involved products of our company are throughout the universities, research institutes, factories and enterprises, chemical and pharmaceutical, medical, inspection, agriculture, food, super, metallurgical mining, construction, petroleum, roads and bridges and other industries, products with superior performance. Based on fast attentive service, great value, exports more than 120 countries and regions, out products are alike by domestic and foreign merchants. In the production process, we strictly enforce product manufacturing requirements. And we have established a complete quality management system, so the product quality has a reliable guarantee.

We honestly recruit the majority of overseas agents and dealers, who are interested please contact us!
