| Prod Model: |
WL6404 |
| Color: |
Ral7035,Ral9004 |
| Static Loading: |
60kgs |
| Mounting Rails: |
4PC Zinc Plate Material |
| Cable Entry: |
1 on Top Cover,1 on Bottom,1 on The Back Panel |
| Capacity Option: |

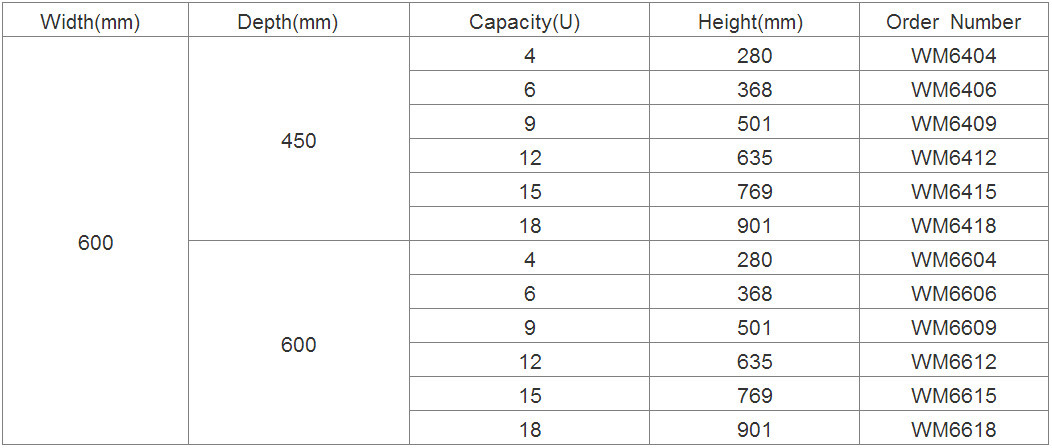

4u,6u,9u,12u,15u,18u |
| Type: |
Network Cabinet |
| Usage: |
Electronic Monitoring System |
| Installation: |
Wall-Mounted Cabinet |
| Certification: |
RoHS |
| Condition: |
New |
| Fan Number: |
Optional |
| Capacity: |
4u |

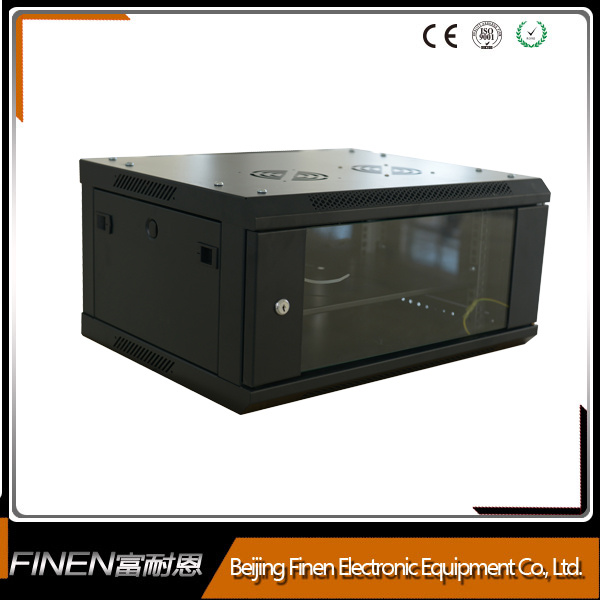

Product Description
Wall mount 4u network data cabinet 1). 25 year's production experience.
2). Certificate: ISO9001.
3). Quick delivery(7-10 days)
4). High quality & reasonable price
Product Information
1. Feature1) Loading Capacity: 60kg
2) Mounting profile: 2.0mm, others: 1.00mm

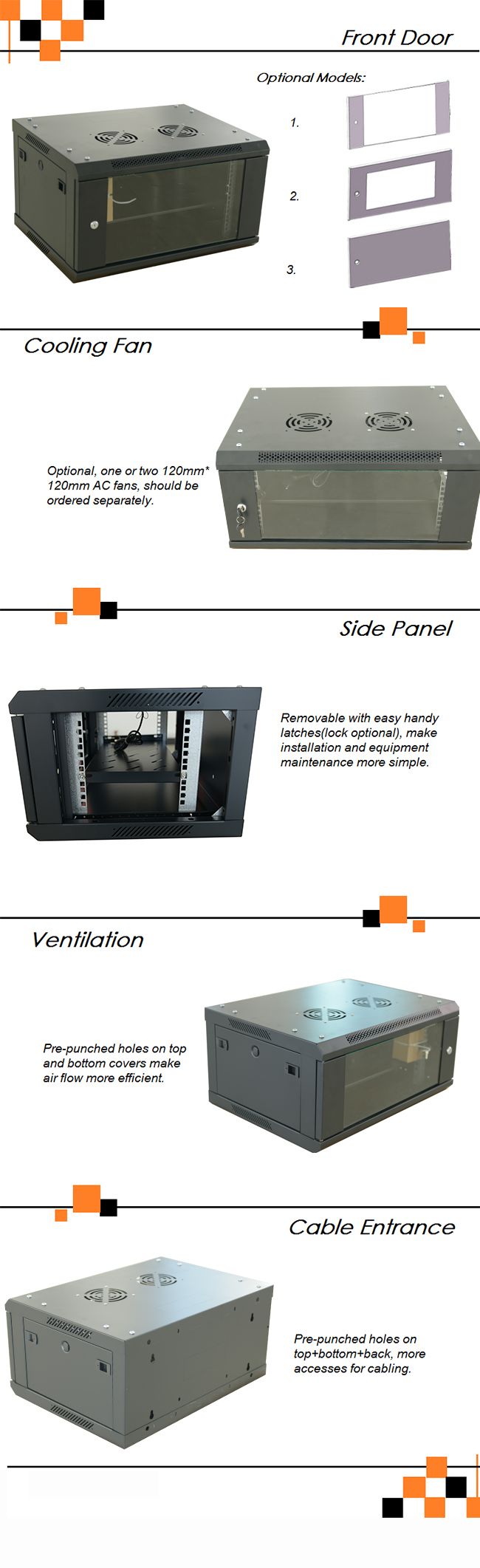

3) Reversible, front tempered glass door
4) Toughened glass on front door:5.00mm
5) Side Panel: Removable Side Panel, Easy To Install And Miantain (Lock Optional)
6) Revolving front locks
7) Vented front and sides for cooling
8) Pre-punched provision for 2 fan (fan not included)
9) Pre-punched holes for cabling(top cover,bottom panel and back panel)
2. Standard: Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92,; ETSI Standard
3. Main Material: SPCC Cold rolled steel
4. Surface Finish: Degreasing, Pickling, Phosphating, Powder coating.
5. Degree of Protection: IP20
Nework Cabinet ApplicationsRack cabinets for Information Technology and telecommunication appliances use:
-Small, Medium and Large Servers
-DVR, Security Equipment and Routers
-Patch Panels and Switches
-Telephone Systems and PABX
-Network and Communications Equipment
-UPS Equipment
-Other Rack Mount Equipment
Who are we?1). A manufacturer of server rack and network cabinet with 25 years experience
2). 53 skilled engineer and more than 400 workers
3). 50000 square meters workshop
4). Customizing services, OEM services, etc.
Other choice
AS series cabinet- Glass front door,vented flat mesh rear door
A3 series cabinet- vented flat mesh front and rear door
WL series cabinet- wall mounted cabinet(4U 6U, 9U, 12U,15u,18U)
All you need to do - take it out of the box and start installing your hardware.
Designed and made from high quality steel, this Rack Cabinet has all the features you need to get your network up and running - FAST! ! !
All Rack Cabinets we manufacture, are built around universal 19" Rack-mount standards - designed to take Rack Mount equipment from other Vendors
